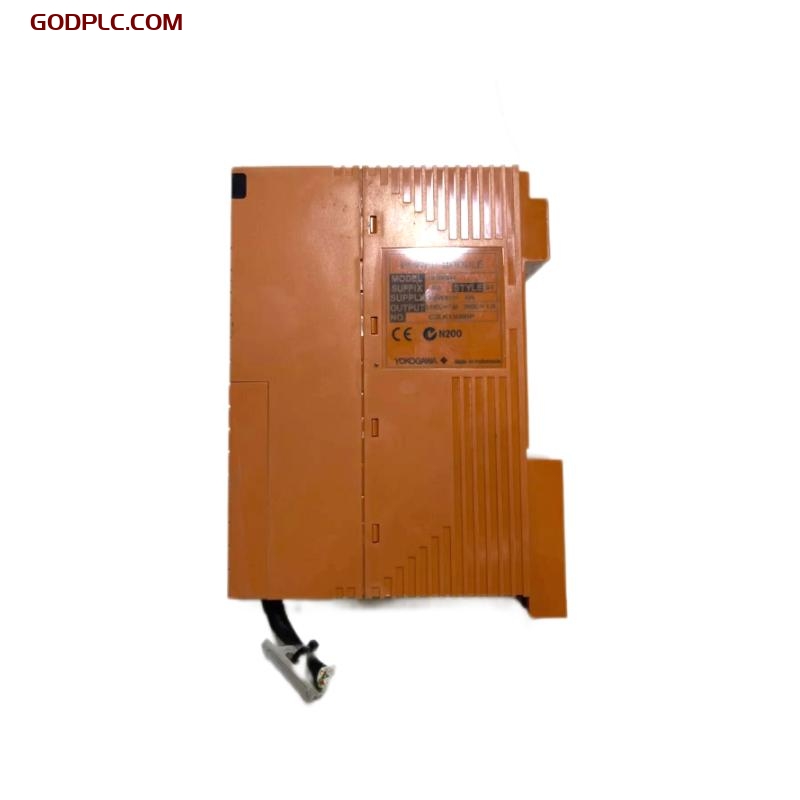

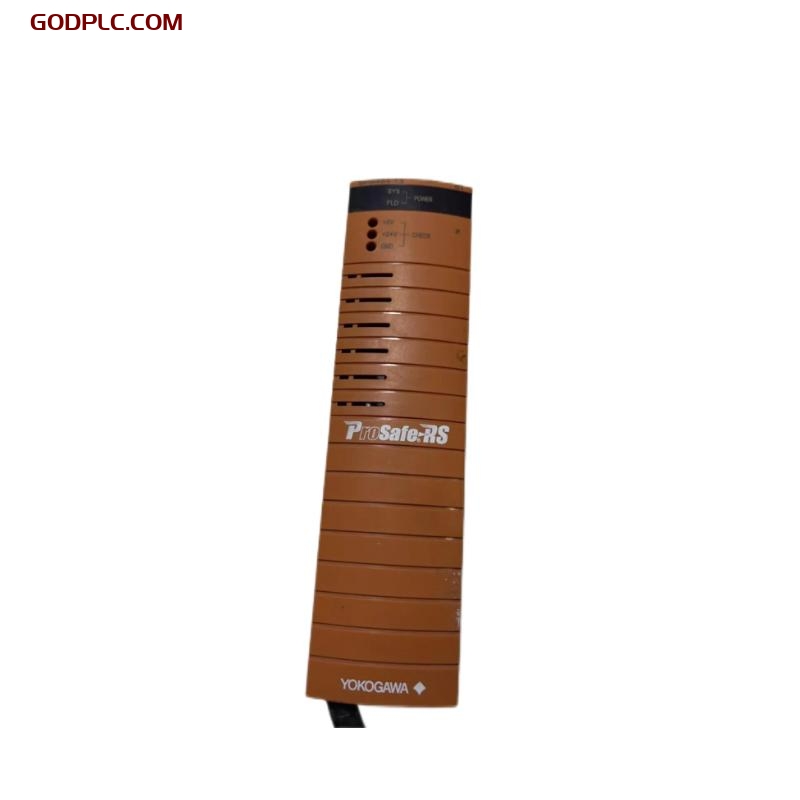

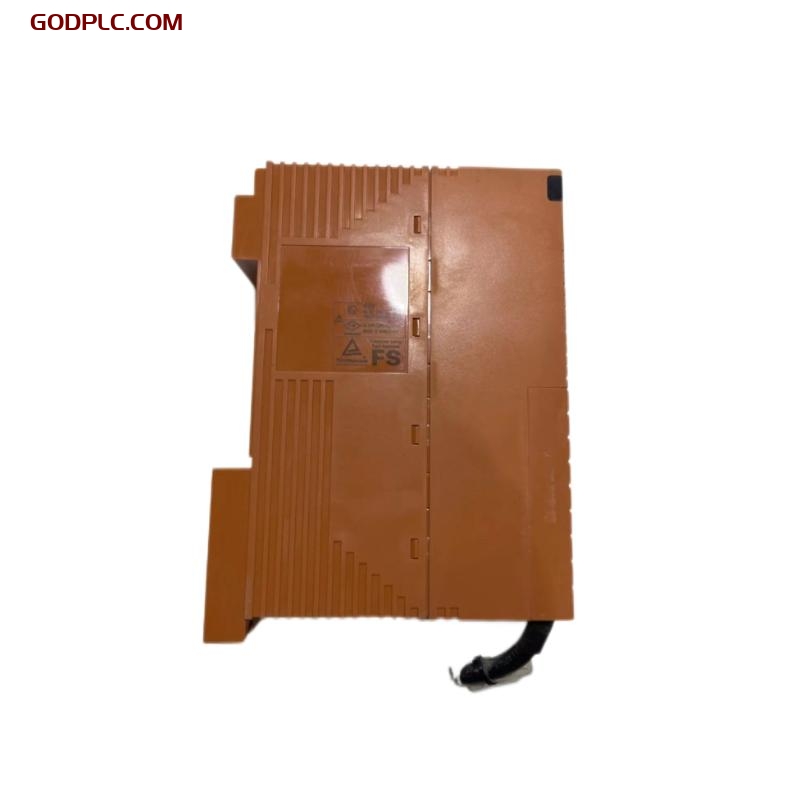

Yokogawa SPW484-13 Power Module Customer Favorite
Yokogawa SPW484-13 Power Supply Module: Product Overview and Specifications
The Yokogawa SPW484-13 is a high-performance, industrial-grade power supply module designed to meet the rigorous demands of industrial control systems and automation environments. This power supply is part of Yokogawa’s extensive product range aimed at providing reliable, efficient, and durable power solutions for a variety of industrial applications, including process control, automation, and SCADA systems.
Built for operational reliability and versatility, the SPW484-13 delivers stable, high-efficiency power output to control equipment and process machinery in demanding industrial settings. The power supply is designed for maximum uptime and minimal maintenance, ensuring that critical systems remain operational even in harsh conditions.
Key Features:
- High Efficiency: Designed with energy-saving features, the SPW484-13 operates with over 90% efficiency, reducing power consumption and contributing to overall energy savings.
- Robust Protection Features: Includes overcurrent, short-circuit, and overload protection to safeguard both the module and connected equipment from damage due to power surges and faults.
- Wide Input Voltage Range: The module is compatible with a broad range of input voltages, from 85V AC to 264V AC, making it suitable for use in varying industrial environments where power conditions can fluctuate.
- Compact and Rugged Design: Its compact size allows for installation in space-constrained environments, while its rugged design ensures long-term reliability even in harsh industrial environments.
- High Power Output: The SPW484-13 can supply up to 480W of continuous power, supporting the needs of a variety of industrial control and automation systems.
Applications:
- Industrial Control Systems (ICS)
- Automation and Process Control
- SCADA (Supervisory Control and Data Acquisition) Systems
- Programmable Logic Controllers (PLC)
- Power Distribution Systems for Industrial Equipment
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | SPW484-13 |
| Input Voltage | 85-264 V AC, 47-63 Hz |
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Output Power | 480 W |
| Efficiency | > 90% |
| Ripple & Noise | < 150 mV (p-p) |
| Overload Protection | Yes (Automatic recovery) |
| Short Circuit Protection | Yes |
| Dimensions | 150 mm (W) x 120 mm (H) x 50 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Humidity | 20% to 90% RH (Non-condensing) |
| Cooling | Natural Convection (Fanless) |
| Safety Certifications | UL, CE, RoHS, EN 60950-1, EN 61204-3 |
Additional Features:
- Fanless Operation: The SPW484-13 features a fanless design, ensuring silent operation, reducing the risk of mechanical failure due to fan wear, and lowering the overall maintenance needs.
- Wide Temperature Range: This power supply module is capable of operating in a wide temperature range from -10°C to +60°C, making it suitable for environments with temperature fluctuations.
- Reliable Power Delivery: The SPW484-13 provides stable and consistent power delivery, ensuring that your control systems and equipment receive the necessary power without interruptions.
- Global Safety Standards: The power supply complies with global safety standards, including UL and CE certifications, making it suitable for worldwide applications in different industrial environments.
Recommendations for Related or Similar Models:
| Model | Output Voltage | Output Current | Power Output | Dimensions (W x H x D) | Weight | Safety Certifications |
|---|---|---|---|---|---|---|
| SPW484-12 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW483-13 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW485-13 | 48 V DC | 10 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW483-12 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW484-13 S1 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW480-13 | 24 V DC | 10 A | 240 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW486-13 | 12 V DC | 40 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW487-13 | 5 V DC | 96 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW484-13 S2 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW488-13 | 24 V DC | 25 A | 600 W | 150 x 150 x 220 mm | 2.5 kg | UL, CE, RoHS |
Yokogawa SPW484-13 is in stock. Contact us for quick quotes and competitive prices.
