Yokogawa SPW481-13 Power Module Exclusive Discount

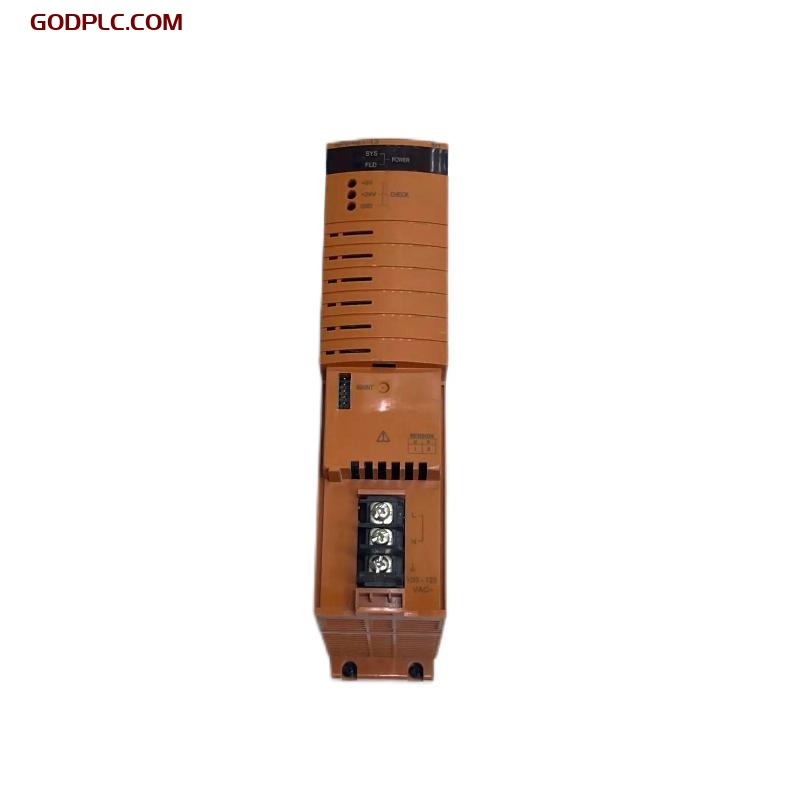

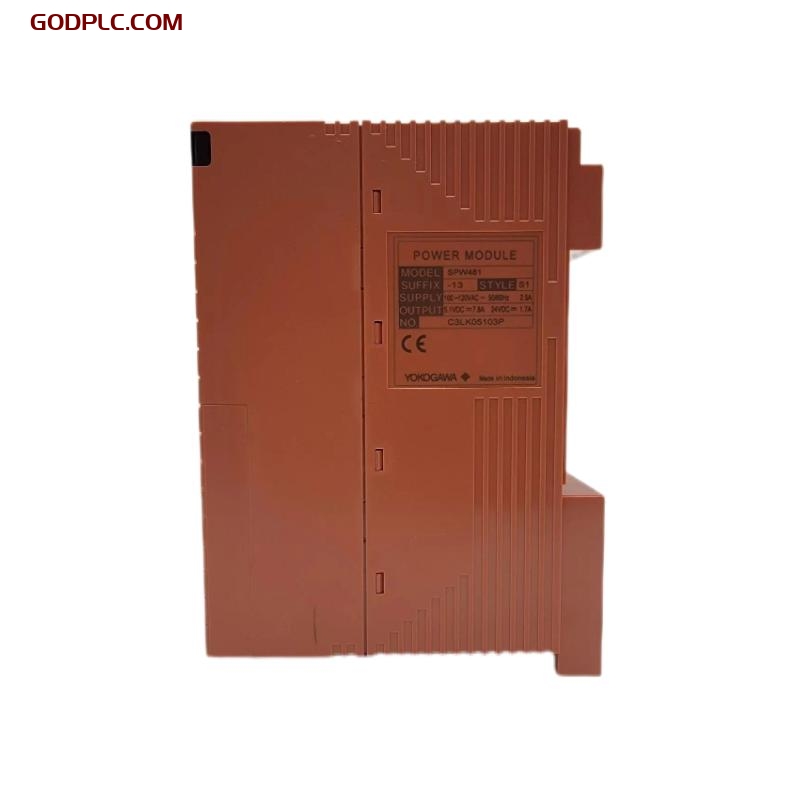

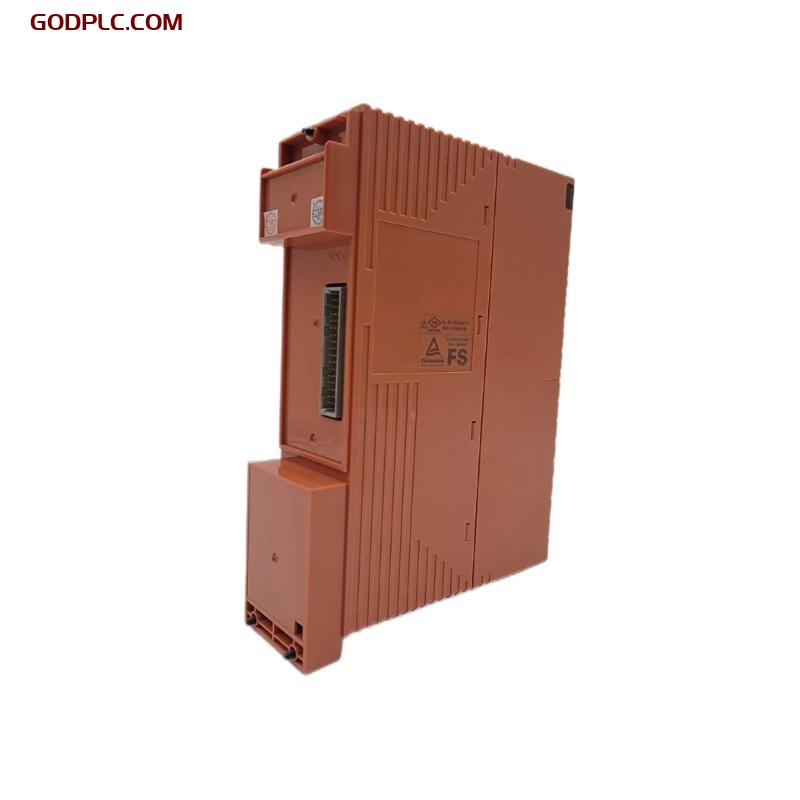

Yokogawa SPW481-13 Power Supply Module: Product Overview and Specifications
The Yokogawa SPW481-13 is a reliable, high-performance power supply module designed to meet the demands of industrial automation and control systems. With a focus on efficiency, durability, and ease of integration, this power supply is ideal for powering critical equipment in diverse industrial applications. Manufactured by Yokogawa, a global leader in process automation and control solutions, the SPW481-13 is engineered to provide stable and continuous power to support a wide range of industrial processes.
Key Features:
- High Efficiency: The SPW481-13 is designed to operate with high efficiency, ensuring minimal energy consumption while providing reliable power output.
- Compact and Robust Design: Despite its compact size, the SPW481-13 can deliver up to 480W of output power, making it suitable for demanding industrial applications.
- Wide Input Voltage Range: The power supply module is designed to accept an input voltage range of 85V AC to 264V AC, making it adaptable to different power conditions in various regions.
- Output Stability: The module provides stable 24V DC output, making it ideal for powering control systems, programmable logic controllers (PLCs), and other industrial equipment.
- Advanced Protection Features: Equipped with short-circuit, overload, and overcurrent protection, the SPW481-13 safeguards both the module and connected equipment from potential damage during fault conditions.
- Environmentally Friendly: The SPW481-13 complies with RoHS regulations, ensuring it is free from hazardous substances and suitable for use in environmentally-conscious applications.
- Easy Installation: The power supply is designed for easy integration into existing systems, with a compact form factor that allows for simple mounting and wiring.
Applications:
- Industrial Control Systems
- Process Automation
- Programmable Logic Controllers (PLCs)
- Equipment for Critical Operations
- Factory Automation and Control
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | SPW481-13 |
| Input Voltage | 85V AC – 264V AC, 47-63 Hz |
| Output Voltage | 24 V DC |
| Output Current | 20 A |
| Output Power | 480 W |
| Efficiency | > 90% |
| Ripple & Noise | < 150 mV (p-p) |
| Overload Protection | Yes (Automatic recovery) |
| Short Circuit Protection | Yes |
| Dimensions | 150 mm (W) x 120 mm (H) x 50 mm (D) |
| Weight | 1.2 kg |
| Operating Temperature | -10°C to +60°C |
| Storage Temperature | -20°C to +85°C |
| Humidity | 20% to 90% RH (Non-condensing) |
| Cooling | Natural Convection (Fanless) |
| Safety Certifications | UL, CE, RoHS, EN 60950-1, EN 61204-3 |
Additional Features:
- Fanless Operation: The SPW481-13 operates without the need for a fan, contributing to silent operation and reducing the potential for mechanical failure due to fan wear.
- Wide Operating Temperature Range: The module is designed to work in a wide range of temperatures, from -10°C to +60°C, making it suitable for use in harsh industrial environments.
- High Reliability: The SPW481-13 is built for longevity and high reliability, offering continuous power supply with minimal maintenance and downtime.
- Global Safety Standards: Compliant with international safety standards, including UL and CE, the module is suitable for use in regions with strict safety regulations.
- Compact and Efficient Design: The SPW481-13 is designed to be space-efficient, ensuring it can be installed in applications with limited available space while providing high output power.
Why Choose Yokogawa SPW481-13?
The Yokogawa SPW481-13 power supply module is an excellent choice for industries requiring reliable and efficient power for their control and automation systems. Its high efficiency, advanced protection features, and compact design make it ideal for a wide range of applications, from small-scale operations to large industrial processes. With a focus on long-term reliability and minimal downtime, the SPW481-13 is engineered to provide continuous, stable power to ensure the smooth operation of critical industrial systems.
Recommendations for Related or Similar Models:
| Model | Output Voltage | Output Current | Power Output | Dimensions (W x H x D) | Weight | Safety Certifications |
|---|---|---|---|---|---|---|
| SPW482-13 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW483-13 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW484-13 | 24 V DC | 20 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW485-13 | 48 V DC | 10 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW486-13 | 12 V DC | 40 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW487-13 | 5 V DC | 96 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW488-13 | 24 V DC | 25 A | 600 W | 150 x 150 x 220 mm | 2.5 kg | UL, CE, RoHS |
| SPW480-13 | 24 V DC | 10 A | 240 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
| SPW489-13 | 24 V DC | 30 A | 720 W | 150 x 150 x 220 mm | 2.5 kg | UL, CE, RoHS |
| SPW490-13 | 48 V DC | 10 A | 480 W | 125 x 120 x 200 mm | 2.0 kg | UL, CE, RoHS |
Yokogawa SPW481-13 is in stock. Contact us for quick quotes and competitive prices.
