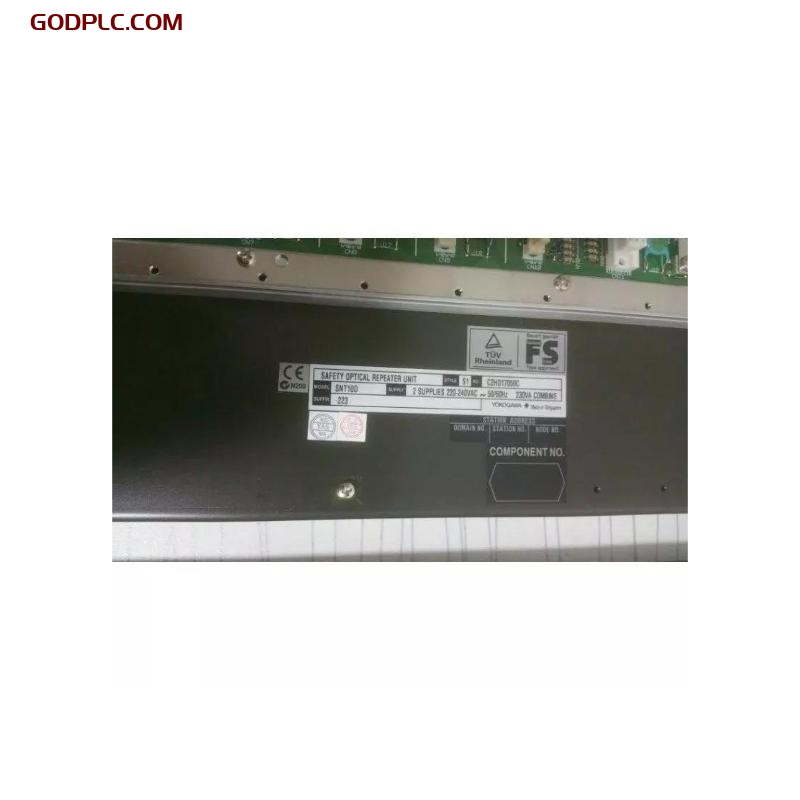

Yokogawa SNT10D Optical Bus Repeater Module Unit: Product Overview and Specifications

The Yokogawa SNT10D is a high-performance optical bus repeater module designed to extend communication distances within industrial automation systems. It serves as a crucial component in enhancing signal reliability, ensuring stable communication across long distances while maintaining the integrity of the data in environments prone to electromagnetic interference (EMI). The SNT10D operates within Yokogawa’s ESB (Extended Serial Bus) system, providing a robust solution for high-availability industrial networks.

This module is tailored to meet the growing demand for reliable long-distance communication in diverse applications, including process control, automation, remote monitoring, and industrial networking. By using optical fiber technology, it ensures superior performance compared to traditional copper-based systems, particularly in environments where high noise levels or signal degradation may pose a challenge.

Key Features:

• Long-Distance Communication: The SNT10D is optimized to extend the reach of ESB networks by repeating signals over long distances. It ensures seamless communication between devices, even in large facilities or remote industrial locations.

• Optical Fiber Technology: Utilizing optical fiber for communication, this module offers enhanced signal integrity and immunity to electromagnetic and radio-frequency interference. This makes it ideal for use in environments where electrical noise is prevalent, such as industrial plants, power stations, and large-scale manufacturing facilities.

• High Reliability: The SNT10D is designed for high reliability in harsh industrial environments. It ensures continuous operation of the control system and minimizes downtime by amplifying and retransmitting signals with low loss, preserving the integrity of the data transmission.

• Compact and Robust Design: Despite its high performance, the SNT10D features a compact and robust design that fits easily into existing industrial control systems. The design ensures that the module can handle the rigorous demands of industrial environments, including vibrations, temperature variations, and other challenging conditions.

• Redundancy Support: For critical applications, the SNT10D offers redundancy support, allowing for the continuous operation of the communication network even if one unit fails. This feature is vital for maintaining the safety and security of industrial processes.

• Easy Installation and Integration: The module is designed for ease of installation and can be easily integrated into existing systems. Its modular design allows for scalability and flexibility in system configuration.

• Low Power Consumption: With a power consumption of just 20 W, the SNT10D is energy-efficient, making it a cost-effective solution for continuous operation in industrial settings.

• Diagnostics and Monitoring: The SNT10D includes advanced diagnostic and monitoring tools that enable users to detect faults and monitor the health of the optical fiber communication link in real-time. This helps to reduce maintenance efforts and improve system uptime.

• Versatile Applications: The SNT10D is ideal for use in a wide range of industrial applications, including process control, automation systems, power generation, chemical plants, and large-scale manufacturing operations.

Technical Specifications:

Applications:

The Yokogawa SNT10D optical bus repeater module is used in a variety of industrial sectors requiring long-distance communication, reliable data transmission, and high availability. Some of the typical applications include:

• Process Control Systems: Ensuring continuous, reliable communication in environments where precise control of processes is critical.
• Power Generation: Facilitating long-distance communication between remote control units and central monitoring systems in power plants.
• Automation Systems: Supporting industrial automation networks in large factories and facilities, ensuring uninterrupted data flow.
• Remote Monitoring: Enabling communication over vast distances for remote monitoring of industrial assets such as pipelines, offshore platforms, and substations.
• Manufacturing: Supporting the integration of manufacturing systems across large facilities, ensuring smooth operation in complex production environments.
