Yokogawa AAI543-H50 Analog Output Module Exclusive Discount

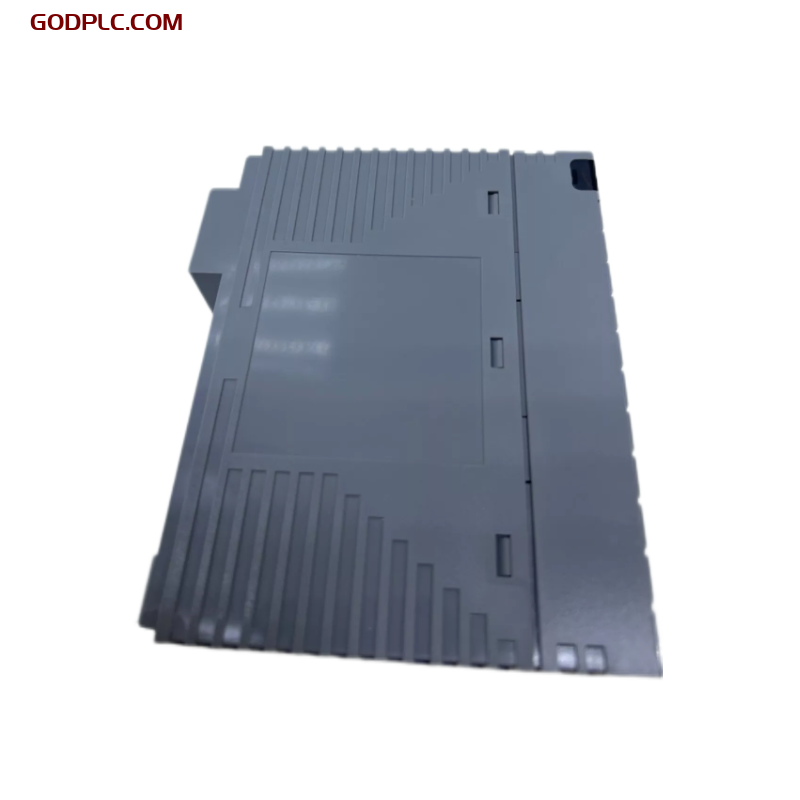

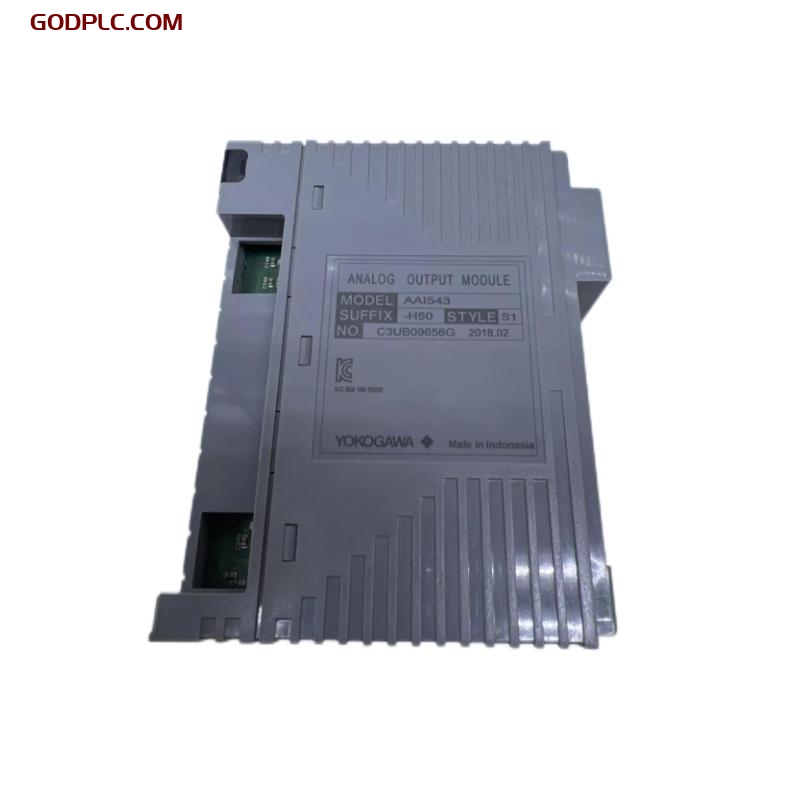

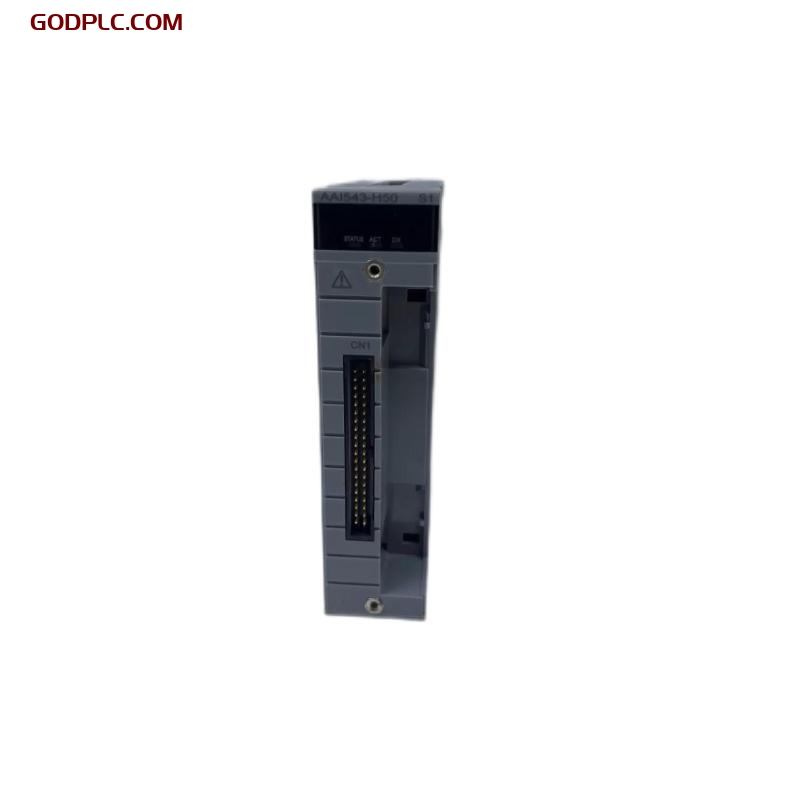

Yokogawa AAI543-H50 Analog Output Module
Product Overview
The Yokogawa AAI543-H50 is a high-performance analog output module designed for industrial process automation applications. This module is part of the Yokogawa CENTUM VP and ProSafe-RS series, ensuring reliability and precision in control system environments. The AAI543-H50 is engineered to provide high accuracy, stability, and fast response times, making it suitable for various demanding industrial processes such as chemical, oil and gas, and power generation applications.
The AAI543-H50 module converts digital signals into precise analog output signals, ensuring smooth control over connected field devices such as actuators, valves, and other analog-driven components. Its robust design, combined with Yokogawa’s industry-leading technology, ensures high durability, operational efficiency, and minimal maintenance requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AAI543-H50 |
| Type | Analog Output Module |
| Number of Channels | 8 Channels |
| Output Signal | 4–20 mA DC |
| Resolution | 12-bit |
| Accuracy | ±0.05% of span |
| Response Time | Less than 10 ms |
| Load Resistance | 0-750 Ω |
| Isolation | 1500 V AC (between channels and system) |
| Power Consumption | 5.4 W |
| Operating Temperature | 0 to 55°C |
| Storage Temperature | -40 to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Dimensions | 107.5 × 32.8 × 130 mm |
| Weight | 0.4 kg |
| Compliance Standards | CE, UL, CSA, ATEX, IECEx |
Key Features and Benefits
- High Accuracy and Stability: The module ensures precise and reliable analog output control, making it suitable for critical industrial applications.
- Fast Response Time: With a response time of less than 10 milliseconds, the module supports real-time control.
- Multiple Channel Support: The module provides 8 channels of analog output, increasing efficiency in control applications.
- Robust Design: Designed to withstand industrial environments with high temperatures, humidity, and vibrations.
- Comprehensive Isolation: Provides excellent isolation between channels and the system to prevent signal interference and ensure reliability.
- Wide Compatibility: Compatible with Yokogawa’s CENTUM VP and ProSafe-RS systems, ensuring seamless integration.
- Long-Term Durability: Built with high-quality components for extended operational life with minimal maintenance.
Applications
- Oil & Gas Industry: Used for precise control of actuators and valves in refining and petrochemical processes.
- Power Generation: Ensures stable operation in power plants for turbine and generator control.
- Chemical Processing: Ideal for monitoring and adjusting flow rates, pressure, and temperature in chemical plants.
- Water Treatment Plants: Assists in the precise dosing and control of chemicals in water purification.
- Pharmaceutical Manufacturing: Supports automated processes requiring high accuracy and reliability.
Recommended Related Models
| Model | Description |
| AAI543 | Standard Analog Output Module |
| AAI543-H00 | High-Performance Analog Output Module |
| AAI543-H10 | Enhanced Analog Output Module |
| AAI543-H20 | Extended Range Analog Output Module |
| AAI135 | Analog Input Module |
| AAI135-H00 | High-Accuracy Analog Input Module |
| AAI841 | High-Density Analog Output Module |
| AAI143 | Isolated Analog Input Module |
| AAI143-H00 | High-Performance Isolated Analog Input Module |
| AAI841-H00 | Extended Functionality Analog Output Module |
Yokogawa AAI543-H50 is in stock. Please contact us for a quick quote and competitive pricing.
