Yokogawa AAI135-S50 Analog Input Module Original stock

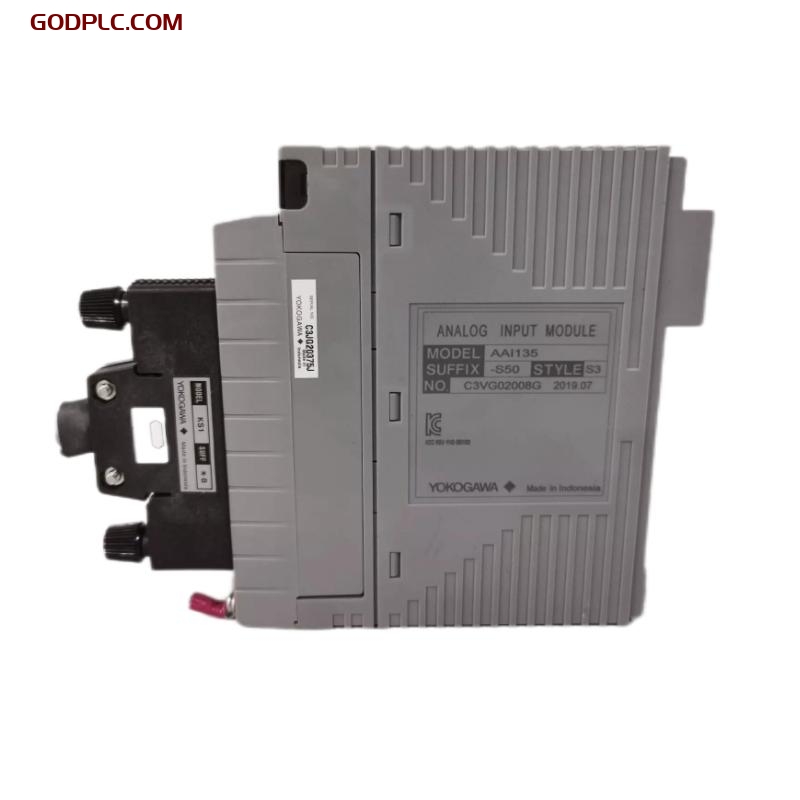

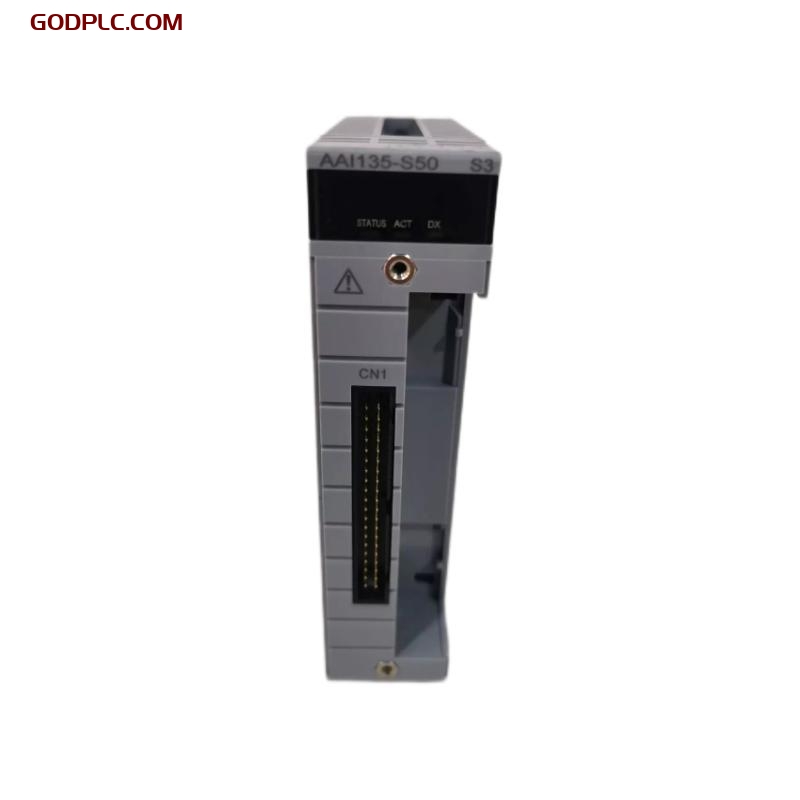

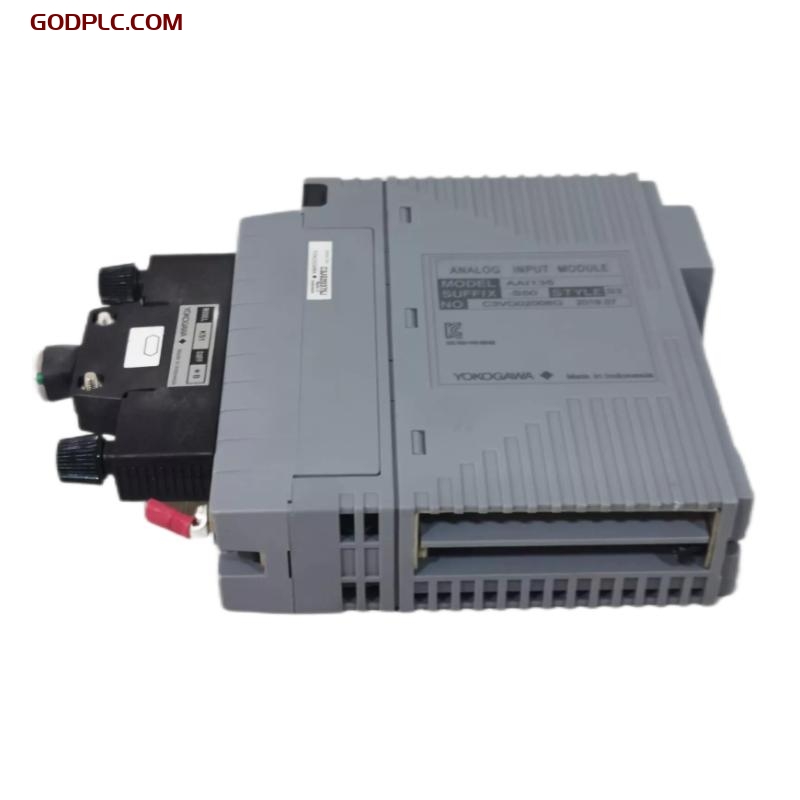

Yokogawa AAI135-S50 Analog Input Module
The Yokogawa AAI135-S50 is a versatile analog input module designed to be used in the Yokogawa CENTUM™ system. This module is part of the AAI series of I/O modules, which are designed to offer high accuracy and reliability for process control and automation systems. It is particularly suited for applications in industries like oil and gas, chemical, power, and pharmaceuticals, where precise analog signal measurement is critical.
This module provides a high level of precision for acquiring analog signals from field devices such as sensors, transmitters, and other analog instrumentation. The AAI135-S50 features multiple input channels and is designed to meet stringent requirements for stability, speed, and accuracy in critical applications. It supports a wide range of input signal types, making it ideal for diverse control environments.
Key Features:
- High Precision: The AAI135-S50 offers high-precision analog signal measurement with excellent linearity and low noise.
- Wide Input Range: This module is compatible with various input signal types, including 0-20 mA, 4-20 mA, and 0-10 V.
- Modular Design: Its modular nature allows easy integration into existing systems, enhancing flexibility and scalability.
- Temperature Range: It operates over a broad temperature range, making it suitable for a variety of industrial environments.
- Built-in Diagnostics: The module includes diagnostic features to detect faults in the system, ensuring minimal downtime and maintaining system reliability.
- High Reliability: Designed for demanding applications, this module provides long-term reliability and stability.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | AAI135-S50 |
| Number of Channels | 4 Analog Input Channels |
| Input Signal Types | 0-20 mA, 4-20 mA, 0-10 V |
| Input Accuracy | ±0.1% of Full Scale |
| Input Impedance | 250 Ω (for 0-20 mA, 4-20 mA) |
| Input Resistance | 1 MΩ (for 0-10 V) |
| Sampling Rate | 250 ms per channel |
| Power Supply | 24 V DC (nominal) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Dimensions | 107.5 mm (W) x 32.8 mm (H) x 130 mm (D) |
| Weight | 0.3 kg |
| Mounting Type | DIN Rail Mountable |
| Communication Protocol | HART, Foundation Fieldbus |
| Conformance Standards | CE, UL, CSA |
| Certification | ATEX, FM, CSA |
| Status Indicators | Power, Error, Signal Status |
| Diagnostic Features | Built-in self-diagnostics |
| Humidity | 5% to 95% RH (Non-condensing) |
Product Applications:
- Process Control: The AAI135-S50 is ideal for applications requiring accurate and reliable analog input signal processing in process control systems.
- Automation Systems: Perfect for integrating into industrial automation systems where multiple analog inputs need to be monitored.
- Energy Management: Can be used to measure signals from energy meters and sensors in power generation and distribution.
- Environmental Monitoring: Suitable for environmental systems where continuous monitoring of variables like pressure, temperature, or flow is required.
- Safety Systems: Integrated into safety instrumented systems (SIS) to monitor and ensure proper functionality of critical safety loops.
Advantages:
- Versatile Input Signal Handling: Supports a wide range of analog input signals, providing flexibility for various application types.
- Compact Design: Small form factor with modular design, making it easy to integrate into any control system.
- High Accuracy: High precision with low measurement error ensures reliable performance in critical applications.
- Efficient Diagnostics: Built-in diagnostic tools to monitor the health of the system, reducing downtime and improving operational efficiency.
- Long-Term Stability: Offers long-term stability in industrial environments with minimal drift or error over time.
Related Models and Recommendations
| Model Number | Description |
|---|---|
| AAI135-S51 | Analog Input Module (4 channels, 0-20 mA, 4-20 mA, 0-10 V) |
| AAI135-S52 | Analog Input Module (4 channels, with enhanced accuracy) |
| AAI135-S53 | Analog Input Module (4 channels, supports thermocouple inputs) |
| AAI135-S54 | Analog Input Module (4 channels, supports RTD inputs) |
| AAI135-S55 | Analog Input Module (8 channels, supports voltage and current signals) |
| AAI135-S60 | Analog Input Module (for high-temperature applications) |
| AAI135-S61 | Analog Input Module (for high-precision industrial measurements) |
| AAI135-S62 | Analog Input Module (supports 4-20 mA and digital signals) |
| AAI135-S63 | Analog Input Module (for hazardous environments, ATEX certified) |
| AAI135-S64 | Analog Input Module (for process industries, with enhanced diagnostics) |
Yokogawa AAI135-S50 is in stock. Please contact us for a quick quote and competitive pricing.
