Yokogawa AAI135-H50 Analog Input Module Fast shipping

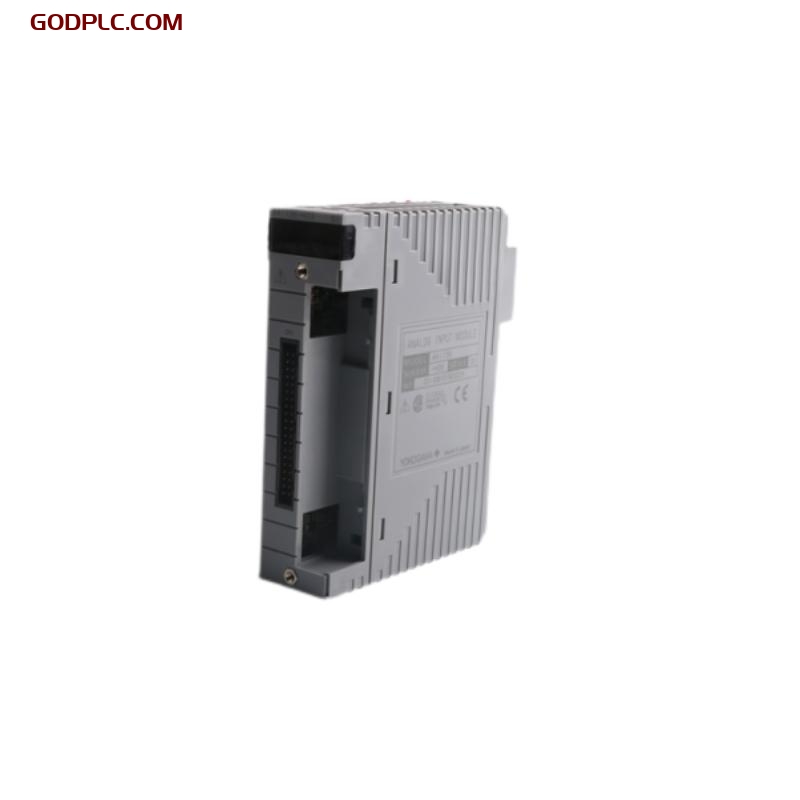

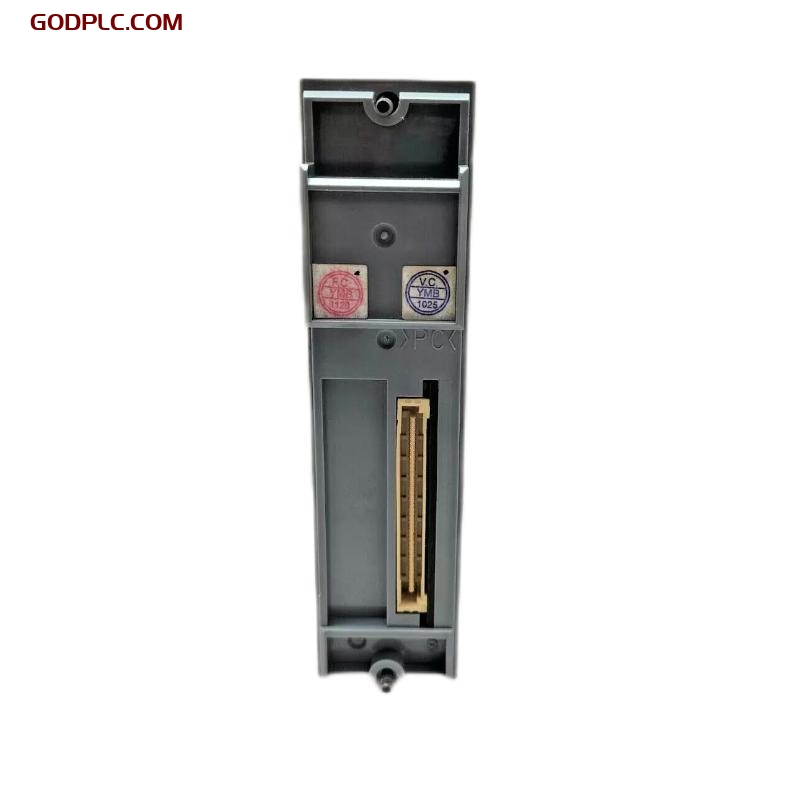

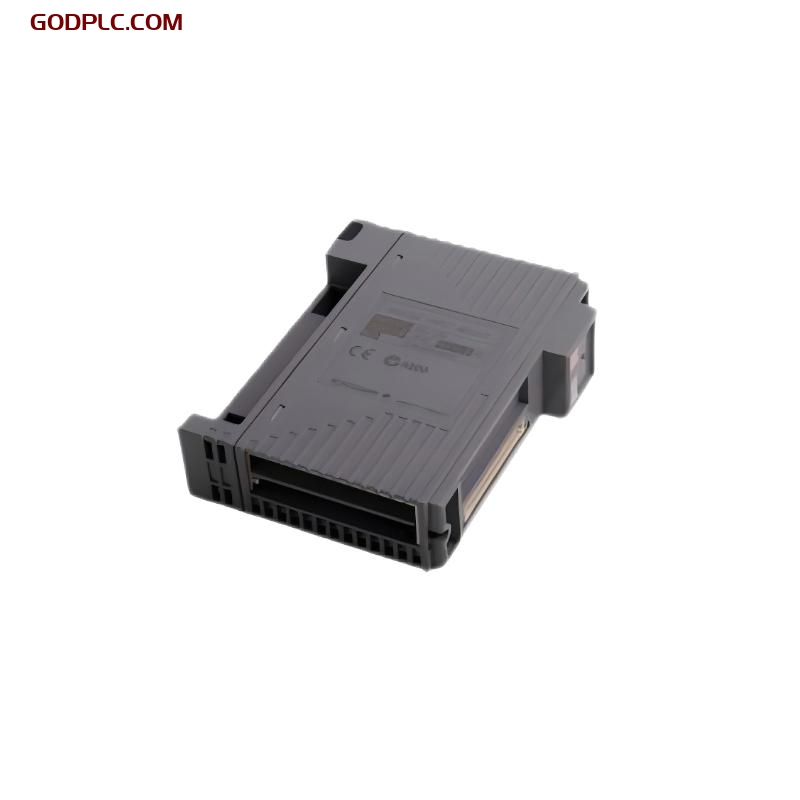

Yokogawa AAI135-H50 analog input module
Yokogawa AAI135-H50 is an 8-channel isolated analog input module designed for industrial process control and automation applications. It is part of Yokogawa’s CENTUM VP and ProSafe-RS distributed control systems (DCS and SIS) , ensuring high accuracy, stability, and system reliability in the oil and gas, power generation, chemical processing, water treatment, and manufacturing industries .
The module supports HART (Highway Addressable Remote Transducer) communication and has more advanced features than standard HART modules , providing more complete diagnostics, real-time status monitoring and remote device configuration . Its electrically isolated input ensures signal integrity, minimizes interference and prevents ground loop problems, which is critical for high-precision industrial applications .
The AAI135-H50 features a compact design, low power consumption, and high durability , making it suitable for harsh industrial environments and providing reliable performance even under extreme temperature, humidity, and electrical noise conditions . The module’s self-diagnostic capabilities, LED status indicators, and compatibility with Yokogawa engineering tools make it a top choice for new automation projects and upgrades to existing systems .
Technical specifications
| Specification | detail |
|---|---|
| model | AAI135-H50 |
| Dimensions (H x W x D) | 107.5 × 32.8 × 130 mm |
| weight | 0.3 kg |
| Input signal range | 4 to 20mA |
| Number of channels | 8 |
| Channel Isolation | Yes, each channel is electrically isolated |
| Communication Protocol | HART (Highway Addressable Remote Transducer), Enhanced HART functionality |
| solve | 16 bit |
| Explosion-proof | With specific suffix code |
| Operating temperature range | -20°C to +70°C |
| Storage temperature range | -40°C to +85°C |
| Humidity range | 5% to 95% RH (non-condensing) |
| Supply voltage | 24V DC |
| Power consumption | About 3W |
| Input Impedance | 250 Ω |
| accuracy | ±0.1% of range |
| Install | Rack Mount (for Yokogawa control systems) |
| Certification | CE, UL, CSA, ATEX, IECEx |
| Self-diagnosis function | Built-in diagnostics for fault detection and loop integrity monitoring |
| LED indicators | Power and channel activity indicators |
| Software Configuration | Configurable via Yokogawa Engineering Tool |
| System compatibility | Compatible with Yokogawa’s CENTUM VP, ProSafe-RS, and STARDOM systems |
Key Features and Benefits
1. High precision and high reliability
With 16-bit resolution and ±0.1% accuracy , the AAI135-H50 accurately captures the smallest signal changes, enabling better process control and optimized performance in critical industrial applications .
2. Advanced HART communication function
Compared to standard HART input modules, the AAI135-H50 provides enhanced HART functionality including:
- Extended diagnostic capabilities to monitor loop health and signal deviations.
- Real-time data collection has faster response time.
- Remote device parameterization for efficient on-site instrument maintenance.
This enables better predictive maintenance, reduces downtime, and improves overall system efficiency .
3. Electrically isolated input to reduce noise
Each input channel is individually isolated , reducing electrical noise, eliminating ground loop interference, and ensuring consistent, reliable data acquisition in industrial environments with high electrical noise .
4. Strong and durable, suitable for harsh environments
The AAI135-H50 is designed to operate reliably in extreme conditions, including:
- The temperature range is -20°C to +70°C , ensuring stability in outdoor and industrial environments.
- With high humidity resistance (up to 95% RH non-condensing), it is suitable for areas susceptible to moisture.
- Explosion proof certification , suitable for hazardous locations such as refineries and chemical plants.
5. Low power consumption and high efficiency
The module consumes only 3W of power , which is very energy-efficient and is very suitable for large control systems that deploy multiple input modules.
6. Seamless integration with Yokogawa DCS and SIS systems
The AAI135-H50 is fully compatible with Yokogawa’s CENTUM VP, ProSafe-RS, and STARDOM systems , ensuring smooth data collection, process monitoring, and full system diagnostics .
7. Built-in self-diagnosis and LED indicator
Self-diagnostics continuously monitor module health to detect faults, signal fluctuations, and loop integrity issues . LED indicators provide quick visual feedback on power status and channel activity , helping operators identify and troubleshoot faults efficiently .
application
Yokogawa AAI135-H50 is widely used in various industrial process control applications , including:
- Oil & Gas – Monitor flow, pressure and temperature in upstream, midstream and downstream operations .
- Chemical Processing – Control reaction conditions by acquiring precise data on process variables .
- Power Generation – Acquire signals from turbines, boilers, and substation equipment to optimize plant performance.
- Water and Wastewater Treatment – Measure pH, conductivity and dissolved oxygen levels to ensure your plant is running efficiently.
- Pharmaceutical Industry – Ensuring precise environmental conditions during drug manufacturing .
- Food and Beverage – Regulating temperature, pressure and liquid levels in food production facilities .
Recommended related models
The following Yokogawa analog input modules are recommended for different industrial needs :
| model | describe |
|---|---|
| AAI135-H00 | 8-channel isolated analog input module with standard HART communication . |
| AAI135-H03 | 8-channel isolated analog input module with enhanced HART diagnostics . |
| AAI143-H00 | 16-channel non-isolated analog input module for cost-effective applications . |
| AAI141-H00 | 16-channel isolated analog input module for high density mounting . |
| AAI841-H00 | 8-channel isolated low power analog input module for low energy applications . |
| AAI835-H00 | 4-channel analog input + 4-channel analog output module to meet mixed I/O needs . |
| AAI543-H00 | 16-channel isolated analog input module with extended temperature range . |
| AAT145-H00 | 16-channel thermocouple/mV input module for temperature measurement applications . |
| Addendum AAR145-S00 | 8-channel isolated analog input module with safety system redundancy support . |
| AAB841-S00 | 8-channel isolated low-power input module optimized for low-voltage signal acquisition . |
Yokogawa AAI135-H50 is in stock. Please contact us for a quick quote and competitive price.
