Product Overview

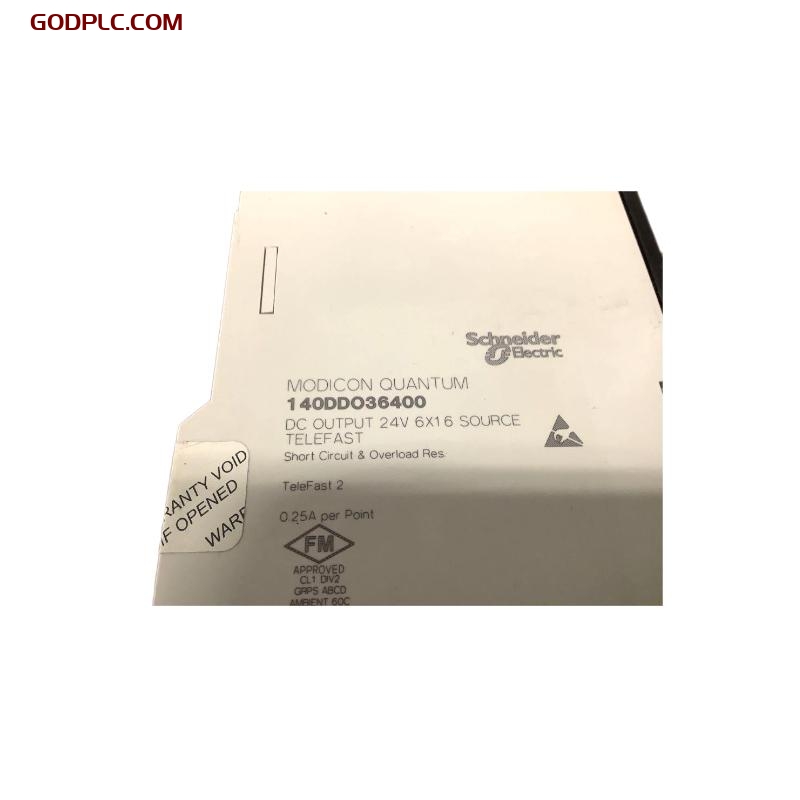

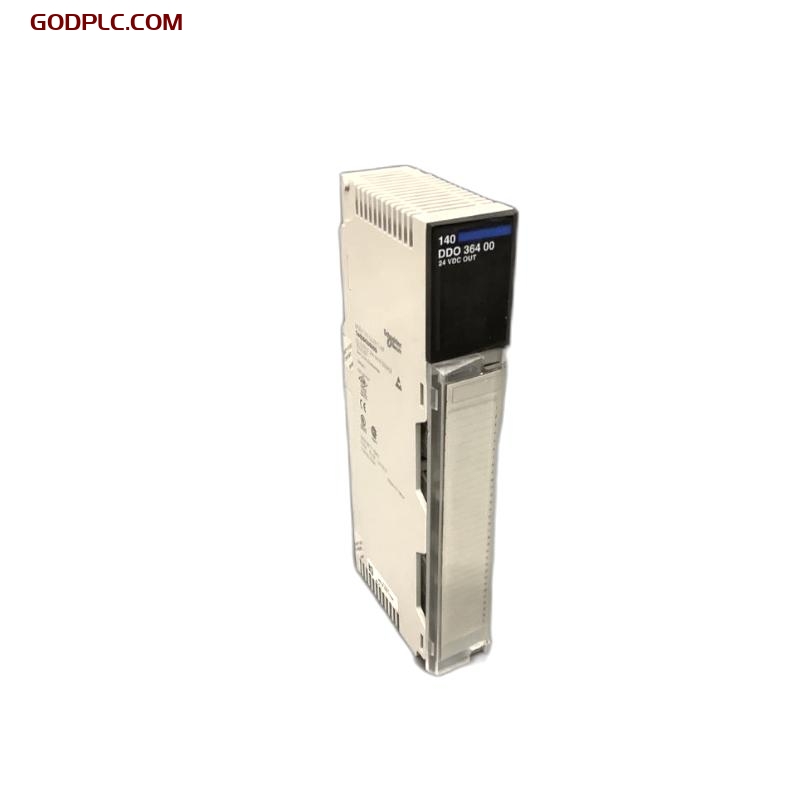

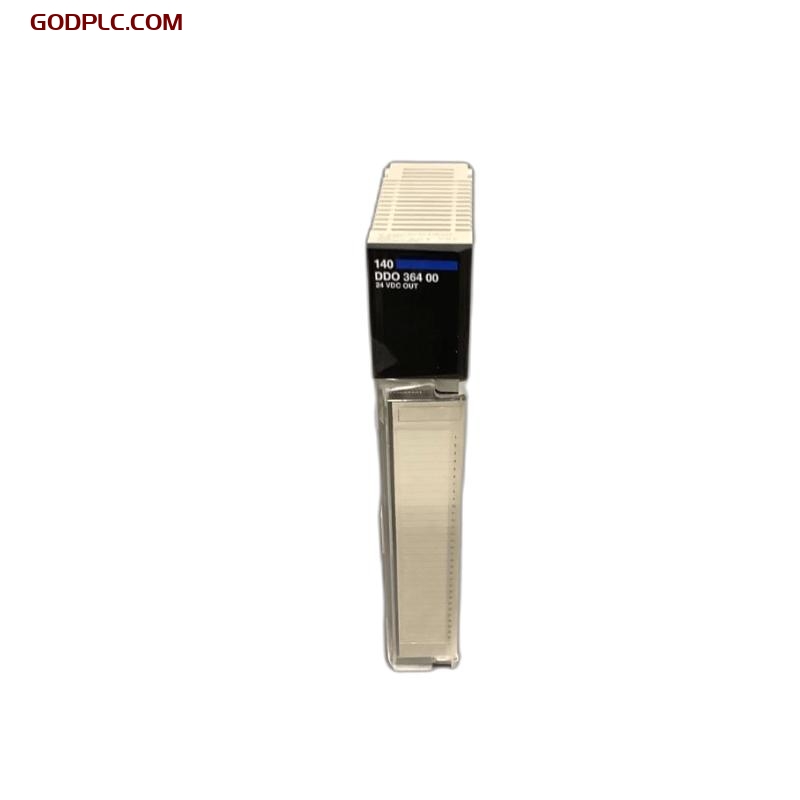

The Schneider 140DDO36400 is a high-performance Discrete Output Module designed for use in Schneider Electric’s Modicon Premium series of programmable logic controllers (PLCs). This module plays a critical role in automation systems by providing precise control over output devices such as actuators, relays, solenoids, and motor starters. With its advanced features and high reliability, the 140DDO36400 module is ideal for a wide range of industrial applications that require discrete (digital) control.
The 140DDO36400 module is built to deliver high-quality output signals that control field devices with minimal latency. Its ability to handle multiple output points with precision and its flexibility for industrial automation applications make it a key element in various control and automation processes. The module is specifically designed to be integrated into Schneider Electric’s Modicon PLC systems, ensuring seamless communication and a high level of system integration.
Key Features:
- 16 Output Channels for a wide range of industrial automation applications.
- Nominal output voltage of 24 VDC, ideal for controlling field devices in industrial environments.
- Compact design, allowing easy installation and space-efficient use in control cabinets.
- Fast response time, enabling quick control and switching of output devices.
- Fieldbus communication compatibility for easy integration with existing control networks.
- Extensive industrial certifications ensuring high quality and safety standards are met.
- High reliability and low failure rate, crucial for minimizing downtime and maintaining operational efficiency.
Product Parameters
| Specification | Details |
|---|---|
| Model | 140DDO36400 |
| Output Channels | 16 |
| Nominal Output Voltage | 24 VDC |
| Output Current per Channel | 0.5 A (maximum per channel) |
| Total Output Current | 8 A (total for all channels) |
| Response Time | ≤ 3 ms (depending on load) |
| Mounting Type | DIN Rail Mountable |
| Operating Temperature Range | -20°C to 60°C |
| Storage Temperature Range | -40°C to 85°C |
| Dimensions (L x W x H) | 103.9 × 40.3 × 250 mm |
| Weight | 0.45 kg |
| Protection Class | IP20 |
| Certifications | CE, UL, RoHS compliant |
Applications of the Schneider 140DDO36400
The Schneider 140DDO36400 Discrete Output Module is designed for various industrial and manufacturing environments where discrete output control is required. Its versatility makes it suitable for several applications, including:
- Automated Manufacturing Systems – Control of relays, actuators, motors, and other output devices in manufacturing processes.
- Process Control Systems – Used for switching valves, pumps, and other equipment in industries such as chemical, pharmaceutical, and oil and gas.
- Energy and Utilities – Widely used for controlling electrical components, including circuit breakers, in power distribution systems.
- Material Handling Systems – Provides control for conveyors, lifts, and other automated material handling systems.
- Industrial Machine Control – Ideal for applications requiring precise and reliable control of machines, robotics, and assembly lines.
- Building Automation – Can be used in building management systems to control lights, HVAC systems, and security devices.
Advantages of Schneider 140DDO36400
- Reliable Performance – The module is built to deliver high reliability, even in demanding industrial environments, ensuring minimal downtime and operational efficiency.
- Ease of Integration – It is designed for seamless integration into Schneider Electric’s Modicon PLC systems, allowing for a unified control network.
- Flexible Output Control – With 16 output channels, this module offers flexibility for controlling a wide range of devices across industrial processes.
- Compact and Space-Efficient – The compact design ensures that the module can be installed even in tight spaces within control panels or cabinets.
- Quick Response Time – The fast response time ensures that output devices are activated or deactivated with minimal delay, crucial for time-sensitive processes.
- High Output Current Capacity – Each output channel can handle up to 0.5 A, and the total output current capacity of 8 A ensures adequate power delivery for various applications.
- Industrial Compliance – The module is compliant with industry standards (CE, UL, RoHS), making it safe for use in regulated environments.
- Wide Operating Temperature Range – This module is designed to operate effectively in environments with temperatures ranging from -20°C to 60°C, making it suitable for various industrial applications.
- Cost-Effective – Offers a highly cost-efficient solution for industrial automation, providing excellent value in terms of performance and reliability.
- Durability – Built to withstand harsh industrial environments, the module’s durability reduces the need for frequent maintenance or replacements.
Recommended 10 Related or Similar Models
| Model | Description |
|---|---|
| 140DDO35301 | 16-channel Discrete Output Module for precise control |
| 140DDO35300 | 8-channel Discrete Output Module for smaller applications |
| 140DDI35301 | 16-channel Discrete Input Module for Modicon systems |
| 140DAI65300 | 16-channel Analog Input Module for accurate measurement |
| 140DDO77100 | High-performance Discrete Output Module for heavy-duty tasks |
| 140CRP93100 | Communication Processor Module for Modicon PLC |
| 140CPS11400 | Power Supply Module for the Modicon Premium Series |
| 140ACR33000 | Advanced Communication Module for extended functionality |
| 140MDA80000 | Modular I/O Expansion for flexible system integration |
| 140CPU67160 | Central Processing Unit for Modicon PLC systems |
