Product Introduction

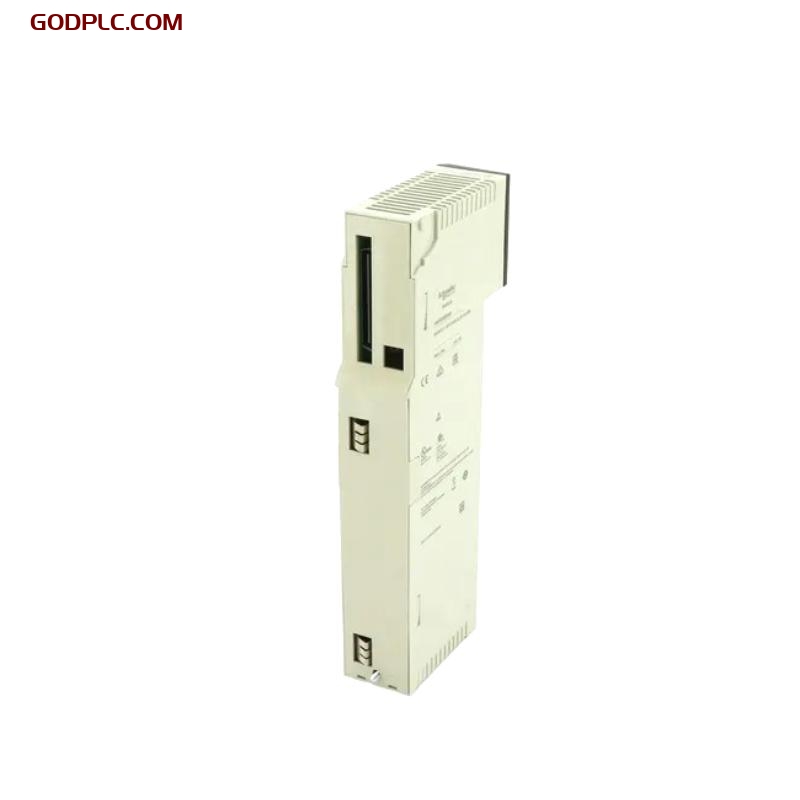

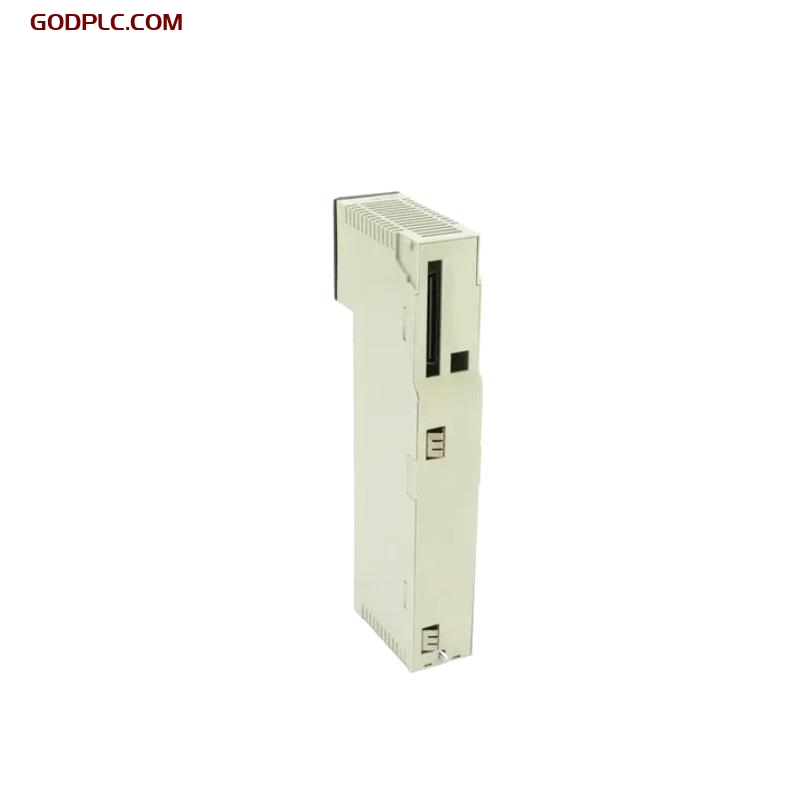

The Schneider 140DDI67300C Discrete Input Module is a robust and high-performance input solution designed for use with Modicon Quantum PLCs. This module offers a reliable interface for discrete digital inputs, allowing the monitoring of sensors, switches, and other binary devices in industrial automation systems. With 32 channels for input signals, it supports 24V DC positive logic operation, ensuring accurate and responsive data acquisition.

Engineered for high reliability in demanding industrial environments, the 140DDI67300C is equipped with individual LED indicators for each input channel. These LEDs provide immediate feedback on the status of the inputs, making troubleshooting and maintenance easier. Additionally, it is built to withstand electrical noise and other environmental challenges, providing consistent performance in a wide range of applications.

The module is ideal for a variety of industries, including manufacturing automation, process control, power plants, and more. Its compact design makes it easy to integrate into control panels while maximizing space efficiency. The 140DDI67300C module is part of the Modicon Quantum family, which is known for its flexibility, scalability, and superior performance.

Technical Specifications

Applications

The Schneider 140DDI67300C Discrete Input Module is versatile and can be applied in a variety of industrial settings. Some of its common applications include:

1. Manufacturing Automation: Used to monitor the status of machines and devices in real-time, enabling better control over production lines.
2. Process Control: Ideal for applications in chemical, pharmaceutical, and food processing plants where precise monitoring of inputs is crucial.
3. Power Plants: Integrated into the control systems of power generation plants to monitor key electrical parameters and processes.
4. Transportation: Used in transportation control systems such as traffic signals and railway signaling systems.
5. Building Automation: Applied in building management systems for monitoring lighting, security, and HVAC (heating, ventilation, and air conditioning) systems.
6. Water Treatment: Supports water and wastewater treatment facilities by monitoring various process parameters like flow meters and valve statuses.

Advantages

1. High Density of Inputs – With 32 channels in a single module, it saves space in control panels and simplifies wiring complexity.
2. Quick Response Time – With a response time of just 1 ms, it ensures timely processing of critical input signals, enhancing the overall system’s performance.
3. LED Indicators for Easy Diagnostics – Each input channel has a corresponding LED light, making it easier for operators to detect faults or issues quickly.
4. High Electrical Noise Immunity – The module is designed to resist electrical noise and transient disturbances, ensuring reliable operation even in challenging industrial environments.
5. Wide Operating Temperature Range – Capable of operating in temperatures ranging from 0°C to 60°C, the module is suitable for a variety of environments.
6. Cost-Effective Solution – Provides high functionality at a competitive price, making it a cost-effective solution for industrial automation applications.
7. Reliable Performance – Built for high durability and stability, the module offers long-lasting service and reduces downtime in industrial systems.
8. Seamless Integration – Fully compatible with Modicon Quantum PLC systems, enabling quick and easy integration into existing control systems.
9. Space-Saving Design – Compact dimensions allow for efficient use of space in control panels, making it easier to install and maintain.

Recommended Related Models

Here are 10 related models or alternative options from the Schneider Quantum range that can complement or serve as alternatives to the 140DDI67300C module:
