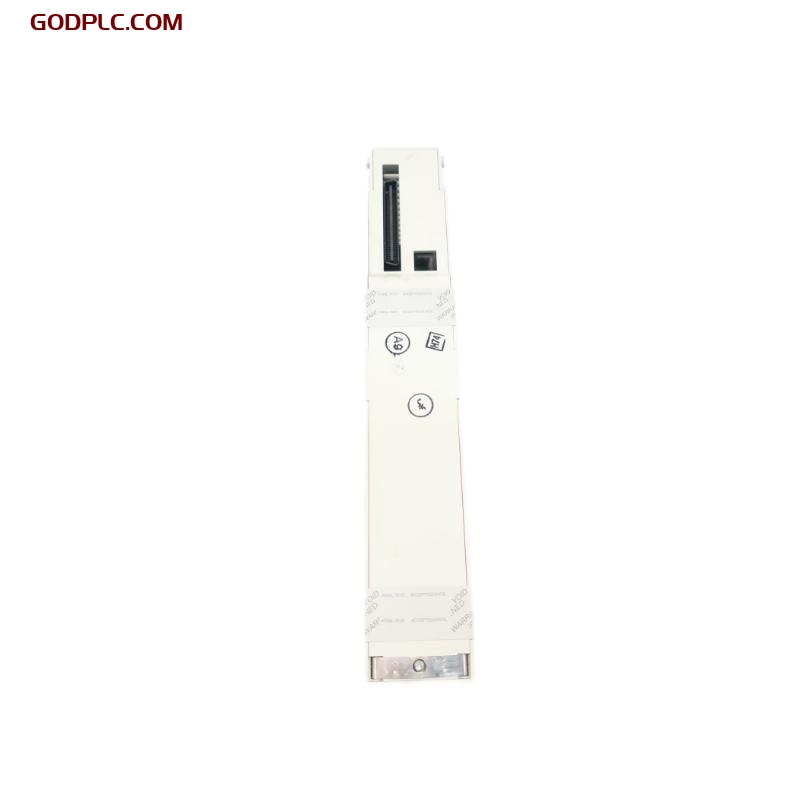

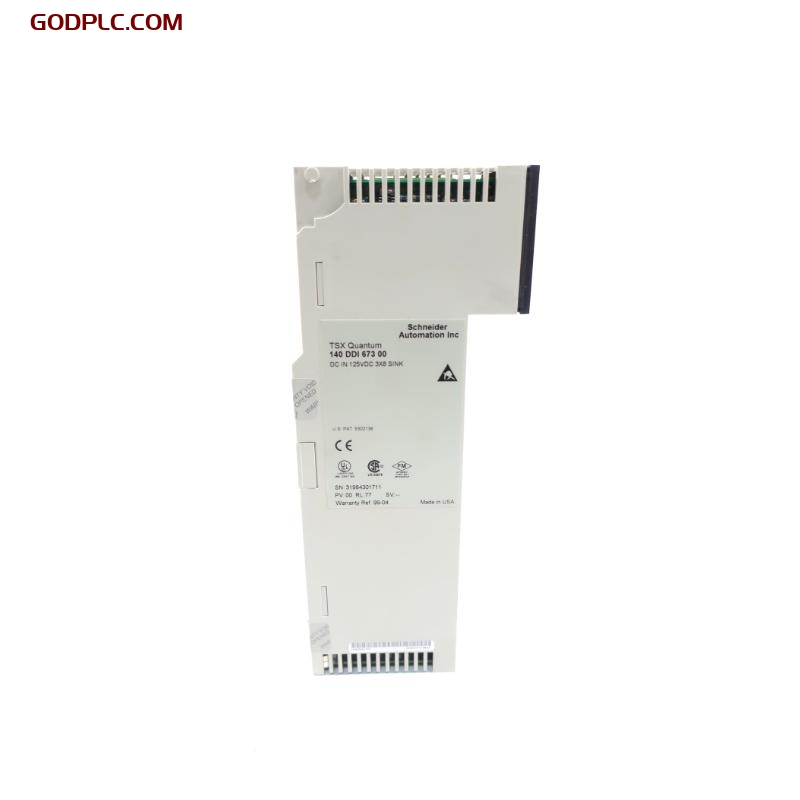

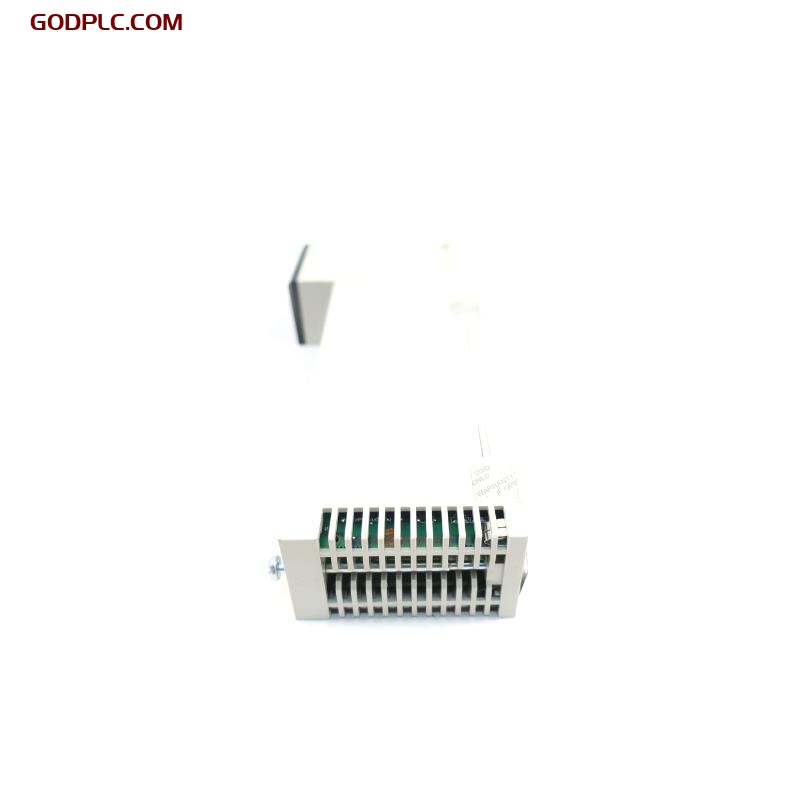

Schneider 140DDI67300 Discrete Input Module Quality Assurance
Product Introduction
The Schneider 140DDI67300 is a high-performance discrete input module designed for Modicon Quantum PLCs. It is used to interface digital signals from field devices such as switches, push buttons, and sensors with a control system. The module provides robust and reliable input capabilities for various industrial automation applications, ensuring seamless communication between field equipment and PLC controllers.
Equipped with 32 channels, the module supports 24V DC discrete input signals with positive logic operation. It is engineered for demanding industrial environments and offers exceptional resistance to electrical noise, ensuring accuracy and stability in critical control applications. The module also features LED indicators for each input channel, providing real-time status monitoring and troubleshooting capabilities.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | 140DDI67300 |
| Product Type | Discrete Input Module |
| Number of Inputs | 32 |
| Input Voltage | 24V DC |
| Logic Type | Positive Logic |
| Input Signal Current | 2.5 mA per input |
| Response Time | 1 ms (typical) |
| Isolation Voltage | 1780V RMS between channels and logic |
| Status Indicators | LED per input channel |
| Module Power Consumption | 6.2W |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity | 5% to 95% non-condensing |
| Mounting | Rack-mounted |
| Communication | Backplane Interface |
| Dimensions (H x W x D) | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
Applications
The Schneider 140DDI67300 module is widely used in industrial automation and control applications, including:
- Manufacturing Automation: Interfaces with sensors and switches to monitor machine operations.
- Process Control: Integrates with PLCs to manage real-time processes in industries like oil & gas, chemicals, and pharmaceuticals.
- Power Plants: Used in energy sector applications for monitoring and control of power distribution.
- Transportation Systems: Supports automation in railway signaling and traffic control.
- Water Treatment Facilities: Helps in monitoring and controlling pumps, valves, and water flow processes.
- Building Automation: Interfaces with security and lighting control systems.
Advantages
- High Density Input Channels – Provides 32 digital inputs in a single module, reducing panel space requirements.
- Fast Response Time – 1 ms response time ensures real-time processing of signals.
- High Noise Immunity – Engineered for harsh industrial environments with strong resistance to electrical noise.
- Reliable LED Indicators – Each channel has an LED status indicator, simplifying diagnostics and troubleshooting.
- Seamless PLC Integration – Fully compatible with Modicon Quantum PLCs, enabling efficient system integration.
- Energy Efficient – Low power consumption (6.2W) enhances overall system efficiency.
- Robust Isolation – High isolation voltage (1780V RMS) provides superior protection against electrical surges.
- Compact Design – The small form factor makes it ideal for space-constrained control panels.
Recommended Related Models
Below are 10 related or alternative Schneider models with similar or complementary functionalities:
| Model Number | Description |
|---|---|
| 140DDO35300 | 32-Channel Digital Output Module |
| 140DDI35300 | 32-Channel Discrete Input Module |
| 140DAI74000 | Analog Input Module, 16-bit Resolution |
| 140DDO36400 | 64-Channel Digital Output Module |
| 140DAO84000 | Analog Output Module, 12-bit Resolution |
| 140CPU65160 | Quantum CPU with Ethernet Communication |
| 140NOE77111 | Ethernet Communication Module |
| 140CRA93200 | Remote I/O Adapter Module |
| 140XTS00200 | Terminal Strip for Discrete Modules |
| 140CHS11000 | Quantum I/O Base Housing |
Schneider 140DDI67300 is in stock. Contact us for quick quotes and competitive prices.
