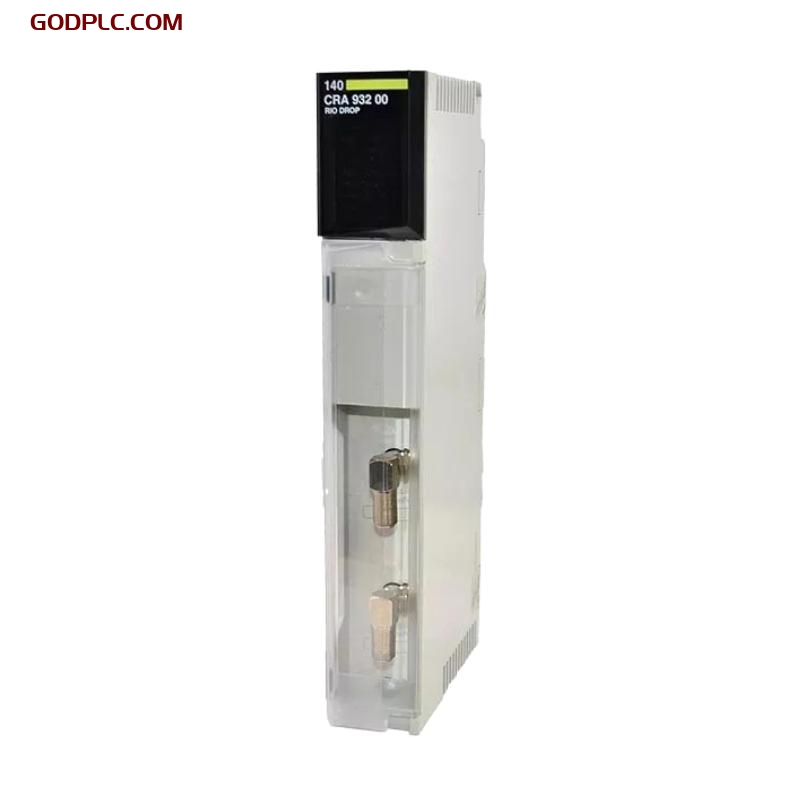

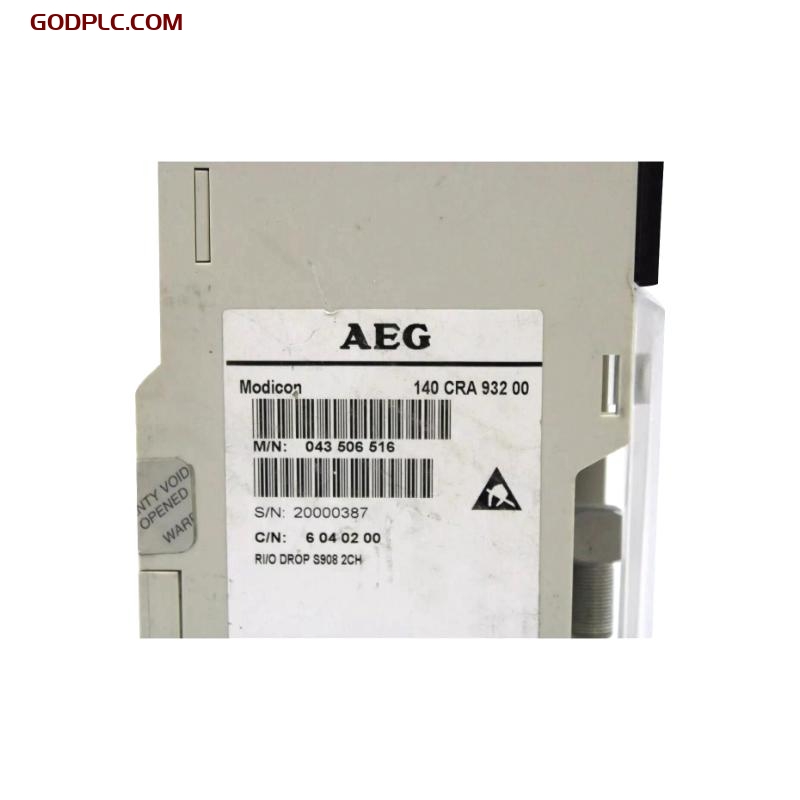

Schneider 140CRA93200 RIO Drop Adaptor Module Intimate service
Product Overview
The Schneider Electric 140CRA93200 is a High-Speed Counter Module designed for use in Modicon Quantum PLC systems. This module provides advanced counting capabilities, suitable for high-performance applications in industries that require precise measurement and control of events, pulses, or frequency inputs.
With four independent counter channels, the 140CRA93200 module is capable of counting high-speed pulses from various sensors, such as encoders, tachometers, or flow meters, and converting them into accurate digital values. It also offers versatile configuration options for different input types, enabling it to handle pulse, quadrature, and frequency input signals effectively.
This module features a high-speed processing capability and robust diagnostics, ensuring real-time, reliable performance in demanding automation tasks. It is designed to integrate easily into the Modicon Quantum PLC system, enabling scalable and flexible control for complex industrial processes that require high-precision counting and event tracking.
Key Features
- Four Independent Counter Channels: The 140CRA93200 provides four channels that can count high-speed pulses simultaneously, ideal for monitoring multiple devices at once.
- High-Speed Pulse Processing: The module supports high-speed counting, making it suitable for applications like encoder pulse counting, tachometer speed monitoring, and flow measurement.
- Flexible Input Types: Supports various input types, including pulse, quadrature, and frequency signals, providing flexibility in different industrial environments.
- Advanced Diagnostics: The module has built-in diagnostic functions to monitor the health of the system and the counters, ensuring reliable performance over time.
- Integration with Modicon Quantum PLC: Seamlessly integrates with Modicon Quantum PLC systems, offering scalability and flexibility in control applications.
- Compact Design: Designed for DIN rail mounting, making it easy to install in control cabinets and ensuring optimal space utilization.
- High Resolution: The module offers a high resolution to ensure precise counting and tracking of fast pulses, enhancing the accuracy of your control systems.
- Built-in Protection Features: Includes protections against overvoltage, short-circuit, and electrical surges to ensure durability and reliability in demanding industrial conditions.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Schneider Electric 140CRA93200 |
| Type | High-Speed Counter Module |
| Number of Channels | 4 Independent Channels |
| Input Type | Pulse, Quadrature, Frequency |
| Counting Speed | Up to 50kHz |
| Resolution | 16 Bits |
| Input Voltage Range | 5V, 24V (Selectably) |
| Current Consumption | Approx. 200mA at 24V DC |
| Input Frequency | 50 kHz max per channel |
| Operating Temperature | -20°C to 60°C |
| Storage Temperature | -40°C to 85°C |
| Humidity Range | 5% to 95% RH (non-condensing) |
| Protection Features | Overload, Short-Circuit, Overvoltage Protection |
| Mounting Type | DIN Rail |
| Dimensions | Package size 50 ×165 ×315 mm |
| Weight | Package weight 0.545 kg |
| Communication | Modbus, CANopen (optional) |
| Compliance | CE Marked, UL Listed, CSA Certified |
Applications and Use Cases
The Schneider Electric 140CRA93200 high-speed counter module is an ideal solution for any application that requires high-speed pulse counting and precise event tracking. Some of the most common applications include:
-
Encoder Pulse Counting: The module is widely used in motion control systems for counting pulses from encoders. This is critical in applications like robotics, machine tools, and CNC machinery.
-
Flow Measurement: In process automation, the module can be used to count pulses from flow meters, ensuring that the flow rate is accurately monitored and controlled in systems like water treatment, oil & gas, and chemical processing.
-
Tachometer Monitoring: The 140CRA93200 can count pulses from tachometers to monitor the speed of motors and turbines, ensuring accurate rotational speed measurement in applications like automated production lines and HVAC systems.
-
Frequency Monitoring: For systems that require frequency monitoring, the module can be used to track the frequency of electrical signals, which is useful in power generation, energy management, and industrial machinery.
-
Industrial Automation: The module is also useful in general industrial automation applications, including machine monitoring, equipment diagnostics, and event-based control, where high-speed counting is required.
Schneider 140CRA93200 is in stock. Contact us for quick quotes and competitive prices.
