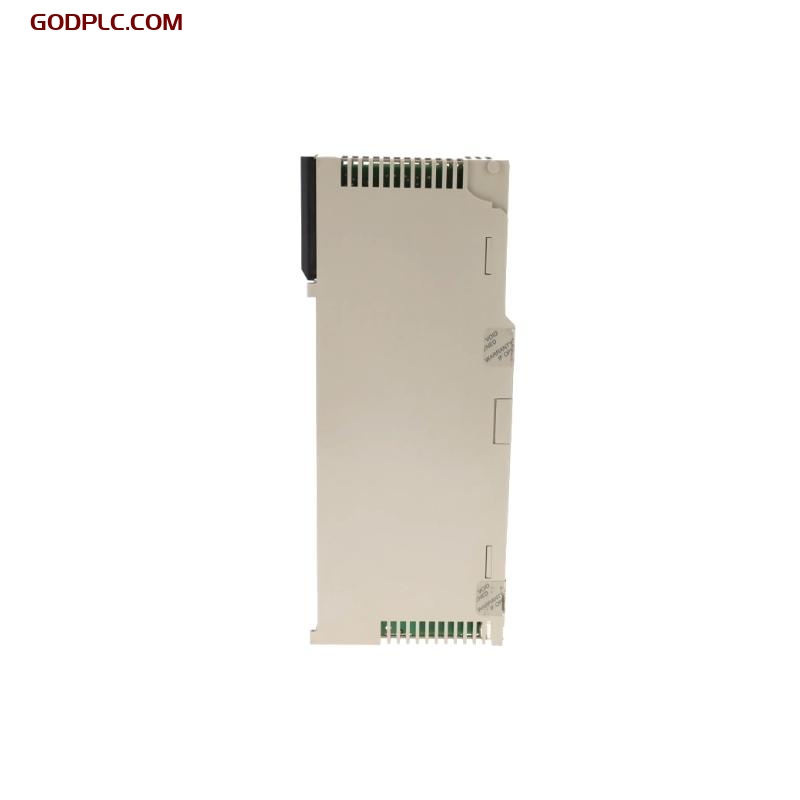

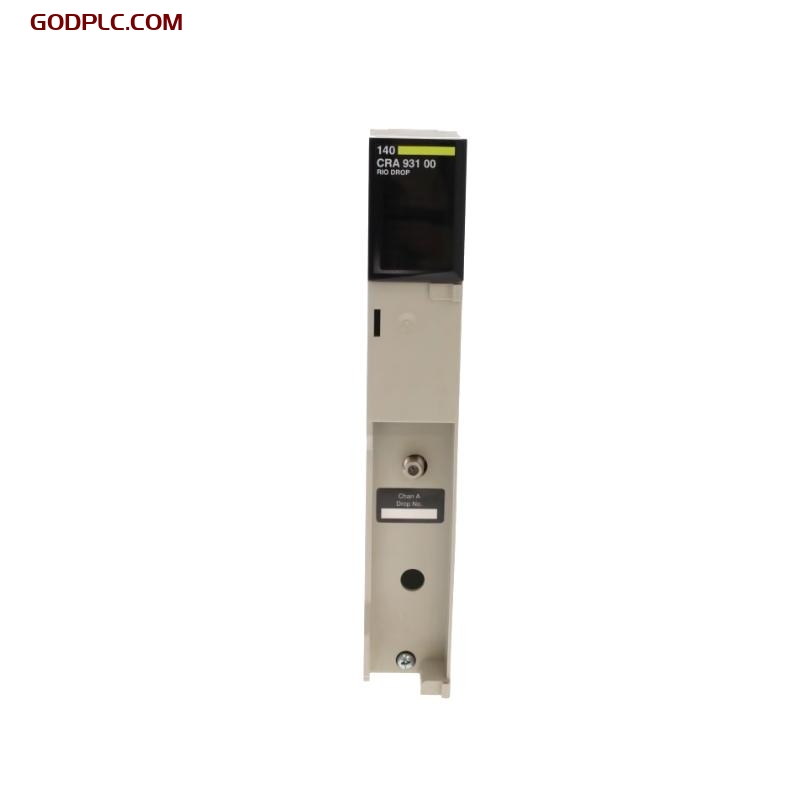

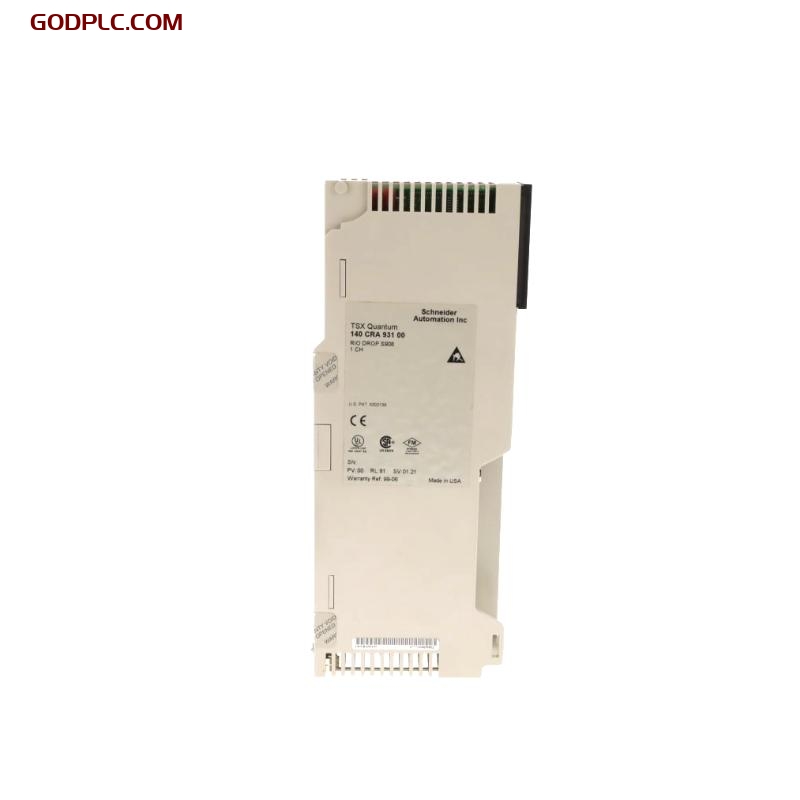

Schneider 140CRA93100 RIO Drop Adaptor Module Shelf life 1 year
Product Introduction
The Schneider 140CRA93100 RIO Drop Adaptor Module is a key component within the Modicon Quantum automation system, designed to facilitate high-speed Remote I/O (RIO) communication between a Quantum CPU and remote I/O drops. This module acts as an interface, allowing Quantum PLCs to efficiently manage distributed I/O devices across industrial control systems.
Engineered to operate in demanding industrial environments, the 140CRA93100 utilizes a high-speed coaxial network to ensure reliable and stable data transmission. It is particularly suited for large-scale process automation, reducing wiring complexity and enhancing flexibility in system expansion. This module is widely used in industries such as manufacturing, power generation, oil & gas, water treatment, and material handling, where precise and efficient remote I/O communication is critical.
The 140CRA93100 provides seamless integration with Quantum PLCs, ensuring compatibility with existing hardware while supporting high-performance, mission-critical automation applications.
Product Specifications
| Parameter | Specification |
|---|---|
| Product Name | Schneider 140CRA93100 RIO Drop Adaptor Module |
| Manufacturer | Schneider Electric |
| Product Series | Modicon Quantum |
| Function | RIO Drop Adapter for Quantum PLC Systems |
| Communication Protocol | Remote I/O (RIO) |
| Cable Type | 75-ohm coaxial cable |
| Max I/O Expansion Modules | Up to 27 modules per drop |
| Baud Rate | 1.544 Mbps |
| Power Supply Voltage | 5V DC (supplied via backplane) |
| Backplane Current Consumption | 600mA |
| Module Status Indicators | LED indicators for communication and operational status |
| Installation | Mounted on a Quantum remote I/O backplane |
| Operating Temperature | 0°C to 60°C (32°F to 140°F) |
| Storage Temperature | -40°C to 85°C (-40°F to 185°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Shock Resistance | 15g for 11ms |
| Vibration Resistance | 3.5 mm displacement (10 to 60 Hz) |
| EMC Compliance | IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5 |
| Dimensions (H x W x D) | 47 x 165 x 310 mm |
| Weight | 0.509 kg |
Applications
The Schneider 140CRA93100 is widely used across various industrial automation applications where efficient remote I/O connectivity is required. Key applications include:
1. Process Automation
- Ideal for industries such as oil & gas, chemical processing, and pharmaceuticals, where remote I/O control is crucial.
- Enhances real-time data acquisition and process monitoring.
2. Manufacturing & Assembly Lines
- Used in automated production lines to streamline machine-to-machine communication.
- Supports high-speed data transmission, ensuring smooth operational control.
3. Power Generation
- Enables reliable remote I/O management in power plants and substations.
- Helps maintain stable and efficient grid operations.
4. Water & Wastewater Treatment
- Facilitates distributed control systems in water treatment plants.
- Supports environmental monitoring and remote asset management.
5. Material Handling & Logistics
- Integrated into automated conveyor systems and warehouse automation.
- Ensures seamless communication between PLCs and distributed control points.
Product Advantages
The 140CRA93100 RIO Drop Adaptor Module offers numerous benefits, making it an indispensable component in Quantum PLC-based automation systems.
1. High-Speed & Reliable Communication
- Supports 1.544 Mbps baud rate, ensuring fast and stable data exchange between remote I/O drops and Quantum PLCs.
- Uses a high-performance coaxial cable network to minimize signal interference and data loss.
2. Scalable System Expansion
- Supports up to 27 remote I/O modules per drop, allowing for flexible system expansion without significant wiring modifications.
- Ideal for large-scale automation projects requiring extensive I/O connectivity.
3. Simplified Installation & Integration
- Plug-and-play installation with Quantum remote I/O backplanes.
- Compatible with Schneider Electric’s Modicon Quantum series, ensuring seamless system integration.
4. Robust Industrial Design
- Engineered to operate in harsh environments with high resistance to shock, vibration, and extreme temperatures.
- Meets IEC industrial standards for electromagnetic compatibility (EMC).
5. Reduced Wiring Complexity & Maintenance Costs
- Uses coaxial cable-based remote I/O architecture, significantly reducing wiring complexity compared to conventional hardwired systems.
- Lower maintenance requirements due to the modular and durable design.
Recommended Related Models
| Model Number | Description |
|---|---|
| 140CRA93200 | Advanced RIO Drop Adapter with extended features |
| 140CRP93100 | Remote I/O Head Adapter for Quantum PLCs |
| 140CRP93200 | High-performance RIO Head Adapter |
| 140CPU65150 | High-speed Quantum CPU module |
| 140CPU65260 | Advanced Quantum CPU with enhanced processing power |
| 140XBP00600 | Quantum 6-slot backplane for module installation |
| 140XBP01000 | Quantum 10-slot backplane for large-scale systems |
| 140CPS11420 | Quantum power supply module (115/230V AC input) |
| 140CPS12420 | Quantum power supply module (24V DC input) |
| 140DDO35300 | Quantum discrete output module for process control |
