Schneider 140CPU67861 Unity Hot Standby Processor with Multi-Mode Ethernet

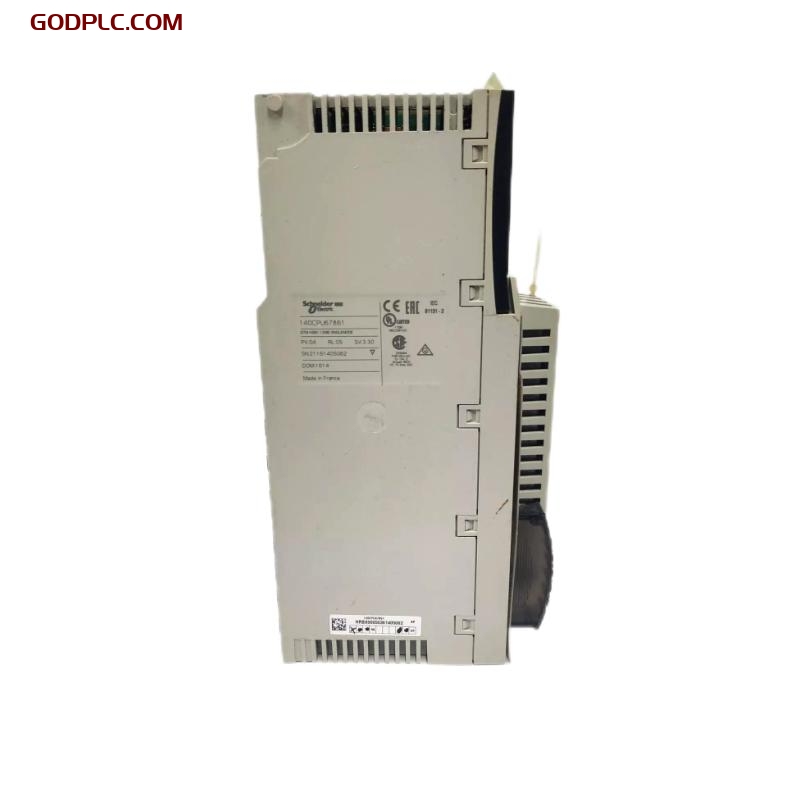

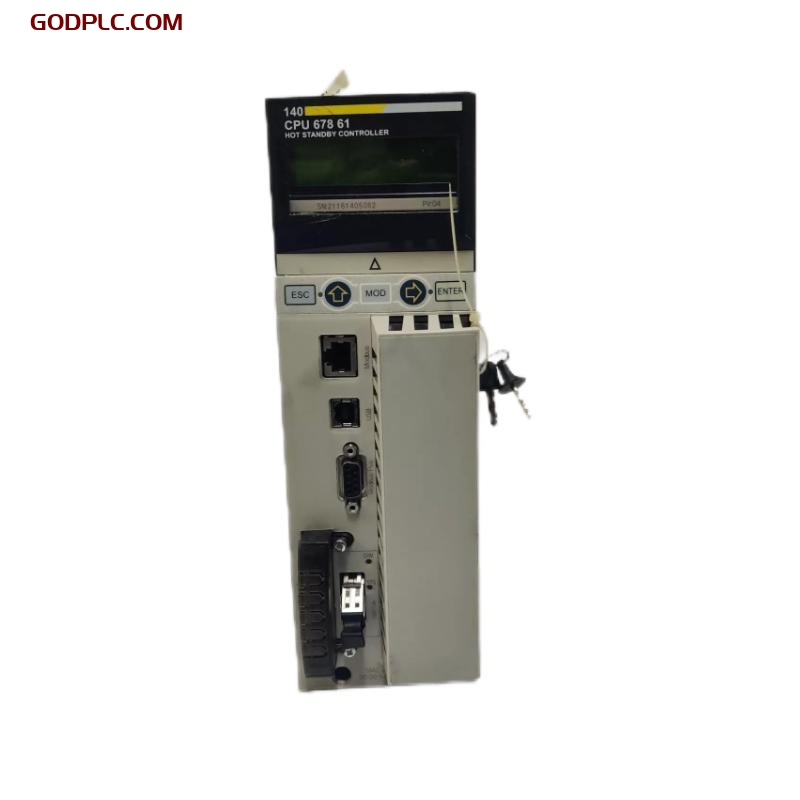

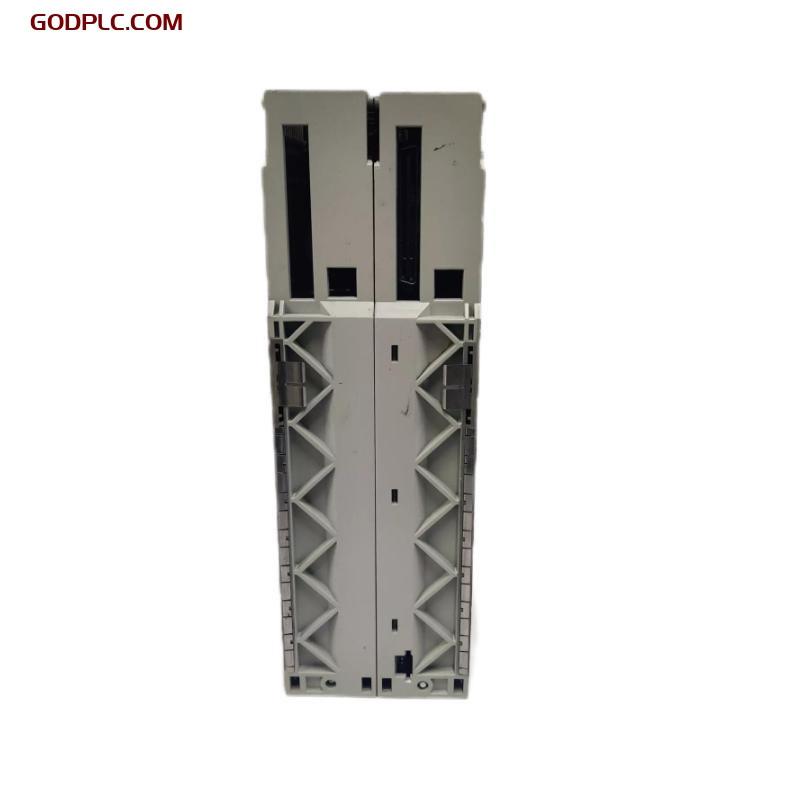

Schneider Electric 140CPU67861 – Unity Hot Standby Processor with Multimode Ethernet
Schneider Electric 140CPU67861 is a high-performance Unity hot standby processor designed for Modicon Quantum automation systems . It uses a 266 MHz PowerPC processor to provide enhanced processing speed, larger memory capacity and multi-mode Ethernet connectivity , making it ideal for mission-critical industrial applications that require high availability and real-time data processing . The processor supports redundancy to ensure that the system can operate normally even if the main CPU fails.
Technical specifications
| Specification | detail |
|---|---|
| model | 140CPU67861 |
| Product Type | Unity Hot Standby Processor |
| series | Modicon Quantum |
| Processor Type | Intel® 8260 |
| Processor speed | 266 MHz |
| Memory (User Application) | 4 MB static memory |
| flash memory | 2 megabytes |
| Loadable Memory | 64 kilobytes |
| Cycle time per instruction | 0.1 μs for Boolean instructions |
| Maximum I/O capacity | 31 RIO drops |
| Hot standby redundancy | Yes |
| Communication Ports | 1x USB, 1x RS-232, 1x RJ-45 (Ethernet TCP/IP), 1x Fiber Ethernet |
| Ethernet Function | Multimode Ethernet, 10/100 Mbps |
| Protocol support | Modbus TCP/IP, UDP/IP, IEC 61131-2, Unity |
| Watchdog Timer | Yes |
| Backplane Compatibility | Quantum Series |
| Operating temperature range | 0°C to +60°C |
| Storage temperature range | -40°C to +85°C |
| Humidity range | 5% to 95% RH (non-condensing) |
| Impact resistance | 30g |
| Shock resistance | 1 gram |
| Supply voltage | 5V DC |
| Power consumption | 3.5 in |
| Packing size (width x height x depth) | 110 mm × 185 mm × 325 mm |
| Packing weight | 1.424 kg |
| Compliance and Certification | CE, UL, CSA, ATEX, IEC 61131-2 |
Key Features and Benefits
1. High-performance processing
The 140CPU67861 is equipped with a PowerPC 8260 processor running at 266 MHz , which provides extremely fast execution speed and low cycle time . It is equipped with 4 MB SRAM and 2 MB flash memory to support complex automation applications with high memory requirements.
2. Hot standby redundancy ensures continuous operation
The processor is designed for redundant operation , ensuring seamless hot standby switchover between the primary and backup CPUs in the event of a failure . This makes it ideal for critical industries such as power generation, oil and gas, water treatment and large-scale manufacturing where downtime cannot be tolerated .
3. Multimode Ethernet for advanced networking
The multi-mode Ethernet interface enables high-speed communication at 10/100 Mbps and supports Modbus TCP/IP and Unity protocols for real-time data exchange, remote monitoring, and system diagnostics . In addition, it includes a fiber optic Ethernet port for high-reliability networks.
4. Extensive I/O and communication support
The processor supports up to 31 remote I/O (RIO) nodes , enabling scalable automation solutions , making it suitable for both centralized and distributed control architectures . It also features USB, RS-232, and Ethernet ports for versatile connectivity.
5. Industrial-grade reliability
Designed to withstand harsh industrial environments , the 140CPU67861 features a wide operating temperature range, is resistant to shock and vibration, and complies with global safety standards .
application
The Schneider Electric 140CPU67861 is widely used in demanding industrial applications that require high availability, high-speed processing, and redundancy , including:
- Power plants : Ensure continuous monitoring and control of power generation and distribution.
- Oil and gas refineries : Manage critical processes such as drilling, pipeline control, and safety systems.
- Water and Wastewater Treatment : Automate pumps, valves and treatment processes to improve efficiency and safety.
- Pharmaceutical manufacturing : ensuring precise control of sensitive production processes.
- Heavy Manufacturing and Automation : Handling large-scale automation tasks through high-speed data processing.
Recommended related models
| model | describe |
|---|---|
| 140CPU65160 | Unity hot standby processor, 486 DX4, 66 MHz, 1024 KB SRAM |
| 140CPU65260 | Unity Hot Standby Processor, 486 DX4, 100 MHz, 2048 KB SRAM |
| 140CPU67160 | Unity Hot Standby Processor, 100 MHz, Dual Ethernet |
| 140CPU67861S | Enhanced Unity hot-standby processor, 266 MHz, dual fiber Ethernet |
| 140CRA93100 | Quantum Series Remote I/O Adapter Modules |
| 140CRA93200 | Ethernet Remote I/O Adapter Module |
| 140NOE77101 | Quantum Ethernet Communication Module (10/100 Mbps) |
| 140XBP01000 | 10-slot quantum backplane |
| 140XBP01600 | 16-slot quantum backplane |
| 140CPS12420 | 24V DC Quantum Power Modules |
Schneider 140CPU67861 is in stock. Please contact us for a quick quote and competitive pricing.
