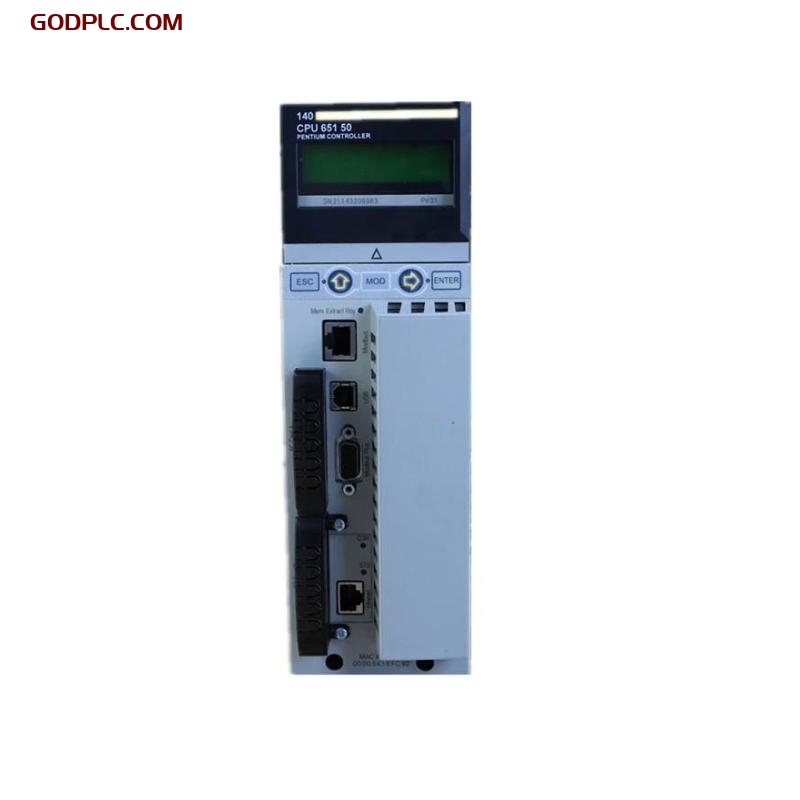

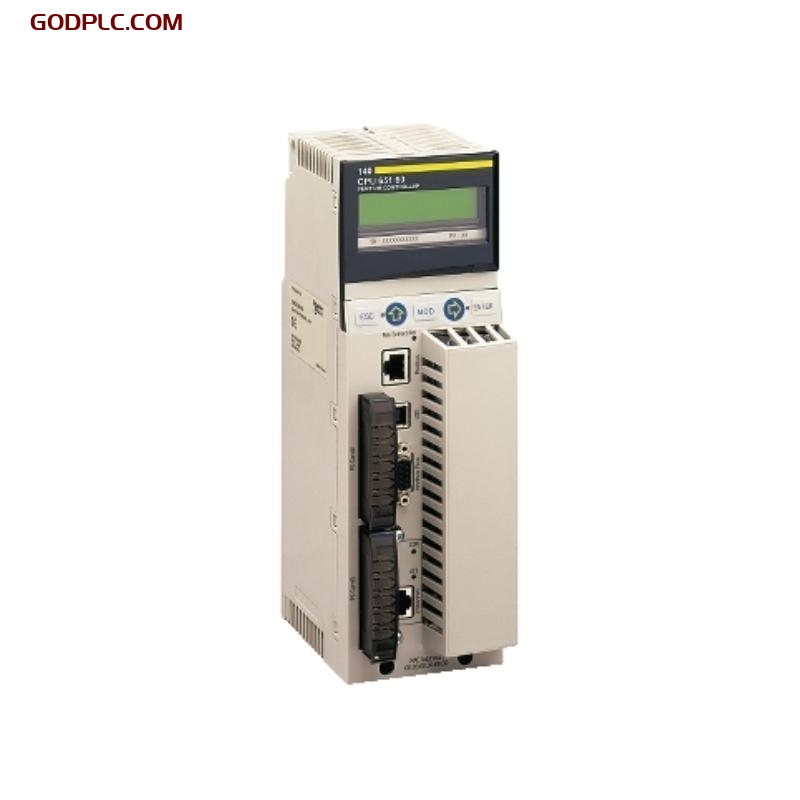

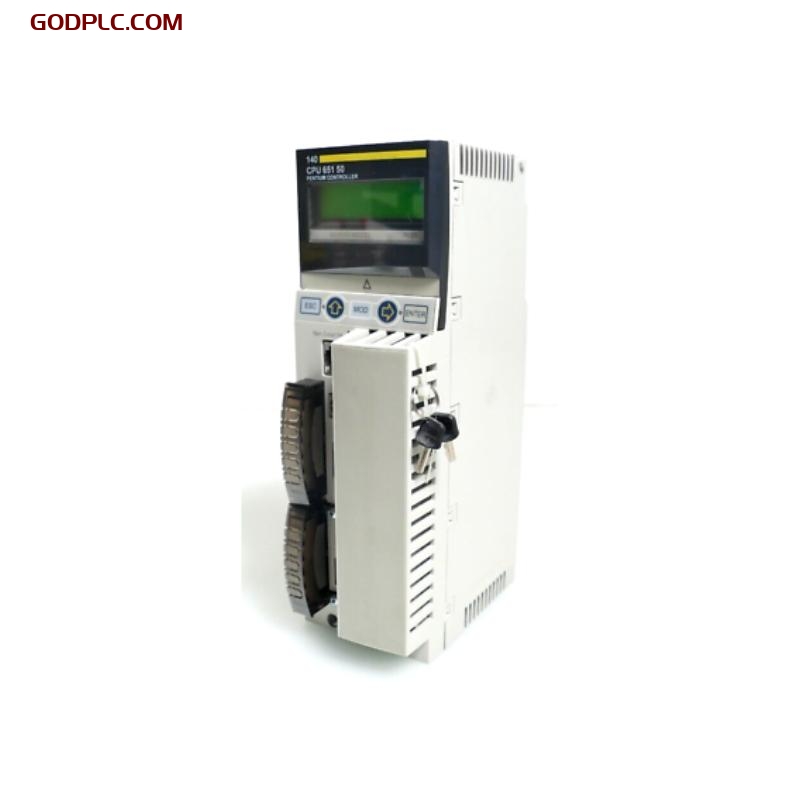

Schneider 140CPU65150 – Unity Processor Introduction

The Schneider 140CPU65150 is a high-performance Unity processor designed for use in Modicon Quantum automation platforms. As a powerful and versatile CPU module, it provides fast processing capabilities, extensive communication options, and high reliability, making it suitable for complex industrial automation applications.

This processor is built to handle demanding real-time control tasks, ensuring seamless integration into large-scale automation systems. With advanced networking capabilities, including Ethernet connectivity, it supports efficient communication across industrial networks. The 140CPU65150 is widely used in manufacturing, power distribution, water treatment, and various other industries where precise control and high availability are required.

Key Features and Benefits

1. High-Speed Processing Power

   • Equipped with a 486-based microprocessor, the 140CPU65150 delivers fast execution speeds, ensuring efficient handling of complex logic operations.

2. Large Program and Data Storage

   • Comes with 1024 KB of internal RAM, allowing for large-scale program execution and real-time data processing.

3. Multiple Communication Ports

   • Features two Modbus RS232 ports and one Ethernet TCP/IP port, providing flexible connectivity for industrial networks.

4. Expandable I/O Capabilities

   • Supports a wide range of I/O modules, allowing for customizable system configurations.

5. Advanced Diagnostic and Monitoring Functions

   • Includes self-diagnostics and built-in monitoring tools, enabling proactive maintenance and reduced system downtime.

6. Compatibility with Unity Pro Software

   • Fully compatible with Schneider Electric’s Unity Pro programming environment, ensuring seamless programming, debugging, and maintenance.

7. Built-in Redundancy Support

   • Can be used in redundant system architectures, increasing reliability and system availability.

8. Industrial-Grade Durability

   • Designed to withstand harsh industrial environments, ensuring long-term stable operation in challenging conditions.

9. Scalability and Flexibility

   • Suitable for small-scale to large-scale automation systems, supporting various communication protocols and I/O expansion.

10. Energy-Efficient and Cost-Effective

• Optimized for low power consumption, reducing overall operational costs.

Technical Specifications

Applications

The Schneider 140CPU65150 Unity processor is widely used in industrial automation and control systems, including:

1. Manufacturing Automation

   • Controls assembly lines, robotic systems, and production machinery.

2. Power Generation and Distribution

   • Used in substations, power grids, and renewable energy systems.

3. Water and Wastewater Treatment

   • Manages pumps, valves, filtration systems, and chemical dosing.

4. Oil & Gas Industry

   • Supports pipeline automation, drilling control, and refining processes.

5. Pharmaceutical and Chemical Processing

   • Ensures precise control in batch production and continuous processes.

6. Building Automation

   • Controls HVAC, lighting, and security systems in commercial buildings.

7. Food & Beverage Industry

   • Regulates temperature control, mixing, and packaging systems.

8. Transportation Systems

   • Integrates into traffic control, railway signaling, and airport automation.

9. Mining and Material Handling

   • Optimizes conveyor belt systems, crushers, and material processing plants.

10. Automotive Industry

• Provides real-time control for assembly lines and robotic manufacturing.

Related Models

Below is a list of 10 related Unity processor models from the Modicon Quantum series, offering different features for varying industrial applications:
