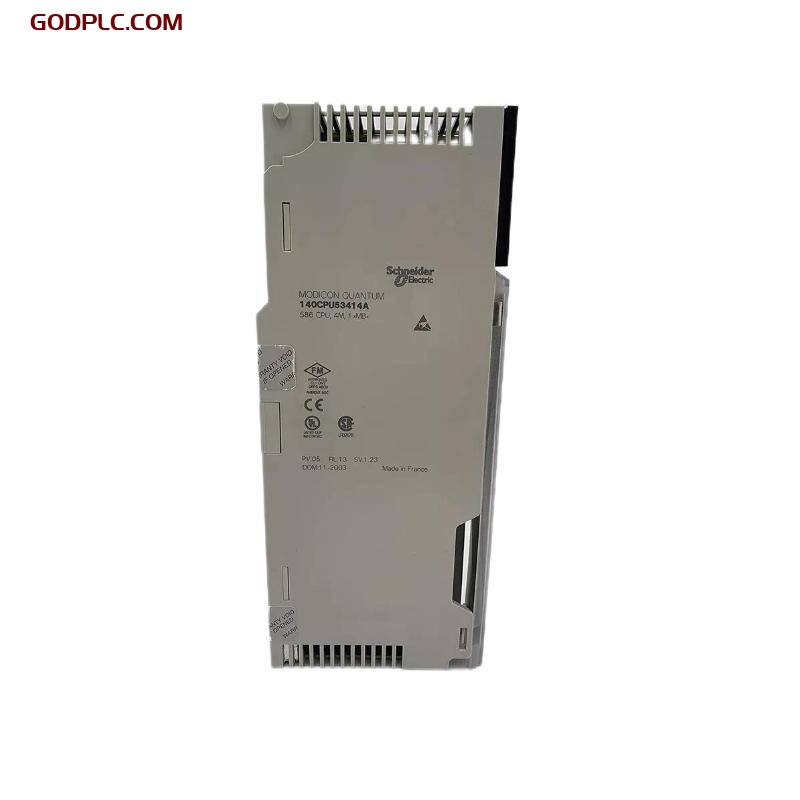

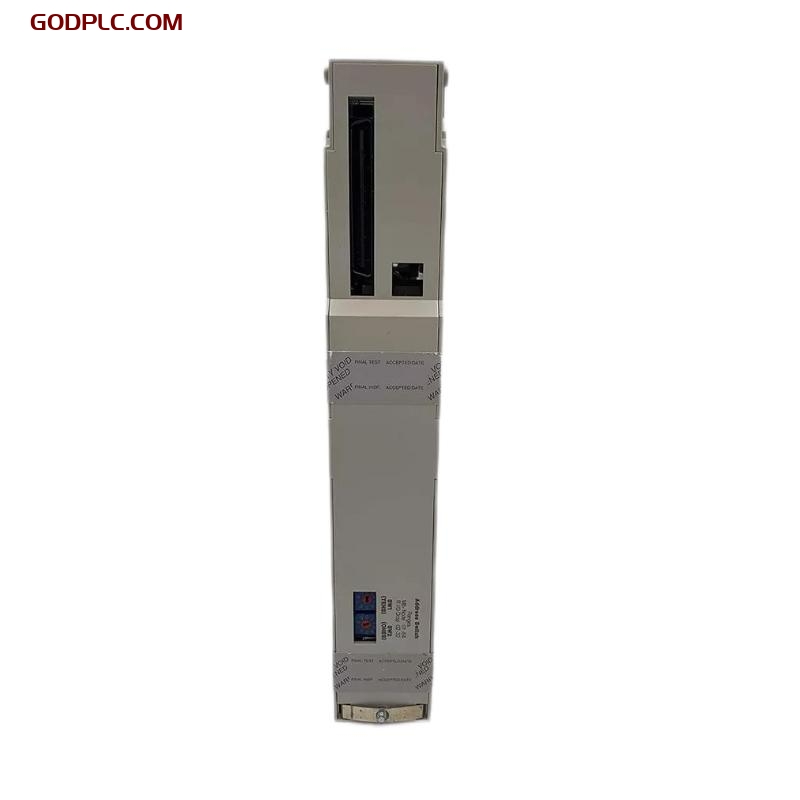

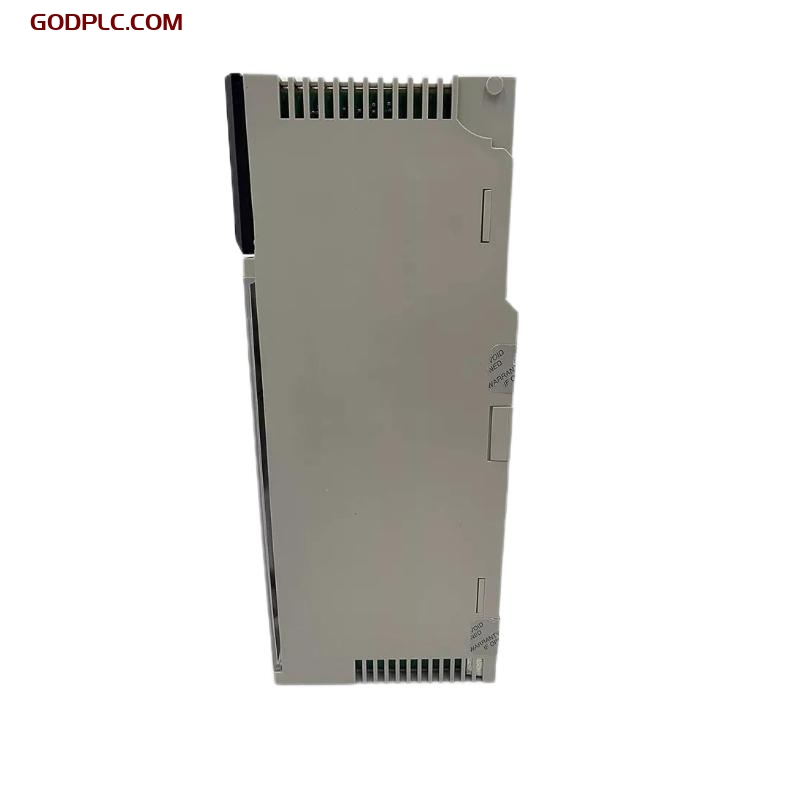

Schneider 140CPU53414A – CPU Controller Overview

The Schneider 140CPU53414A is a high-performance CPU module designed for the Modicon Quantum series of programmable logic controllers (PLCs). This CPU is built to support complex industrial automation applications, providing high-speed processing, extensive memory, and advanced communication capabilities.

As part of the Modicon Quantum family, the 140CPU53414A is widely used in manufacturing, energy, water treatment, oil & gas, and process industries, where reliability and high-performance control are essential. This model offers a high-speed execution rate, robust communication protocols, and expandability, making it an ideal solution for both standalone and networked automation systems.

Key Features and Benefits

1. Powerful Processing Performance

   • Equipped with a high-speed 80486 processor, the 140CPU53414A ensures rapid execution of logic operations, making it suitable for demanding industrial applications.

2. Large Memory Capacity

   • The module comes with 2 MB of RAM and 268 KB of user logic memory, allowing for the storage and execution of complex control programs.

3. Versatile Communication Options

   • Integrated Modbus Plus and Ethernet communication ports enable seamless connectivity with industrial networks and SCADA systems.

4. Modicon Quantum Compatibility

   • Fully compatible with Modicon Quantum I/O modules, making it a flexible solution for automation systems that require modular expansion.

5. Hot Standby Redundancy Support

   • The 140CPU53414A supports Hot Standby systems, ensuring high availability and system reliability in critical applications.

6. Robust Industrial Design

   • Designed to operate in harsh industrial environments, it offers high resistance to electromagnetic interference (EMI) and extreme temperature conditions.

7. Expandable and Scalable

   • Can be expanded with additional I/O modules, communication cards, and memory upgrades, making it adaptable for growing industrial automation needs.

Technical Specifications

Applications

The Schneider 140CPU53414A is used in a wide range of industrial applications that require high-performance control and automation. Some of its key applications include:

1. Manufacturing Automation

   • Controls automated production lines, robotic systems, and material handling equipment, ensuring efficiency and precision in industrial manufacturing.

2. Energy and Power Distribution

   • Used in power plants, substations, and energy management systems for monitoring and controlling power distribution.

3. Water and Wastewater Treatment

   • Plays a crucial role in municipal and industrial water treatment facilities, optimizing the management of water purification and distribution systems.

4. Oil and Gas Industry

   • Used in pipeline monitoring, drilling control, and refinery automation, ensuring safe and efficient operation in hazardous environments.

5. Process Control Systems

   • Ideal for chemical processing, food and beverage production, and pharmaceutical manufacturing, where precise control and monitoring are essential.

6. Building Automation

   • Integrated into HVAC, lighting, and security systems for large industrial and commercial buildings.

7. SCADA and Remote Monitoring

   • Works seamlessly with SCADA systems for remote monitoring and control of industrial operations.
