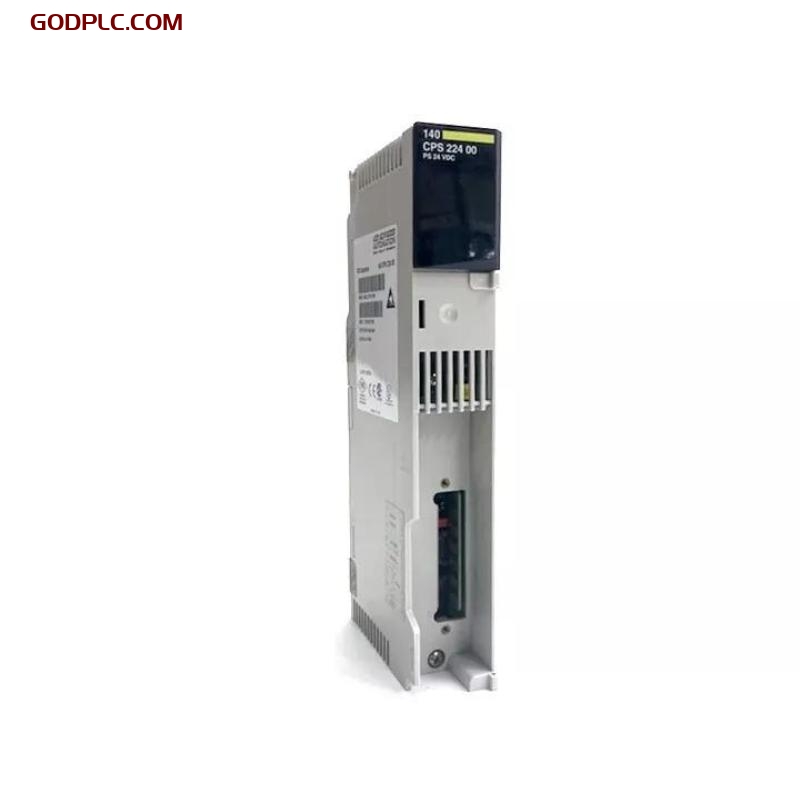

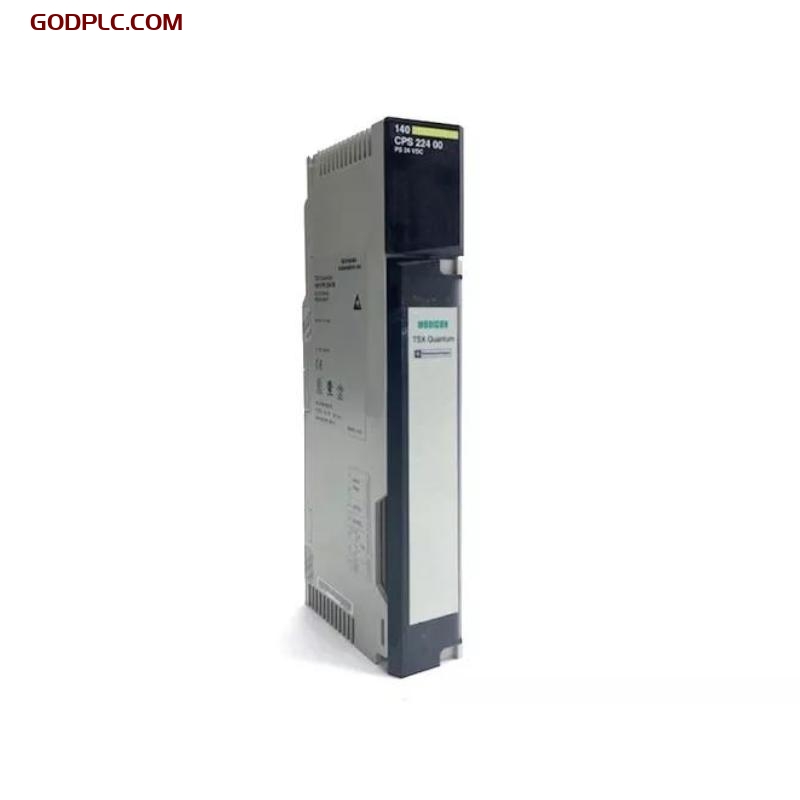

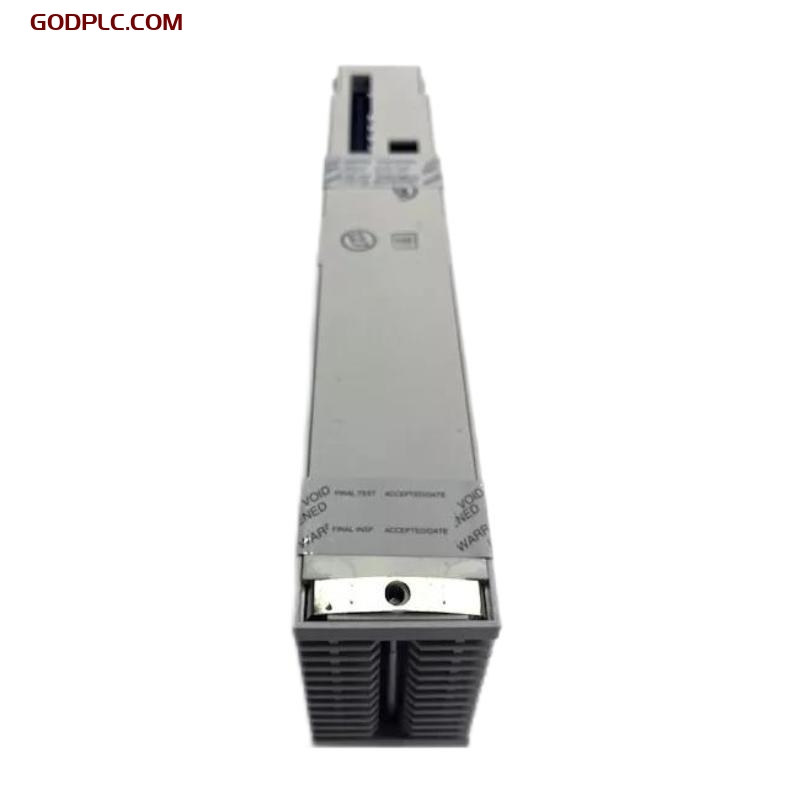

Schneider 140CPS22400 Power Supply Module
The Schneider Electric 140CPS22400 power supply module is part of Schneider Electric’s Modicon range, specifically designed for industrial automation systems. This module is highly regarded for its efficiency and reliability, ensuring continuous power supply to control systems and various connected devices. It is engineered to deliver stable 24V DC power to applications requiring high operational reliability, such as PLCs, I/O modules, sensors, and actuators within industrial automation systems.
The 140CPS22400 power supply module is used in the Modicon Quantum and Modicon Premium PLC systems. Its main role is to provide a dependable and efficient DC voltage source to the system’s controllers, I/O modules, and other connected equipment, supporting a wide range of industrial automation applications.
Key Features:
- High Efficiency: The power supply operates at a high efficiency, reducing energy consumption and offering long-term operational cost savings.
- Compact Design: With dimensions of 103.9 × 40.3 × 250 mm and a weight of 0.65 kg, the module is designed to be compact, ensuring space-saving installation in industrial cabinets and enclosures.
- Wide Input Voltage Range: Capable of handling input voltage ranges from 100V to 240V AC, making it suitable for use in various geographical regions with different power grid configurations.
- Reliable Output Power: It provides a consistent 24V DC output, ensuring a steady power supply to all connected industrial equipment. This module can supply up to 480W of power with 20A output.
- Robust Protection: Includes multiple protective features such as over-voltage, over-current, and short-circuit protection, providing both the power supply and connected devices with protection from power anomalies.
- Integrated Cooling: Designed with an integrated cooling mechanism to prevent overheating, ensuring that the module operates optimally even under continuous use.
- Flexible Mounting Options: The module supports both horizontal and vertical mounting, making it adaptable to various system configurations and offering ease of installation.
- Long-Term Reliability: Schneider Electric is known for producing highly reliable industrial equipment, and the 140CPS22400 is no exception. It is built to withstand the demanding conditions of industrial environments, delivering continuous performance without frequent maintenance.
- LED Indicators: Equipped with LED status indicators to provide users with real-time feedback on the module’s operation, simplifying troubleshooting and maintenance tasks.
- Environmental Resistance: The module is designed to operate in harsh industrial environments and is resistant to common environmental factors such as dust, humidity, and temperature extremes.
Applications:
The 140CPS22400 power supply module is widely used in a variety of industrial automation applications, including:
- PLCs: Powers the Modicon Quantum and Modicon Premium PLCs, providing stable voltage to controllers for reliable automation and control.
- I/O Modules: Supplies power to input and output modules, ensuring reliable operation of connected sensors, actuators, and other industrial devices.
- Control Panels: Provides power to control panels that monitor and manage industrial processes, ensuring the proper functioning of all control elements.
- Robotics: Used to supply power to robotic systems used in manufacturing processes, assembly lines, and automated production systems.
- Manufacturing Automation: Powers systems in manufacturing automation applications, including assembly lines, conveyor systems, and packaging machines.
- Process Control: Ideal for process control systems in industries such as chemical, pharmaceutical, and food processing, ensuring uninterrupted power supply for critical control tasks.
- Networking Equipment: Provides power to industrial networking equipment, ensuring seamless communication across devices in automated environments.
- Energy Management: Powers energy management systems that regulate and monitor the distribution of electricity across industrial facilities.
- Data Acquisition: Supplies power to data acquisition systems used in real-time monitoring of industrial conditions, ensuring that sensors and data collection systems operate smoothly.
- Safety Systems: Ideal for powering safety-critical systems such as emergency shutdown mechanisms, alarm systems, and safety interlocks.
Technical Specifications:
Below are the detailed technical specifications for the Schneider Electric 140CPS22400 Power Supply Module:
| Parameter | Specification |
|---|---|
| Model | 140CPS22400 |
| Type | Power Supply Module |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Input Voltage Range | 100V to 240V AC |
| Output Voltage | 24V DC |
| Output Power | 480W (20A) |
| Output Current | 20A |
| Efficiency | > 90% |
| Protection | Over-voltage, over-current, short-circuit protection |
| Temperature Range | -10°C to +60°C |
| Cooling | Integrated cooling system |
| Mounting | Modular, horizontal and vertical mounting options |
| LED Indicators | Yes (Power, Fault, OK indicators) |
| Environmental Protection | IP20 (dust protection, no water protection) |
| Compliance | CE, UL, CSA, RoHS |
Recommended Related Models (Same Series / Similar Products):
Here are 10 other models from the Schneider Electric range of power supply modules suitable for a variety of industrial automation applications:
| Model | Description |
|---|---|
| 140CPS12400 | 24V DC power supply module for low-power applications, with output of 320W. |
| 140CPS12410 | Compact 24V DC power supply providing 480W output. |
| 140CPS12430 | Higher-output power supply with 600W output for demanding applications. |
| 140CPS12440 | Advanced power supply offering up to 700W for high-demand systems. |
| 140CPS12450 | Power supply for sensitive equipment with enhanced protection. |
| 140CPS12460 | High-efficiency power supply designed for energy-saving applications. |
| 140CPS12470 | Extended temperature range version for harsh industrial environments. |
| 140CPS12500 | Modular design for flexible system integration and power supply needs. |
| 140CPS12520 | Reliable power supply with surge protection, ideal for equipment protection. |
| 140CPS12530 | Compact power supply module for applications with space constraints. |
Schneider 140CPS22400 is in stock. Contact us for quick quotes and competitive prices.
