Schneider 140CPS12420 Power Supply Module Fast Delivery

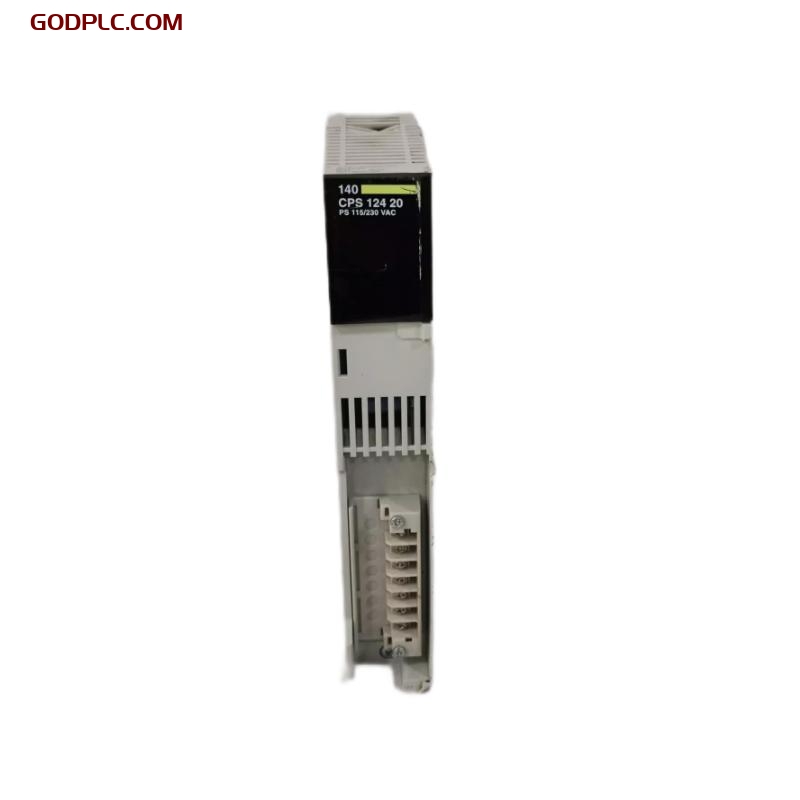

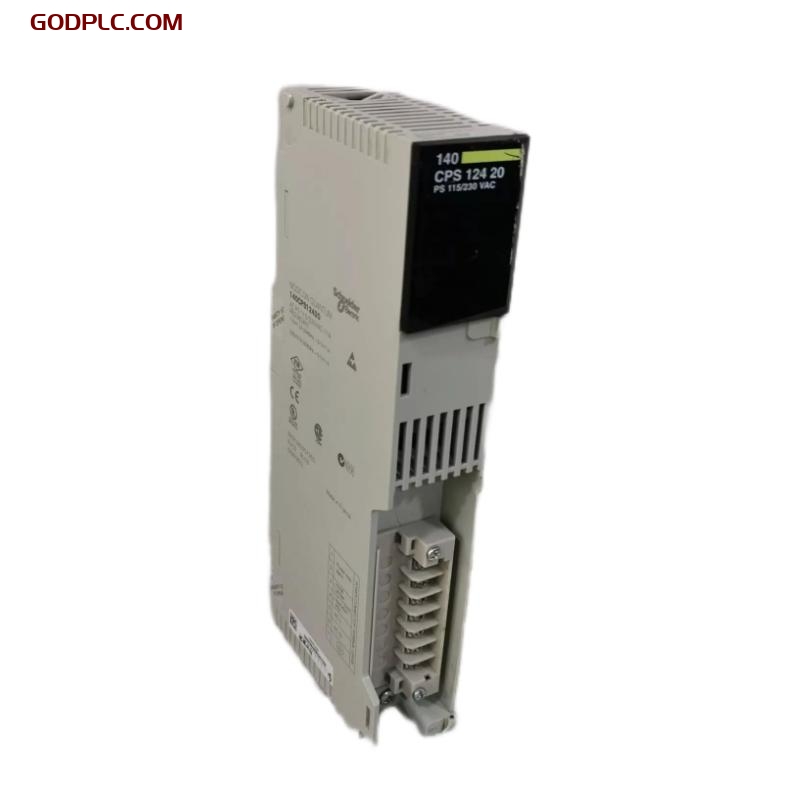

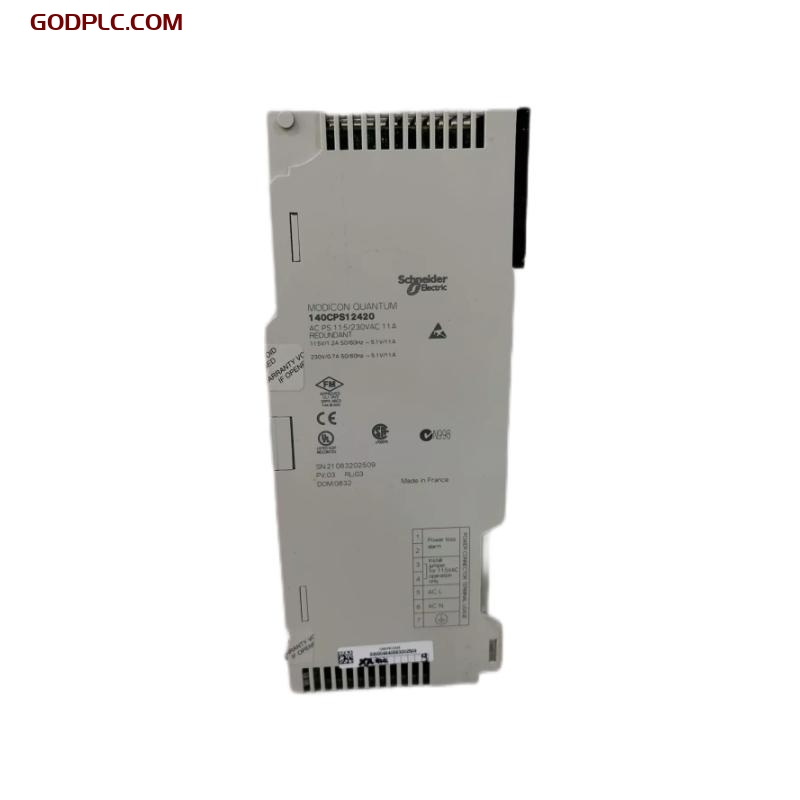

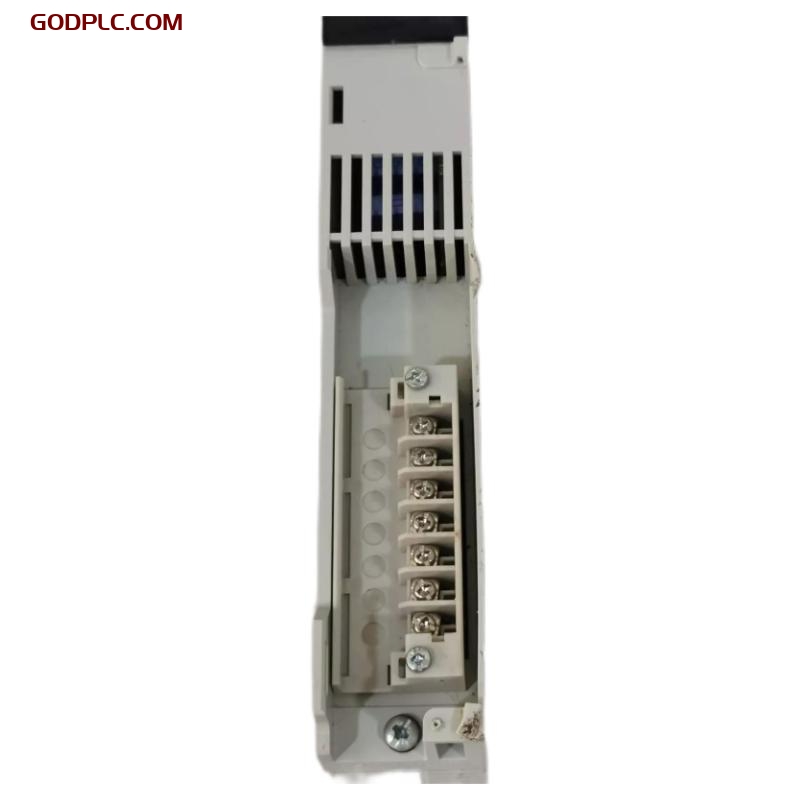

Schneider Electric 140CPS12420 Power Supply Module
The Schneider Electric 140CPS12420 is a high-performance power supply module designed for use in industrial automation systems. This power supply unit is part of Schneider Electric’s Modicon range of products, specifically designed for integration with the Modicon Quantum and Modicon Premium programmable logic controllers (PLCs). Its main function is to provide reliable and stable DC power to the system, ensuring that all connected devices, including the PLCs, I/O modules, and other peripherals, operate efficiently and without interruption.
The 140CPS12420 power supply module is engineered with advanced technology that ensures high efficiency, low power consumption, and robust performance. It is highly reliable and offers excellent protection against power fluctuations, surges, and other electrical anomalies that may occur in industrial environments. This module is ideal for applications where the stability of the power supply is critical for the smooth operation of control systems and automation equipment.
Key Features:
- High Efficiency: The 140CPS12420 power supply offers high energy efficiency, reducing operational costs and providing reliable operation over long periods.
- Compact Design: With dimensions of 103.9 × 40.3 × 250 mm and a weight of 0.65 kg, this power supply module is designed to fit easily into compact industrial enclosures, saving space and reducing installation complexity.
- Wide Input Voltage Range: The power supply is capable of handling a wide input voltage range, typically from 100V to 240V AC, making it compatible with various electrical systems around the world.
- Output Power: It provides 24V DC output, with an output power rating of 480W (20A), which is suitable for a wide range of industrial automation and control applications.
- Enhanced Protection: The module includes several protective features, such as over-voltage protection, over-current protection, and short-circuit protection, ensuring that both the power supply and connected devices are safeguarded against electrical faults.
- Built-in Cooling: The module is designed with an integrated cooling system to prevent overheating, which enhances its longevity and reduces the need for additional cooling mechanisms.
- Mounting Flexibility: It features a modular design with easy installation and integration into various systems, including both horizontal and vertical mounting options.
- High Reliability: Schneider Electric products are known for their reliability in industrial settings, and the 140CPS12420 is no exception. This power supply is designed for continuous operation in demanding industrial environments.
- LED Indicators: The module includes LED indicators to provide real-time status feedback, making it easier for users to monitor and maintain the system.
- Environmental Resistance: It is built to withstand the harsh conditions commonly found in industrial environments, including temperature extremes, vibration, and dust.
Applications:
The 140CPS12420 power supply module is primarily used in industrial control systems, including but not limited to the following applications:
- PLC Systems: It is commonly used to power Modicon Quantum and Modicon Premium PLCs, ensuring stable operation for industrial automation tasks such as machine control, process automation, and data acquisition.
- I/O Modules: Powers input and output modules in industrial automation systems, providing the necessary voltage to ensure correct functioning of sensors, actuators, and other I/O devices.
- Control Panels: Used to provide reliable power for control panels that manage and monitor industrial processes, ensuring the smooth functioning of all connected equipment.
- Robotics: Supplies power to robotic systems, enabling precise control and operation of industrial robots in manufacturing and assembly lines.
- Manufacturing Automation: It is utilized in manufacturing systems that require continuous and reliable power to control processes like conveyor systems, assembly lines, and packaging machinery.
- Process Control Systems: Ideal for powering process control systems in industries such as chemical processing, food and beverage, and pharmaceuticals, where precise control is critical.
- Industrial Networking: Provides stable power to networking equipment used in industrial automation, such as routers and switches, ensuring seamless communication between devices.
- Energy Systems: Used in power management and distribution systems in industrial environments, ensuring the reliable operation of critical electrical systems.
- Data Acquisition Systems: Ensures that data acquisition systems receive a steady and reliable power supply for real-time monitoring of industrial processes and conditions.
- Safety Systems: Powers safety-related equipment such as emergency shutdown systems, fire alarms, and safety interlocks, ensuring system reliability even in critical situations.
Technical Specifications:
The following table provides detailed technical specifications for the Schneider Electric 140CPS12420 Power Supply Module:
| Parameter | Specification |
|---|---|
| Model | 140CPS12420 |
| Type | Power Supply Module |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.65 kg |
| Input Voltage Range | 100-240V AC |
| Output Voltage | 24V DC |
| Output Power | 480W (20A) |
| Output Current | 20A |
| Efficiency | > 90% |
| Protection | Over-voltage, over-current, short-circuit protection |
| Temperature Range | -10°C to +60°C |
| Cooling | Integrated cooling system |
| Mounting | Modular, horizontal and vertical mounting options |
| LED Indicators | Yes (Power, Fault, OK indicators) |
| Environmental Protection | IP20 (dust protection, no water protection) |
| Compliance | CE, UL, CSA, RoHS |
Recommended Related Models (Same Series / Similar Products):
Here are 10 other models from the Schneider Electric range of power supply modules that are suitable for various industrial applications:
| Model | Description |
|---|---|
| 140CPS12410 | 24V DC power supply module with a lower power output of 320W. |
| 140CPS12430 | Higher power variant providing up to 600W output, designed for larger systems. |
| 140CPS12440 | Power supply for high-demand applications, with up to 700W output. |
| 140CPS12450 | 24V DC power supply module for critical systems, with enhanced protection. |
| 140CPS12460 | High-efficiency version, designed for reduced energy consumption. |
| 140CPS12470 | Power supply with extended temperature range for use in extreme conditions. |
| 140CPS12510 | Modular power supply with flexible output options for versatile applications. |
| 140CPS12520 | Power supply with enhanced surge protection for sensitive equipment. |
| 140CPS12530 | Compact and high-efficiency model for applications with limited space. |
| 140CPS12540 | Suitable for high-performance automation systems, with superior cooling features. |
Schneider 140CPS12420 is in stock. Contact us for quick quotes and competitive prices.
