Schneider 140AVI03000 Analog Input Module Quality Selection
Product Overview

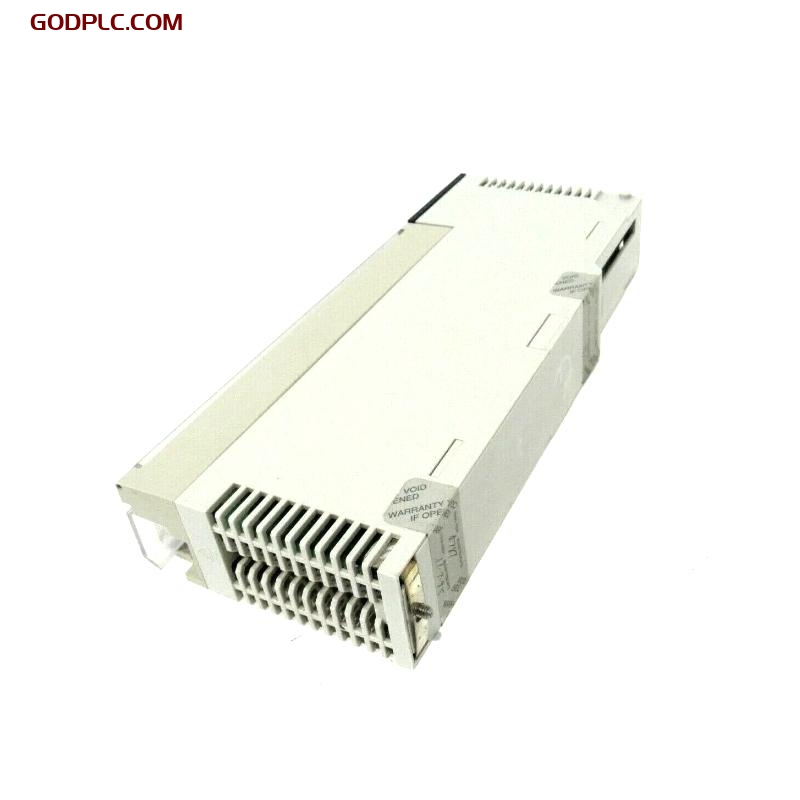

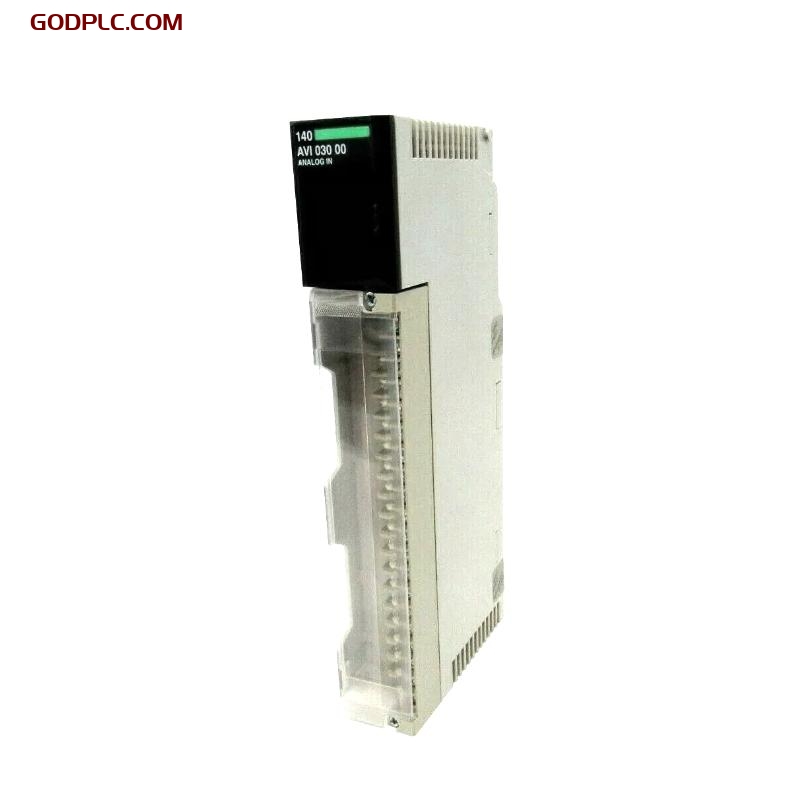

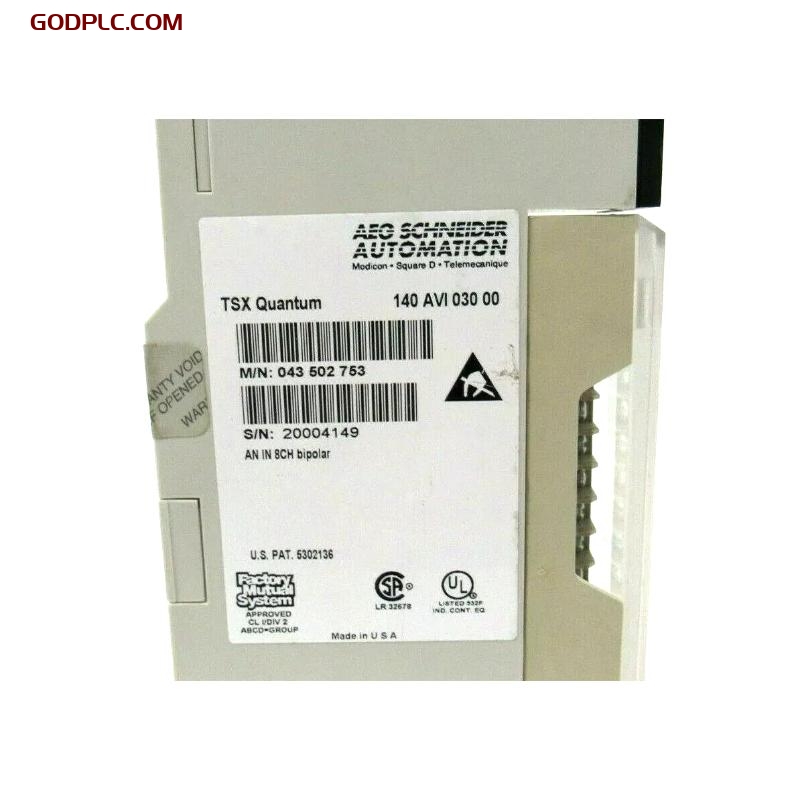

The Schneider 140AVI03000 is a high-performance analog voltage input module designed specifically for Modicon Quantum PLC systems. This module is built to handle precise analog voltage signals and is equipped with 8 input channels, allowing for simultaneous measurement of multiple signals. The 140AVI03000 module is ideal for various industrial control applications such as process control, automated manufacturing, temperature monitoring, and energy management.
With a focus on flexibility and precision, the 140AVI03000 is compatible with a wide range of voltage inputs (typically 0-10V), offering 16-bit resolution for accurate signal processing. It is built to handle the demands of industrial environments, ensuring stable performance and reliable data acquisition for critical control systems.
The module also integrates seamlessly into Modicon Quantum PLC racks, making it a perfect choice for applications requiring multiple analog inputs, such as HVAC systems, control systems, and sensor-based applications. Its ability to process signals with high accuracy ensures real-time data monitoring, which is essential for process optimization, automation, and system diagnostics.
Key Features
- 8 Analog Voltage Input Channels: Enables monitoring of multiple sensors and devices simultaneously.
- Input Range: Supports 0-10V voltage input, suitable for a wide range of industrial sensors.
- High 16-Bit Resolution: Provides precise data acquisition with 16-bit resolution, ensuring accuracy even for low-range voltage signals.
- Compact Design: Optimized for space-saving integration into Modicon Quantum PLC systems.
- Fast Signal Processing: Facilitates quick data processing for real-time control and monitoring.
- Wide Operating Temperature Range: Can operate in temperatures from 0°C to 60°C, making it suitable for various industrial environments.
- Low Power Consumption: Designed with energy efficiency in mind for long-term operation.
- Durable Construction: Built for industrial environments, ensuring long-lasting and reliable performance.
- Input-to-Ground Isolation: Protects against electrical noise and interference, maintaining signal integrity in harsh environments.
Applications
The Schneider 140AVI03000 is suitable for a wide range of industrial and automation applications, including but not limited to:
- Process Control Systems: For monitoring critical process parameters such as temperature, pressure, and level in industries like chemical, oil & gas, and pharmaceutical.
- Energy Management Systems: For measuring voltage and monitoring energy usage in power generation and distribution systems.
- Factory Automation: Ideal for measuring parameters like flow, speed, and position in automated manufacturing systems.
- HVAC Systems: Used for temperature and humidity monitoring in building automation and climate control systems.
- Test and Measurement: For use in laboratory environments, providing accurate and reliable voltage measurements.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Schneider 140AVI03000 |
| Module Type | Analog Voltage Input Module |
| Number of Input Channels | 8 Analog Voltage Input Channels |
| Input Type | Voltage (0-10V) |
| Input Range | 0-10V |
| Resolution | 16-bit resolution |
| Accuracy | ±0.1% of full scale (typical) |
| Input Impedance | High input impedance |
| Power Supply | 24V DC (±10%) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Mounting Type | Mounts to Modicon Quantum I/O rack |
| Environmental Rating | IP20 (indoor use) |
| Certifications | CE, UL Listed |
| Data Transmission Rate | Fast data processing for real-time control applications |
Detailed Product Features
1. 8 Analog Voltage Input Channels
The 140AVI03000 module comes with 8 analog input channels, providing the ability to monitor multiple sensors simultaneously. This feature is ideal for applications where real-time monitoring of several analog signals is essential for system diagnostics and optimization.
2. High 16-Bit Resolution
With 16-bit resolution, the 140AVI03000 ensures high accuracy and precision in voltage measurements. This is especially important in applications where small fluctuations in voltage need to be detected and monitored, such as in process control and test systems.
3. Input Flexibility
The 140AVI03000 module is designed to handle 0-10V voltage input, making it compatible with a wide range of industrial sensors. Whether you’re working with temperature, pressure, or flow sensors, this module can provide accurate data for effective monitoring and control.
4. Input-to-Ground Isolation
The 140AVI03000 module features input-to-ground isolation, protecting the system from electrical noise and interference. This isolation is crucial in industrial environments where the equipment may be subject to power surges, voltage spikes, or other electrical disturbances.
5. Compact and Robust Design
The 140AVI03000 is designed with a compact footprint of making it easy to integrate into Modicon Quantum I/O racks. The robust construction ensures long-term reliability, even in harsh industrial environments, while its small size allows for efficient use of space.
6. Low Power Consumption
Operating with a low power consumption of typically 0.6W, the 140AVI03000 is energy-efficient, which helps to reduce overall operating costs in large systems with multiple input modules. This ensures a more sustainable and cost-effective solution for automation and control systems.
7. Wide Temperature Range
The 140AVI03000 operates reliably within a wide temperature range of 0°C to 60°C, which makes it suitable for both indoor and industrial environments. It can perform effectively in areas with fluctuating temperatures, such as factory floors, control rooms, and HVAC systems.
8. Fast Data Processing
The module is capable of fast data processing, allowing it to quickly acquire and process analog voltage signals. This feature ensures that real-time control and feedback are provided without delay, making it ideal for applications where timely data is critical for system performance.
Schneider 140AVI03000 is in stock. Contact us for quick quotes and competitive prices.
