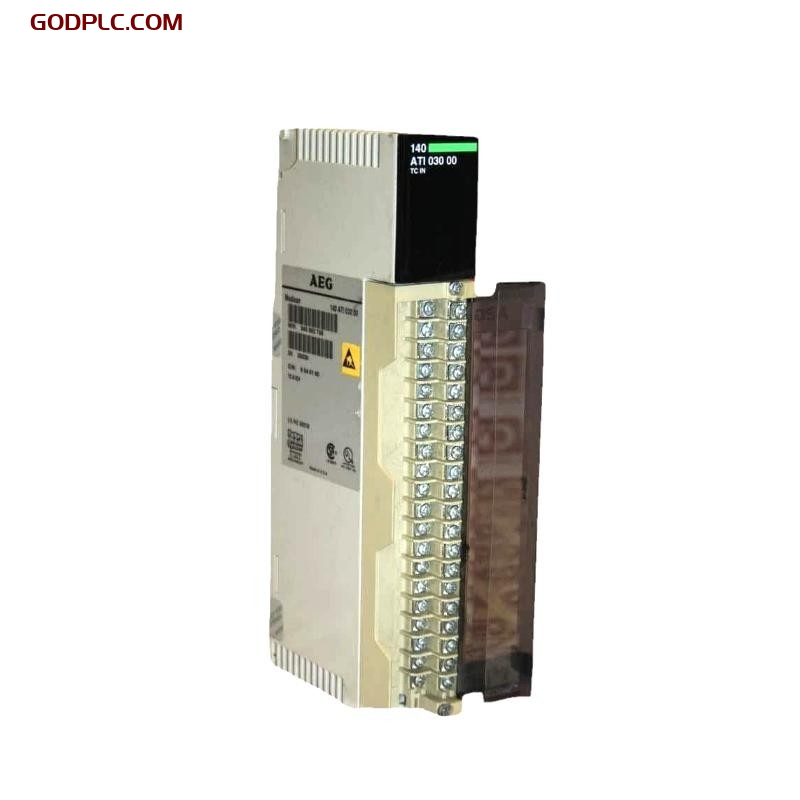

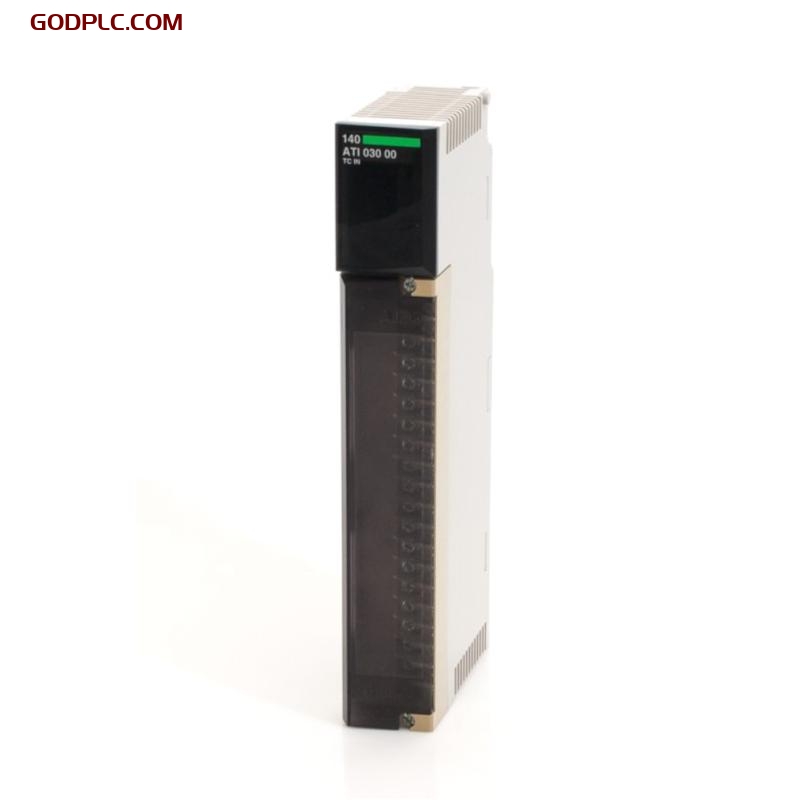

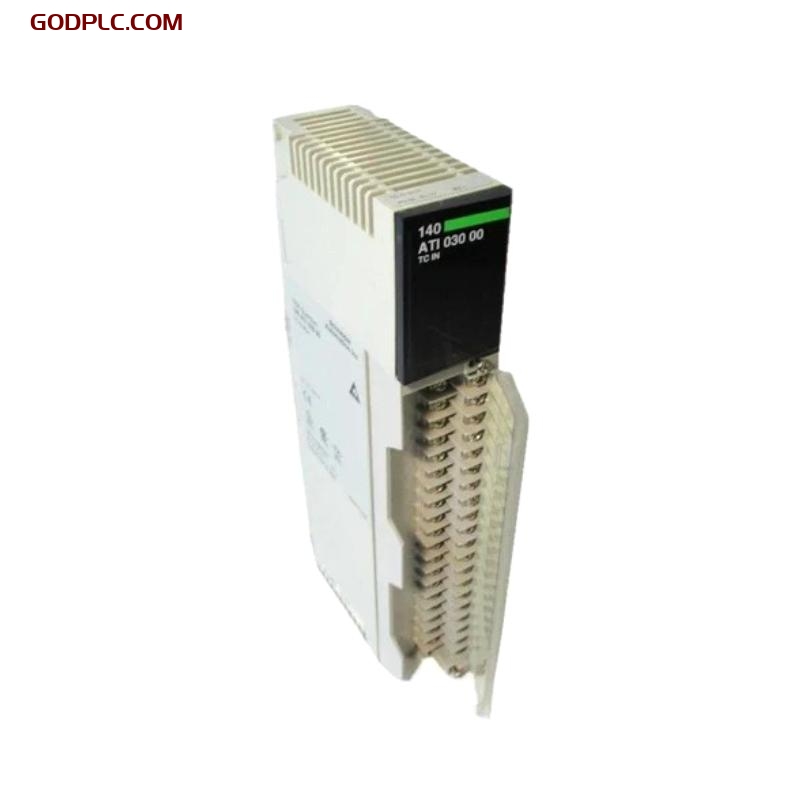

Schneider 140ATI03000 Analog Input Module Efficient delivery
Product Overview
The Schneider 140ATI03000 is a high-performance analog input module designed for Modicon Quantum PLC systems. This versatile module offers 8 input channels, capable of handling both voltage and current signals. It is ideal for applications in automation and control systems, providing reliable and precise measurements for a variety of industrial sensors.
The 140ATI03000 module supports a wide range of input configurations, including voltage (0-10V) and current (4-20mA) inputs, making it suitable for monitoring a diverse set of industrial variables like temperature, pressure, flow, and level. With high 16-bit resolution and an input-to-ground isolation feature, this module ensures the highest level of accuracy and protection against noise interference in harsh environments.
Engineered for Modicon Quantum systems, the 140ATI03000 is designed to deliver fast data processing and seamless integration into your control systems. Whether you need to monitor the performance of process control, automated manufacturing, or energy management systems, this module offers a reliable and efficient solution.
Key Features
- 8 Analog Input Channels: Provides 8 channels for simultaneous analog signal measurement.
- Input Type Flexibility: Supports voltage (0-10V) and current (4-20mA) inputs.
- High Resolution (16-bit): Offers 16-bit resolution for precise and accurate data acquisition.
- Input Isolation: Features input-to-ground isolation to prevent signal interference and ensure data integrity.
- Compact Design: Designed to fit seamlessly into Modicon Quantum PLC systems.
- Fast Data Processing: Enables quick processing of analog signals for real-time control and monitoring.
- Wide Operating Temperature Range: Designed to operate in temperatures from 0°C to 60°C.
- Durable Construction: Built to withstand harsh industrial environments, ensuring long-term reliability.
- Low Power Consumption: Consumes minimal power for cost-effective operation.
Applications
The Schneider 140ATI03000 is designed for use in a wide range of industrial and automation applications. Its high-precision analog input capabilities make it ideal for the following:
- Process Control: Monitoring critical parameters such as temperature, pressure, and level in chemical, oil & gas, and pharmaceutical industries.
- Factory Automation: Used in automated manufacturing systems for measuring variables like flow rate, speed, and position.
- Energy Management: Measures electrical signals in power generation, distribution, and smart grid applications.
- HVAC Systems: Ideal for use in building automation systems, where accurate monitoring of temperature and humidity is essential.
- Test and Measurement: For laboratory and custom test systems where reliable analog signal acquisition is needed.
Technical Specifications
| Feature | Specification |
|---|---|
| Model | Schneider 140ATI03000 |
| Module Type | Analog Input Module |
| Number of Input Channels | 8 Analog Input Channels |
| Input Type | Voltage (0-10V), Current (4-20mA) |
| Input Range | 0-10V (Voltage), 4-20mA (Current) |
| Resolution | 16-bit resolution |
| Accuracy | ±0.1% of full scale (typical) |
| Input Impedance | High input impedance for voltage inputs |
| Power Supply | 24V DC (±10%) |
| Operating Temperature | 0°C to 60°C |
| Storage Temperature | -20°C to 85°C |
| Dimensions | 103.9 × 40.3 × 250 mm |
| Weight | 0.3 kg |
| Mounting Type | Mounts to Modicon Quantum I/O rack |
| Environmental Rating | IP20 (indoor use) |
| Certifications | CE, UL Listed |
| Data Transmission Rate | Fast data processing for real-time control applications |
Detailed Product Features
1. 8 Analog Input Channels
The Schneider 140ATI03000 provides 8 input channels, allowing for the simultaneous monitoring of multiple analog signals. This is ideal for applications where multiple sensors need to be monitored in parallel, such as temperature, pressure, and level monitoring in industrial systems.
2. 16-Bit Resolution
With 16-bit resolution, the module ensures highly precise data acquisition, making it suitable for applications that require fine-grained measurements. Whether measuring low-range signals or handling small variations in input signals, this module provides excellent accuracy.
3. Input Flexibility
The 140ATI03000 supports both voltage (0-10V) and current (4-20mA) input types, making it versatile for various industrial sensors and applications. This flexibility ensures compatibility with a wide range of devices, from temperature and pressure transmitters to flow meters and level sensors.
4. Input Isolation
This module is equipped with input-to-ground isolation, which helps protect against electrical noise and interference. The isolation ensures that signals are not distorted by common-mode voltage or ground loops, which is crucial in noisy industrial environments.
5. Compact and Robust Design
The 140ATI03000 is designed for easy integration into Modicon Quantum I/O racks. Its small form factor enables efficient use of space in control panels and automation systems, while its durable construction ensures long-lasting performance in demanding environments.
6. Low Power Consumption
The 140ATI03000 operates with low power consumption (typically 0.6W), making it an energy-efficient option for long-term operation. This is particularly beneficial in large installations where multiple input modules are used, contributing to overall energy savings.
7. Wide Temperature Range
The Schneider 140ATI03000 operates in a wide temperature range from 0°C to 60°C, ensuring reliable performance in varying environmental conditions. This makes it suitable for both indoor and light industrial settings, such as factory floors, control rooms, and HVAC systems.
8. Fast Data Processing
The module is designed to handle fast data transmission rates, enabling quick and accurate processing of analog signals. This is crucial for real-time control applications, such as process control or automated manufacturing systems, where timely feedback and control actions are required.
Schneider 140ATI03000 is in stock. Contact us for quick quotes and competitive prices.
