Product Overview

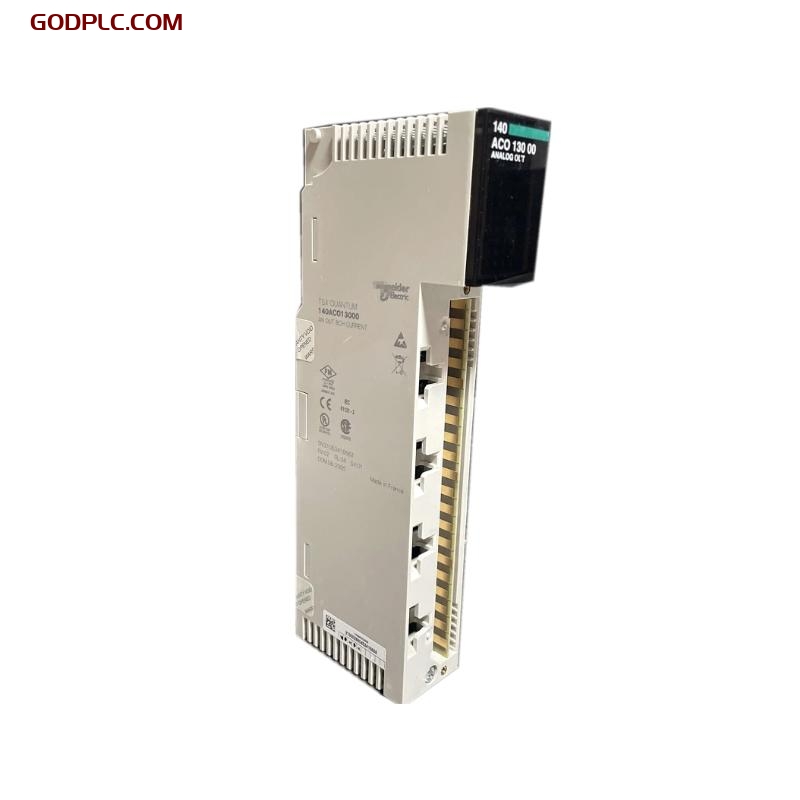

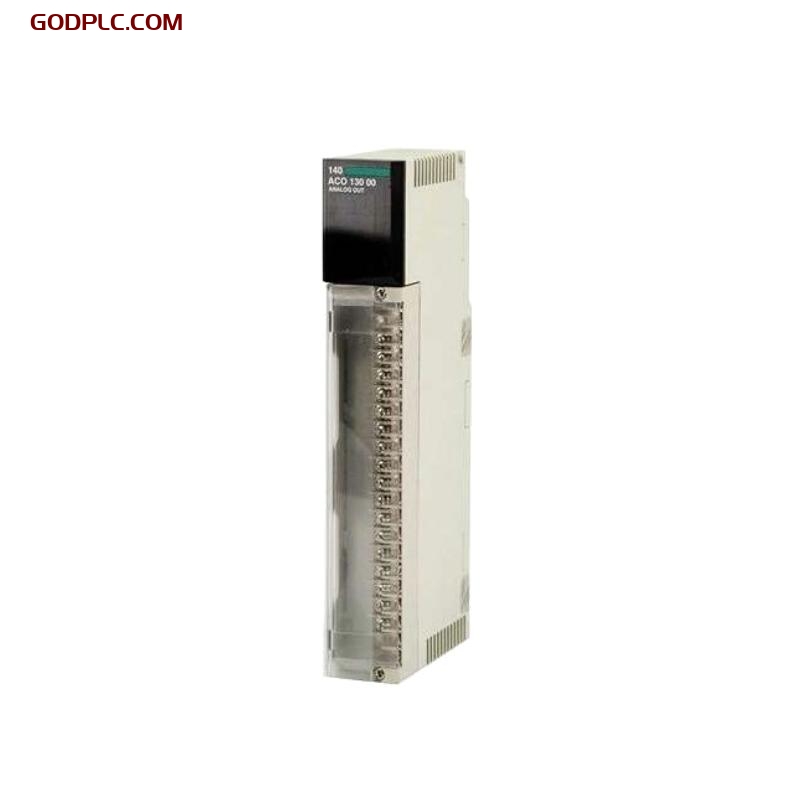

The Schneider Electric 140ACO13000 is an advanced Analog Output Module designed for Modicon Quantum PLC systems. This module is used to provide precise control over analog outputs in various industrial automation applications. It is widely used in systems that require accurate and continuous control of process variables such as temperature, pressure, flow, and level, among others.

The 140ACO13000 module supports up to 4 analog output channels, providing a wide output range and high precision in delivering signals to field devices such as actuators, valve controllers, or other analog-controlled equipment. It is designed to integrate seamlessly with the Modicon Quantum family of PLCs, offering scalable and flexible control solutions for complex industrial processes.

This module’s compact form factor allows it to be mounted on a DIN rail, optimizing space and facilitating easy integration into existing control cabinets. Additionally, the module offers built-in diagnostics and advanced isolation to ensure high performance and system reliability even in harsh industrial environments.

With high-resolution output signals and robust design, the 140ACO13000 is ideal for use in industries like manufacturing, process control, and building automation, where precise control and continuous monitoring are critical.

Key Features

• 4 Analog Output Channels: Can generate up to 4 independent analog output signals for controlling field devices.
• High Resolution: Provides precise output control with a resolution of 16 bits.
• Output Range: Capable of outputting signals within a broad range of voltage or current.
• Signal Isolation: Provides 500V isolation between channels and ground to ensure noise immunity and protect the system from electrical surges.
• Modular Design: Designed for easy integration with Modicon Quantum PLC systems.
• Compact DIN Rail Mounting: Easy installation and space optimization in control cabinets.
• Advanced Diagnostics: Built-in diagnostic capabilities to detect faults and ensure reliable operation.
• High Noise Immunity: Operates reliably in environments with electromagnetic interference (EMI).
• Durable Construction: Suitable for demanding industrial environments with high reliability and long-lasting performance.

Technical Specifications

Applications and Use Cases

The Schneider Electric 140ACO13000 analog output module is designed for use in a variety of industrial applications where precise control of analog signals is essential. Some of the most common use cases for this module include:

1. Process Control: The module is used in process control systems to provide continuous output signals to actuators, controlling parameters such as temperature, flow, and pressure.

2. Manufacturing Automation: In manufacturing environments, the 140ACO13000 enables precise control of machines and devices that require analog output signals for functions like motor control and valve operation.

3. Building Automation: This module is used in HVAC systems, lighting systems, and other building automation systems, where it provides precise control over devices such as fans, pumps, and temperature controllers.

4. Energy Management: In energy management systems, the module controls equipment based on real-time data, ensuring efficient energy usage through regulated output to meters, switches, and sensors.

5. Water Treatment: In water treatment plants, the analog output module controls systems like dosing pumps and chemical treatment processes by providing accurate analog signals for process automation.
