Triconex 3603E Product Introduction

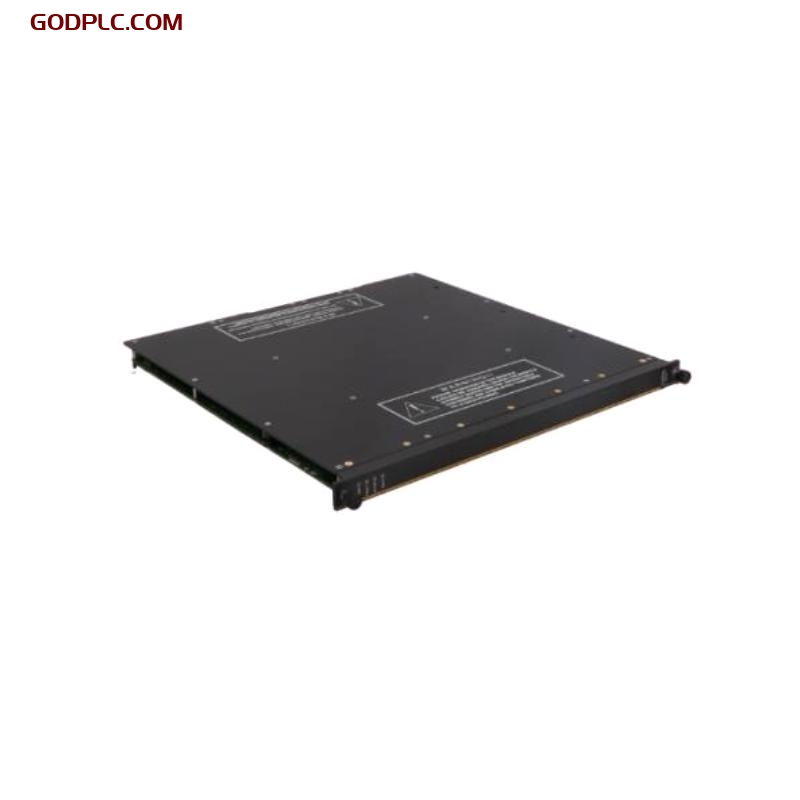

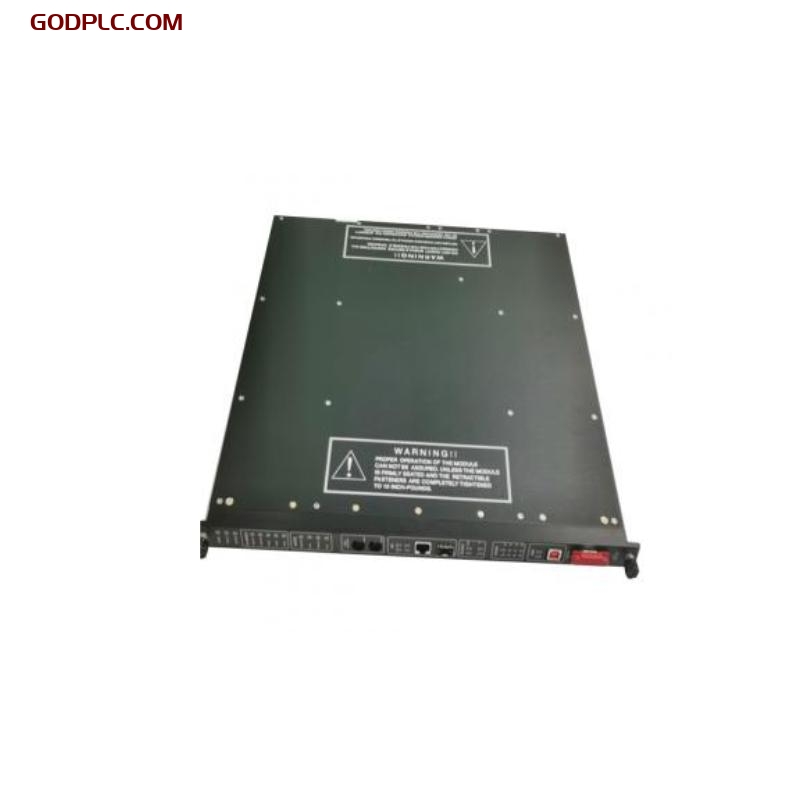

The Triconex 3603E is a highly reliable and versatile input/output module designed to be part of the Triconex Tricon safety system. This product is known for its robust performance in critical applications where safety and operational integrity are paramount. It is commonly used in industries such as oil & gas, petrochemical, chemical processing, and power generation. As part of the Triconex series, the 3603E provides a secure platform for emergency shutdown (ESD) and process control systems, ensuring that safety and reliability are maintained during operations.
Product Advantages
-
High Reliability: The Triconex 3603E utilizes a redundant, fault-tolerant design to ensure that the system remains operational even in the case of component failure, making it a critical element in safety applications.
-
Real-Time Monitoring: Provides real-time monitoring of the system’s inputs and outputs, enhancing control over the system’s functionality and ensuring the system’s operational integrity.
-
Flexible Integration: The 3603E module is easily integrated with other Triconex systems and can be incorporated into existing installations, improving flexibility and reducing downtime.
-
High-Performance Safety Features: The module adheres to rigorous safety standards, providing secure control for hazardous environments and meeting functional safety requirements like IEC 61508 and IEC 61511.
-
Scalability: The modular design of the Triconex system allows for easy scalability, so as your operational needs grow, the system can expand to accommodate additional inputs and outputs.
Technical Specifications
| Parameter | Description |
|---|---|
| Model Number | Triconex 3603E |
| Voltage | 24V DC (Nominal) |
| Power Consumption | 5W |
| Input Type | Digital Inputs |
| Output Type | Digital Outputs |
| Dimensions (LxWxH) | 190 x 100 x 40 mm |
| Weight | 1.45 kg |
| Communication Protocol | Modbus, Profibus, Ethernet |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Environmental Rating | IP20 |
Product Application
The Triconex 3603E is widely used in critical control systems where safety is a top priority. It finds applications in various sectors, including:
- Oil & Gas Industry: Used in upstream and downstream operations to monitor pressure, temperature, and flow rates, ensuring process safety.
- Chemical Processing: Implements safety control for chemical reactors, preventing hazardous reactions or system failures.
- Power Generation: Utilized in power plants to maintain system integrity, controlling emergency shutdowns and preventing accidents.
- Petrochemical Industry: Ensures the safety of complex petrochemical processes by monitoring critical parameters like temperature, pressure, and flow.
Compatible Models for Use with Triconex 3603E
Here are additional models that can be integrated with or complement the Triconex 3603E:
| Model Number | Description |
|---|---|
| Triconex 3623E | Digital Input Module |
| Triconex 3604E | Digital Output Module |
| Triconex 3700E | Analog Input/Output Module |
| Triconex 3711E | Advanced I/O Module |
Popular Models from Triconex Series
| Model Number | Description | Voltage | Power Consumption | Dimensions | Weight |
|---|---|---|---|---|---|
| Triconex 3601E | Standard Input Module | 24V DC | 5W | 140mm x 100mm x 30mm | 0.4 kg |
| Triconex 3611E | Digital Input and Output Module | 24V DC | 7W | 150mm x 120mm x 35mm | 0.5 kg |
| Triconex 3700E | Analog Input/Output Module | 24V DC | 8W | 160mm x 120mm x 40mm | 0.6 kg |
| Triconex 3622E | Isolated Input Module | 24V DC | 5W | 140mm x 110mm x 30mm | 0.45 kg |
Installation Instructions
-
Pre-Installation Setup: Ensure that all power supplies are correctly installed and meet the required voltage (24V DC). Verify that the operating environment is within the recommended temperature and humidity levels.
-
Wiring Connections: Connect the input and output devices according to the wiring diagrams provided in the manual. Make sure all connections are secure and compliant with the safety standards.
-
Module Mounting: Mount the Triconex 3603E module on a DIN rail or in a suitable rack, ensuring it is properly aligned and securely fixed.
-
System Integration: After mounting the module, connect it to the Triconex safety system, ensuring that all communication protocols (e.g., Modbus or Profibus) are configured correctly.
-
Testing: Conduct a series of tests to ensure that all inputs and outputs function as expected. Use the system’s diagnostic tools to confirm proper operation.
Frequently Asked Questions (FAQ)
Q1: What is the operating voltage of the Triconex 3603E module?
A1: The Triconex 3603E operates on a nominal voltage of 24V DC.
Q2: What is the environmental rating of the Triconex 3603E?
A2: The module has an IP20 environmental rating, suitable for indoor use in non-hazardous environments.
Q3: Can the Triconex 3603E module be used in hazardous areas?
A3: While the Triconex 3603E is designed for critical control systems, for hazardous areas, additional safety certifications may be required.
Q4: What communication protocols are supported by the Triconex 3603E?
A4: The module supports Modbus, Profibus, and Ethernet communication protocols.
Q5: How do I configure the module after installation?
A5: Configuration can be done through the Triconex safety system interface, using the diagnostic tools and setup wizards available in the system software.
Q6: What is the warranty period for the Triconex 3603E?
A6: The standard warranty period is one year from the date of purchase, covering manufacturing defects and operational failures.
