Triconex 3481 Analog Output Module Hassle-Free After-Sales

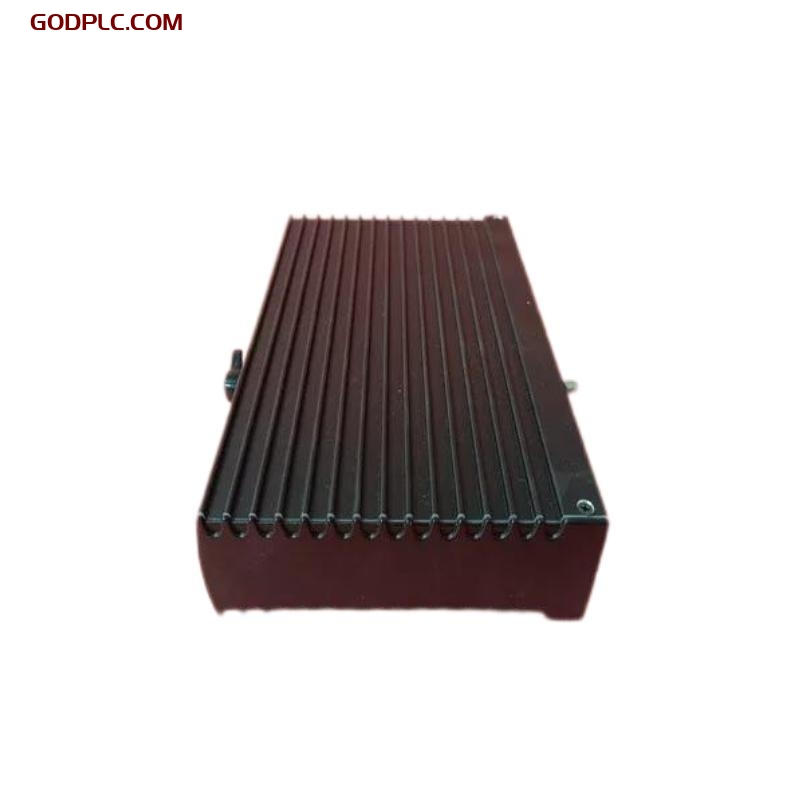

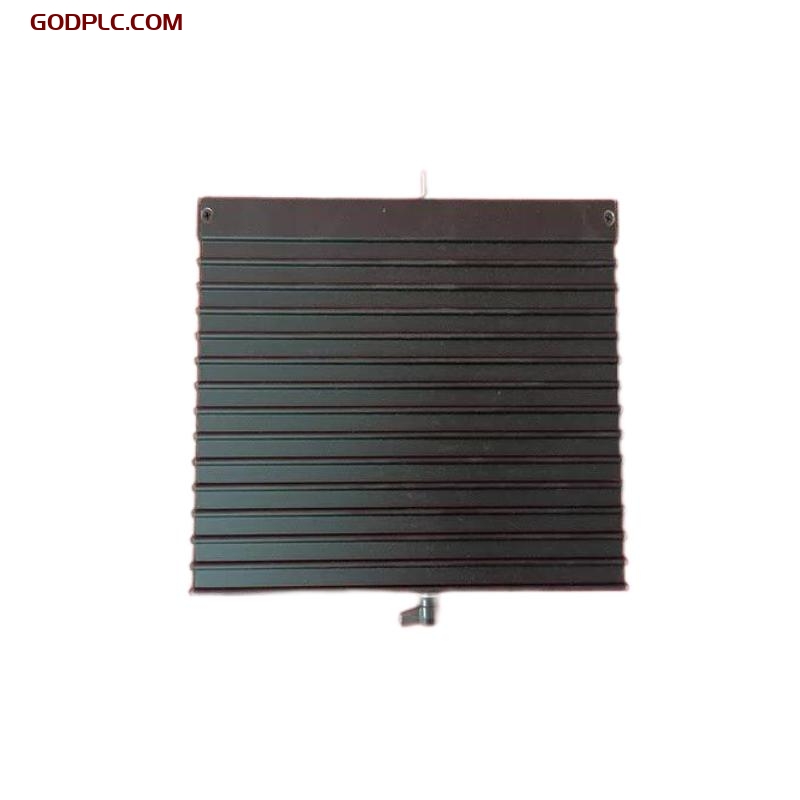

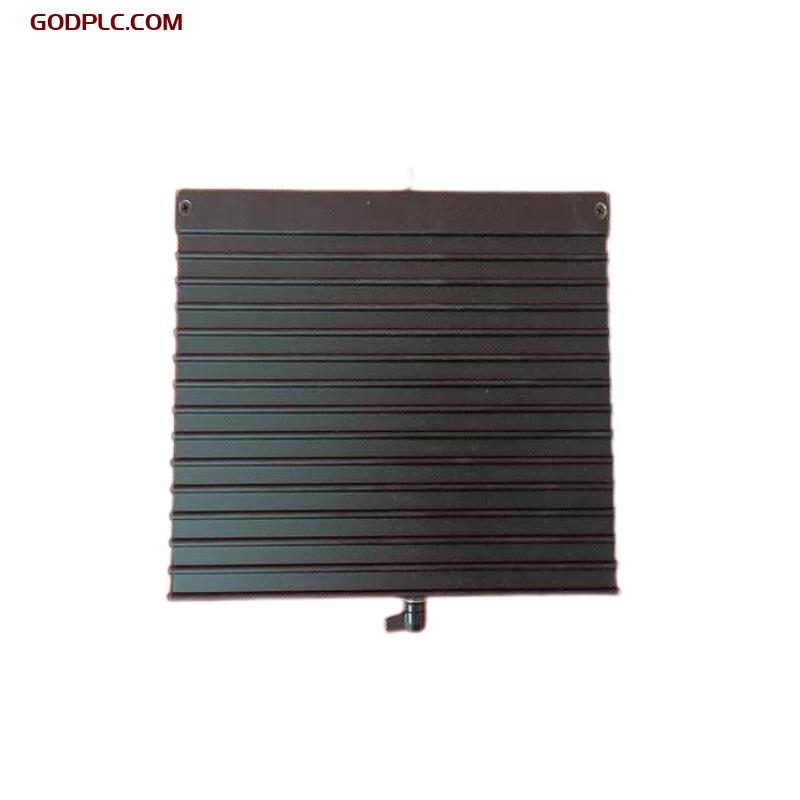

Triconex 3481 Analog Output Module
The Triconex 3481 Analog Output Module is a crucial component of the Triconex safety system, designed for high-performance industrial applications. It plays a critical role in providing analog signals from a safety system to various process control devices. As part of the Triconex safety system, the 3481 module ensures that critical safety processes receive accurate control signals, maintaining both process integrity and operational safety.
This module is typically used in industries such as petrochemical, chemical, oil and gas, and power generation, where precise control of analog output signals is necessary for managing sensitive equipment, valves, actuators, and other field devices.
Key Features:
- Analog Signal Output: The module offers high-precision analog output for various control processes.
- Safety-Critical Design: Compliant with SIL 3 (Safety Integrity Level 3) standards for critical safety operations.
- Compact and Rugged: Designed to withstand harsh industrial environments with a compact form factor.
- High-Performance: Ensures reliable signal transmission with low latency and high accuracy.
- Redundant Power Supplies: Supports redundant power supplies for enhanced reliability and safety.
- Integrated Diagnostics: Built-in diagnostic features for monitoring module health and performance.
- Flexible Communication: Compatible with Triconex’s TMR (Triple Modular Redundant) system for enhanced fault tolerance and safety.
Applications:
- Process Control Systems: Provides analog signals for controlling pumps, motors, valves, and other process equipment.
- Safety Instrumented Systems: Ensures safety-critical outputs for emergency shutdown systems and other safety functions.
- Manufacturing: Used in automated production lines where precise control of equipment is essential for system efficiency.
- Oil and Gas: Controls critical operations in refineries, platforms, and pipeline systems.
Technical Specifications:
Below is a summary of the key specifications for the Triconex 3481 Analog Output Module:
| Parameter | Specification |
|---|---|
| Model | Triconex 3481 Analog Output Module |
| Module Type | Analog Output Module |
| Dimensions | 173 x 117 x 25 mm |
| Weight | 0.5 kg |
| Output Channels | 4 Analog Output Channels |
| Output Signal Type | 4-20 mA (current), 0-10 V (voltage) |
| Output Range | 0-10 V, 4-20 mA |
| Power Supply | 24 VDC |
| Power Consumption | 6 W |
| Temperature Range | -40°C to +70°C |
| Mounting Type | DIN Rail Mounting |
| Protection Class | IP20 |
| Certification | SIL 3 (IEC 61508) |
| Response Time | < 1 ms |
| Max Output Load | 500 ohms (for voltage), 500 ohms (for current) |
| Failure Mode | Safe Failure Mode |
| Diagnostic Features | Built-in LEDs for status and fault indication |
Recommended Related Models (Same Series / Similar Products):
Below is a list of related models in the Triconex series or similar analog output modules that offer high-performance capabilities and are suitable for safety-critical and industrial applications:
| Model | Description |
|---|---|
| Triconex 3482 | Dual-channel analog output module with enhanced fault tolerance. |
| Triconex 3480 | Single-channel analog output module designed for basic applications. |
| Triconex 3501 | High-precision analog input/output module for complex control systems. |
| Triconex 3511 | Multi-channel analog output module for larger systems requiring redundancy. |
| Triconex 3512 | Safety-critical output module with dual redundancy for critical operations. |
| Triconex 3513 | Multi-output analog module for larger industrial control systems. |
| Triconex 3521 | Enhanced analog output module with integrated diagnostics and redundancy. |
| Triconex 3530 | High-speed analog output module with quick response times. |
| Triconex 3502 | Multi-range output module offering multiple signal output types. |
| Triconex 3550 | High-performance analog module designed for extreme environmental conditions. |
Triconex 3481 is in stock. Contact us for quick quotes and competitive prices.
