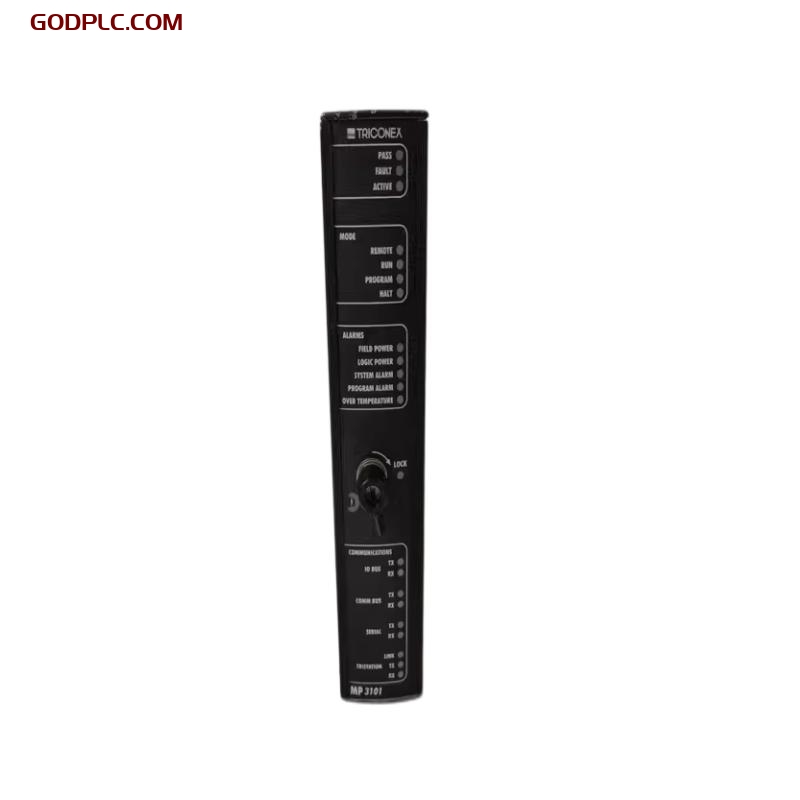

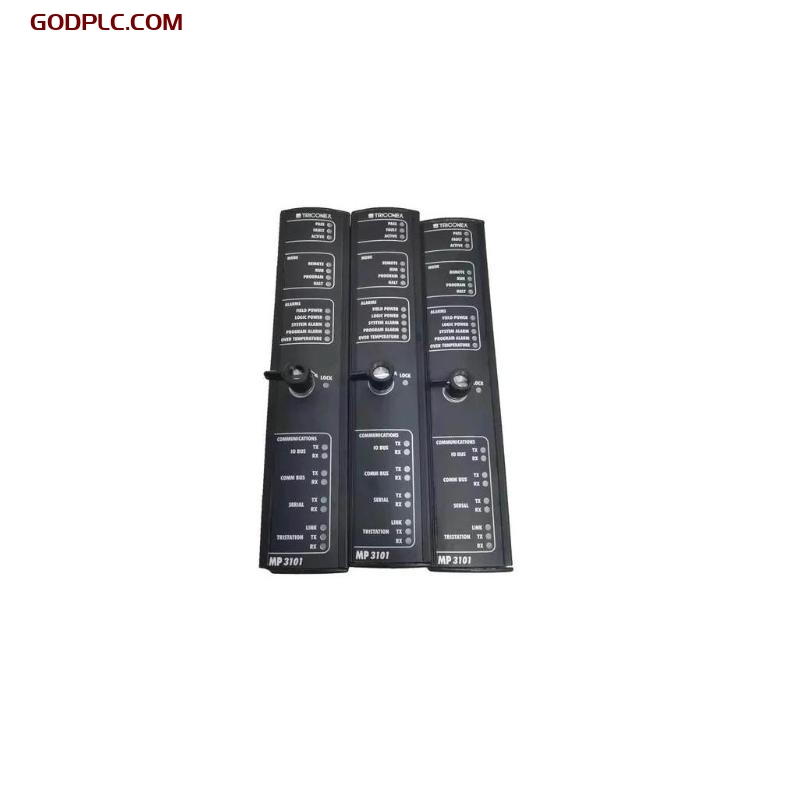

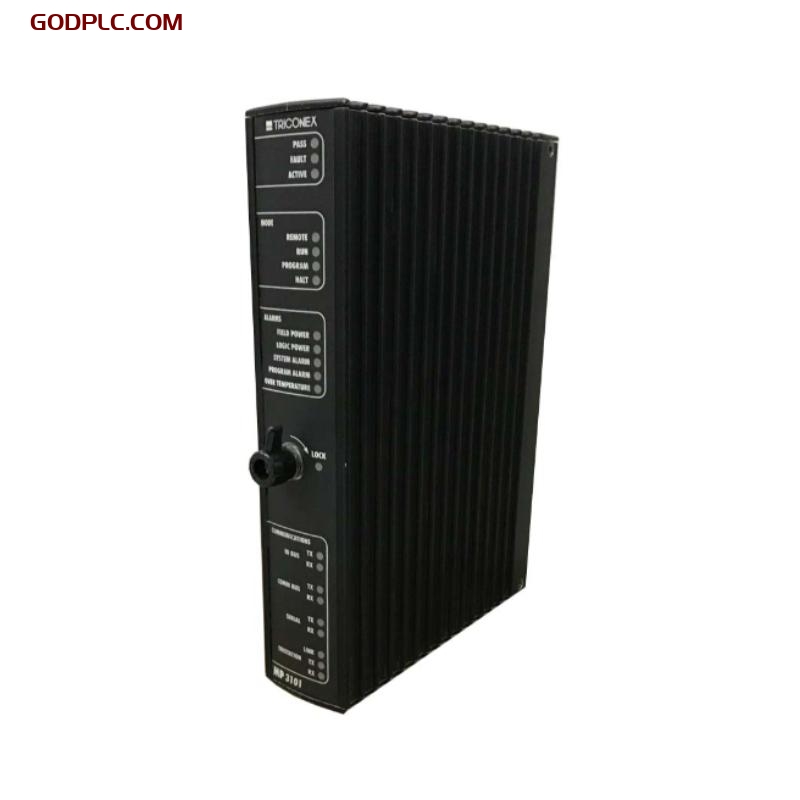

Triconex 3101 Main Processor Module: Product Overview and Specifications

The Triconex 3101 is an advanced main processor module designed for use in the Tricon safety system. This module plays a pivotal role in managing critical safety functions, offering superior performance, reliability, and fault tolerance for a wide range of industrial applications. The 3101 is built to ensure continuous and safe operation in environments where high safety integrity and real-time performance are required.

As the central processing unit of the Tricon system, the 3101 module is responsible for controlling safety systems, processing complex control logic, and ensuring communication between all components within the system. It is used in safety instrumented systems (SIS), emergency shutdown (ESD) systems, and other critical safety applications across various industries, including oil and gas, chemical processing, power generation, and more.

The 3101 is known for its modular design, redundancy features, and real-time data processing capabilities. It supports seamless integration with other Tricon modules, making it ideal for large, scalable safety systems. Whether in a single-module system or a distributed network, the Triconex 3101 ensures maximum system uptime and safety.

Key Features:

• Advanced Processing Power: The Triconex 3101 main processor module is equipped with robust processing capabilities that enable it to handle complex safety control tasks. This allows it to efficiently manage large safety systems with high processing demands.
• Redundancy and Fault Tolerance: The module is designed to be highly fault-tolerant, featuring built-in redundancy for critical components such as processors and communication paths. This ensures the system remains operational even in the event of hardware failure.
• Real-Time Performance: The 3101 module supports real-time data processing, enabling immediate responses to critical safety events, such as emergency shutdowns or alarms, in industries where time is of the essence.
• High Availability: Designed for 24/7 operation, the 3101 module offers exceptional availability with advanced diagnostic capabilities, making it highly reliable in demanding environments.
• Scalability and Flexibility: The 3101 is part of the scalable Tricon system, meaning it can grow with your process safety needs. The module’s flexibility allows for easy expansion and integration into existing systems.
• Modular Design: The modular architecture of the 3101 enables quick replacement or upgrades with minimal downtime. Its plug-and-play capability simplifies system configuration and maintenance.
• Comprehensive Communication Options: It supports multiple communication protocols, including Modbus, Profibus, Ethernet, and TCP/IP, ensuring compatibility with a wide range of other industrial control systems.
• Safety Standards Compliance: The 3101 module is compliant with global safety standards such as IEC 61508 and IEC 61511, providing the highest level of safety integrity for critical applications.
• Diagnostic and Maintenance Capabilities: The module includes advanced diagnostic features that assist with fault detection, helping to minimize system downtime and optimize maintenance schedules.

Applications:

The Triconex 3101 main processor module is specifically designed for use in safety-critical applications. It is most commonly found in industries where system failures can result in significant consequences, such as chemical, petrochemical, nuclear, and power industries. Key applications include:

• Safety Instrumented Systems (SIS): The 3101 plays a critical role in the functioning of SIS, ensuring that hazardous conditions are detected and appropriate responses are executed in real time.
• Emergency Shutdown Systems (ESD): The module is often used in ESD systems, triggering emergency shutdowns to protect personnel, equipment, and the environment in the event of abnormal conditions or faults.
• Fire and Gas Detection Systems: The 3101 processes data from fire and gas detectors, enabling rapid responses to dangerous conditions and helping to protect both people and assets.
• Process Automation: In addition to safety applications, the 3101 is used for general process control, providing precise control and monitoring for industrial processes.
• Critical Process Control: In industries where continuous and safe operation is paramount, the 3101 helps manage complex process control functions that ensure stable and efficient system performance.

Technical Specifications:

Additional Features:

• Redundant Architecture: The 3101 features a redundant design that includes dual processors and redundant communication paths, ensuring continued operation even during hardware failures. This redundancy ensures that critical safety functions remain intact at all times.
• Real-Time Diagnostics: The module’s real-time diagnostic capabilities enable quick identification of faults, which can be addressed before they cause downtime or safety incidents.
• Ease of Integration: The 3101 integrates seamlessly with other Tricon modules and third-party systems, thanks to its versatile communication protocols and scalable design.
• Quick Configuration: The 3101 is designed for ease of use and quick configuration. Its plug-and-play functionality simplifies the setup and reduces system commissioning time.
• High System Uptime: Thanks to its fault-tolerant design and advanced diagnostics, the 3101 module helps maintain high system uptime, which is essential for safety-critical operations.
