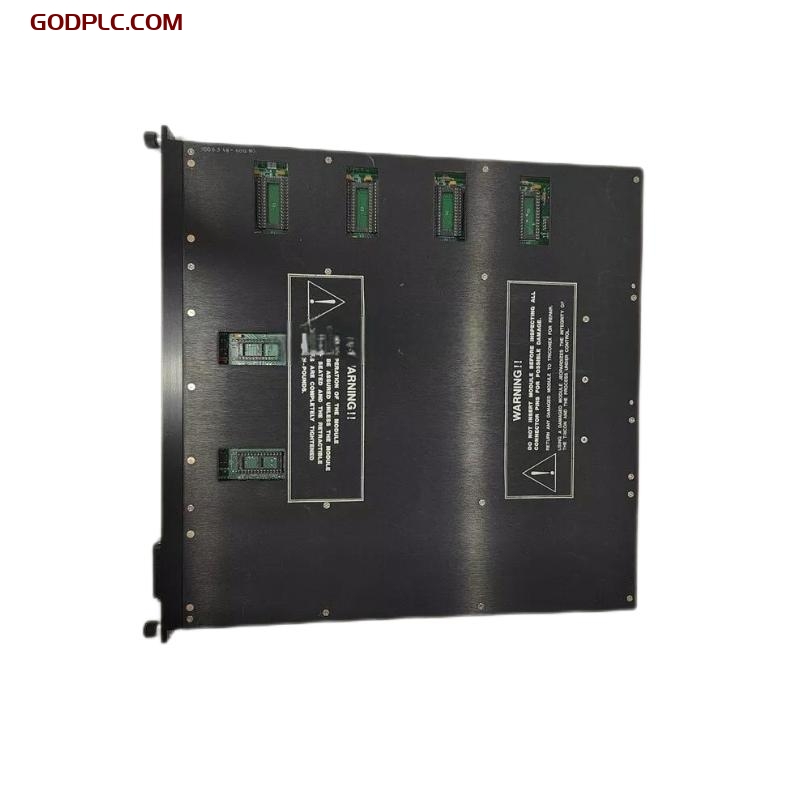

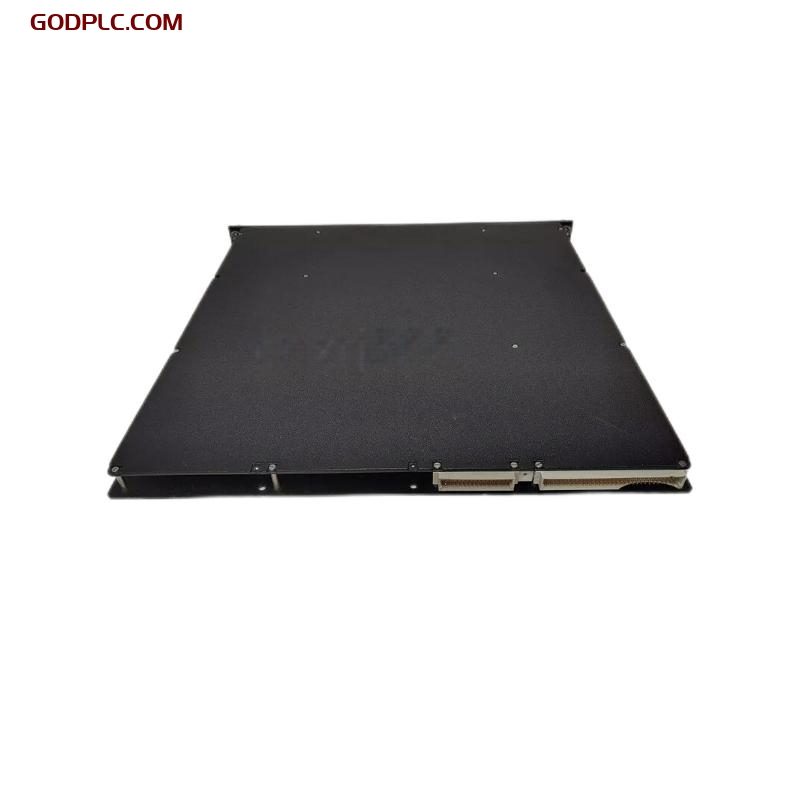

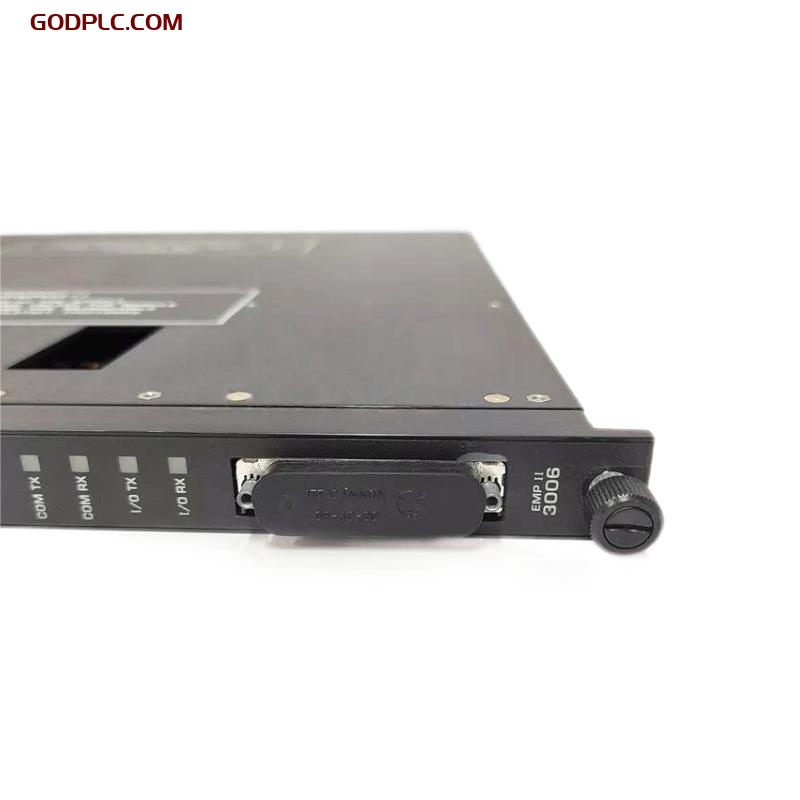

Triconex 3006 Processor Module Product Introduction

The Triconex 3006 Processor Module is a vital component in the Tricon series, designed for high safety and reliability applications. As the core part of the Tricon automation control system, the 3006 Processor Module handles real-time control tasks and data transmission, ensuring system stability and quick response. In industrial control, especially in applications requiring high precision, high availability, and fault tolerance, the Triconex 3006 Processor Module is an ideal choice.

Key Features

1. High-Performance Processing Capability

   • The Triconex 3006 Processor Module is equipped with advanced multi-core processors to support high-speed data processing and real-time control tasks. Whether for complex calculations, signal acquisition, or output control, the 3006 Processor Module ensures rapid response and system stability.

2. Redundant Design for System Stability

   • The Triconex 3006 Module features redundant capabilities, ensuring that if the primary processor fails, the backup processor can quickly take over, preventing system downtime. The redundant design significantly enhances the system’s reliability and fault tolerance, making it suitable for industrial applications requiring continuous operation.

3. Real-Time Operating System Support

   • Equipped with a real-time operating system (RTOS), the Triconex 3006 ensures timely execution of tasks with the shortest response time. Task scheduling and execution are carried out with millisecond precision, ensuring stable operation in any complex industrial environment.

4. Wide Communication Protocol Support

   • The Triconex 3006 supports multiple industrial communication protocols, including Modbus, Ethernet, Profibus, and more. These protocols allow the module to easily integrate with other automation devices and systems, supporting various network architectures and meeting communication needs in diverse industrial environments.

5. Highly Integrated and Space-Efficient

   • The Triconex 3006 Processor Module features a compact design that fits easily in confined spaces. Its high integration ensures efficient performance, saving installation space, reducing system complexity, and simplifying maintenance and expansion.

6. Intelligent Fault Diagnosis and Monitoring

   • The built-in fault diagnosis function provides detailed fault reports when issues occur, helping technicians quickly pinpoint problems and reduce system downtime. Additionally, the 3006 supports remote monitoring, ensuring the health status of the system in various environments.

7. Adaptability to Harsh Operating Environments

   • The Triconex 3006 operates reliably in extreme temperatures ranging from -40°C to +70°C, making it suitable for various harsh industrial environments. It also features strong electromagnetic interference resistance, maintaining stable operation even in high-noise and high-interference environments.

8. Expandability and Compatibility

   • As part of the Tricon series, the 3006 Processor Module can seamlessly integrate with other Tricon series modules, offering flexibility for system expansion and enhancing functionality.

Product Specifications

Installation and Maintenance

The Triconex 3006 Processor Module supports standard DIN rail mounting, which simplifies installation and requires no additional tools. The module also supports hot-swapping, allowing for module replacement without system shutdown, reducing downtime. Its intelligent fault diagnosis and reporting system provides real-time fault information, helping users quickly resolve issues and maintain high system availability.

Applications

The Triconex 3006 Processor Module is widely used in industrial automation, especially in environments where system reliability, safety, and high performance are critical. Common applications include:

• Oil & Gas Industry: For controlling oil and gas extraction, pipeline monitoring, and fueling systems.
• Chemical Industry: For controlling chemical processes, ensuring safety during production.
• Power Industry: For automation and monitoring in power systems, ensuring grid stability.
• Metallurgical Industry: For automation control in high-temperature and high-pressure environments.
• Water Treatment Industry: For controlling water and wastewater treatment processes to ensure environmental safety.
