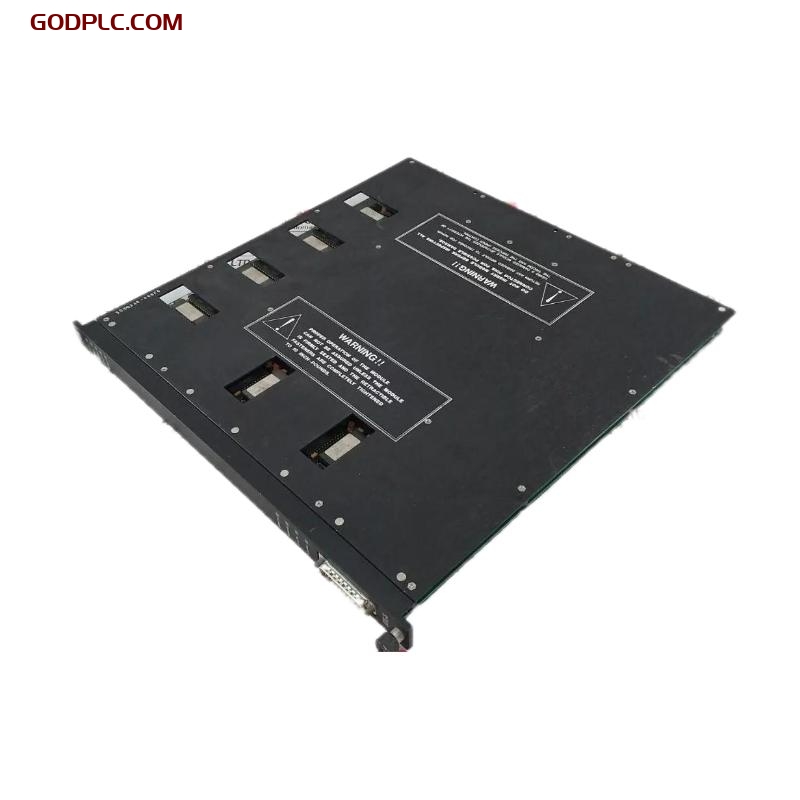

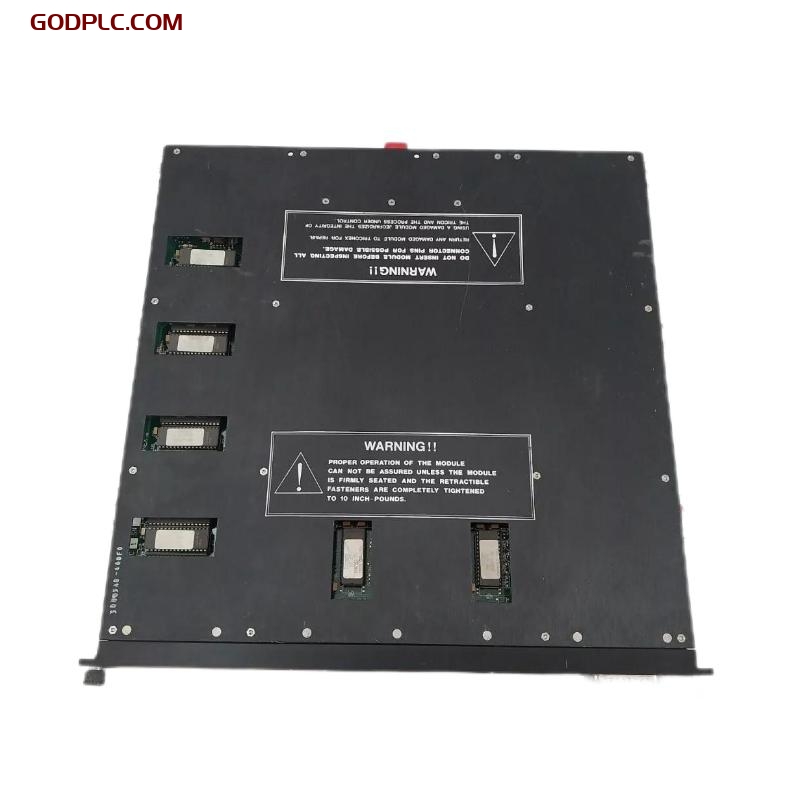

Triconex 3004 Main Processor Module Product Introduction

The Triconex 3004 Main Processor Module is the core component of the Tricon control system, specifically designed to perform efficient control, monitoring, and data processing tasks. This module processes signals from various input devices and sensors, providing reliable real-time feedback with efficient computation and data handling capabilities to ensure the stability and safety of industrial processes and control systems. As the main processor module, the Triconex 3004 provides high redundancy, real-time performance, and data integrity, making it widely used in industries such as chemicals, power, oil, and gas.

Key Features

1. High-Performance Data Processing

   • The Triconex 3004 is equipped with a powerful processor capable of processing large amounts of data in a very short time. The module supports multi-task parallel processing, ensuring that multiple control tasks are executed simultaneously, greatly enhancing the overall system performance.

2. Redundant Design for System Reliability

   • The module features a redundant design, where a backup processor takes over in case the main processor fails, ensuring uninterrupted system operation and maximizing system reliability and stability.

3. Real-Time Operating System Support

   • The Triconex 3004 is equipped with a real-time operating system (RTOS), ensuring precise control of execution order and response times. Whether in emergency shutdowns, equipment monitoring, or complex process control, the Triconex 3004 provides fast responses, preventing safety risks due to delays.

4. Strong Communication Capabilities

   • The module supports multiple communication protocols, including Modbus, Profibus, Ethernet, and more, enabling seamless integration with various field devices and systems. These communication interfaces ensure that the Triconex 3004 can be easily integrated into various control networks, enhancing the system’s flexibility and scalability.

5. Comprehensive Fault Diagnosis

   • The Triconex 3004 has powerful fault diagnostics and self-diagnostics functions. It is equipped with a monitoring system that tracks the status of both hardware and software in real-time. In case of a fault, it automatically generates diagnostic reports to help maintenance personnel quickly locate the issue, minimizing downtime and improving maintenance efficiency.

6. High Expandability

   • The module features a modular design, allowing for flexible expansion according to system requirements. It supports integration with other Tricon series modules to meet evolving system needs. The module can support multiple I/O terminal boards and communication modules, thus providing enhanced system functionality.

7. Industrial-Grade Temperature Adaptability

   • The Triconex 3004 can operate reliably in a wide temperature range of -40°C to +70°C, making it suitable for harsh industrial environments. Whether exposed to high or low temperatures or environments with high humidity, the Triconex 3004 continues to run steadily, meeting the needs of various industrial applications.

8. Convenient Installation and Maintenance

   • The Triconex 3004 module uses a standard DIN rail mounting method, making installation quick and easy, and it can be easily integrated into existing control systems. Additionally, the module supports hot-swapping, allowing for module replacement, upgrades, or repairs while the system is running, reducing downtime and improving system availability.

Product Specifications

Installation and Maintenance

The Triconex 3004 uses a standard DIN rail mounting method, making it easy to install in control cabinets or enclosures. The installation process does not require complex tools, only simple screw fixing. During installation, ensure sufficient cooling space to prevent overheating. The module also supports hot-swapping, allowing module replacement, upgrades, or maintenance while the system is running, thus minimizing downtime.

Applications

The Triconex 3004 is widely used in various industrial automation and process control fields, especially in situations where system stability and reliability are critical. Common applications include:

• Chemical and Oil Industries: For monitoring and controlling chemical processes.
• Power Industry: For real-time monitoring and data processing in power systems.
• Natural Gas Industry: For control in natural gas production and distribution systems.
• Metallurgical Industry: For process control in high-temperature, high-pressure environments.
• Water Treatment and Sewage Processing: For automation management in water treatment plants.
