Triconex 3003 Pulse Input Terminal Board Exclusive Discount

  • Manufacturer: Invensys Triconex
  • Product Number: 3003
  • Condition: New & In Stock
  • Product Type: Processor Module Assy
  • Origin: USA
  • Payment Methods: T/T, Western Union
  • Dimensions: 150 x 130 x 35mm
  • Weight: 0.5kg
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.

Product Detail

Contact Us

FAQS

Packing & Delivery

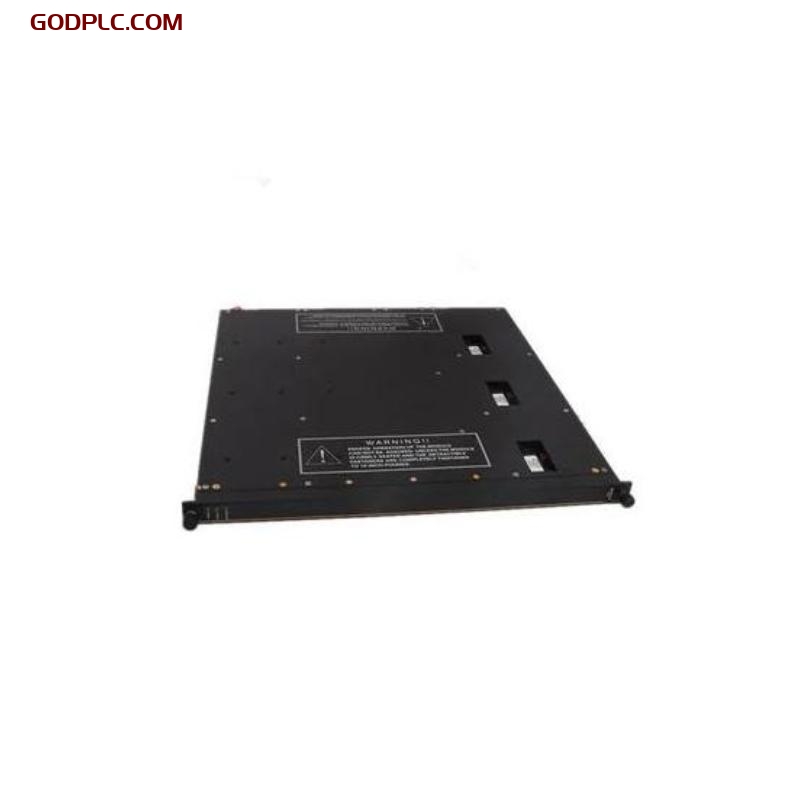

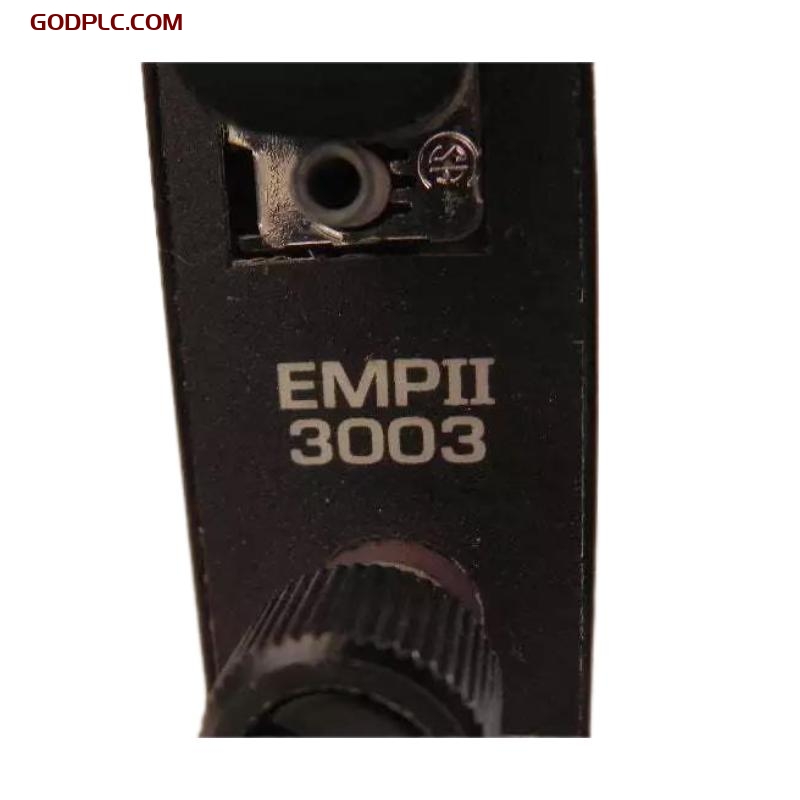

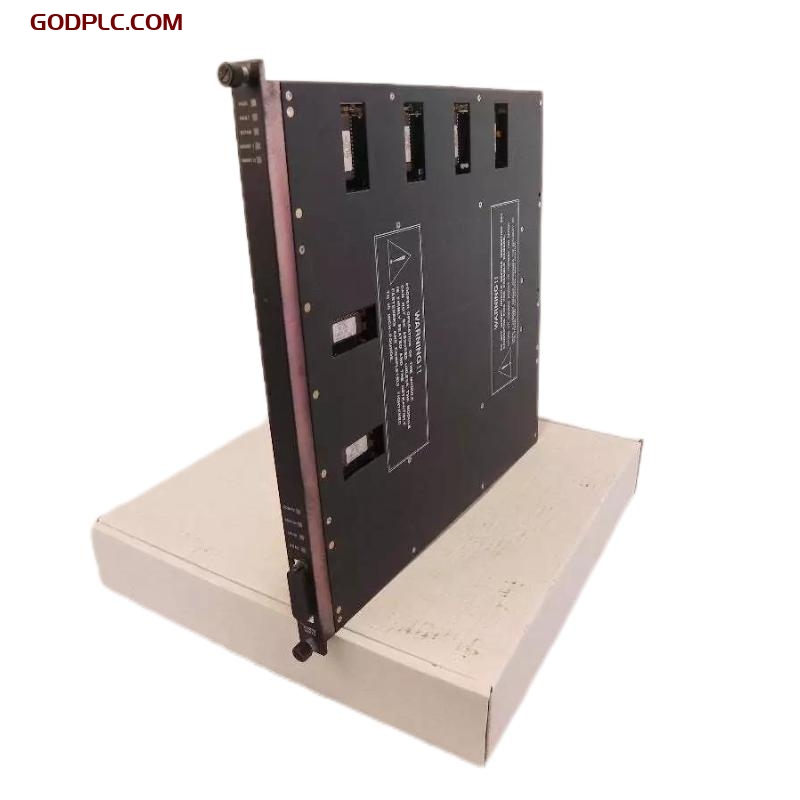

Triconex 3003 Pulse Input Terminal Board Product Introduction

The Triconex 3003 Pulse Input Terminal Board is a high-performance pulse input module designed for Tricon control systems. This module uses advanced technology to accurately capture and process pulse signals from devices like rotary encoders and flow meters, widely used in industrial automation and process control applications. The Triconex 3003 module, with its excellent response time, strong electromagnetic interference resistance, and ease of installation and maintenance, has become a key component in various industrial automation systems.

Key Features

  1. High Precision Pulse Signal Acquisition

    • The Triconex 3003 Pulse Input Terminal Board can handle high-frequency, high-precision pulse signals, making it ideal for applications with high pulse frequency requirements such as rotary encoders and flow meters. It supports up to 16 input channels, each capable of independently receiving and processing pulse signals.
  2. Excellent Real-Time Performance

    • This module is designed to process pulse signals in real-time, ensuring a very short response time even during high-speed sampling. Whether it’s high-speed counting, position monitoring, or frequency measurement, the Triconex 3003 ensures accurate feedback, allowing the control system to respond to external changes in real-time.
  3. Strong Electromagnetic Interference Resistance

    • The Triconex 3003 module features strong electromagnetic interference resistance, enabling stable operation in complex electromagnetic environments. It uses advanced interference resistance designs to ensure the module works properly even in high-noise environments, guaranteeing system stability and reliability.
  4. Wide Compatibility

    • This module is highly compatible with other devices in the Tricon control system and can interface with various types of pulse signal inputs and devices from different manufacturers. Its broad compatibility makes system upgrades, expansions, and integration much easier.
  5. Reliable Installation and Maintenance

    • The Triconex 3003 module adopts a standard DIN rail mounting method, making installation and removal quick and easy, greatly reducing manual operation time. The terminal connections use screw-type connectors to ensure secure connections, preventing issues such as poor contact caused by vibrations or loosening. The module also supports hot-swapping, enabling maintenance and replacement without shutting down the system, further improving operational efficiency and reliability.
  6. Environmental Adaptability

    • The Triconex 3003 Pulse Input Terminal Board can operate reliably in a wide temperature range from -40°C to +70°C, making it suitable for various harsh industrial environments. Its excellent environmental adaptability ensures high-efficiency operation even in high or low temperatures and environments with high humidity, making it ideal for industries such as oil, chemicals, power, and metallurgy.
  7. Modular Design for Flexible Expansion

    • The Triconex 3003 features a modular design, with each module supporting up to 16 pulse input channels, allowing for flexible expansion based on system requirements. The highly integrated design makes it more efficient when processing complex signals, simplifying installation and maintenance processes.

Product Specifications

Parameter Description
Model Triconex 3003
Input Signal Type Pulse Input
Number of Channels 16 Channels
Input Voltage 24 V DC
Input Type Edge Trigger (Positive/Negative Pulse)
Input Frequency Max. 50 kHz
Input Signal Level High Level: Above 15 V; Low Level: Below 5 V
Operating Temperature -40°C to +70°C
Humidity Range 5% to 95% RH, non-condensing
Storage Temperature -40°C to +85°C
Dimensions 150 mm x 130 mm x 35 mm
Weight 500 g
Protection Rating IP20
Connection Method Screw terminal connections
Response Time ≤ 5ms
Power Consumption Max. 3W
Electromagnetic Interference Resistance Complies with IEC 61000-4 standards

Installation and Maintenance

The Triconex 3003 Pulse Input Terminal Board uses a standard DIN rail mounting method, making it simple to install in most control cabinets and enclosures. The module’s terminal connectors use high-quality screw terminals to ensure secure connections. When installing, make sure there is sufficient ventilation to avoid overheating, which could affect module performance. This module supports hot-swapping, allowing users to replace and maintain the module while the system is running, reducing downtime and increasing overall system efficiency.

Applications

The Triconex 3003 Pulse Input Terminal Board is widely used in industrial fields requiring high-precision pulse signal acquisition. Common applications include:

  • Rotary Encoders: For monitoring equipment speed and angular position, widely used in motor control, automation production lines, and more.
  • Flow Meters: For measuring the flow of liquids or gases, used in industries such as oil, chemicals, and power.
  • Counting Systems: Used for counting products or components on production lines, helping achieve automated production and monitoring.
  • Real-Time Monitoring Systems: Used for monitoring industrial equipment in real-time to ensure smooth operation and detect potential issues promptly.

Recommended Related Models

Model Description
Triconex 3001 Single-channel pulse input terminal board
Triconex 3002 Multi-channel pulse input terminal board
Triconex 3004 Digital input module supporting pulse counting
Triconex 3005 Analog input module for signal acquisition
Triconex 3006 Digital output module compatible with pulse signals
Triconex 3007 Voltage input module for high current inputs
Triconex 3008 Temperature sensor input module
Triconex 3010 Digital output module supporting high-speed pulses
Triconex 3015 High-speed frequency input module
Triconex 3020 Position feedback input module

Triconex 3003 is in stock. Contact us for quick quotes and competitive prices.
