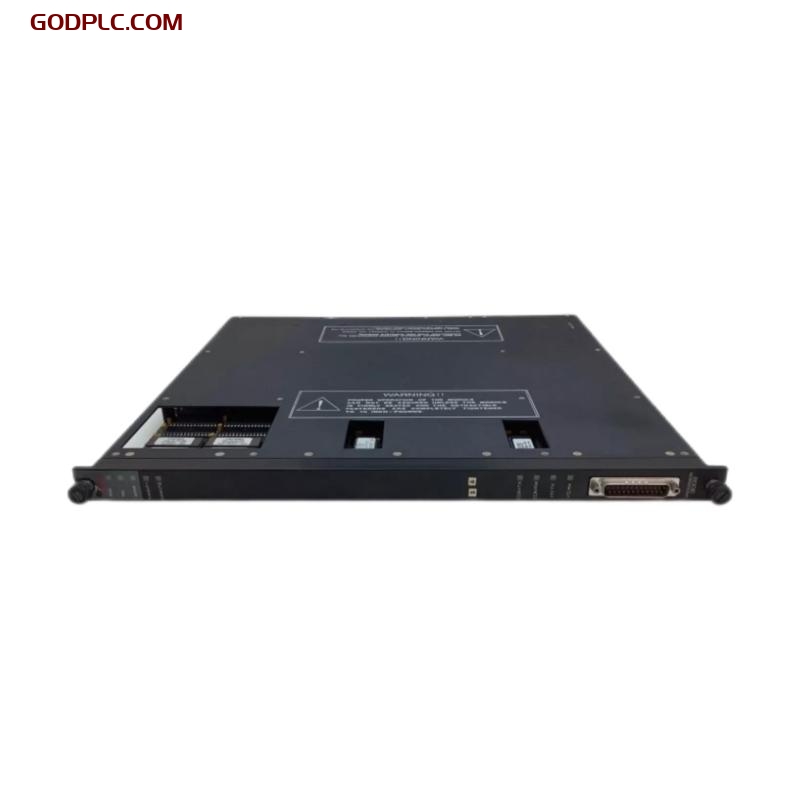

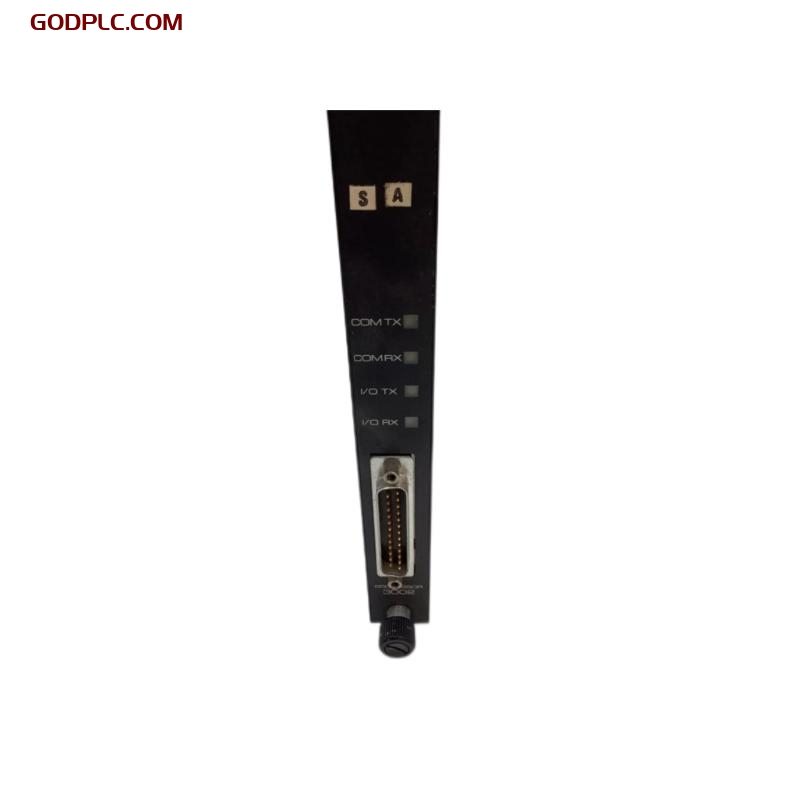

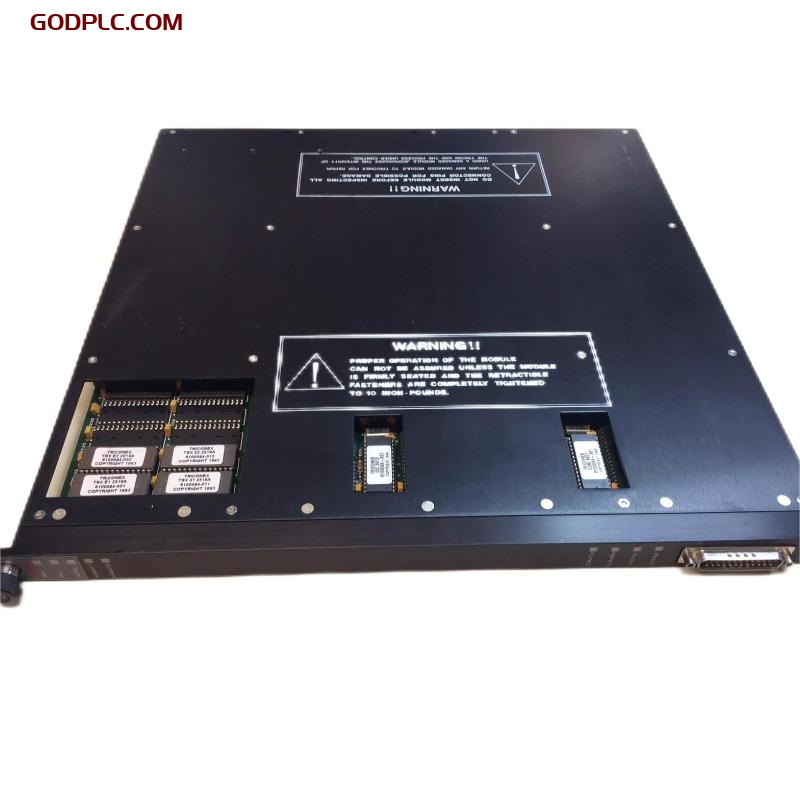

Triconex 3002 Pulse Input Terminal Board Fast Delivery

  • Manufacturer: Invensys Triconex
  • Product Number: 3002
  • Condition: New & In Stock
  • Product Type: Pulse Input Terminal Board
  • Origin: USA
  • Payment Methods: T/T, Western Union
  • Dimensions: 150 x 130 x 35mm
  • Weight: 0.5kg
  • Shipping Port: Xiamen, China
  • Lead Time: 1-3 Working Days
  • Warranty: One Year
  • Certificate: COO
  • Courier partners: DHL, UPS, TNT, FedEx and EMS.

Product Detail

Contact Us

FAQS

Packing & Delivery

Triconex 3002 Pulse Input Terminal Board Product Introduction

The Triconex 3002 Pulse Input Terminal Board is a high-performance input module designed for the Tricon control system, primarily used to receive pulse inputs from pulse signal sources such as rotary encoders and flow meters. This module, with its high-precision input channels, can convert pulse signals into data that can be processed by the control system, providing high reliability for industrial automation control systems.

Key Features

  1. High Precision Input: The Triconex 3002 module accurately collects pulse signals and processes them to ensure system stability and precision.
  2. Strong Compatibility: The pulse input terminal board is fully compatible with the Tricon control system, allowing easy integration into existing industrial control systems.
  3. Real-time Response: Supports fast response to pulse signals, ensuring real-time control of industrial field devices.
  4. Easy Installation: Modular design facilitates installation and maintenance, saving on-site construction time.

Product Specifications

Parameter Description
Model Triconex 3002
Input Signal Type Pulse Input
Number of Channels 16 Channels
Input Voltage 24 V DC
Input Type Edge Trigger (Positive/Negative Pulse)
Input Frequency Max. 50 kHz
Input Signal Level High Level: Above 15 V; Low Level: Below 5 V
Operating Temperature -40°C to +70°C
Humidity Range 5% to 95% RH, non-condensing
Storage Temperature -40°C to +85°C
Dimensions 150 mm x 130 mm x 35 mm
Weight 0.5kg
Protection Rating IP20
Connection Method Screw terminal connections

Installation and Maintenance

The Triconex 3002 Pulse Input Terminal Board is designed for easy installation. All terminal connectors use high-quality screw terminals for secure and reliable connections. When installing, ensure sufficient space in the system for the module and allocate installation rails according to the module’s dimensions. The product also supports hot-swapping, making on-site maintenance and replacement convenient.

Applications

The Triconex 3002 Pulse Input Terminal Board is widely used in various industrial control systems, particularly in:

  • Rotary Encoders: For monitoring equipment speed and position.
  • Flow Meters: For accurately measuring liquid or gas flow.
  • Counting Systems: For high-precision counting applications such as product counting on production lines.

Recommended Related Models

Model Description
Triconex 3001 Single-channel pulse input terminal board
Triconex 3003 High-speed pulse input terminal board
Triconex 3004 Digital input module supporting pulse counting
Triconex 3005 Analog input module for signal acquisition
Triconex 3006 Digital output module compatible with pulse signals
Triconex 3007 Voltage input module for high current inputs
Triconex 3008 Temperature sensor input module
Triconex 3010 Digital output module supporting high-speed pulses
Triconex 3015 High-speed frequency input module
Triconex 3020 Position feedback input module

Triconex 3002 is in stock. Contact us for quick quotes and competitive prices.
