Honeywell MC-PAIH03 51304754-150 High Level Analog Input Processor Price Advantage
Product Overview

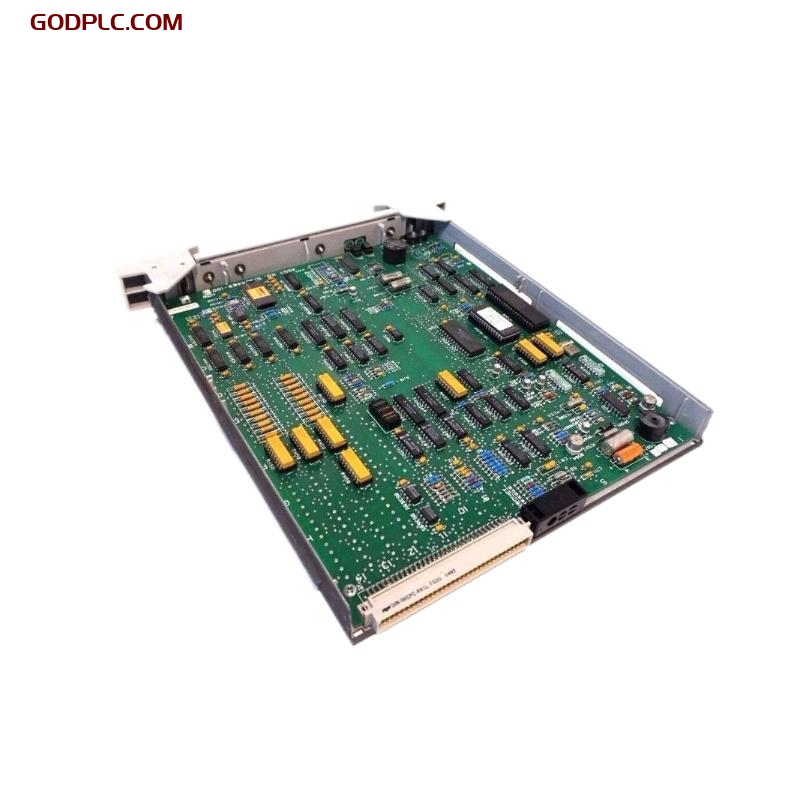

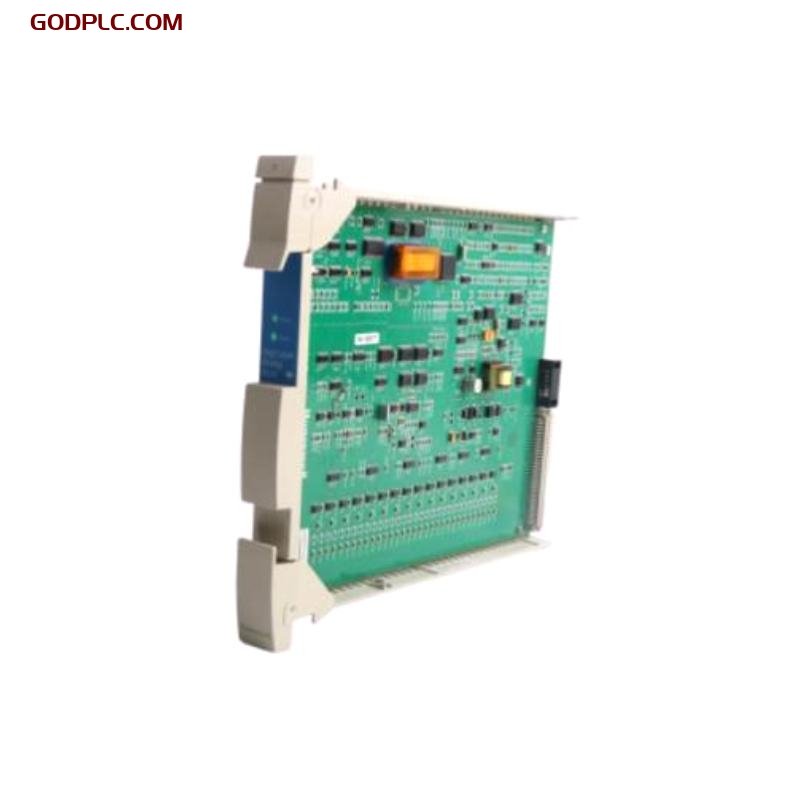

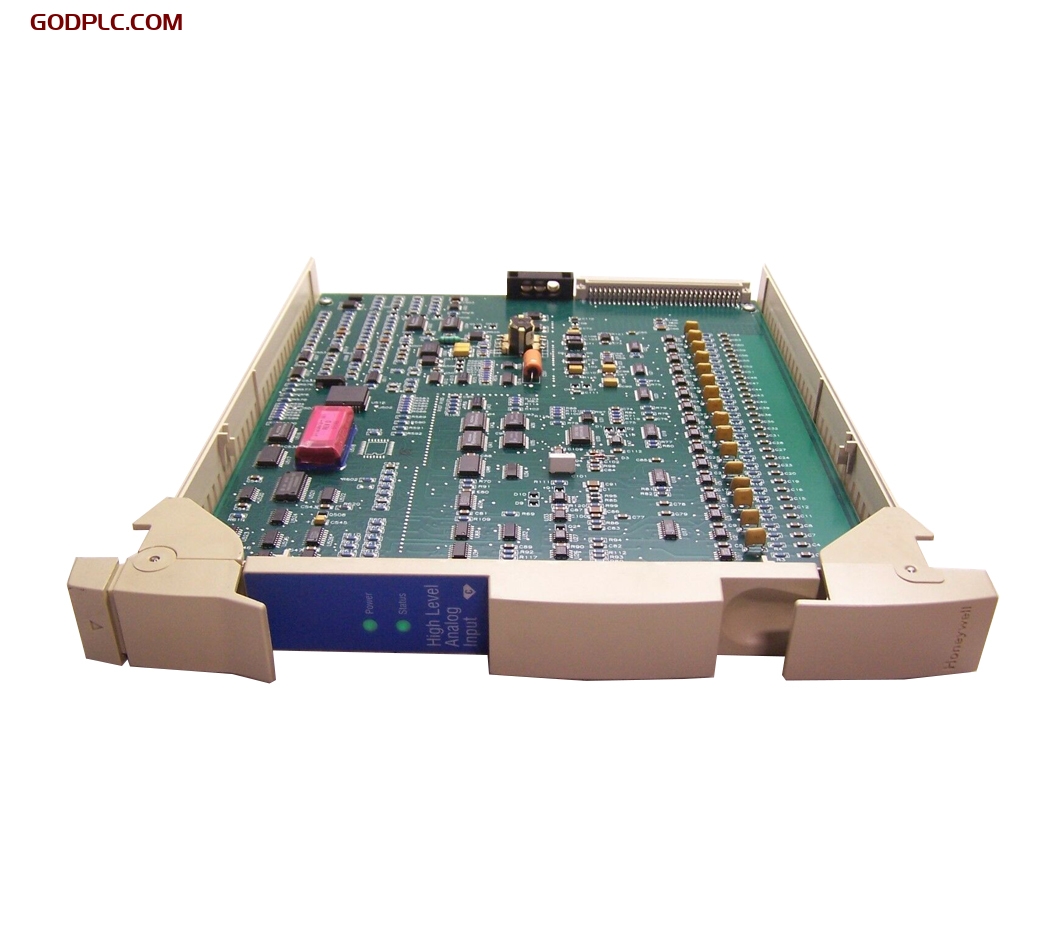

The Honeywell MC-PAIH03 51304754-150 High Level Analog Input Processor is a critical component of the Honeywell TPS system, designed for high-precision analog signal processing in industrial automation applications. It provides 16 differential input channels and supports voltage, current signals, with compatibility for different two-wire or self-powered transmitters. The product is used for connecting a wide variety of sensors, providing reliable and accurate signal conversion for complex industrial systems requiring precise control and monitoring.
Key Features
- 16 Input Channels: Supports up to 16 differential analog input channels for high-precision industrial process control.
- Wide Input Range: Supports 0-5V, 1-5V, 0.4-2V, and 4-20mA input signals, adaptable to different sensor types.
- High Interference Rejection: Features 70 dB Common Mode Rejection Ratio (CMRR) ensuring clear and accurate signals.
- High-Resolution Conversion: Uses a 16-bit ADC with 14-bit effective resolution for precise data acquisition.
- Strong Electrical Protection: Provides ±30V input voltage protection to prevent damage from over-voltage conditions.
- Adaptable: Configurable with different FTAs to meet various input signal types and application needs.
- Redundancy Options: Supports redundant configurations for enhanced availability and system reliability.
Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Dimensions | 27.8 mm x 31.3 mm x 30 mm |
| Weight | 0.58kg |
General Information
| Parameter | Specification |
| Input Type | Voltage, Current (2-wire or self-powered transmitters) |
| Input Channels | 16 differential input channels |
| Input Range | 0-5V, 1-5V, 0.4-2V, 4-20mA |
| Input Impedance (Voltage) | > 10 MΩ powered |
| Input Scan Rate | 4 samples per second per channel (all channels within 250 ms window) |
| Resolution | 16-bit A/D converter (14-bit effective) |
| Hardware Accuracy | ±0.075% full scale (23.5°C ± 2°C) |
Environmental Specifications
| Parameter | Specification |
| Operating Temperature | -40°C to +85°C at Remote FTA |
| Operating Humidity | 10% to 100% (Remote FTA) |
| Storage Temperature | -40°C to +85°C |
Industry Applications
The Honeywell MC-PAIH03 is suitable for various industrial automation control sectors, including:
- Oil and Gas: Used for monitoring and controlling sensors in oilfields, ensuring process stability and safety.
- Chemical Industry: For precise measurement of temperature, pressure, and flow parameters in chemical production.
- Power Industry: Widely used in power plants for electrical monitoring, ensuring the stability of electrical equipment.
- Water Treatment: In water treatment systems for monitoring and controlling a range of sensors, ensuring water quality safety.
Honeywell MC-PAIH03 51304754-150 is in stock. Contact us for quick quotes and competitive prices.
