Honeywell FC-TSRO-0824 Digital Output Field Termination Assembly Cheap&Stock
Product Overview

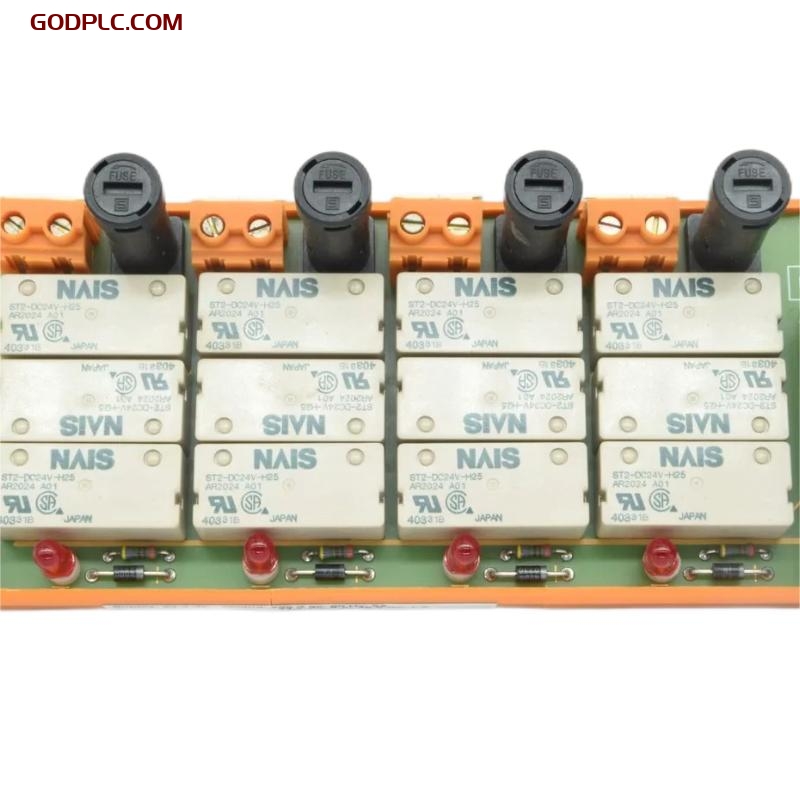

The Honeywell FC-TSRO-0824 Digital Output Field Termination Assembly is a robust and versatile solution designed for use in industrial control applications. This module is an essential component for managing digital output signals in automation systems, offering a reliable and high-performance interface between control systems and external devices. It features advanced electrical isolation, high safety standards, and the ability to handle significant load capacities, making it suitable for a wide range of industrial settings.
Key Features
- High Safety Standards: Certified with CE, UL, TUV, and CSA approvals.
- SIL3 Safety Class: Suitable for applications up to SIL3 safety integrity level.
- Wide Input Voltage Range: Nominal input of 24 Vdc, with a maximum of 36 Vdc.
- Reliable Output: 8 output channels, each capable of handling up to 5 A.
- High Switching Capacity: Capable of switching loads up to 1250 VA or 150 W.
- Compact and Easy Installation: Designed for mounting on DIN EN rails TS32/TS35 × 7.5.
- Extended Operating Range: Wide ambient temperature range from -5°C to +60°C, making it suitable for diverse industrial environments.
- Long-Term Durability: The relay contacts have a maximum switching life expectancy that supports heavy-duty applications.
Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Module Dimensions | 300 × 70 × 60 mm (11.81 × 2.76 × 2.36 in) |
| Used Rail Length | 301 mm (11.85 in) |
| Weight | 0.53 kg |
General Information
| Parameter | Specification |
| Approval Certifications | CE, UL, TUV, CSA |
| Safety Class | Up to and including SIL3 |
| Nominal Input Voltage | 24 Vdc |
| Max. Input Voltage | 36 Vdc |
| Relay Pick-up Voltage | 19.2 Vdc |
| Input Current | Typically 40 mA at 24 Vdc |
| Ambient Temperature Range | -5°C to +60°C |
| Isolation | Coil to contact: 4000 Vac; Contact to contact: 1200 Vac |

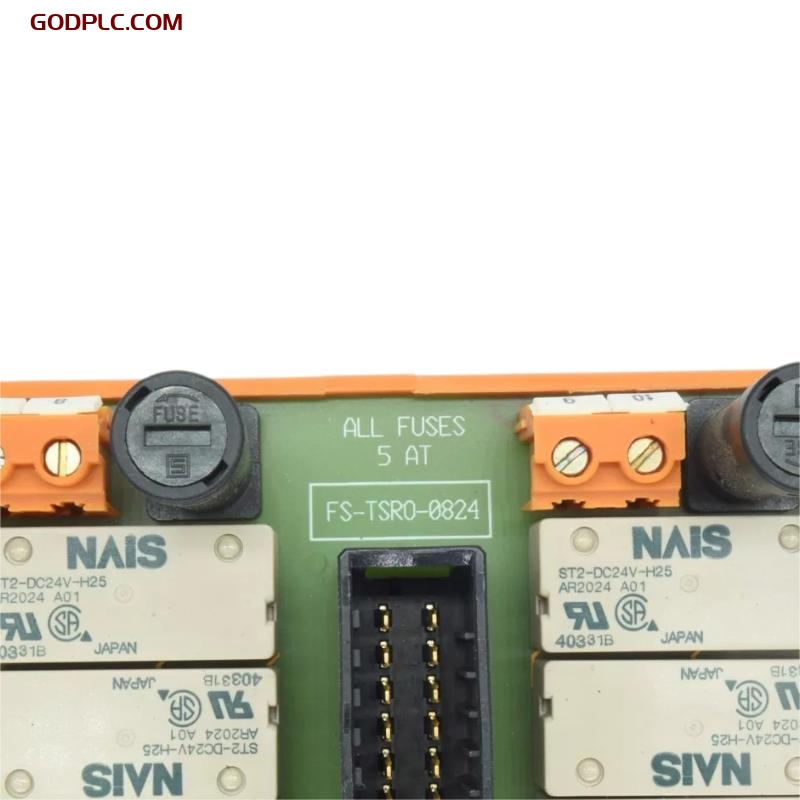

| Fuses Rating | 5 AT (slow-acting) |
Output Specifications
| Parameter | Specification |
| Number of Output Channels | 8 |
| Max. Output Current | 5 A (fused) |
| Min. Output Current | 1 mA at 5 V |
| Max. Output Voltage | 250 Vac / 250 Vdc |
| Max. Switched Load | 1250 VA / 150 W |
| Max. Switching Frequency | 20 Hz |

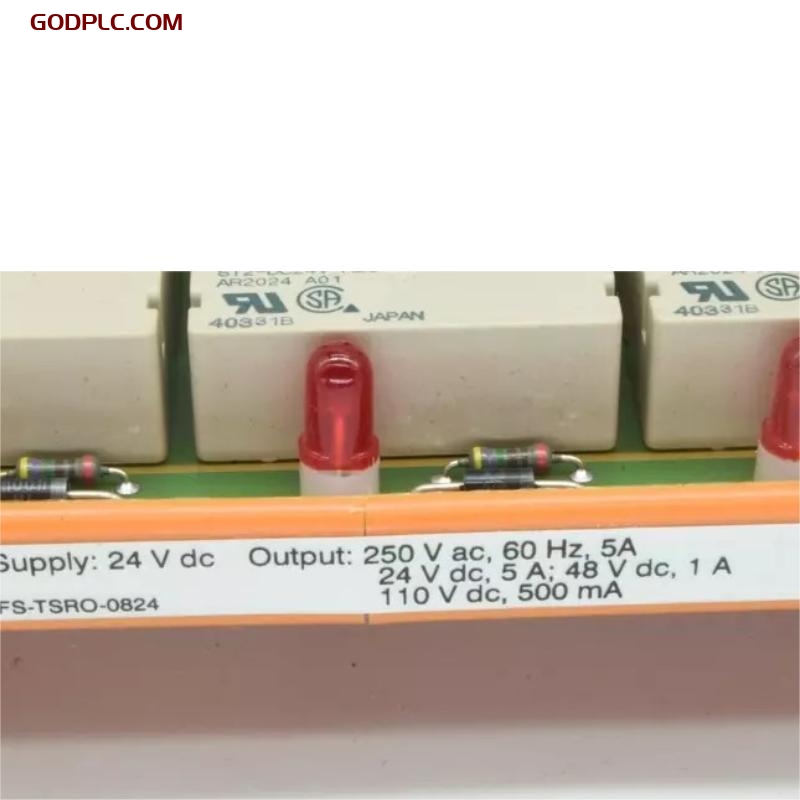

Relay Contact Specifications
| Parameter | Specification |
| Max. Switching Load | 250 Vac, 5 A |
| 24 Vdc, 5 A | |
| 48 Vdc, 1 A | |
| 110 Vdc, 500 mA | |
| Contact Material | Gold flash over silver alloy |
Termination Specifications
| Parameter | Specification |
| Screw Terminals | Max. wire diameter: 2.5 mm² (AWG 14) |
| Strip length: 7 mm (0.28 in) | |
| Tightening torque: 0.5 Nm (0.37 ft-lb) |
Industry Applications
The Honeywell FC-TSRO-0824 Digital Output Field Termination Assembly is ideal for use in a variety of industries, including:
- Process Control: Used in automation systems for managing output signals.
- Manufacturing: Ideal for integrating with machinery requiring reliable output switching.
- Energy and Utilities: Suitable for monitoring and controlling critical infrastructure systems.
- Oil and Gas: Ensures safe and reliable operation in hazardous environments.
- Building Automation: Optimizes the management of HVAC, lighting, and security systems.
Honeywell FC-TSRO-0824 is in stock. Contact us for quick quotes and competitive prices.
