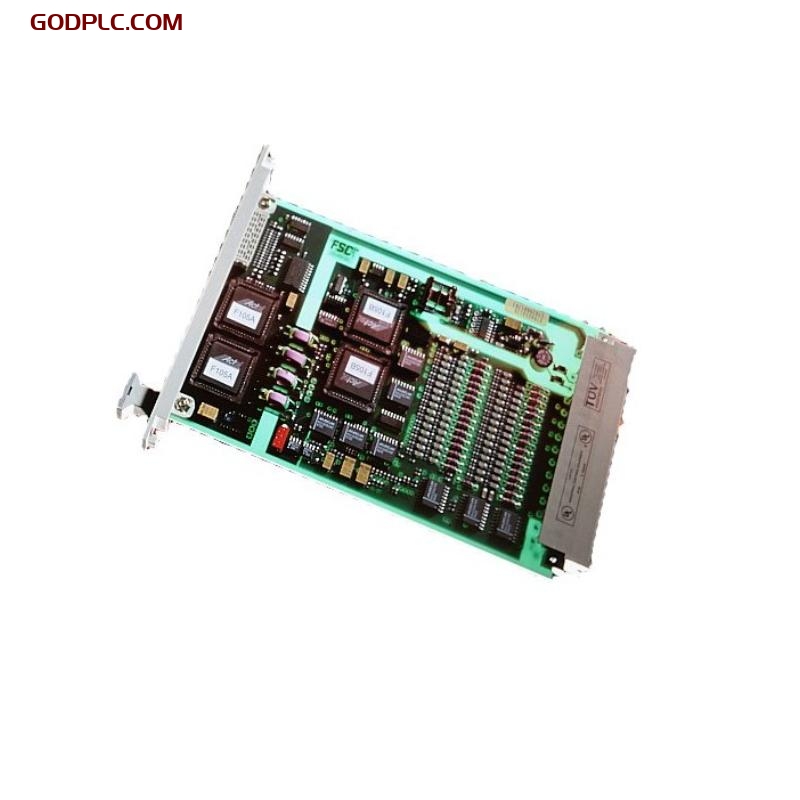

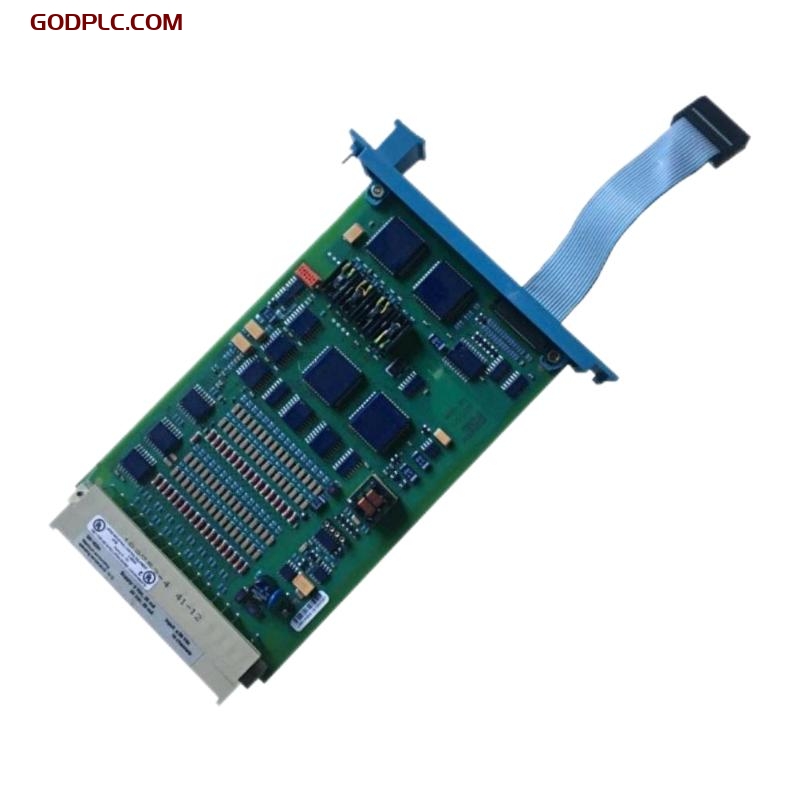

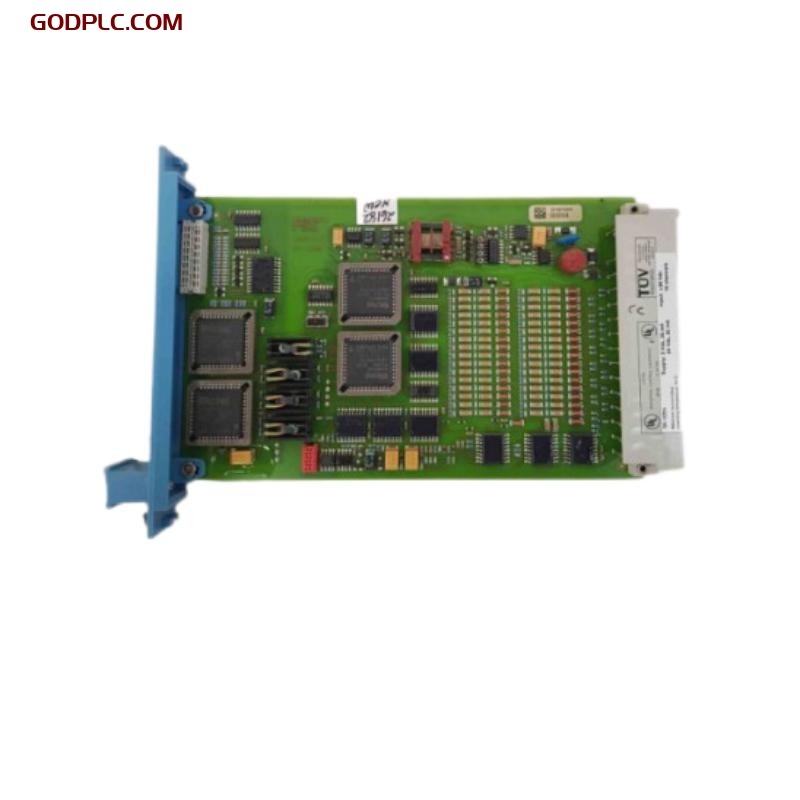

Honeywell FC-SAI-1620M Analog Input Module Consult Us
Product Overview
The Honeywell FC-SAI-1620M Analog Input Module is a key component designed for high-precision analog signal input processing in industrial control systems. This module is used to collect analog signals from industrial process equipment, convert them through a high-precision A/D converter, and then transmit them to control systems for further analysis and processing. The Honeywell FC-SAI-1620M module is widely used in industrial automation applications where high reliability and accurate data collection are crucial. It complies with various international certification standards and provides 16 independent input channels, supporting input signals up to 4.1V, making it suitable for diverse industrial environments.
Key Features
- High Precision Collection: Utilizes a 12-bit A/D converter with ±1 LSB conversion error and an overall module error of less than 0.25%.
- Diverse Input Channels: Offers 16 input channels, each supporting signal input from 0-4.1V.
- Excellent Noise Immunity: Crosstalk between channels is greater than 60 dB, ensuring stable data collection.
- Wide Compatibility & Certifications: Meets CE, TUV, UL, CSA, and FM international certification standards, making it suitable for global industrial applications.
- Compact Design: Occupies 4TE, 3HE of space, compatible with standard industrial racks.
Technical Specifications
Dimensions and Weight
| Item | Specification |
| Module Size | 72 × 133.35 mm
|
| Module Weight | 0.5 kg |
General Information
| Item | Specification |
| Model | FC-SAI-1620M |
| Approvals | CE, TUV, UL, CSA, FM |
| Power Supply | 5V DC, 35 mA; 24V DC, 35 mA |
| Input Channels | 16 |
| Input Range | 0-4.1V |
| Input Impedance | > 1 MΩ |
| Max. Input Signal | ± 36V DC |
| Input Signal Readback | 0-4.1V |
| A/D Converter Accuracy | ±1 LSB |
| Module Accuracy | < 0.25% |
| Crosstalk | > 60 dB |
Input Channel Details
| Item | Specification |
| Max. Load Capacitance | 100 nF |
| External Voltage Readback | 0-4.1V |
| Input Resistance | Typical 1 MΩ |
Connector Information
| Item | Specification |
| Module Connector Code | A5, C25 |
| Chassis Connector Code | Large Pins A5, C25 |
Industry Applications
The Honeywell FC-SAI-1620M module is widely used in industrial automation, particularly in applications requiring precise analog signal collection and processing. Typical applications include:
- Manufacturing: Used for monitoring the operational status of production equipment, providing real-time data feedback to ensure efficient operation of production lines.
- Oil and Gas: Used in drilling, production platforms, and other remote facilities to collect critical process data, ensuring equipment safety and efficiency.
- Power Systems: Used for monitoring and fault diagnosis in electrical power equipment, enhancing the stability and safety of power systems.
- Automation Control: Integrated into various control systems for real-time monitoring and data collection, helping optimize system performance.
Honeywell FC-SAI-1620Mis in stock. Contact us for quick quotes and competitive prices.
