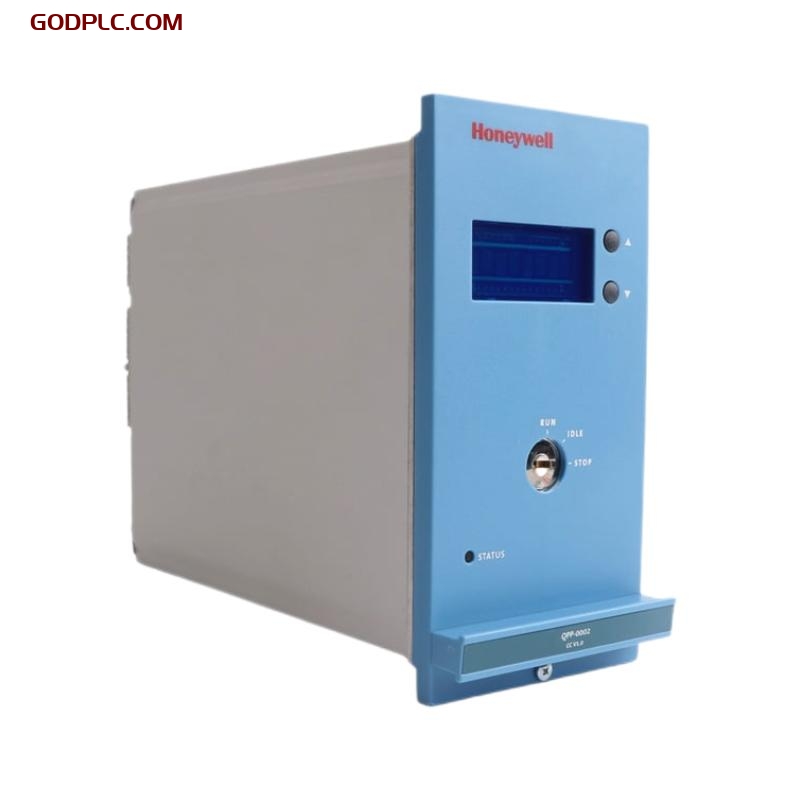

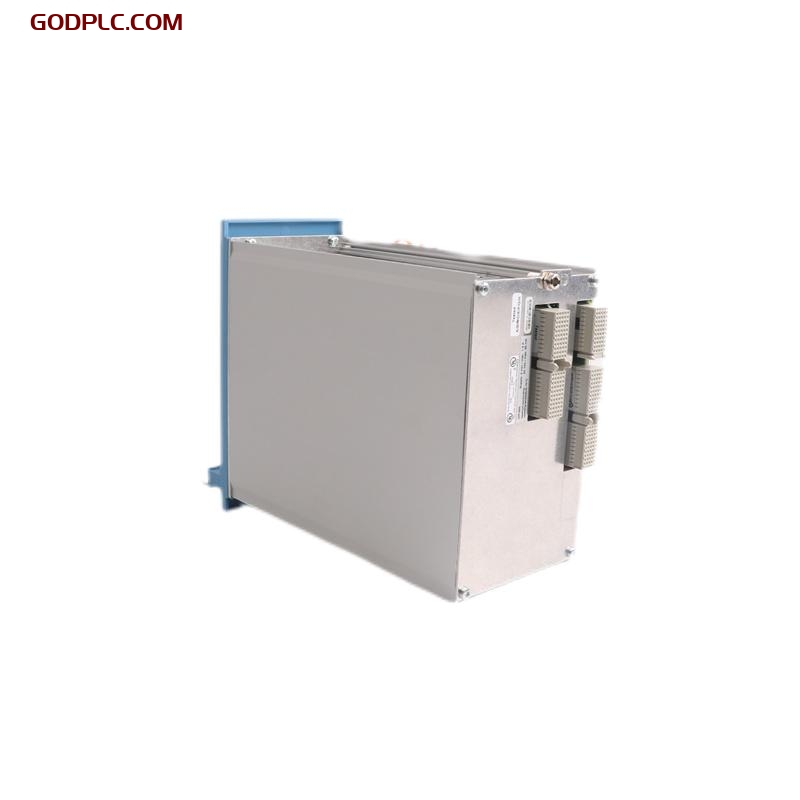

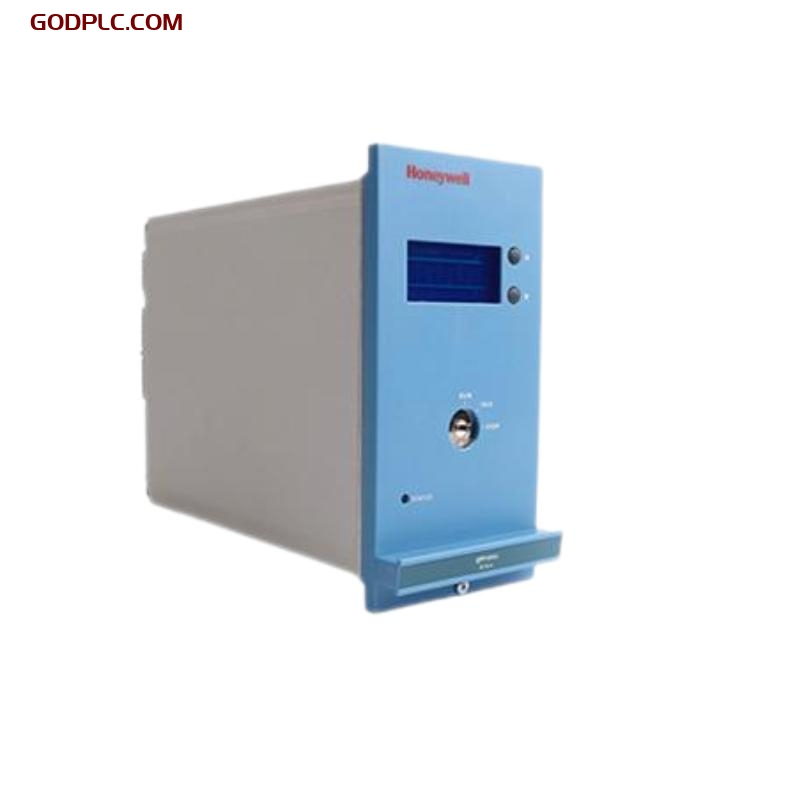

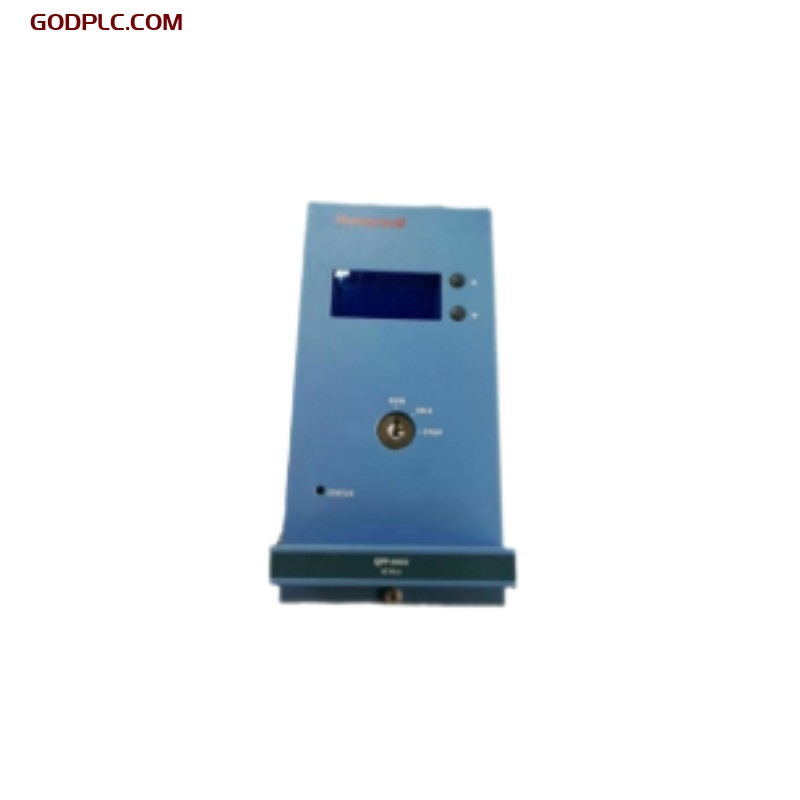

Honeywell FC-QPP-0002 Quad Processor Consulting Price
Product Overview
The Honeywell FC-QPP-0002 Quad Processor is a key processing module in safety management systems, widely used in industrial automation systems that require high reliability and safety. This module features advanced multi-processor redundancy to ensure the safe operation of the system in case of failures. The FC-QPP-0002 module performs system operations, processes I/O input signals, and generates corresponding outputs based on user-defined Functional Logic Diagrams (FLDs). In redundant configurations, two QPP-0002 modules synchronize their operation through a dedicated communication link, ensuring system safety and stability even when one module fails.
Key Features
- Dual Processor Synchronous Operation: The QPP-0002 has two processors running synchronously to ensure efficient and stable process control.
- Redundant Communication Link: In redundant controller configurations, two QPP-0002 modules exchange data via a redundant communication link, ensuring high availability.
- High Reliability and Self-Test Features: The module includes hardware data comparators and extensive self-test features, triggering a watchdog mechanism if discrepancies are detected between processors and memory.
- SIL3 Support: The QPP-0002 module supports applications up to SIL3, suitable for demanding safety control environments.
- Temperature Monitoring and Real-Time Clock: The module integrates temperature monitoring and a real-time clock for time synchronization and thermal management.
- Emergency Shut-Down Inputs and Outputs: It provides emergency shut-down inputs and configurable outputs for controlling non-redundant or redundant I/O.
Technical Specifications
1. Dimensions and Weight
| Item | Specification |
| Dimensions (H × W × D) | 176 × 88.5 × 212 mm |
| Weight | 1.3 kg |
2. General Information
| Item | Specification |
| Model | FC-QPP-0002 |
| Operating Temperature | External: -5°C ~ +70°C; Internal: -5°C ~ +85°C |
| Storage Temperature | -40°C ~ +85°C |
| Relative Humidity | 10% ~ 95% (Non-condensing) |
| Certifications | CE, UL, CSA, TUV, FM |
| Power Supply Voltage | 24V DC -15% ~ +30% |
| Supply Current (24V) | Max. 25mA |
| Supply Voltage (5V) | 5V DC ±5% |
| Supply Current (5V) | Max. 1.2A |
3. Electrical Interfaces
| Item | Specification |
| Output Voltage (+24V_sd) | 15 ~ 31 V DC |
| Output Resistance | Approx. 1.1 kΩ |
| Short Circuit Protection | Continuous |
| SD Input Voltage (High) | 15 ~ 32 V DC |
| SD Input Voltage (Low) | < 4 V |
| Output Current (WDout) | 750mA per output |
Industry Applications
- Industrial Automation Control: In industries such as oil, gas, chemicals, and power, the FC-QPP-0002 ensures stable operation of equipment through its redundancy and high reliability.
- Safety Critical Systems: Used in automation systems requiring high safety standards, meeting SIL3 criteria, applicable in fire safety, protection systems, and more.
Data Monitoring and Processing: With its high processing capacity and self-test features, the QPP-0002 can process large volumes of data and provide real-time monitoring, ideal for fast-response environments.
Honeywell FC-QPP-0002 is in stock. Contact us for quick quotes and competitive prices.
