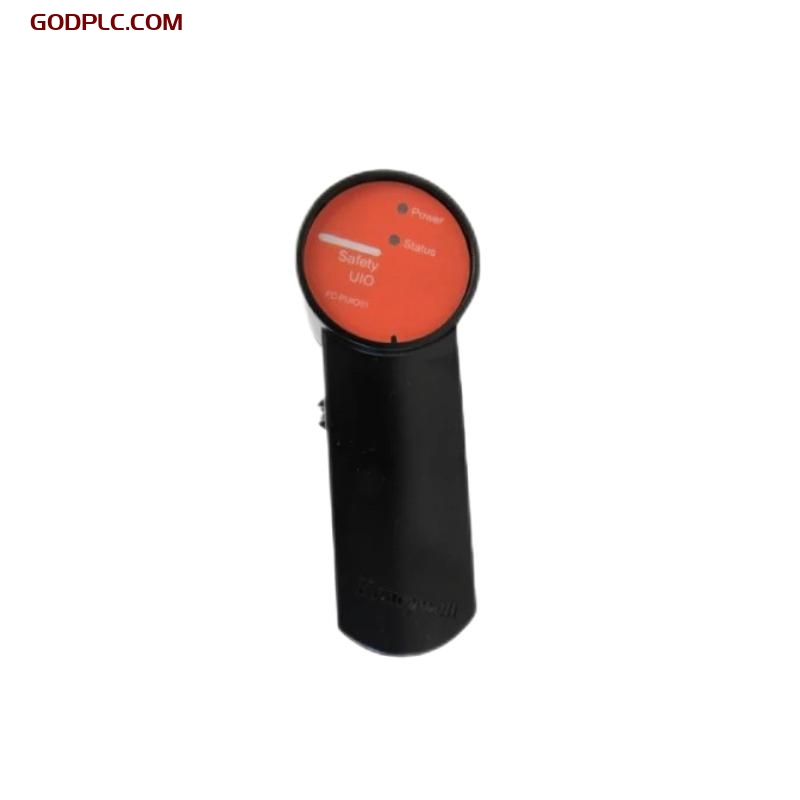

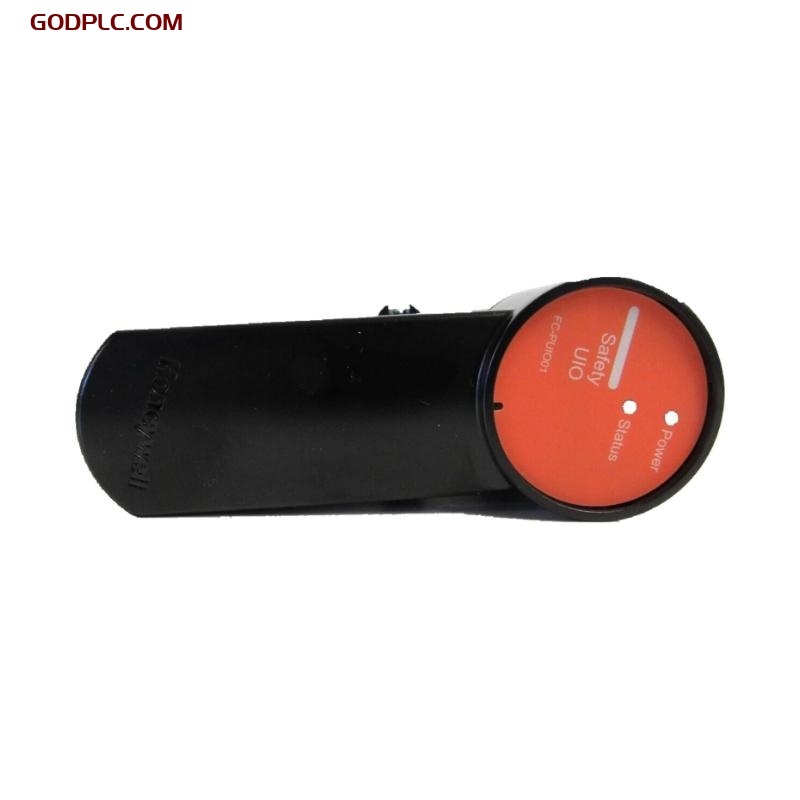

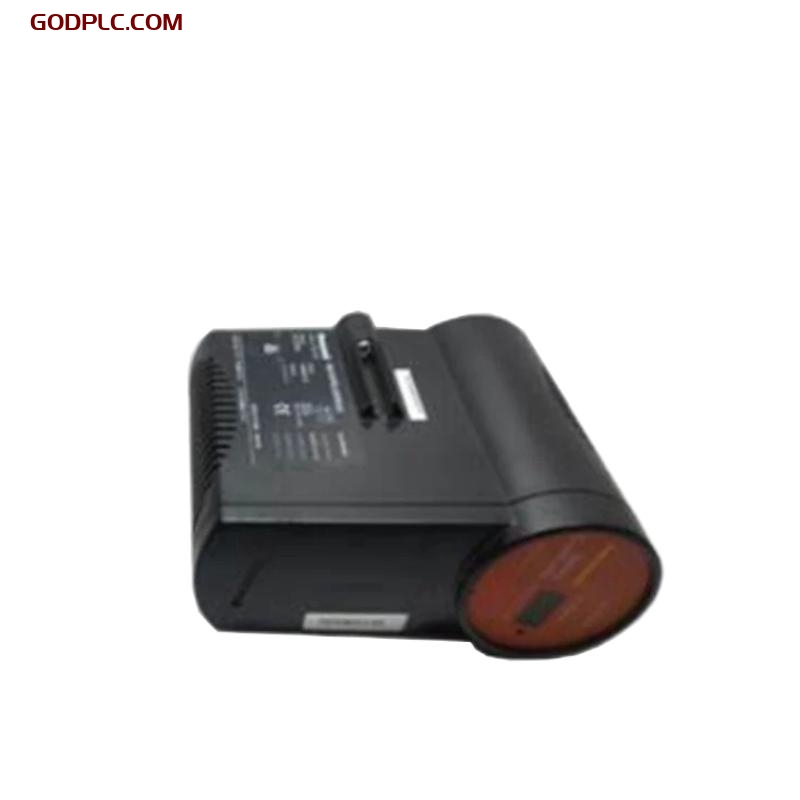

Honeywell FC-PUIO01 Universal Safety I/O Module Fast Delivery
1. Product Overview
The Honeywell FC-PUIO01 Universal Safety I/O Module is a highly integrated input-output module designed for safety systems. It provides flexible signal processing and input-output management through a variety of features and adapters, making it widely used in process control and safety monitoring applications. This module supports SIL 3 safety integrity level, ensuring operational safety in complex and high-risk environments.
2. Key Features
- Safety: Conforms to IEC 61508 SIL 3 safety standard, ensuring high reliability and safety.
- Versatility: Supports various input and output adapters for both digital and analog signals.
- Compact Design: Small form factor suitable for control systems with limited space.
- On-site Installation: Supports DIN rail mounting for easy field deployment and maintenance.
- High Scalability: Modular design allows easy addition or reduction of input-output channels.
- Environmental Adaptability: Operates within a temperature range of -40°C to +70°C.
3. Technical Specifications
Dimensions and Weight
| Parameter | Specification |
| Dimensions | 199mm (H) x 140mm (W) x 135mm (D) |
| Weight | 0.8kg |
General Information
| Parameter | Specification |
| Input Voltage | 24V DC |
| Max Current | 1.3A |
| Power Indicator | Green LED |
| Interface Type | 37-pin DSUB (for SIC cable) |
| Field Side Cable Gauge | 12-24 AWG |
| System Side Cable Gauge | 10-26 AWG |
| Safety Integrity Level | SIL 3 (IEC 61508) |
| Protection Level | IP20 (When modules are mounted) |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Applicable Standards | IEC/UL 60079-0; 60079-7, 60079-11, 60079-15 |
Environmental Conditions
| Parameter | Specification |
| Vibration | IEC 60068-2-6; 1G @ 57 Hz to 150 Hz |
| Shock | IEC 60068-2-27; 15G @ 11ms, 3 axes |
| Humidity | 5% to 95% (non-condensing) |
4. Industry Applications
The Honeywell FC-PUIO01 Universal Safety I/O Module is used in various industries, especially in:
- Oil and Gas: Ensures safe operation in harsh environments.
- Chemical and Pharmaceutical: Controls and monitors hazardous material handling to ensure operational safety.
- Mining and Metallurgy: Manages data acquisition and control in high-risk operations.
- Energy: Guarantees the safe and reliable operation of power plants and distribution networks.
Honeywell FC-PUIO01 is in stock. Contact us for quick quotes and competitive prices.
