Honeywell FC-PDB-0824P Power Distribution Board Cheap&Stock
1. Product Overview

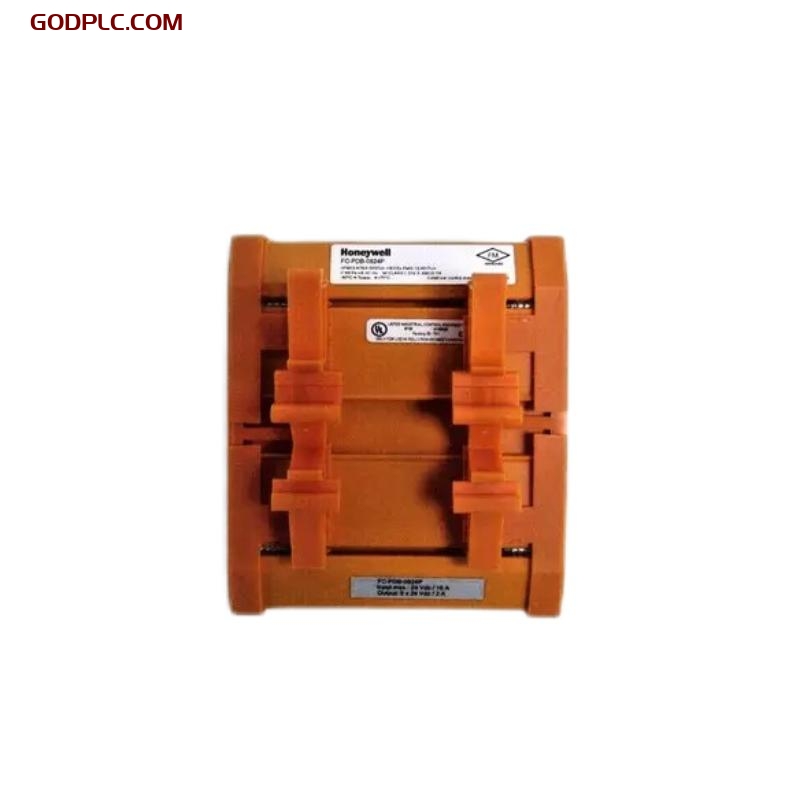

The Honeywell FC-PDB-0824P Power Distribution Board is a module designed for power distribution within industrial control systems, specifically for distributing 24V DC power from the main bus rail to individual devices inside an enclosure, such as fan units and FTAs (Field Terminal Assemblies). This product provides a reliable and efficient power distribution solution, ensuring the stability and safety of the devices connected to it.

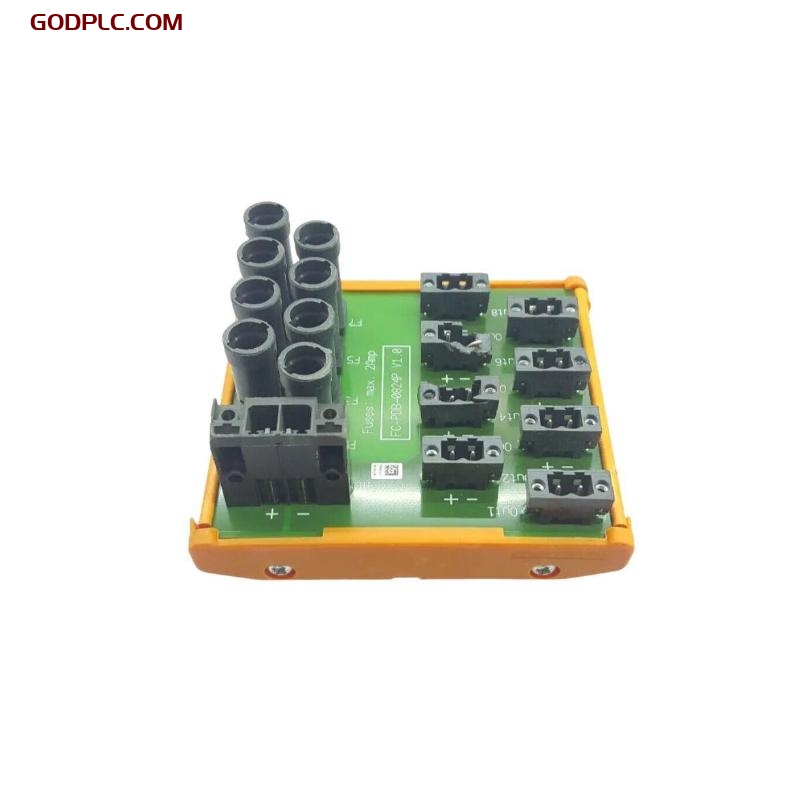

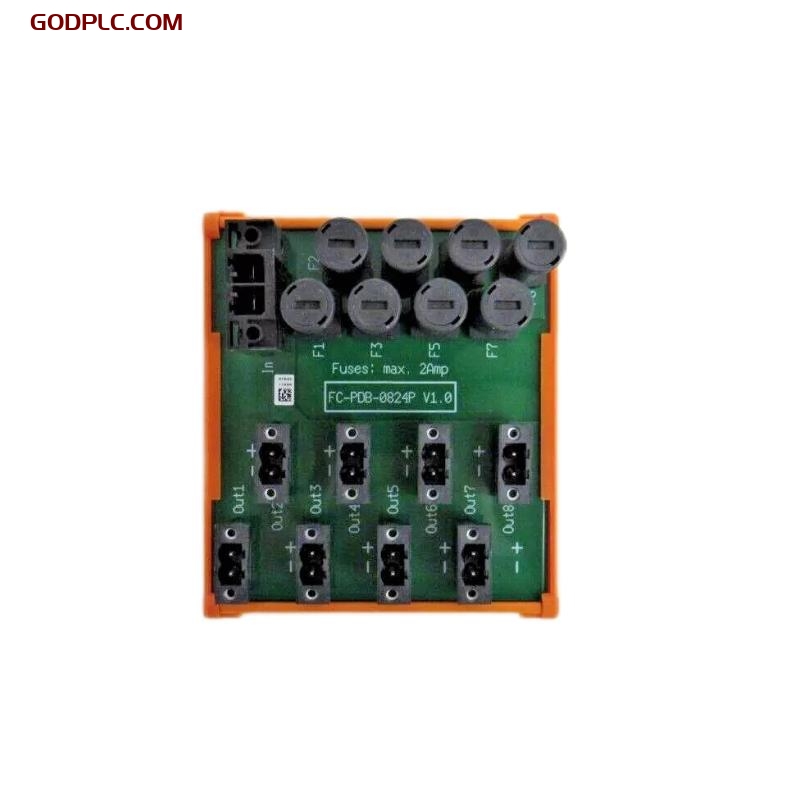

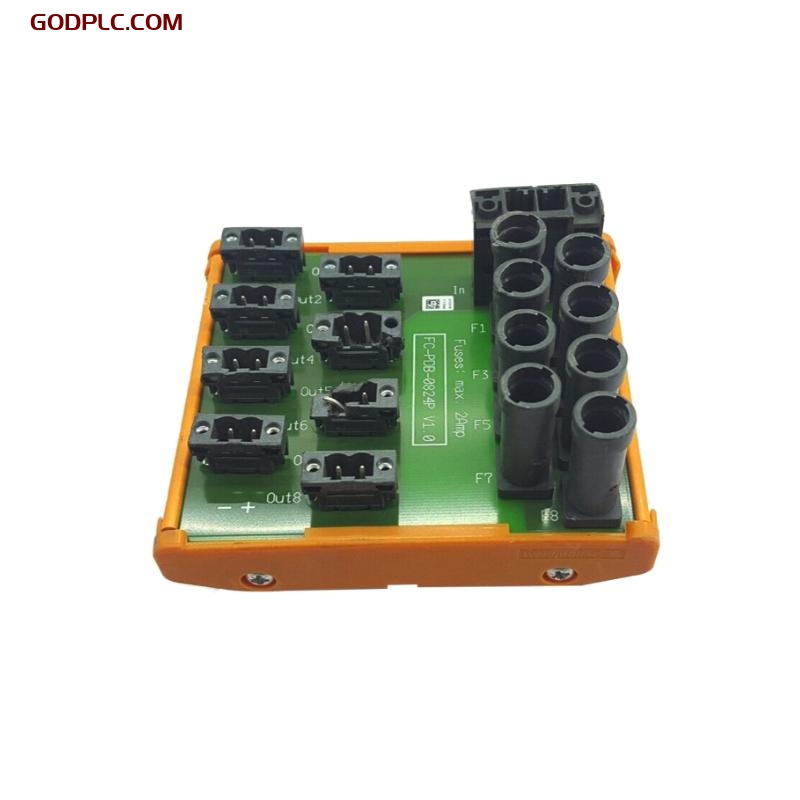

The FC-PDB-0824P features one 24V DC input connector (In) for connecting to the main power rail and eight (2A fused) 24V DC field connectors (Out1 to Out8) for connecting to up to eight 24V DC devices. The board is compatible with various wiring schemes, making it easy to integrate into industrial automation systems.
2. Key Features
- Efficient Power Distribution: Distributes 24V DC power to multiple devices, ensuring stable operation.
- Robust Connection Design: Uses Weidmuller connectors (BVZ 7.62HP/02F SN and BLZ 5.08/2F SN SW) for secure power transmission.
- Reliable Fuse Protection: Each output channel is equipped with a 2A fuse for added system safety.
- DIN Rail Mounting: Supports DIN EN rails (TS32 / TS35 × 7.5) for easy installation and maintenance.
- International Certification: Certified with CE, UL, TUV, and CSA approvals, meeting industrial safety standards.
3. Technical Specifications
Dimensions and Weight
| Parameter | Value |
| Module Dimensions | 94 x 109 x 71 mm |
| Weight | 0.93 kg |
| Mounting Type | Standard DIN Rail TS32 / TS35 × 7.5 |
| Rail Length | 95 mm |
General Information
| Parameter | Value |
| Model Number | FC-PDB-0824P |
| Input Voltage | 24V DC |
| Max Current | 2A per channel |
| Connector (Input) | Weidmuller BVZ 7.62HP/02F SN |
| Connector (Output) | Weidmuller BLZ 5.08/2F SN SW |
| Fuse Rating | 2AT (Slow-blow) |

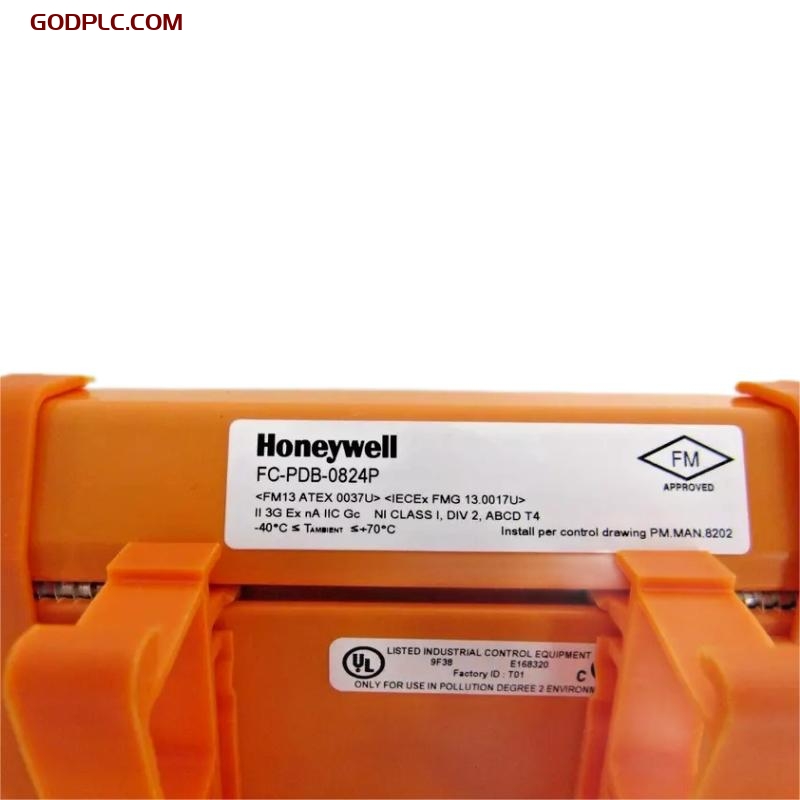

| Electrical Approval | CE, UL, TUV, CSA Pending |
4. Industry Applications
The Honeywell FC-PDB-0824P Power Distribution Board is widely used across various industries, particularly in automation and control systems, providing efficient power distribution solutions. Common applications include:
- Industrial Automation Systems: Distributes power to various devices in control systems.
- Power Monitoring Systems: Ensures stable power supply to 24V DC devices.
- Safety Systems: Provides backup power to fan units and other critical devices, ensuring system continuity.
- Manufacturing and Production Facilities: Manages power for control equipment, optimizing production line efficiency.
Honeywell FC-PDB-0824P is in stock. Contact us for quick quotes and competitive prices.
