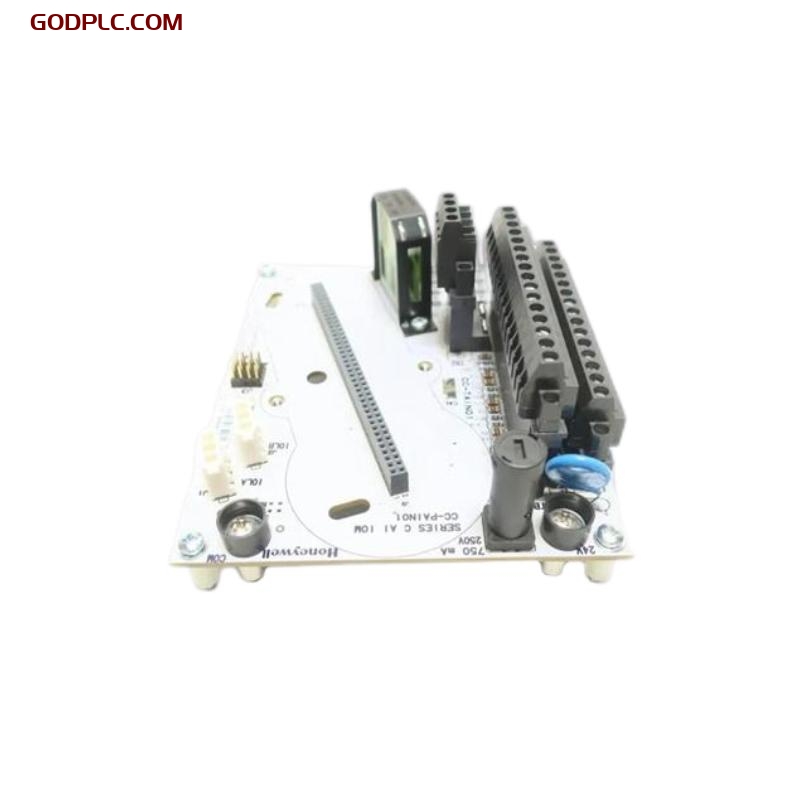

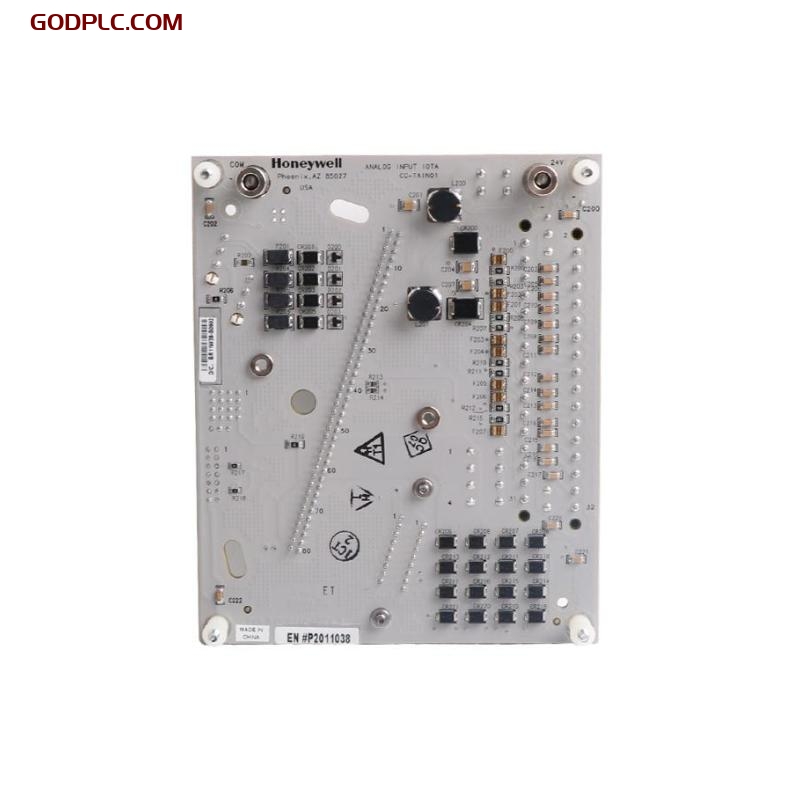

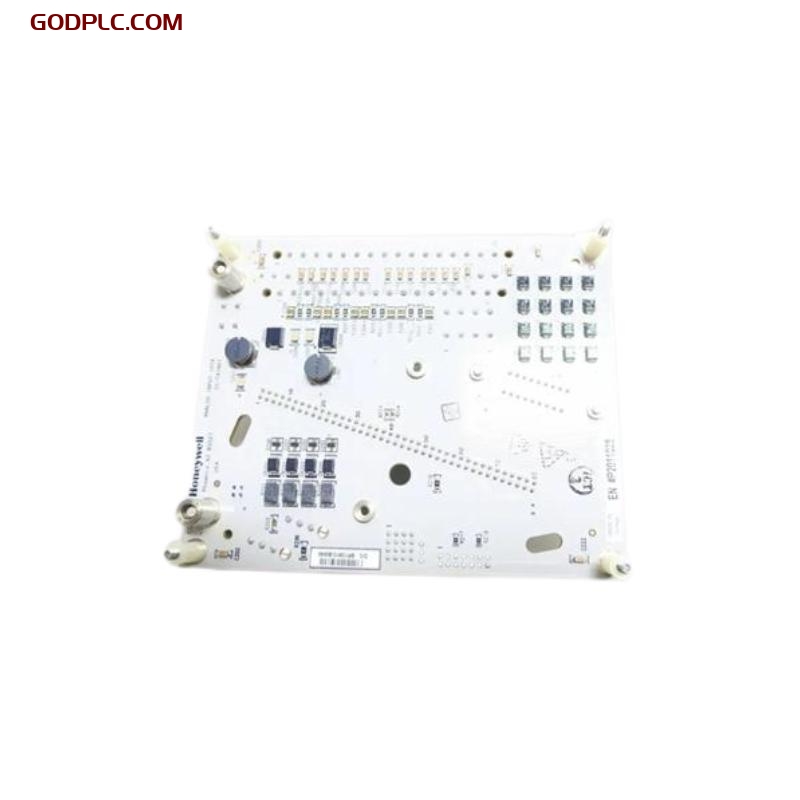

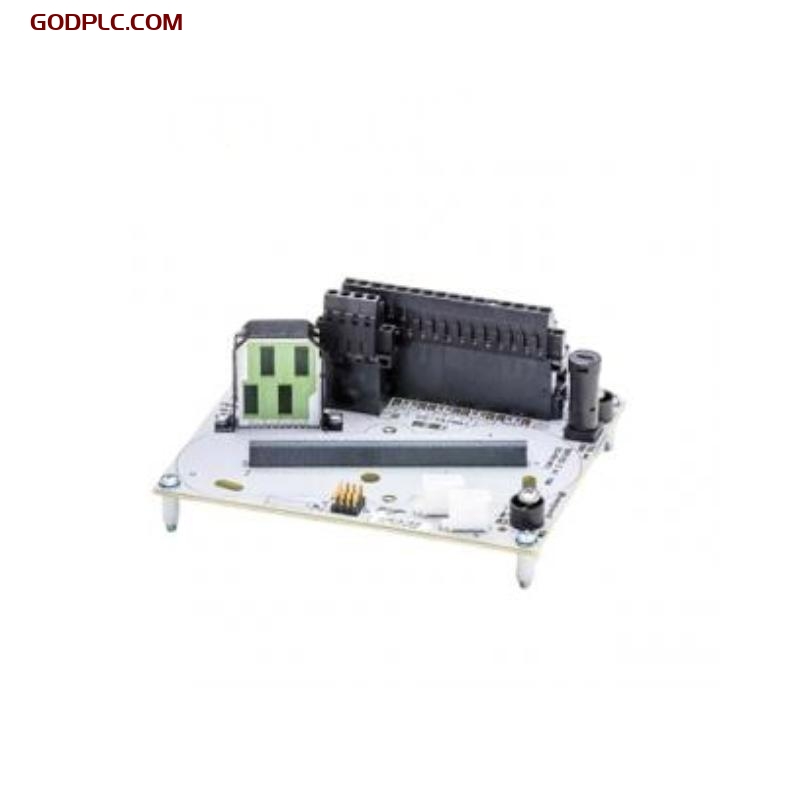

Honeywell CC-TAIN01 51306513-175 Analog Input Module Consulting Price
1. Product Overview
The Honeywell CC-TAIN01 51306513-175 Analog Input Module is part of the Experion® Series C I/O system designed for high-performance industrial control and automation applications. It supports high-level analog current inputs (typically 4-20 mA) and is suitable for interfacing with various process instruments and devices. The module features 16 channels, all of which are single-ended, and is designed to work seamlessly with Honeywell’s C300 Controller and other control systems.
2. Key Features
- Extensive Self-Diagnostics: Built-in diagnostics ensure the integrity and accuracy of input signals.
- Open Wire Detection: Alerts users to any disconnections in the system.
- Non-Incendive Power: Field power is provided without requiring additional external power sources.
- Optional Redundancy: Redundant configurations are supported for enhanced system reliability.
- Fast Loop Scan: Ensures rapid data acquisition for real-time process control.
- 16 Channels: Configured to handle multiple signal inputs from process control devices.
- Class 1, Div 2 Certified: Suitable for hazardous environments.
3. Technical Specifications
General Information
| Parameter | Specification |
| IOTA Model | CC-TAIN01 (Non-Redundant 6″) |
| Power Supply | 24 VDC |
| Dimensions (L x W x H) | 152 x 84 x 45 mm |
| Weight | 0.5 kg |
| Field Wiring Type | 4-20 mA input |
| Temperature Range | -40 to +70°C |
| Humidity Range | 5% to 95% non-condensing |
Input Specifications
| Parameter | Specification |
| Input Channels | 16 (Single-ended) |
| Input Type | 4-20 mA current (2-wire transmitters) |
| Input Impedance | >10 MΩ (for voltage inputs) |
| Common Mode Rejection | 70 dB |
| Normal Mode Rejection | 19 dB |
| Input Scan Rate | 50 ms |
| A/D Converter Resolution | 16 bits |
| Input Range | 4-20 mA (through 250 Ω) |
| Max Normal Mode Input | ±30 V |
| Accuracy (at 23.5 ± 2°C) | ±0.075% of full scale |
Power Specifications
| Parameter | Specification |
| Field Power Conditioning | Individually Protected, No Fusing Required |
| Field Power Voltage | 24 VDC |
| Field Power Type | Non-incendive |
Environmental Specifications
| Parameter | Specification |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Vibration Resistance | Meets industry standards |
| Shock Resistance | Meets industry standards |
4. Industry Applications
The Honeywell CC-TAIN01 Analog Input Module is ideal for applications in industries that require accurate and reliable analog signal processing, including:
- Oil & Gas: For monitoring process variables like pressure, temperature, and flow.
- Power Generation: For measuring control signals from field devices.
- Chemical Processing: For handling inputs from sensors measuring various parameters.
- Water Treatment: To interface with flow and pressure sensors in water treatment plants.
- Automated Manufacturing: For real-time monitoring and control of industrial processes.
Honeywell CC-TAIN01 51306513-175 is in stock. Contact us for quick quotes and competitive prices.
