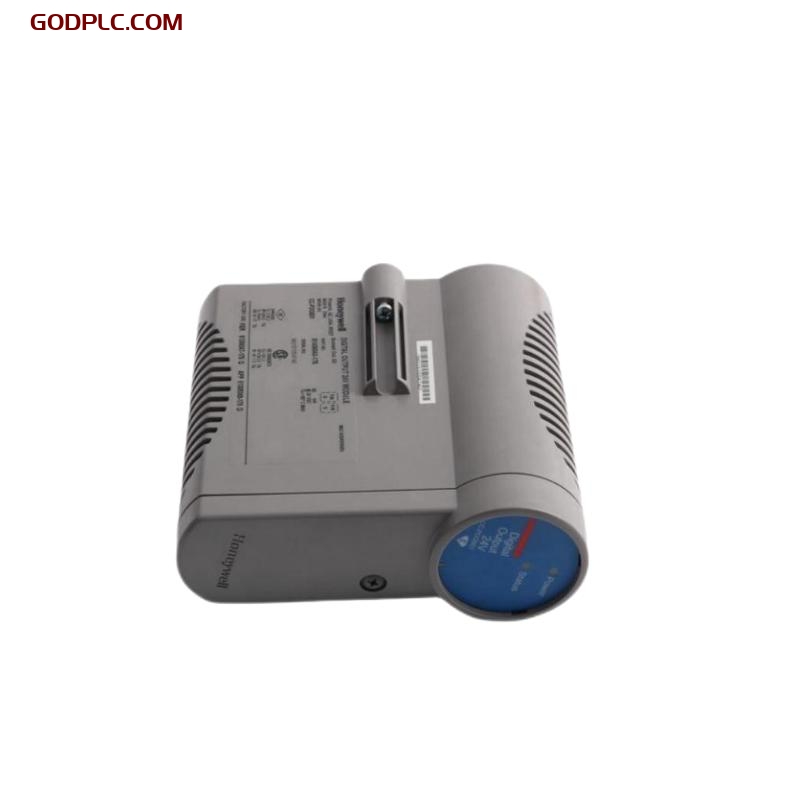

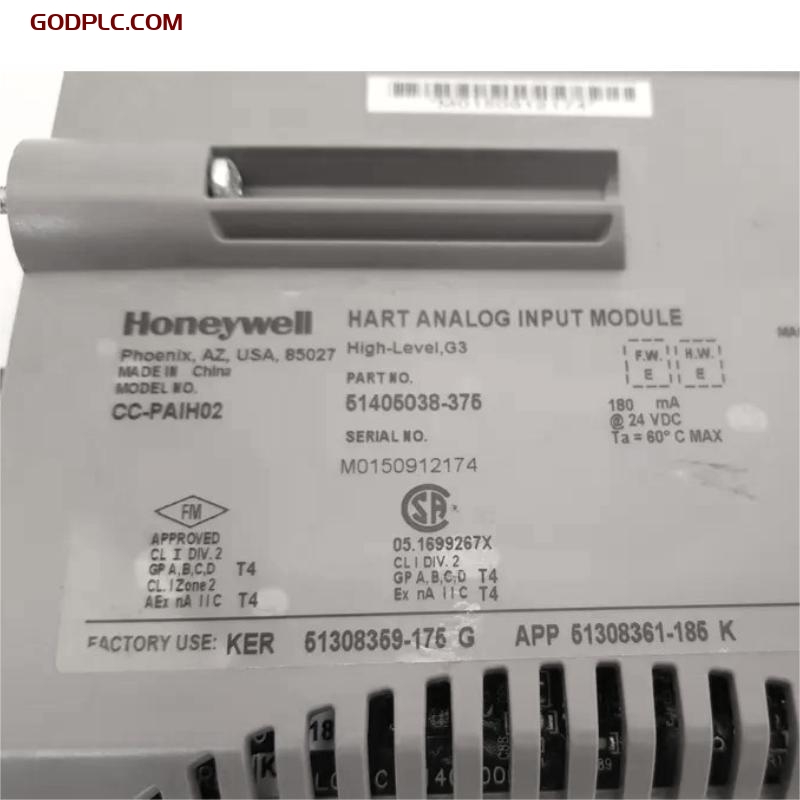

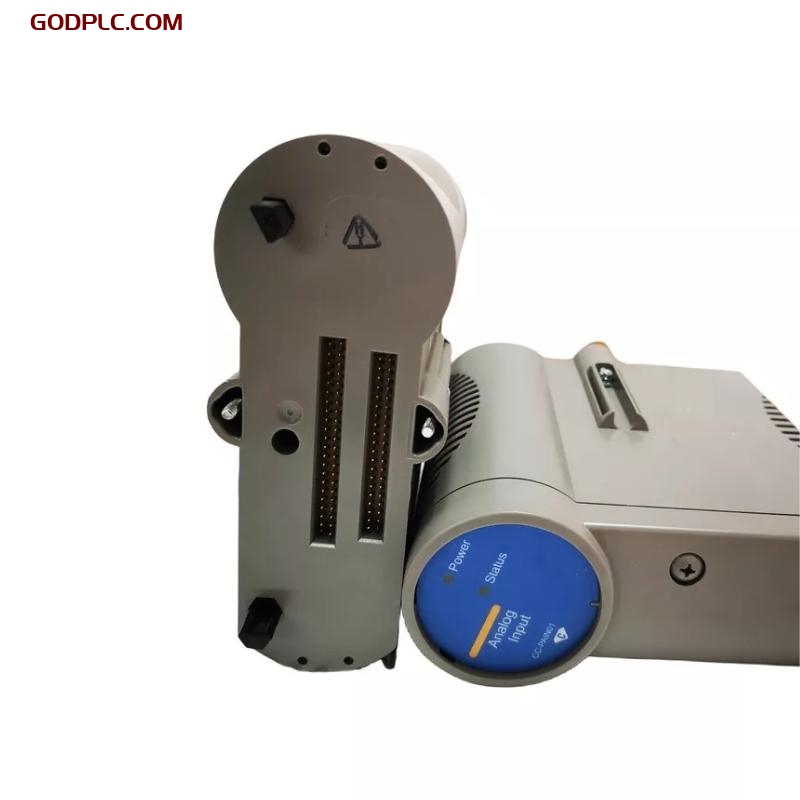

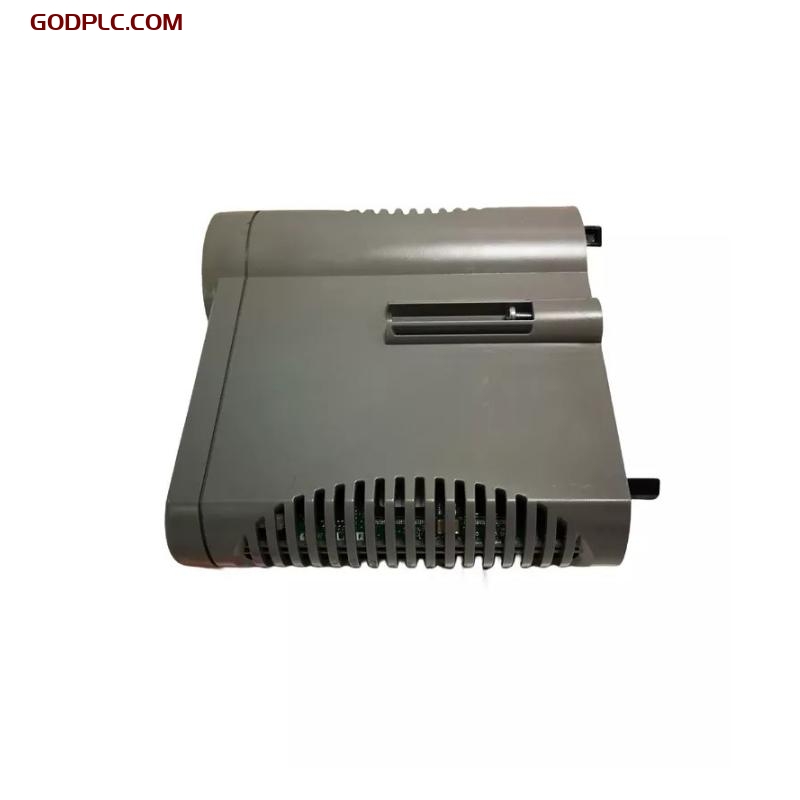

Honeywell CC-PAIH02 51405038-375 HART Differential Analog Input Module 2 Days Delivery
Product Overview
The Honeywell CC-PAIH02 51405038-375 HART Differential Analog Input Module is designed for high-precision analog input in industrial control applications. It accepts high-level current or voltage inputs from transmitters and sensing devices, supports HART protocol for multivariable monitoring, and fast data collection. With robust protection mechanisms and optional redundancy, it is ideal for environments where reliability and data accuracy are critical.
Key Features
- High Precision Input: Supports up to 16 channels of analog input with precise measurement of current and voltage signals.
- HART Protocol Support: Compatible with HART multi-variable instruments for status monitoring and control variable collection.
- Redundancy Option: Redundant configuration ensures high availability of the system.
- Fast Scanning and Diagnostics: Provides a 50ms input scan rate and features open-wire detection for real-time data transfer and alarms.
- Spark and Short Circuit Protection: Provides spark-safe connections for field sensors, reducing the risk of electrical failures.
- Wide Input Range: Supports 4-20mA current input as well as 0-5V and 1-5V voltage inputs.
Technical Specifications
Dimensions and Weight
| Item | Specification |
| Dimensions | 159 x 50 x 160 mm |
| Weight | 0.8 kg |
General Information
| Parameter | Specification |
| Model | CC-PAIH02 |
| Input Type | Voltage, current (2-wire or self-powered transmitters) |
| Channels | 16 (12 Single Ended / 4 Differential) |
| A/D Converter Resolution | 16 bits |
| Input Range | 0-5V, 1-5V, 4-20mA |
| Common Mode Rejection Ratio | 70dB |
Performance Parameters
| Parameter | Specification |
| Input Scan Rate | 50ms |
| Common Mode Voltage | -6V to +5V |
| Maximum Input Voltage | ±30V |
| Hardware Accuracy | ±0.075% (23.5°C ± 2°C) |
| Voltage Input Impedance | >10MΩ |
Industry Applications
The Honeywell CC-PAIH02 module is widely used in industries such as process control, automation, and energy management, especially in environments requiring high reliability and precise measurement, such as:
- Chemical and Oil & Gas: For monitoring various sensor data including temperature, pressure, and flow.
- Energy Management: Integrated into smart grids and energy control systems for accurate power monitoring.
- Pharmaceutical and Food Industries: Ensuring accurate data collection and real-time monitoring during production processes.
Honeywell CC-PAIH02 51405038-375 is in stock. Contact us for quick quotes and competitive prices.
