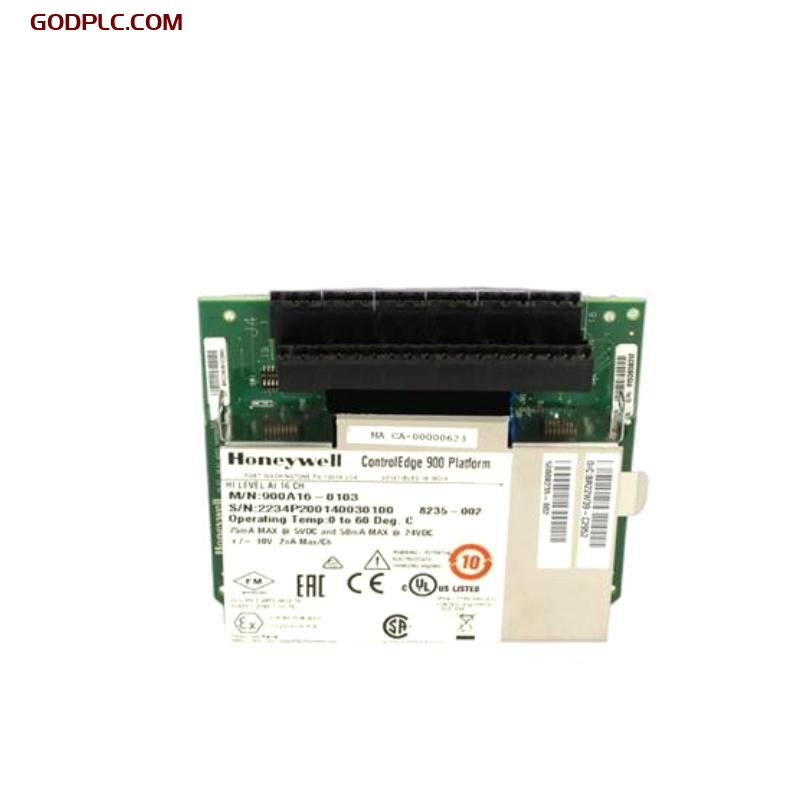

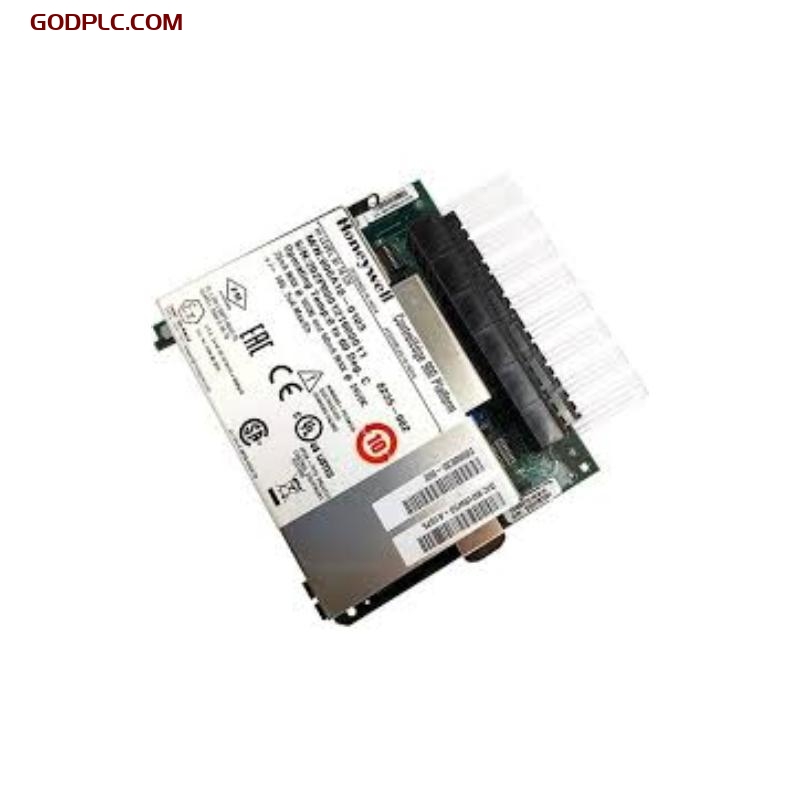

Honeywell 900A16-0103 16-Channel High Level Analog Input Module Contact The Sales
Product Overview
The Honeywell 900A16-0103 16-Channel High Level Analog Input Module is a high-performance analog input module designed for industrial control systems requiring high accuracy and reliability. The module supports up to 16 independently configurable inputs, which can be set for either voltage (V) or current (mA) input. The module features point-to-point and backplane isolation, effectively reducing interference and improving measurement accuracy. It is compatible with Honeywell’s ControlEdge HC900 controller, ensuring fast data acquisition and efficient processing.
Key Features
- 16 input channelssupporting both voltage and current inputs.
- Point-to-point isolation: Provides up to 400 VDC isolation for each input, enhancing system stability.
- Backplane isolation: 1000 VDC isolation between input and logic circuitry to reduce noise interference.
- High accuracy: Factory calibration accuracy of ±0.1% of range, with long-term stability.
- Field calibration: Supports individual channel field calibration for accurate data.
- Configurable fail-safe values: Each input channel supports user-defined fail-safe values.
- Built-in 250-ohm shunt resistor: Each channel comes with an integrated shunt resistor for simplified configuration.
Technical Specifications
Dimensions and Weight
| Item | Value |
| Module Dimensions | 137mm x 35.6mm |
| Module Weight | 0.397 kg |
General Information
| Item | Value |
| Input Channels | 16 Independent Channels |
| Input Types | Voltage (V), Current (mA) |
| Input Impedance | Voltage > 1 MΩ, Current 250Ω |
| Isolation Type | Point-to-point 400 VDC, Logic Isolation 1000 VDC |
| Noise Rejection | Series Mode >31dB, Common Mode >90dB |
| Accuracy | ±0.1% of range, Field Calibration Accuracy ±0.05% |
| Update Rate | 100ms |
| A/D Resolution | 15 Bits |
Performance
| Item | Value |
| Over-range Limit | ±10% for linear ranges (voltage), ±1% for non-linear ranges (thermocouples, RTDs) |
| Temperature Effect | ±0.01% of full scale per degree Celsius maximum |
| Long-term Stability | 0.1% per year |
| Calibration Data | Stored in non-volatile memory |
| Power Supply Requirements | 5V max 75mA, 24V max 50mA |
Industry Applications
- Industrial Automation: Used in automated control systems requiring precise analog data acquisition.
- Process Control: Widely applied in industries like chemicals, oil, and gas for data monitoring and control.
- Energy Management: Utilized for real-time voltage and current monitoring in energy sectors.
- Machinery Monitoring: Used for health monitoring and fault diagnosis of large machinery.
Honeywell 900A16-0103 is in stock. Contact us for quick quotes and competitive prices.
