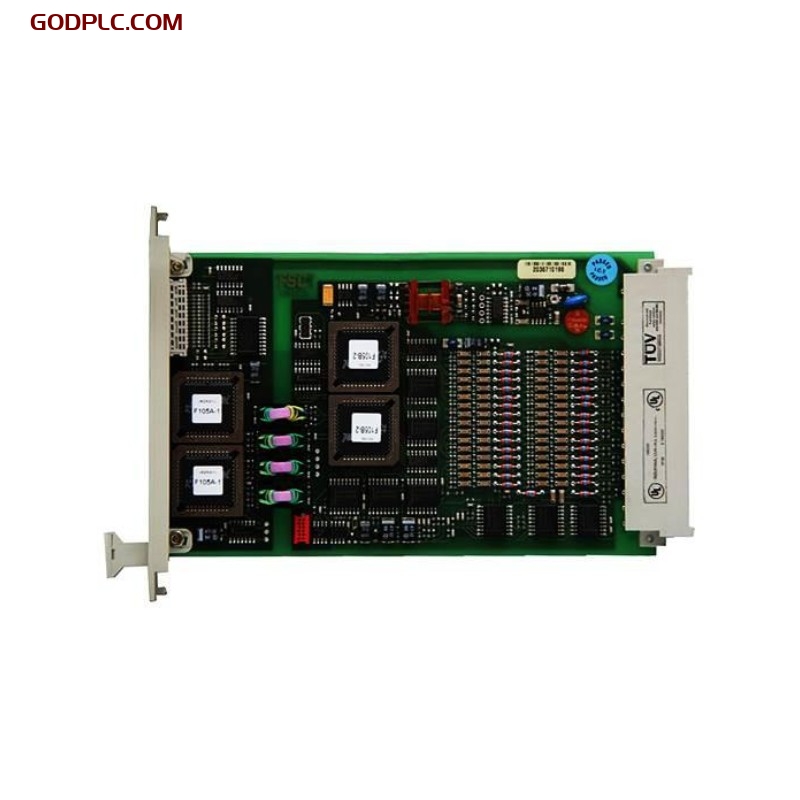

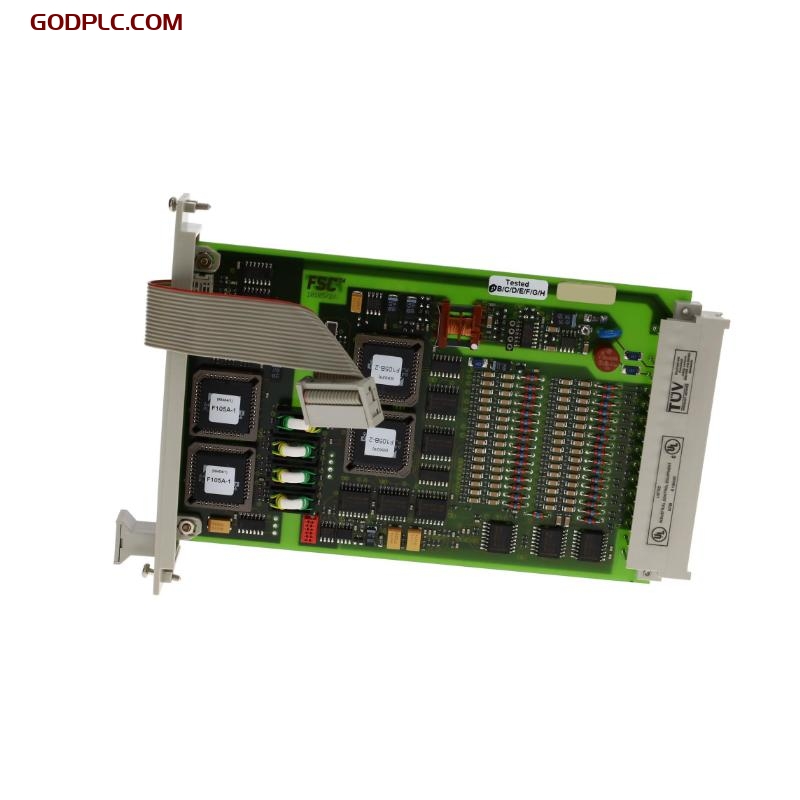

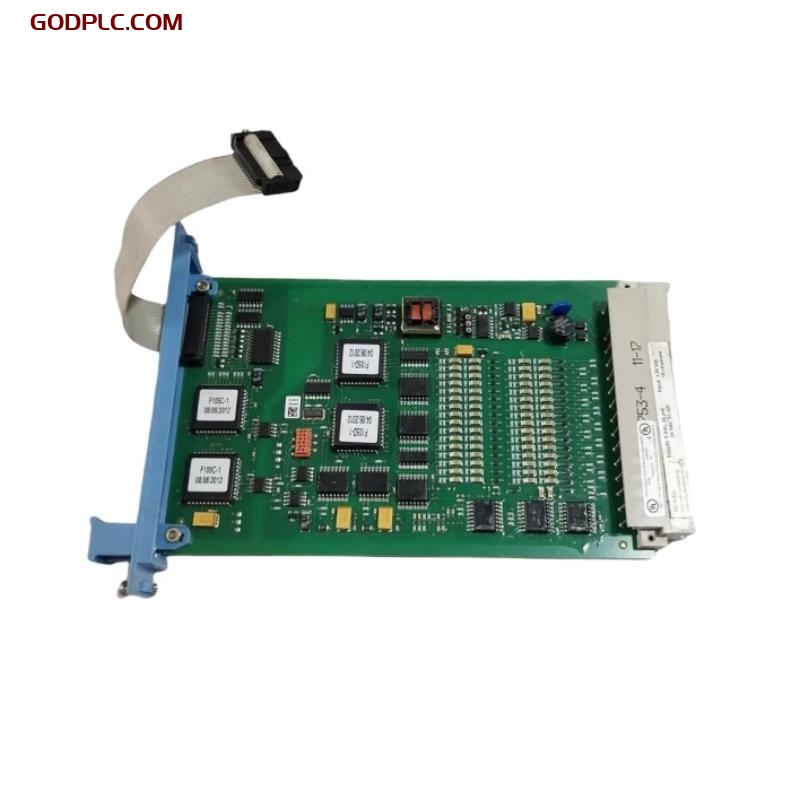

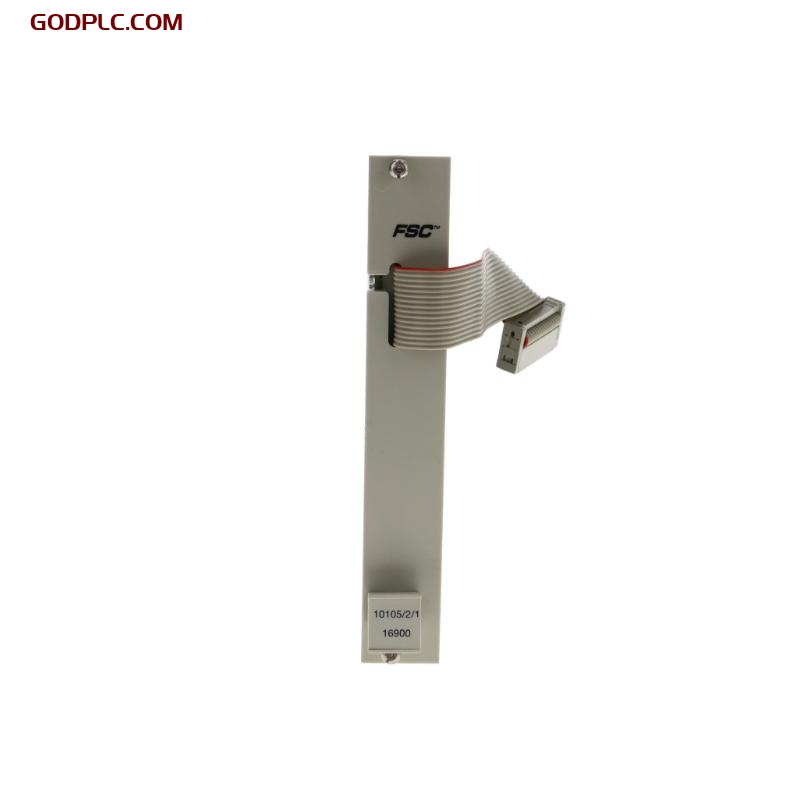

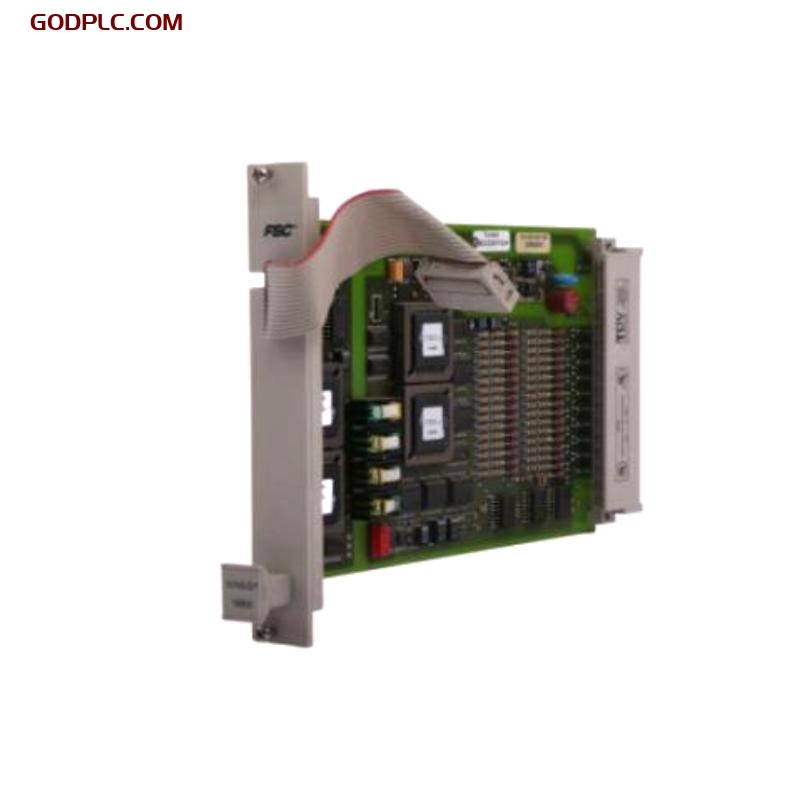

Honeywell 10105/2/1 Fail Safe Analog Input Module Fast Delivery
1. Product Overview
The Honeywell 10105/2/1 Fail Safe Analog Input Module is a high-density, fail-safe analog input module designed for use in critical systems requiring high levels of reliability and safety. This module offers sixteen analog input channels, each capable of processing signals in the 0-4.1V range. The module is particularly suitable for industrial automation and control systems that demand fault-tolerant performance, with a fail-safe safety class AK5 rating. It is equipped with an isolated analog common for all channels, ensuring safe and reliable signal processing in environments that require rigorous safety standards.
2. Key Features
- Fail-Safe Operation: Safety class AK5 ensures that the module can operate safely under fault conditions.
- High Input Density: 16 analog input channels, ideal for high-density signal processing.
- Isolation: Galvanically isolated common analog ground for each channel.
- Compatibility: Supports conversion of field signals to 0(4)-20mA or 0-4.1V with external modules like the 10105/A/1.
- Self-Test: The module includes built-in self-tests for verifying the accuracy, crosstalk, and correct signal conversion.
- External Voltage Readback: Features an external voltage readback input for further safety assurance.
- Robust Communication: Crosstalk performance exceeding 60 dB ensures minimal interference between channels.
3. Technical Specifications
Physical Dimensions
| Parameter | Value |
| Dimensions | 56 x 28 x 9 mm |
| Weight | 0.15kg |
General Information
| Specification | Value |
| Type Number | 10105/2/1 |
| Approvals | CE, TÜV, UL (Pending) |
| Safety Class | AK5 (Redundant mode: AK6) |
| Software Version | ≥ 500 |
| Space Requirements | 4 TE, 3 HE |
Power Requirements
| Specification | Value |
| 5V DC Power Consumption | 35 mA |
| 24V DC Power Consumption | 35 mA |
Input Channels
| Parameter | Value |
| Number of Input Channels | 16 |
| Input Voltage Range | 0-4.1 V |
| Input Resistance | > 1 MΩ |
| Crosstalk | > 60 dB |
| Maximum Input Signal | ±36 VDC |
| External Voltage Readback | 0-4.1 V |
4. Industry Applications
This module is commonly used in safety-critical environments where fail-safe and high-density analog signal processing is essential. Typical industries include:
- Industrial Automation: Processing multiple analog inputs from field devices.
- Oil and Gas: Monitoring and control systems for critical operations.
- Power Generation: Ensuring the reliability of safety systems in power plants.
- Process Control: Ensuring safe and accurate signal conversion for monitoring systems.
Honeywell 10105/2/1 is in stock. Contact us for quick quotes and competitive prices.
