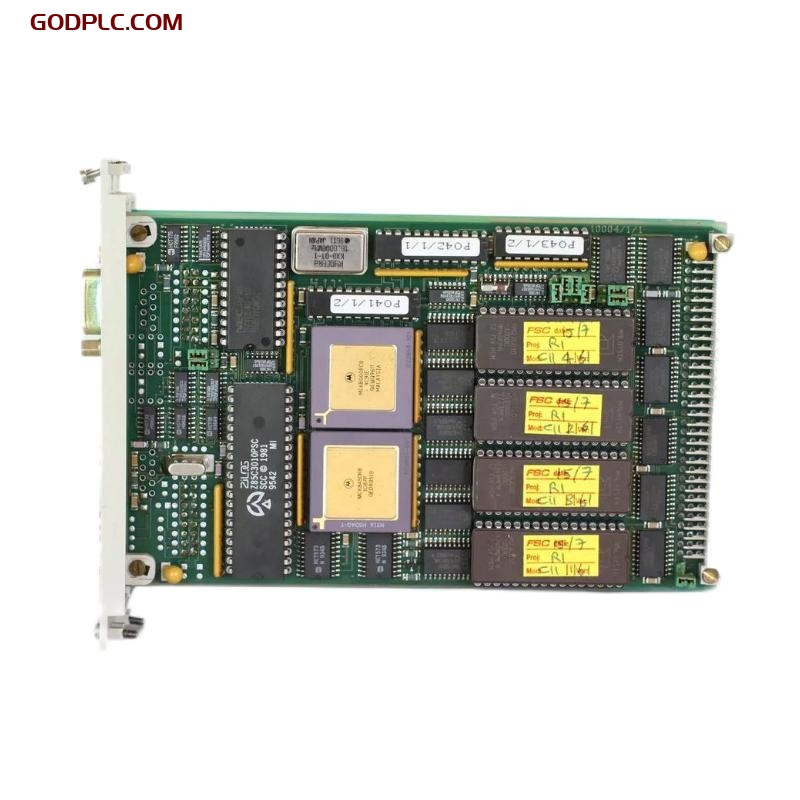

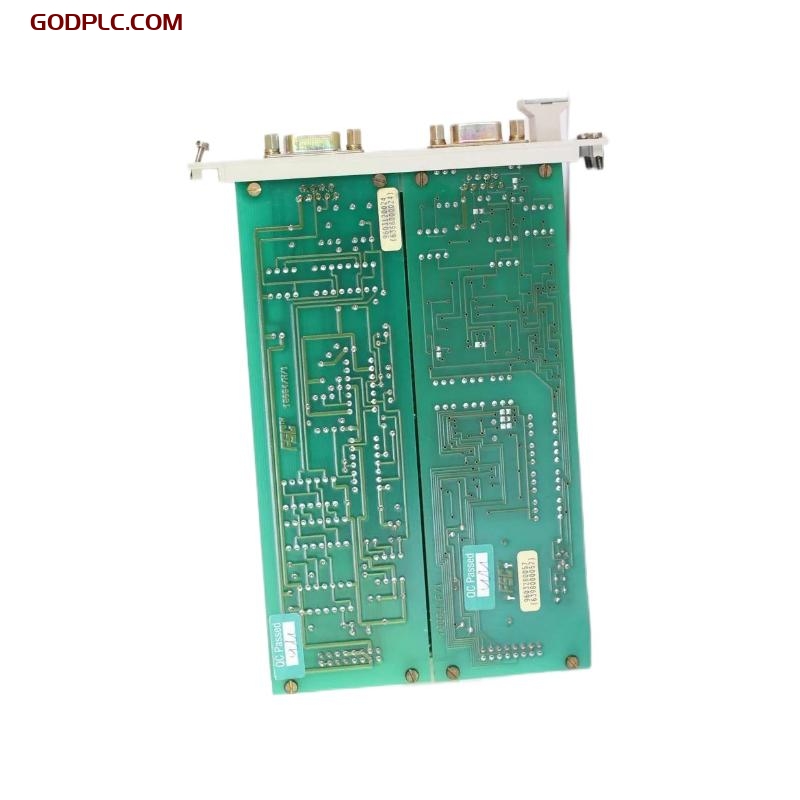

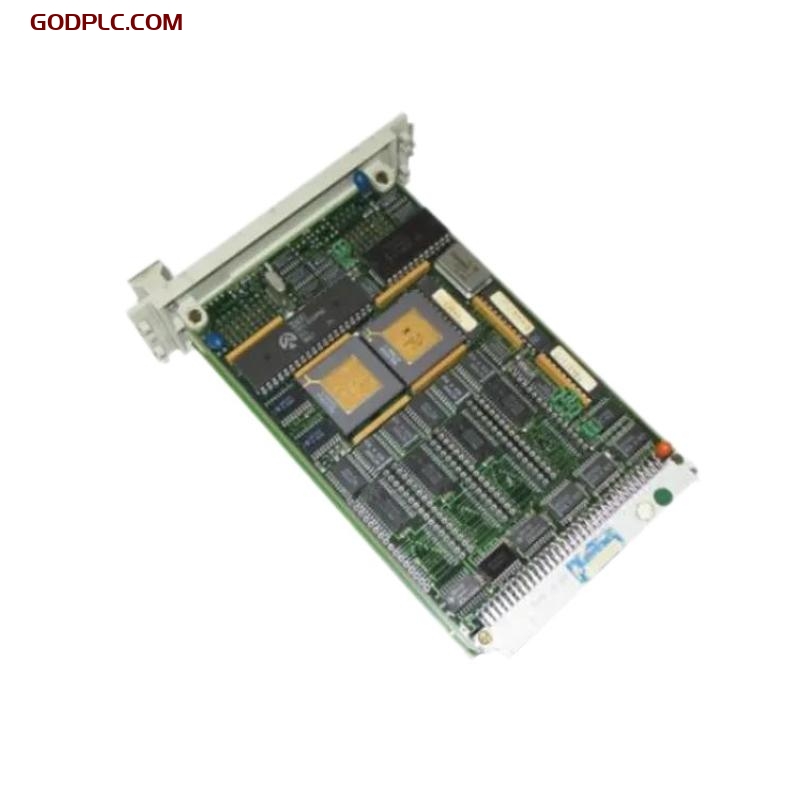

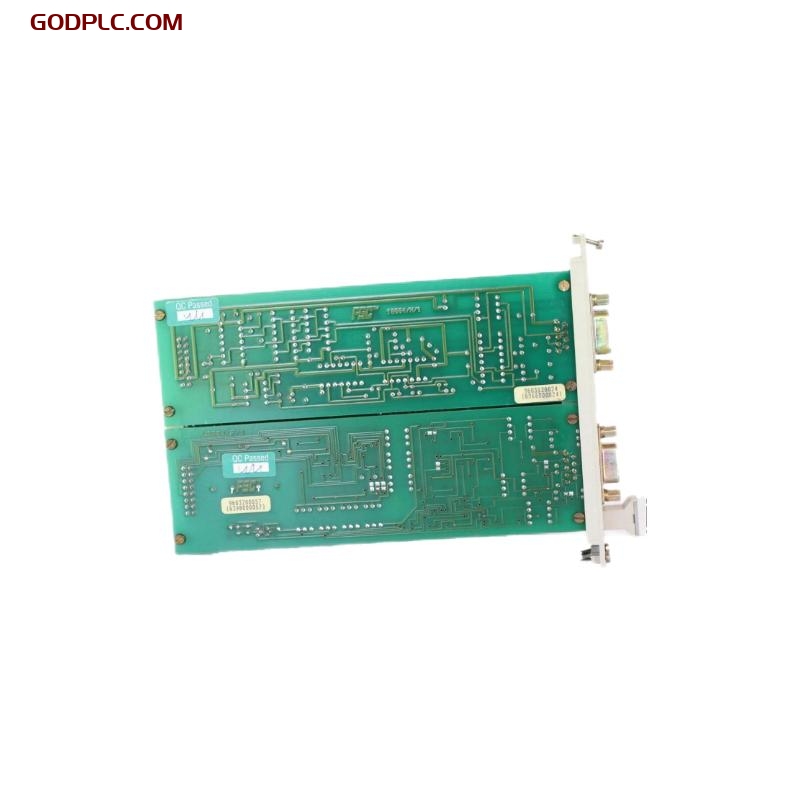

Honeywell 10004/H/F Communication Module Consulting Price
1. Product Overview
The Honeywell 10004/H/F Communication Module is a high-performance communication component designed for FSC (Fail Safe Control) systems. It is primarily used for communication between redundant Central Parts, communication between a master FSC system and slave systems, and external communication with integrated control systems, printers, and user stations. This module features an independent processor and memory to offload the central processing unit (CPU) and optimize external device support.
10004/H/F Model Breakdown:
- Top Interface: 10004/H/1
- Bottom Interface: 10004/F/1
2. Key Features
- Supported Communication Protocols:
- FSC-FSC
- FSC-DS
- ModBus RTU
- ModBus H&B
- RKE3964R
- Supported Communication Interfaces:
- RS422
- RS232C
- RS485
- Current Loop
- Glass Fiber
- Reliability Features:
- Equipped with battery backup circuits for RAM memory
- Supports Sequence of Event Recording (SER)
- Report generation capability
- Module Design:
- Operates on 5 V DC power supply
- Includes EPROM and RAM memory
- Certified with CE, TÜV, and UL
- Maximum Baud Rate:
- Up to 2 Mbaud (depending on interface type)
3. Technical Specifications
General Information
Parameter | Specification |
Model | 10004/H/F |
Certifications | CE, TÜV, UL |
Software Compatibility | ≥ 2.77 |
Dimensions | 20.32 × 33.34 × 160 mm |
Weight | 0.5 kg |
Max Baud Rate | 2 Mbaud |
Application | Internal Communication in FSC Redundant Configurations |
Power Requirements
Parameter | Specification |
Power Supply | 5 VDC |
Current Consumption | 25 mA |
Ripple Content | < 50 mV p-p |
Supported Interfaces
Interface Type | Description |
RS422 | Used for internal communication in redundant configurations |
RS232C | Used for external device connections such as printers |
RS485 | Supports communication between master and slave systems |
Current Loop | Suitable for long-distance signal transmission |
Glass Fiber | Ideal for environments with high electromagnetic interference |
Memory Capacity
Memory Type | Maximum Capacity |
EPROM | 512 Kbytes (4 sets of 64 Kbytes) |
RAM | 256 Kbytes |
4. Industry Applications
The Honeywell 10004/H/F Communication Module is widely used in industries that require high reliability and safety, including:
- Oil & Gas: Used for remote monitoring and pipeline control systems
- Power & Energy: Suitable for power plant automation and substation communication
- Chemical & Pharmaceutical: Supports complex process control systems
- Manufacturing: Integrated into factory automation and robotic control networks
- Transportation: Applied in railway signaling control and airport management systems
Honeywell 10004/H/F is in stock. Contact us for quick quotes and competitive prices.
