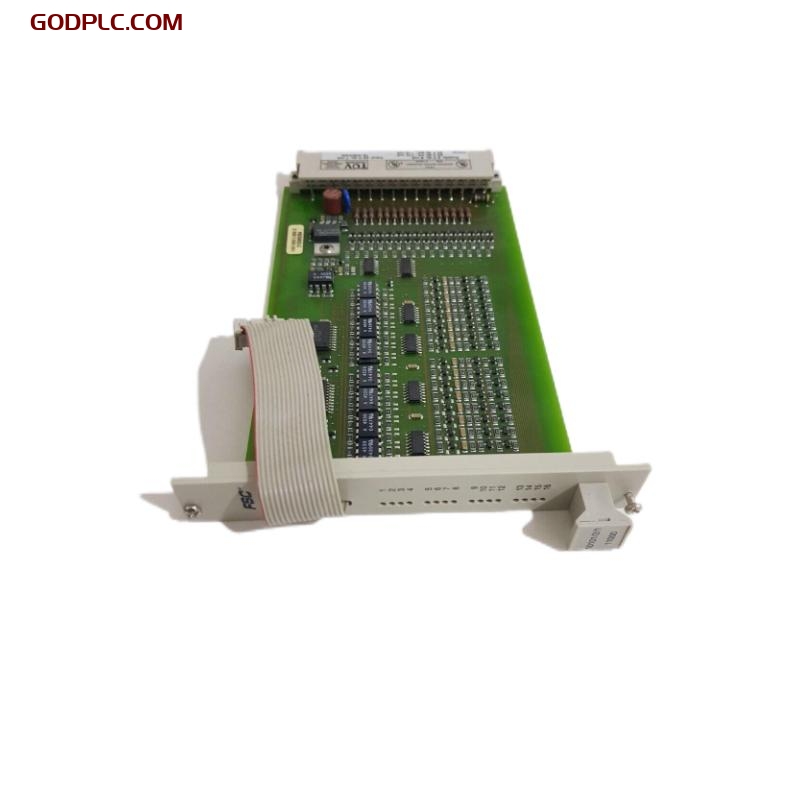

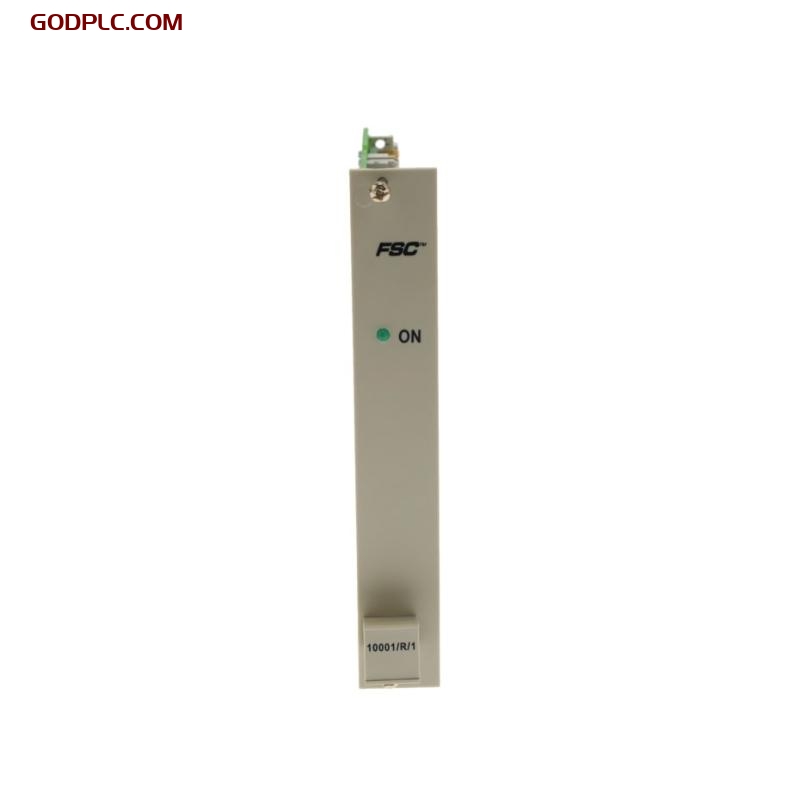

Honeywell 10001/R/1 Vertical Bus Driver 2 Days Delivery
1. Product Overview
The Honeywell 10001/R/1 Vertical Bus Driver (VBD) is a critical component that connects the Central Part (CP) of the FSC (Fail Safe Control) system to the I/O level. It is installed in the Central Part rack, with a maximum of 14 vertical bus drivers per CP. Each VBD can support up to 10 horizontal bus drivers (HBD).
The 10001/R/1 is an upgraded version of the 10001/1/1, providing enhanced reliability and maintainability.
The module consists of two parts:
- Electronic part (mainboard)
- Wiring part (10001/A/1)
The 96-pin connector is secured with bolts to the 19-inch rack, allowing the electronic part of the VBD to be replaced without disconnecting the vertical bus flat cable, improving maintenance efficiency.
2. Key Features
- High Reliability: Designed for critical control systems with high safety requirements.
- Modular Design: Separates the electronic and wiring parts for easy maintenance.
- Scalability: Supports up to 10 horizontal bus drivers (HBD), ideal for large-scale I/O systems.
- Compact Form Factor: Minimal rack space usage (4 TE, 3 HE).
- Enhanced Safety: Includes a relay that disconnects the VBD from the vertical bus in case of CP shutdown or failure detection.
3. Technical Specifications
(1) Physical Dimensions & Weight
| Parameter | Specification |
| Dimensions | 20.32 mm × 128.5 mm × 160 mm |
| Weight | 0.25 kg |
(2) General Information
| Parameter | Specification |
| Type Number | 10001/R/1 |
| Certifications | CE, TÜV, UL |
| Software Versions | All |
(3) Power Requirements
| Parameter | Specification |
| Supply Voltage | 5 VDC |
| Power Consumption | 275 mA |
| Ripple Content | < 50 mV p-p |
(4) Connectivity & Expansion
| Parameter | Specification |
| Max VBD Modules | 14 |
| Max HBD Modules | 10 |
| Connection Type | 96-pin DIN Connector |
| Bus Type | Vertical Bus (V-Bus) |
| Max Transmission Distance | 5m (16.4 ft) |
4. Industry Applications
The Honeywell 10001/R/1 Vertical Bus Driver is widely used in industrial automation control systems requiring high reliability and safety. Typical applications include:
- Oil & Gas: Process control systems for safe and efficient operations.
- Chemical Industry: Ensures stable I/O data transmission in chemical processes.
- Power Generation: Used in Distributed Control Systems (DCS) for power plants.
- Pharmaceutical Industry: Meets strict safety and reliability requirements.
- Water Treatment Plants: Facilitates remote monitoring and control for optimized operations.
Honeywell 10001/R/1 is in stock. Contact us for quick quotes and competitive prices.
