Honeywell 05701-A-0302 Single Channel Control Card Price Advantage
Product Overview

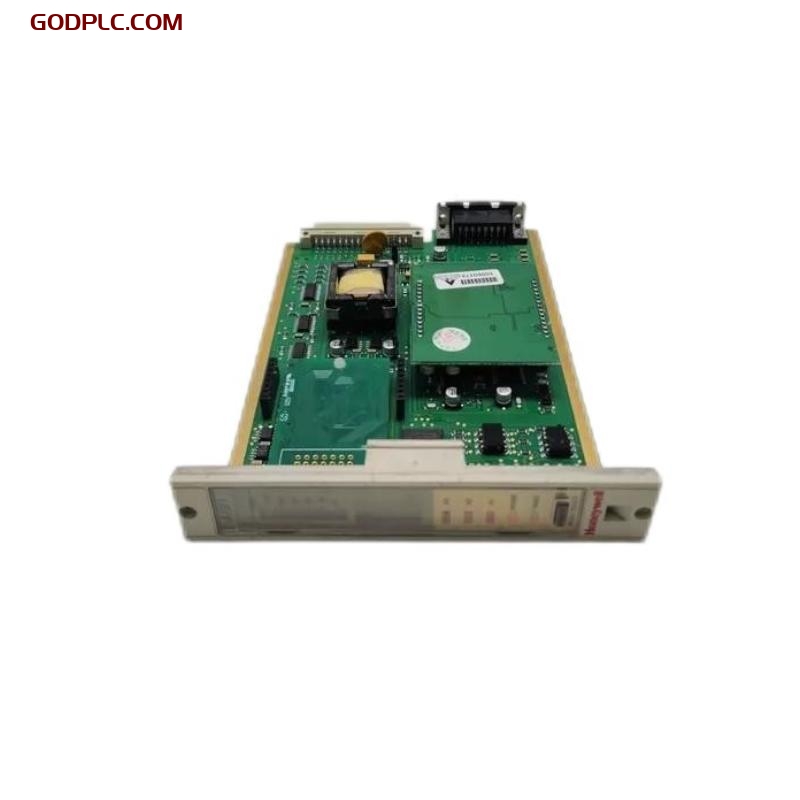

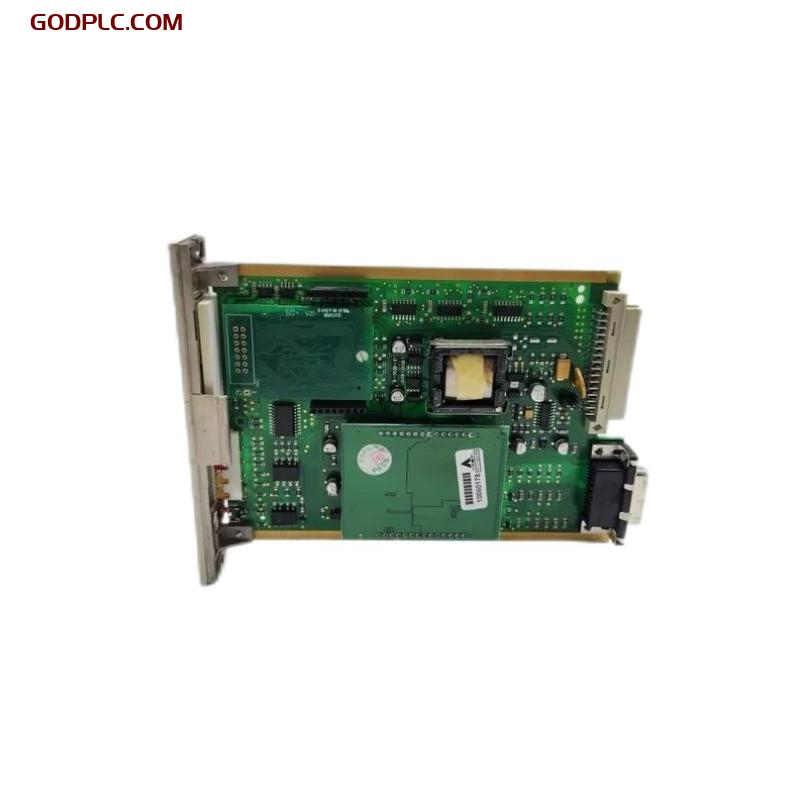

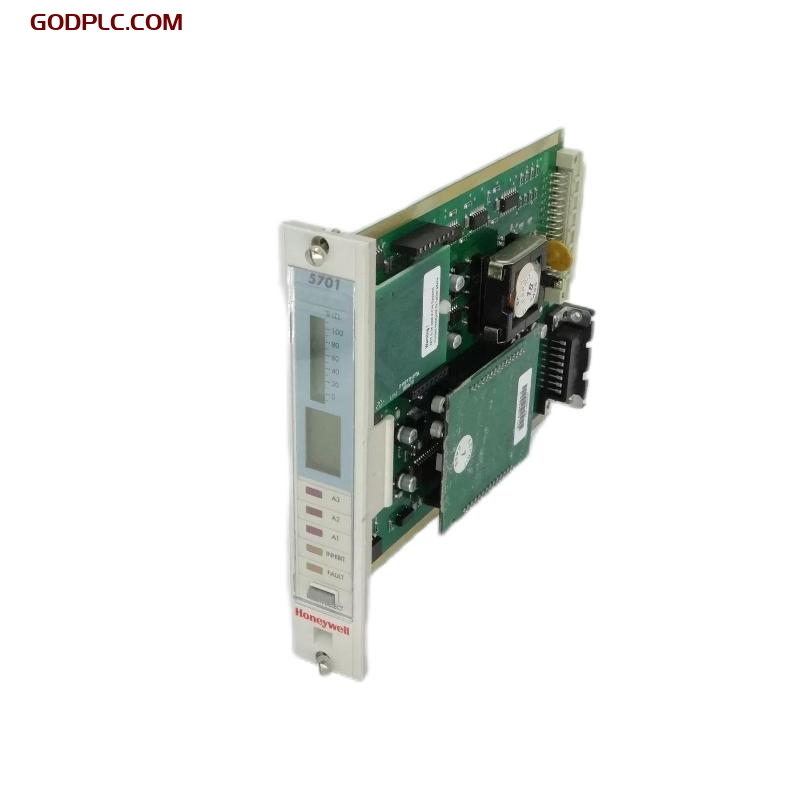

The Honeywell 05701-A-0302 Single Channel Control Card is part of the System 57 gas detection control system, specifically designed for monitoring catalytic gas detectors. It supplies power to the gas sensor, processes sensor signals, and triggers alarms when abnormal conditions are detected. With its compact design, it is ideal for industrial gas detection applications, widely used in petrochemical, natural gas processing, pharmaceuticals, manufacturing, and other hazardous environments.
Key Features
- High-Precision Detection: Supports single-channel catalytic gas detectors, accurately measuring %LEL (Lower Explosive Limit).
- Real-time Data Monitoring: LCD displays gas concentration, with LED indicators for alarm status.
- Multi-Level Alarms: Supports A1, A2, and A3 alarm levels with fault and inhibit indicators.
- Remote Control: Remote inputs enable alarm reset and inhibit operations.
- High Compatibility: Supports standard 4-20mA analog signal input and optional analog output module for remote data transmission.
- Modular Design: Plug-in sensor drive module for easy maintenance and replacement.
- Industrial-Grade Reliability: Compliant with EMC and electrical safety standards, suitable for harsh environments.
Technical Specifications
1. Physical Specifications
| Parameter | Specification |
| Dimensions | 112mm × 25mm × 170mm |
| Weight | 0.165g |
2. General Information
| Parameter | Specification |
| Device Type | Single Channel Control Card (Catalytic) |
| Compatible Sensors | 05701-A-0284 (Catalytic Sensor Drive Module) |

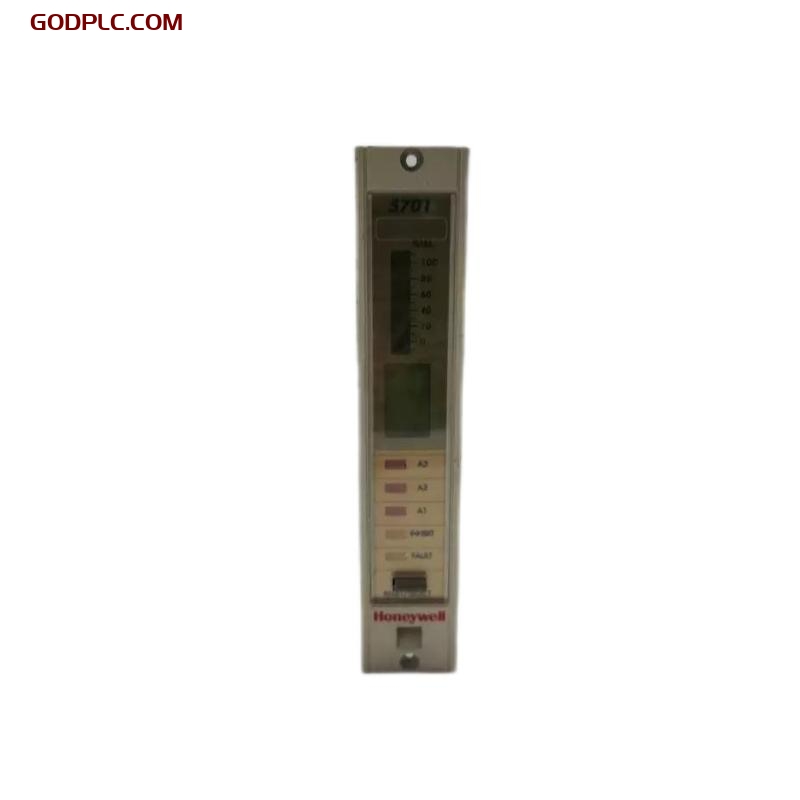

| Display | Four-part LCD display (Numeric, Message, Icons) |
| Buttons | Reset/Select button |
| LED Indicators | A1, A2, A3 Alarms, Fault, Inhibit |
3. Electrical Specifications
| Parameter | Specification |
| Power Supply Voltage | 18V ~ 32V DC |
| Power Consumption | 3.75W (Typical, including sensor) |
| Remote Input Voltage | 2V ~ 32V |
| Remote Input Current | Max 5mA |
4. Alarms & Outputs
| Parameter | Specification |
| Alarm Levels | A1, A2, A3 (Configurable) |
| Alarm Reset | Manual via button or remote input |
| Remote Functions | Remote Inhibit / Alarm Reset |
| Alarm Set Point Resolution | 1% FSD steps |
| Linearity | ±1% FSD |
| Repeatability | ±1% FSD |
| Optional Analog Output Module | 05701-A-0285 (0-20mA or 4-20mA Output) |
Industry Applications
- Petrochemical: Gas leak monitoring in refineries and chemical plants.
- Natural Gas Processing: Used in gas extraction, storage, and transportation.
- Pharmaceutical: Gas concentration monitoring in laboratories and manufacturing facilities.
- Manufacturing: Detecting flammable gas leaks in industrial production.
- Energy & Power: Gas safety monitoring in power plants and distribution facilities.
Honeywell 05701-A-0302 is in stock. Contact us for quick quotes and competitive prices.
