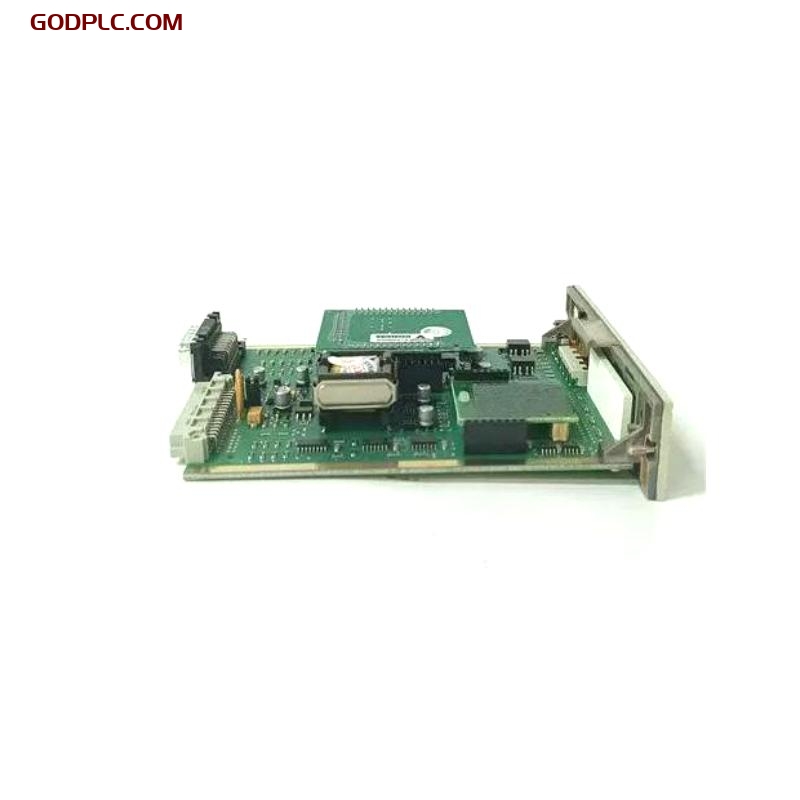

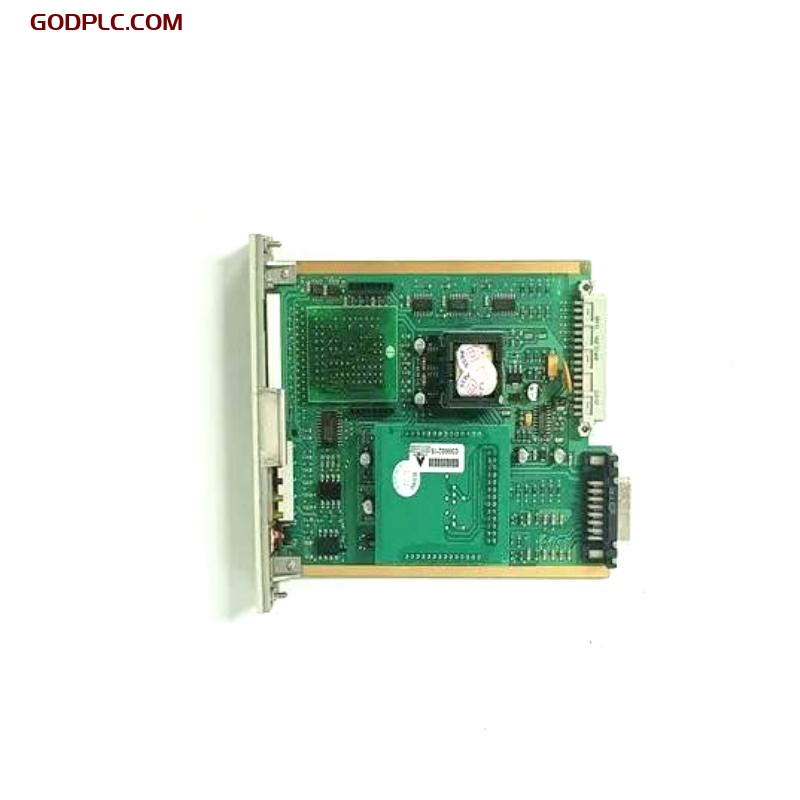

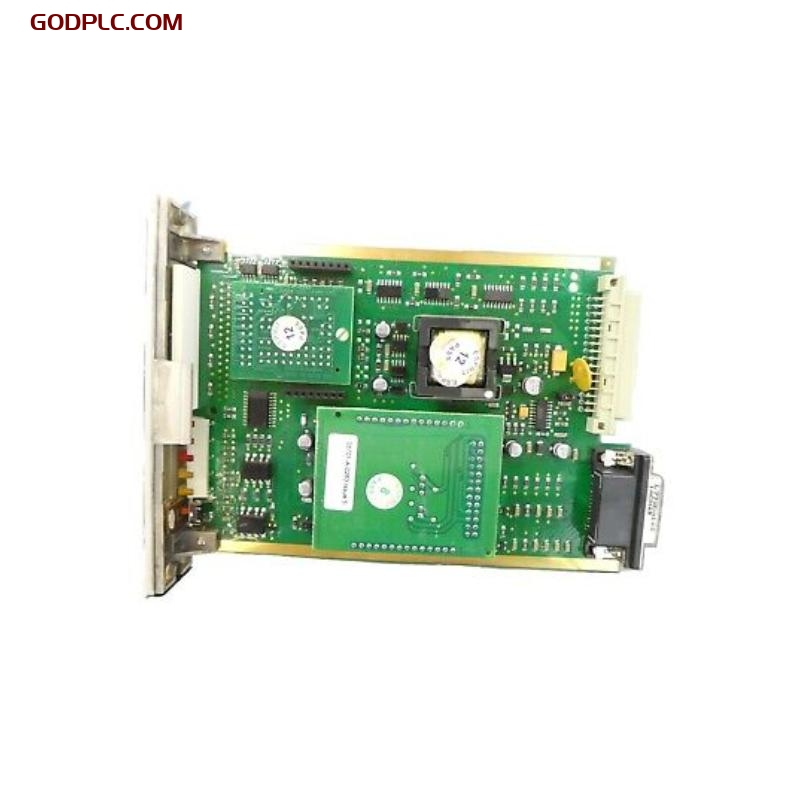

Honeywell 05701-A-0301 Single Channel Control Card Immediate Quote
Product Overview

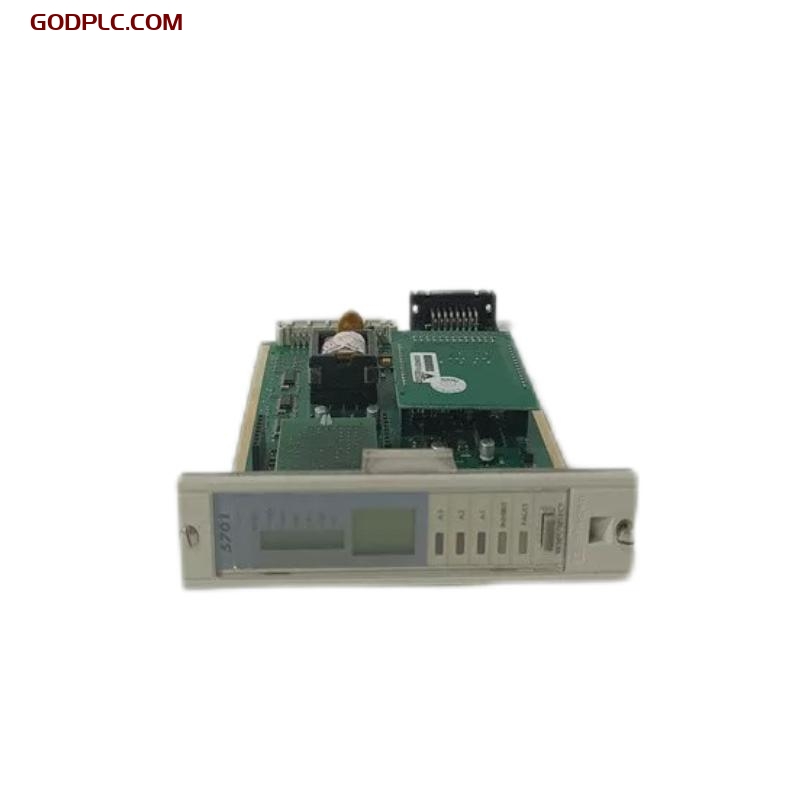

The Honeywell 05701-A-0301 Single Channel Control Card is a high-performance industrial control device designed for precise measurement and control of 4-20mA signals. It features a four-part liquid crystal display, including a 25-segment analog display, a four-character digital display, a four-character message display, and a power-on/card selection icon section, providing clear real-time measurement and status information.
The device supports A1, A2, and A3 level gas alarms with fault and inhibit indicators, enhancing reliability and safety. Users can perform alarm reset and card selection operations via the onboard push-button.
Powered by 18V to 32V DC, this device has low power consumption and an electronic drift of less than ±2% over six months, ensuring long-term stability and reliability. Its compact design and robust structure make it suitable for various industrial environments, including gas detection, process control, and safety monitoring applications.
Key Features
- Accurate Measurement: Supports 4-20mA signal input, suitable for industrial measurement and control.
- Multi-Function Display: Four-part LCD provides analog, digital, message, and icon display for enhanced visibility.
- Alarm System: Supports A1, A2, and A3 gas alarms, with fault and inhibit indicators.
- Alarm Setting Resolution: Adjustable in 1% FSD steps for precise alarm threshold settings.
- Low Power Consumption: 3.75W (typical) in catalytic sensor mode, 3.25W (typical) in 4-20mA mode.
- Reliable Stability: Electronic drift of less than ±2% over six months ensures consistent accuracy.
- Compact Design: Dimensions of 170 x 25 x 112 mm and weight of only 0.165kg, suitable for various industrial applications.
- DC Power Supply: Operates on 18V – 32V DC, ensuring adaptability to different power environments.
Technical Specifications
Physical Parameters
| Parameter | Specification |
| Dimensions (L x W x H) | 170 x 25 x 112 mm |
| Weight | 0.165 kg |
General Information
| Parameter | Specification |
| Manufacturer | Honeywell |
| Model Number | 05701-A-0301 |
| Product Type | Single Channel Control Card |
| Input Signal | 4-20mA |
Display & Indicators
| Parameter | Specification |
| LCD Display | Four-part display |
| Analog Display | 25 segments |
| Digital Display | Four characters |
| Message Display | Four characters |
| Icon Section | Power on/Card selection |
Alarms & Indicators
| Parameter | Specification |
| Alarm Levels | A1, A2, A3 gas alarms |
| Indicators | Fault, Inhibit |
Electrical Parameters
| Parameter | Specification |
| Power Supply Voltage | 18V – 32V DC |
| Power Consumption (Catalytic Mode) | 3.75W (typical) |
| Power Consumption (4-20mA Mode) | 3.25W (typical) |
| Electronic Drift | Less than ±2% / 6 months |
Industry Applications
- Gas Detection Systems: Monitors hazardous gases in industrial environments to ensure personnel and equipment safety.
- Process Control: Used in chemical, oil, and gas industries for precise measurement and control.
- Safety Monitoring: Ideal for real-time alarm and status display applications in high-safety environments such as factories and laboratories.
- Industrial Automation: Functions as part of a control system, offering precise signal acquisition and processing capabilities.
Honeywell 05701-A-0301 is in stock. Contact us for quick quotes and competitive prices.
