Honeywell 05701-A-0325 DC Input Card Order online
Product Overview

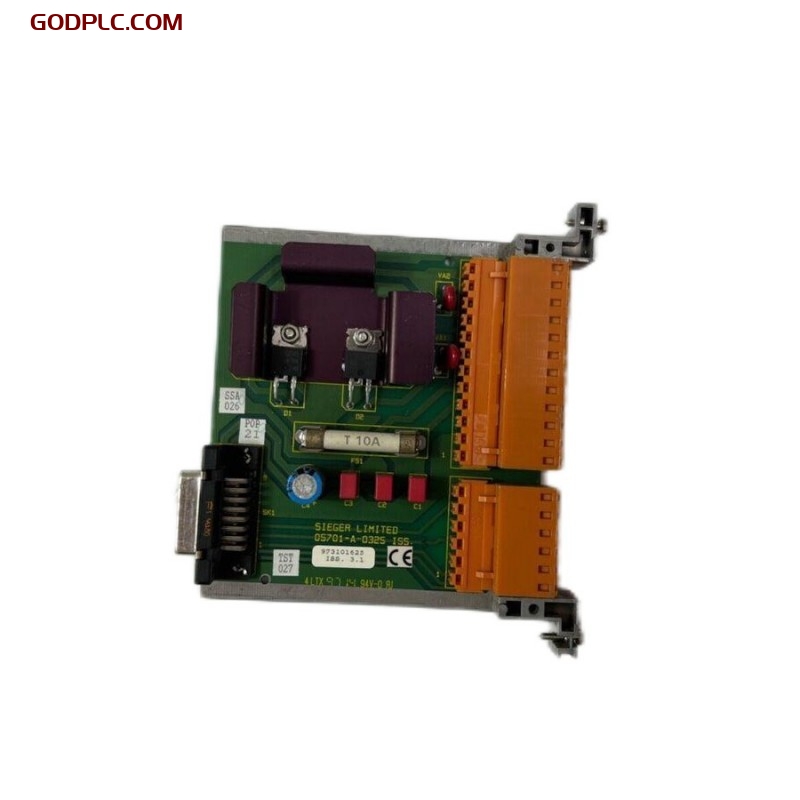

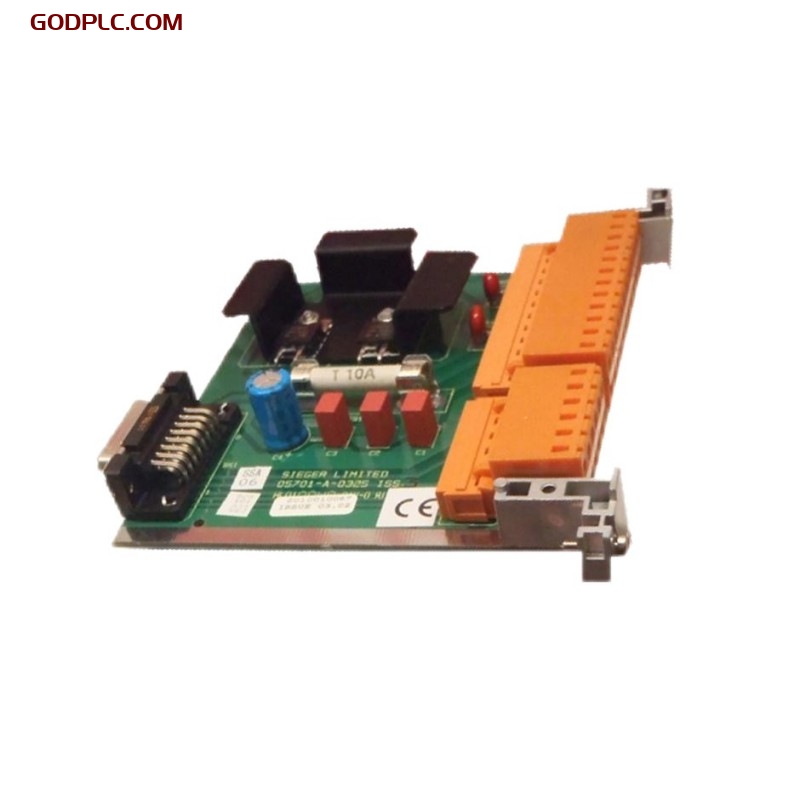

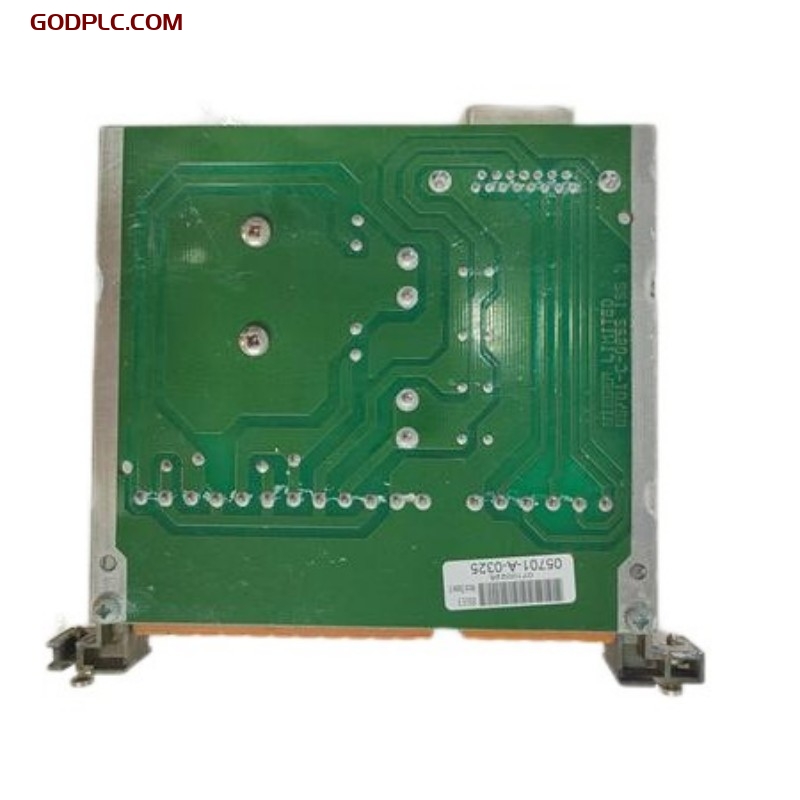

The Honeywell 05701-A-0325 DC Input Card is a crucial component of the 5701 Control System, designed to provide DC power input to the system rack. This module supports external 24V DC power supply and distributes power to system modules via the Engineering Card and rack backplane. It includes RFI filtering and reverse polarity protection to ensure stable operation. Additionally, the DC Input Card supports backup battery supply, providing continuous operation in case of main power failure.
Key Features
- Designed for Honeywell 5701 Control System
- Provides 24V DC power input
- Distributes power to the rack backplane via the Engineering Card
- Built-in fuse protection for power circuits
- RFI filtering enhances system interference resistance
- Reverse polarity protection prevents damage from incorrect connections
- Supports backup battery power for increased reliability

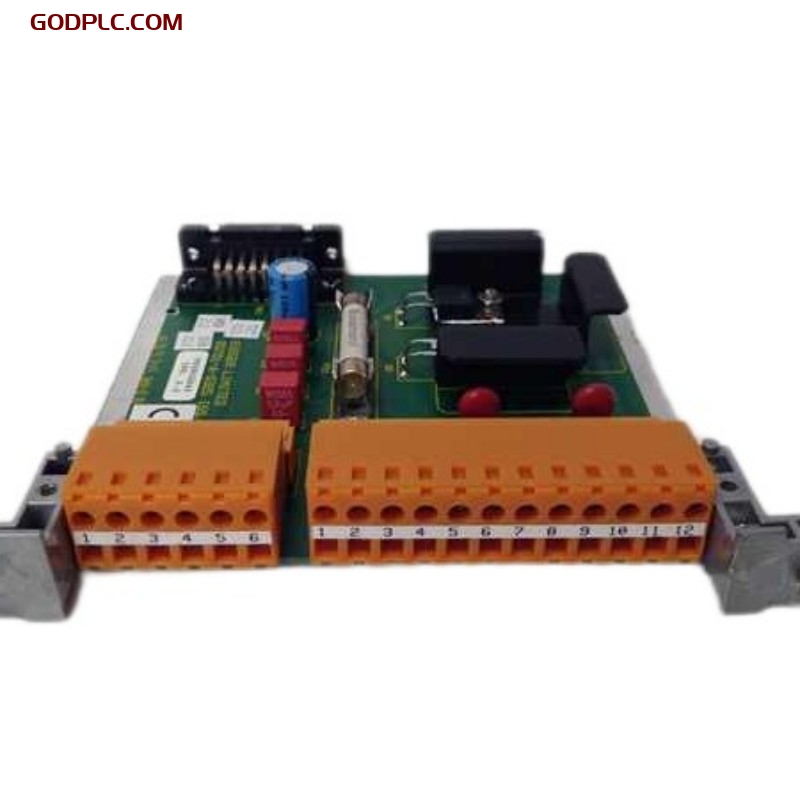

- Two-part terminal block (TB1) allows easy removal and maintenance
Technical Specifications
Physical Dimensions & Weight
| Parameter | Specification |
| Dimensions | 112mm × 25mm × 102mm |
| Weight | 0.129 kg |
General Information
| Parameter | Specification |
| Model | 05701-A-0325 |
| Compatible System | Honeywell 5701 Control System |
| Installation | Rack-mounted, compatible with standard 3U enclosures |
Electrical Characteristics
| Parameter | Specification |
| DC Input Voltage | 24V DC (Nominal) |
| Backup Battery Input | Supported |
| Fuse Protection | Built-in |
| RFI Filtering | Supported |
| Reverse Polarity Protection | Supported |
Interfaces & Connections
| Parameter | Specification |
| Power Input Terminal | TB1 Terminal Block |
| Power Output Connection | Distributed via rack backplane |
Industry Applications
The Honeywell 05701-A-0325 DC Input Card is widely used in industrial control systems, particularly in environments requiring high-reliability gas detection and alarm control, including:
- Oil & Gas Industry
- Chemical & Refinery Plants
- Coal Mine Safety Monitoring
- Power Plants & Utilities
- Manufacturing & Process Control
Honeywell 05701-A-0325 is in stock. Contact us for quick quotes and competitive prices.
