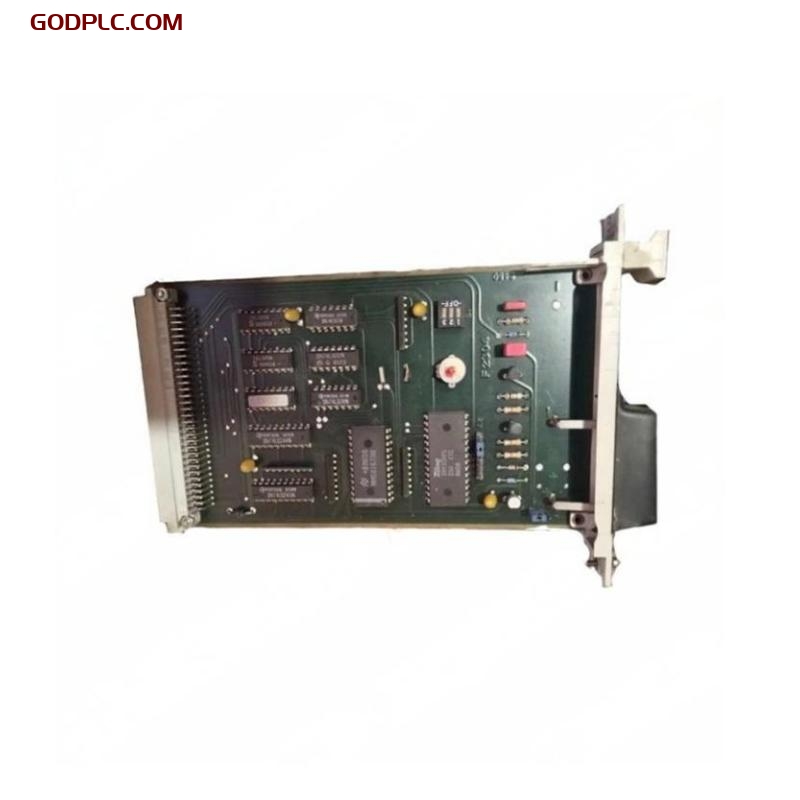

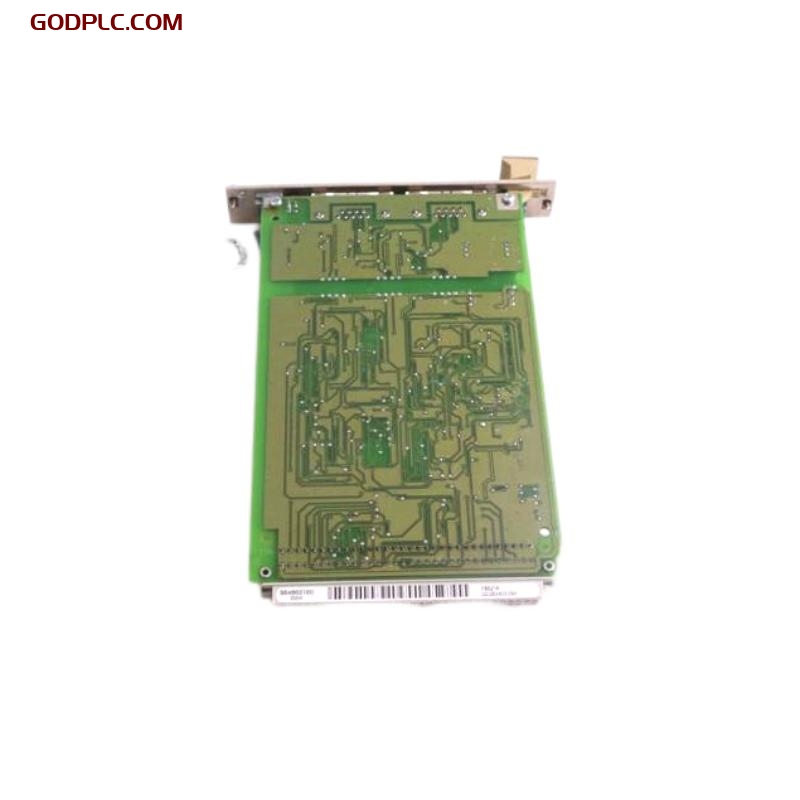

HIMA F2304 8-Channel Output Module: Product Description and Technical Specifications

The HIMA F2304 is an 8-channel output module designed for high-integrity safety applications. It is part of HIMA’s modular safety system and provides critical safety functions in industrial environments where reliability and real-time performance are paramount. The F2304 is specifically engineered to deliver precise and safe digital output signals to control systems, providing a robust solution for safety-critical applications, such as emergency shutdown (ESD), fire and gas detection, and interlock systems.

This module is widely used in sectors such as oil and gas, chemical, power generation, and industrial automation. It is designed to meet the highest safety standards and provide accurate, redundant, and fail-safe output functionality to ensure that safety operations are executed without failure.

Key Features

• SIL 3 Compliance: The F2304 is compliant with SIL 3 as per IEC 61508 and IEC 61511 standards. It ensures the highest level of safety and operational integrity for critical control and monitoring systems.

• 8-Channel Output: The module provides 8 independent digital output channels, offering flexibility in managing multiple outputs in a safety system. Each channel can be individually configured, making it suitable for a wide range of applications.

• Redundant Architecture: The F2304 module uses redundant internal circuitry to ensure that the system remains operational even in the event of a component failure. This redundant design is essential for safety systems, where downtime or failure could result in severe consequences.

• Fast Response Time: The F2304 delivers fast response times, ensuring that control signals are executed with minimal delay. This is critical for real-time safety operations, such as triggering alarms or shutting down systems in case of a hazard.

• Diagnostic Capabilities: The module features advanced diagnostics, continuously monitoring the health and performance of the system. It can detect faults early, triggering maintenance alerts to avoid operational disruptions or safety risks.

• High Load Capacity: The F2304 is designed to drive high load currents on its output channels, which is important in controlling various industrial devices like solenoids, valves, or actuators in safety-critical systems.

• Flexible Input/Output Configuration: It supports flexible I/O configurations, allowing easy integration into a wide range of industrial applications. The module can be used in various safety systems to control emergency shutdowns, fire and gas detection, or even as part of a larger interlock system.

• Rugged Design: Built for harsh industrial environments, the F2304 is designed to withstand extreme temperatures, vibrations, and electrical interference, ensuring reliable operation in challenging settings.

• Certified for Safety: The F2304 has been rigorously tested and certified for use in safety-critical systems. It meets global safety standards, ensuring that it can be used in a variety of industries to ensure safe and continuous operations.

Applications

The HIMA F2304 module is used in various safety-critical industries, including:

• Oil and Gas: In the oil and gas industry, the F2304 is essential for managing emergency shutdown systems, process safety, and equipment control systems that must operate continuously without failure.

• Chemical and Petrochemical Plants: The module is used for controlling critical safety processes, such as shutting down reactors or controlling hazardous material releases, ensuring safe operations in chemical processing environments.

• Power Generation: In power plants, the F2304 plays a role in controlling safety-critical equipment like turbines, boilers, and generators, ensuring that they are operated safely and efficiently.

• Industrial Automation: The module is integral to various industrial automation systems where controlling outputs, alarms, or interlocks is crucial for safe and efficient operations.

Technical Specifications
