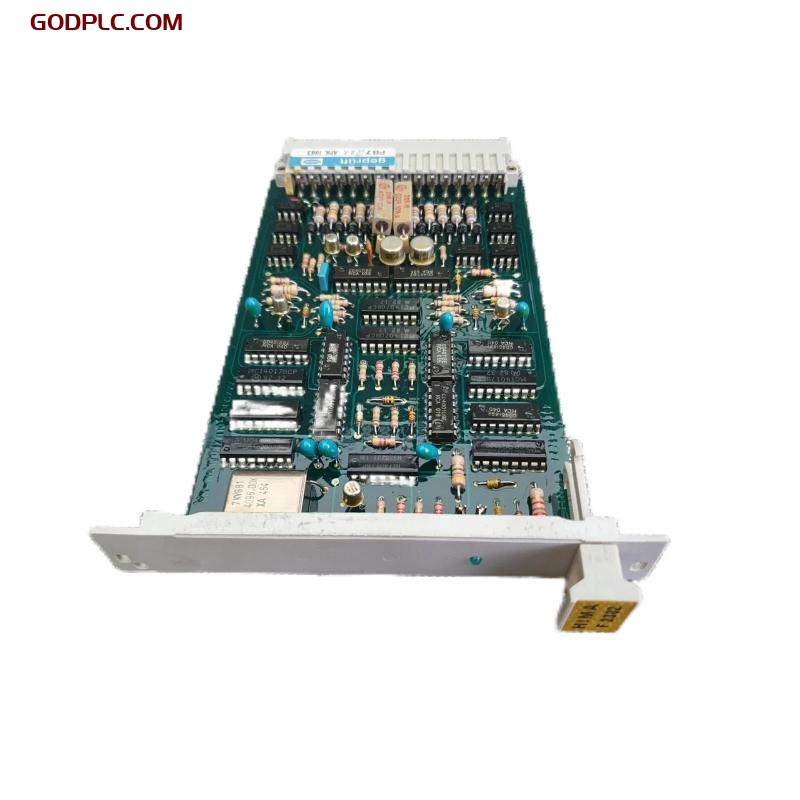

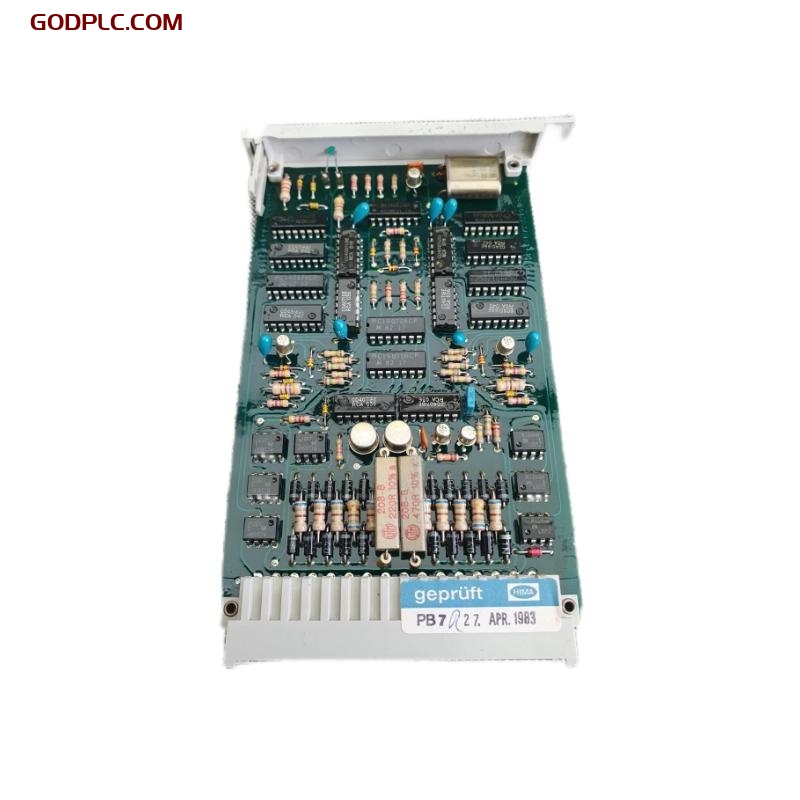

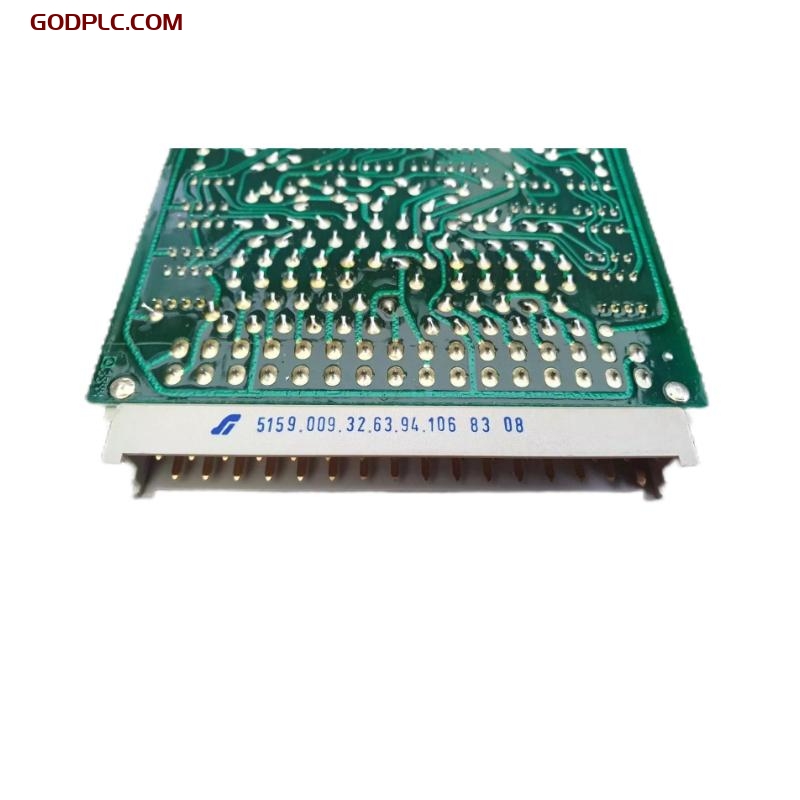

HIMA F2302 Safety System Module Card: Product Description and Technical Specifications
The HIMA F2302 is a Safety System Module Card designed for high-integrity safety applications. It is part of HIMA’s safety control system and provides essential functions for ensuring the safety and operational efficiency of critical industrial processes. The F2302 module integrates seamlessly into HIMA’s SIL-rated safety systems and is used in various industries, including chemical, oil, gas, and power, where reliability and safety are crucial.
This module offers a wide range of features designed to support SIL 3 safety standards. The F2302 allows for secure communication, logic processing, and the safe handling of emergency stop signals and other critical safety functions. The integration of this module ensures that the safety system can detect faults, trigger alarms, and execute shutdown procedures when necessary to maintain the integrity of the overall system.
Key Features
-
SIL 3 Compliance: The F2302 module is compliant with SIL 3 as per the IEC 61508 and IEC 61511 standards. It is suitable for use in safety-critical systems that require high integrity and fail-safe operations.
-
Redundant Architecture: The F2302 features a redundant design, allowing it to continue functioning in the event of a component failure. This redundancy ensures that the system maintains safety without interruption, even in the event of partial hardware failure.
-
Modular Design: The F2302 is part of a modular safety system, allowing for easy integration with other HIMA safety modules. This flexibility supports scalability and future upgrades, making it an ideal choice for evolving safety systems.
-
Advanced Diagnostics: The module is equipped with advanced diagnostic capabilities, continuously monitoring the system’s health and performance. The diagnostics detect any issues early and alert operators to prevent further damage or potential safety risks.
-
High-Speed Processing: The F2302 provides high-speed logic processing, which is essential for real-time decision-making in critical safety systems. It allows for quick response times, which is vital for controlling processes in hazardous environments.
-
Flexible Input/Output Options: The module supports a variety of digital input and output configurations, making it adaptable to a wide range of industrial safety applications. It can be used for emergency shutdown (ESD), fire and gas detection, and interlock systems.
-
Environmentally Robust: Built to withstand harsh environmental conditions, the F2302 operates effectively in environments with extreme temperatures, vibrations, and electrical noise, making it suitable for challenging industrial settings.
-
Real-Time Performance: The module provides real-time performance for high-availability applications, ensuring the safety system can respond to changes in operational conditions without delays.
-
Certified for Safety: The F2302 has been tested and certified for use in safety-related applications, ensuring that it meets stringent safety standards to help avoid accidents and system failures.
Applications
The HIMA F2302 module is used in safety-critical industries, including:
-
Chemical and Petrochemical Plants: The F2302 is employed to manage safety interlocks, shutdown sequences, and other critical safety functions in chemical processing plants, helping prevent accidents and ensure operational safety.
-
Oil and Gas: In oil and gas installations, the F2302 plays a vital role in emergency shutdown systems, helping protect personnel and equipment by ensuring safe operations in hazardous environments.
-
Power Generation: The module is used in power plants to monitor safety-critical systems, such as boiler control, turbine protection, and emergency shutdown processes, ensuring uninterrupted safe operation.
-
Industrial Automation: The F2302 is integral to industrial automation systems, where it controls critical safety processes, including alarms, interlocks, and emergency shutdowns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HIMA F2302 |
| Type | Safety System Module Card |
| Safety Integrity Level | SIL 3 (Safety Integrity Level) |
| Logic Function | Digital Logic Processing |
| Redundancy | Dual-channel redundancy for fail-safe operation |
| Input Type | Digital Inputs (24 V DC) |
| Output Type | Digital Outputs (24 V DC) |
| Processing Speed | High-speed processing for real-time performance |
| Diagnostic Features | Advanced diagnostics and fault detection |
| Environmental Conditions | -40°C to +70°C Operating Temperature Range |
| Dimensions (L x W) | 150 mm x 120 mm |
| Weight | 0.5 kg |
Related Products and Models
| Model | Type |
|---|---|
| HIMA F2303 | Redundant Logic Processor Module |
| HIMA F2304 | Digital Input Safety Module |
| HIMA F2305 | Digital Output Signal Processor |
| HIMA F2306 | High-Speed Emergency Shutdown Module |
| HIMA F2307 | Modular Safety Control System |
| HIMA F2308 | Safety Interlock Controller |
| HIMA F2309 | Real-Time Logic Processor |
| HIMA F2310 | Process Monitoring and Control Module |
| HIMA F2311 | Safety Alarm Management System |
| HIMA F2312 | Safety Control Module with Diagnostics |
HIMA F2302 is in stock. Contact us for quick quotes and competitive prices.
