HIMA F2301 98 1230102 NOT gate with new module card One-year warranty

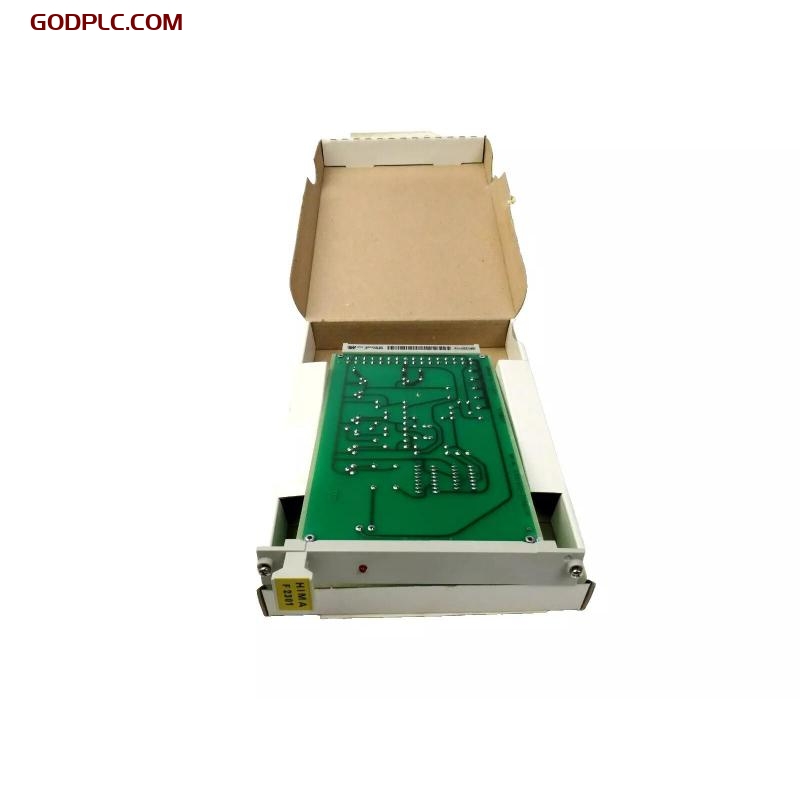

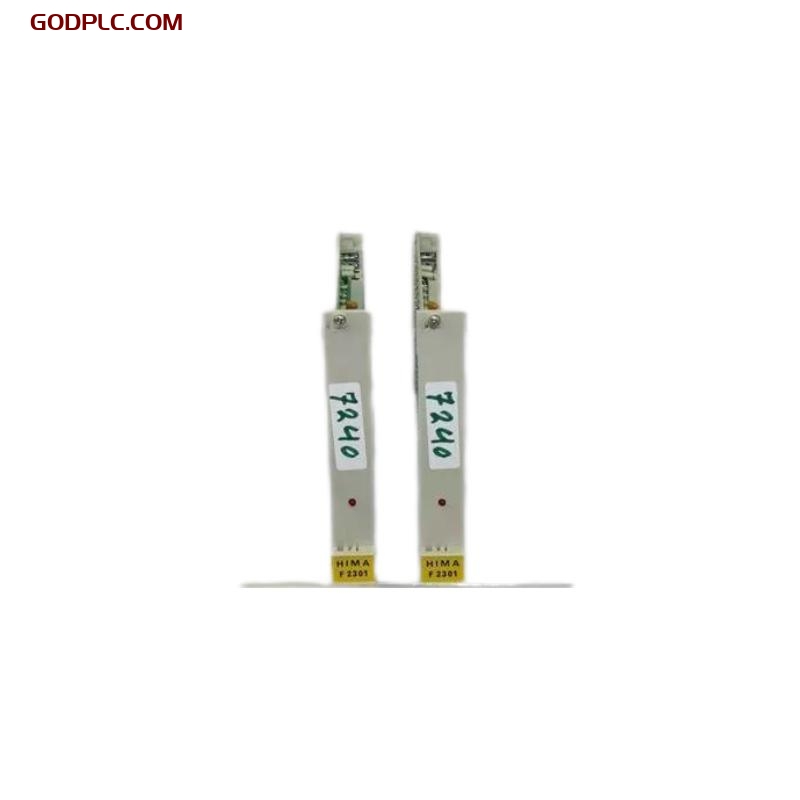

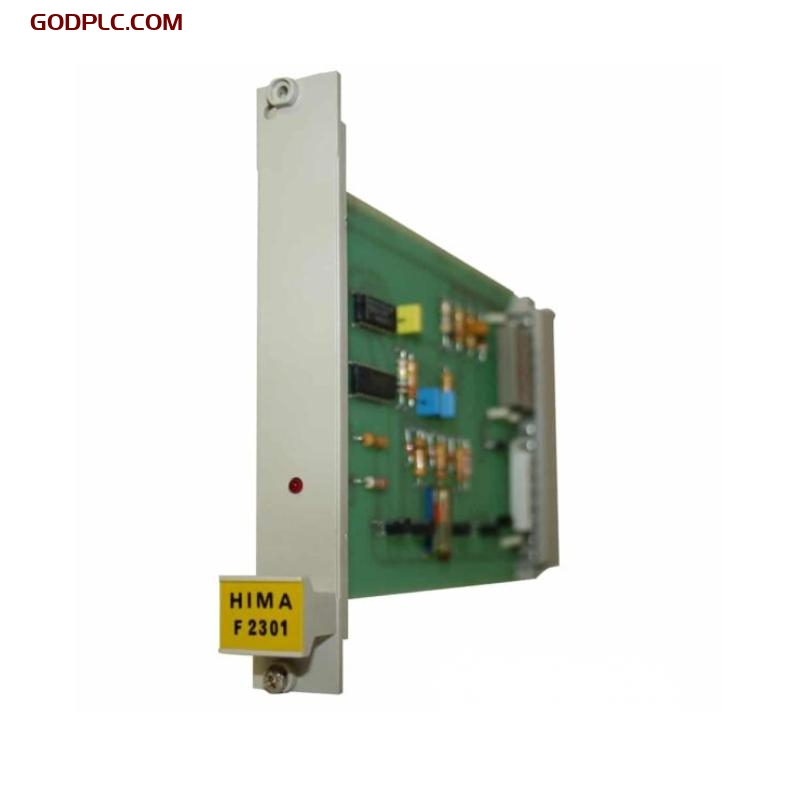

HIMA F2301 Non-Inverting AND Gate Module Card: Product Description and Technical Specifications
The HIMA F2301 is a Non-Inverting AND Gate Module Card designed for use in safety-critical industrial control systems. It is a specialized module within HIMA’s range of safety and control solutions. This module is intended to perform logical AND operations in safety applications, providing reliable and robust digital signal processing for automation systems. Its application is typically found in industries requiring high-integrity control systems, such as the chemical, oil, gas, and power sectors.
The F2301 module features high-speed processing and advanced diagnostics, ensuring that the safety system functions seamlessly even under harsh industrial conditions. With its SIL 3 compliance, the F2301 can be integrated into safety systems that need to meet stringent safety standards.
Key Features
-
SIL 3 Compliance: The F2301 is designed to meet SIL 3 safety standards as per IEC 61508 and IEC 61511. This allows it to be used in applications where high safety integrity is critical.
-
Non-Inverting AND Logic: The module implements a non-inverting AND logic function, providing the logic operations required for safe signal processing in control systems. This logic function ensures the correct response in safety-critical applications.
-
Fast Processing Speed: The F2301 features high-speed processing capabilities, which are essential for real-time operations in control systems. It ensures fast signal decision-making to guarantee that processes operate within safe parameters.
-
Redundancy Support: The module offers redundancy features that ensure continued operation in case of a component failure, which is essential for maintaining safety and preventing system downtime.
-
Advanced Diagnostics: The F2301 comes with built-in diagnostics that continuously monitor system performance. This helps to detect issues early and ensures that any potential faults are flagged for corrective action before they cause safety risks.
-
Flexible Integration: The F2301 can be easily integrated with other modules within the HIMA safety system, allowing for flexible and scalable solutions that can meet the needs of diverse applications.
-
High Reliability: Designed for use in mission-critical systems, the F2301 ensures continuous operation even in harsh environmental conditions. Its robust construction makes it suitable for industrial settings with extreme temperatures, vibrations, and electrical noise.
-
Modular Design: The module features a modular design that allows for easy expansion and future upgrades, making it ideal for systems that may evolve or require additional safety features.
Applications
The HIMA F2301 module is used in industries where safety and control are of paramount importance:
-
Chemical and Petrochemical Industries: The F2301 is employed in safety systems for chemical plants, where reliable and secure control is necessary to avoid accidents and hazardous situations. It ensures that safety signals are processed correctly to prevent failures in critical systems.
-
Oil and Gas: In the oil and gas sector, the module plays a key role in maintaining the safety of drilling platforms, refineries, and offshore installations. Its reliable signal processing ensures operational safety in environments where failure can result in catastrophic events.
-
Power Plants: The F2301 is also used in power plants for emergency shutdown (ESD) systems and critical safety processes. It helps maintain operational safety by performing necessary logic functions in safety circuits.
-
Industrial Automation: In industrial automation systems, the module ensures that signals related to safety processes, such as emergency shutdowns, system interlocks, and alarms, are handled efficiently and correctly.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HIMA F2301 |
| Type | Non-Inverting AND Gate Module Card |
| Safety Integrity Level | SIL 3 (Safety Integrity Level) |
| Logic Function | Non-Inverting AND Logic |
| Processing Speed | High-speed signal processing |
| Redundancy | Built-in redundancy for fail-safe operation |
| Input Type | Digital Inputs (24 V DC) |
| Output Type | Digital Outputs (24 V DC) |
| Environmental Conditions | -40°C to +70°C Operating Temperature Range |
| Diagnostics | Advanced diagnostics and fault detection |
| Dimensions (L x W) | 150 mm x 120 mm |
| Weight | 0.5 kg |
Related Products and Models
| Model | Type |
|---|---|
| HIMA F2302 | Digital Signal Processing Module |
| HIMA F2303 | Redundant AND Gate Module |
| HIMA F2304 | Safety Logic Processor Module |
| HIMA F2305 | Modular Safety Logic Controller |
| HIMA F2306 | High-speed Digital Input Module |
| HIMA F2307 | Digital Output Signal Processor |
| HIMA F2308 | Safety Interlock Controller |
| HIMA F2309 | Real-Time Digital Signal Processor |
| HIMA F2310 | Emergency Shutdown Logic Module |
| HIMA F2311 | Digital Safety Logic Module |
HIMA F2301 98 1230102 is in stock. Contact us for quick quotes and competitive prices.
