HIMA F2103a Timer module Hassle-Free After-Sales

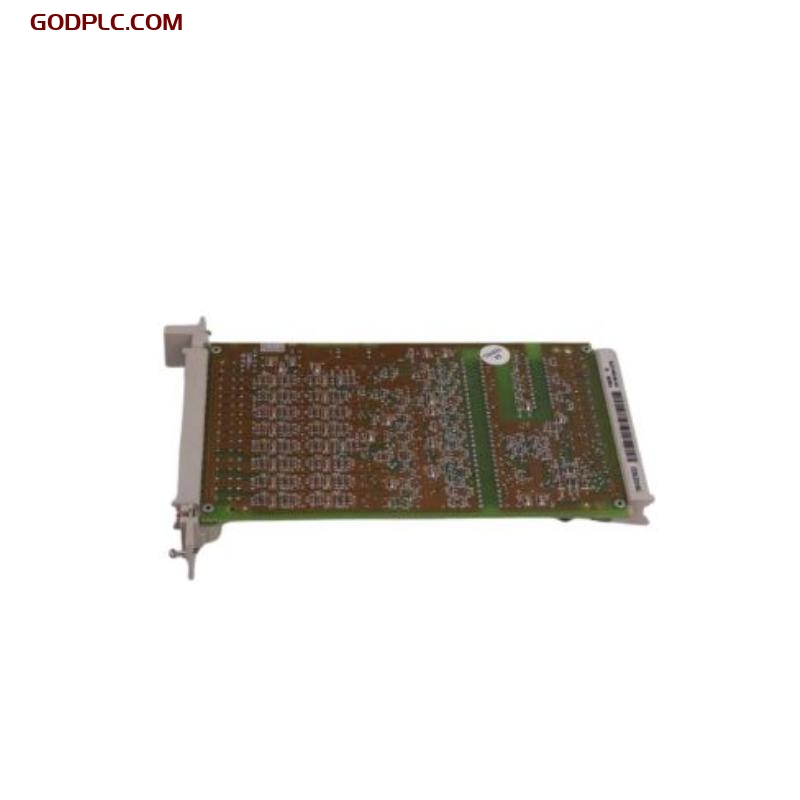

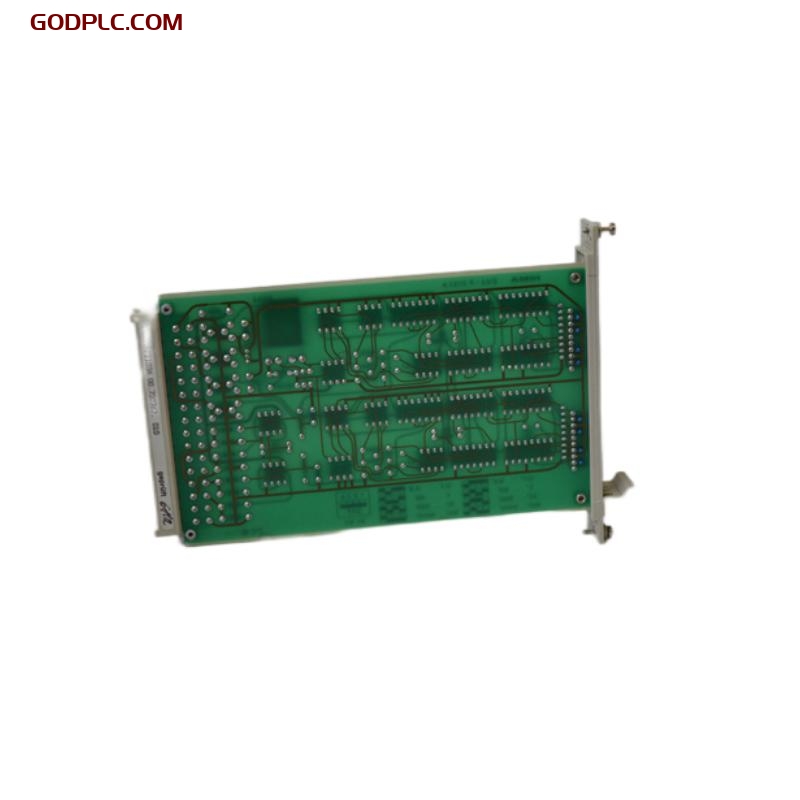

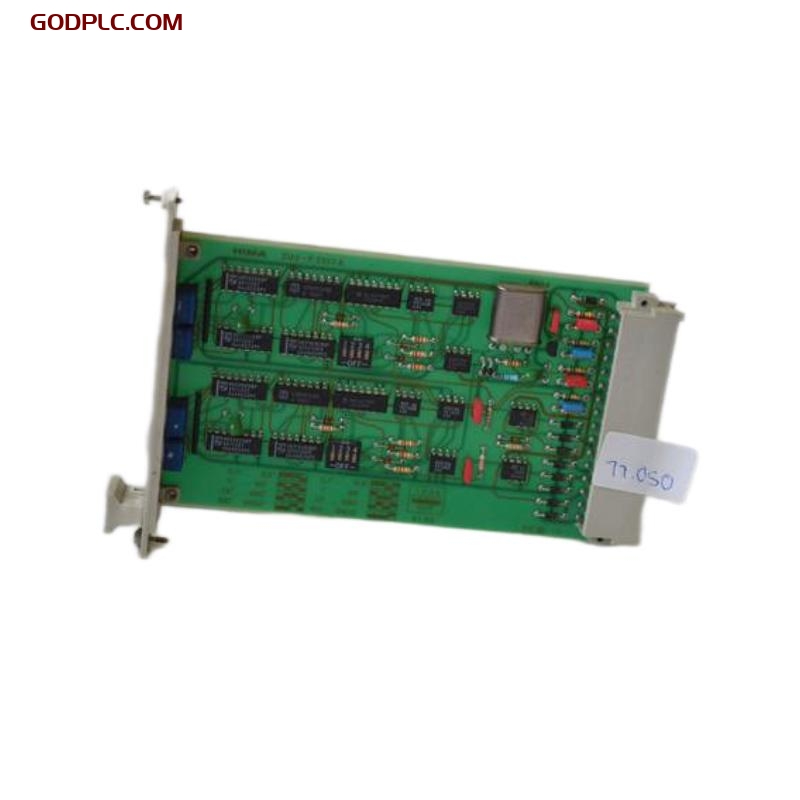

HIMA F2103a Timer Module: Product Overview and Specifications
The HIMA F2103a Timer Module is an advanced and highly reliable timer module, designed to be a crucial part of safety-critical industrial control systems. As part of the HIMA F2 series, the F2103a timer module is engineered to offer precise and flexible time delay management, which is vital for the effective functioning of process control systems, safety applications, and automation processes.
In industries that require accurate time-based operations—such as emergency shutdown systems, interlock systems, and automated machinery—this module plays a key role in ensuring the smooth and safe operation of these systems. Its key features, including high accuracy, robustness, and easy integration into existing control systems, make the F2103a an ideal solution for various sectors like chemical, oil & gas, power generation, and process industries.
Key Features:
- High-Precision Time Delay: The F2103a module provides highly accurate time delay functionality, ensuring that time-sensitive operations are executed with precision. The delay times can be set to a wide range, offering the flexibility to suit various industrial applications.
- Multiple Time Functions: The module supports a variety of time delay functions, including ON-delay, OFF-delay, and pulse timing. This versatility allows it to be used in a broad range of industrial processes and safety systems.
- Safety-Critical Application: The F2103a is designed for use in environments where safety is paramount. It meets strict safety standards, ensuring that it can be trusted in mission-critical systems, such as emergency shutdown systems, fire safety systems, and other high-risk applications.
- Modular and Flexible Design: The module’s compact size and modular design allow for easy integration into both small and large-scale control systems, making it an ideal solution for various industries.
- Real-Time Processing: The timer module is equipped with real-time processing capabilities, ensuring that delays are executed as required, without any lag, which is crucial for maintaining the accuracy and safety of industrial operations.
- Easy Installation: The F2103a timer module is designed for quick and easy installation on DIN rails, which is a standard mounting system for industrial control systems, saving time and effort in setting up the system.
- Low Power Consumption: Operating with low power requirements, the F2103a is energy-efficient and reduces overall system power consumption without compromising on performance.
- Wide Operating Range: The module is built to operate in a wide range of environmental conditions, including both low and high temperatures, making it reliable in demanding industrial settings.
- Robust and Durable: Designed to withstand harsh industrial environments, the F2103a offers high durability, ensuring it performs reliably over an extended period of time, even in challenging conditions.
Applications:
- Emergency Shutdown Systems: The F2103a timer module is frequently used in emergency shutdown systems, where timing delays are crucial to ensure that safety procedures are followed in the event of a system failure.
- Safety Interlock Systems: It is widely used for controlling interlock systems, ensuring that the correct sequence of operations occurs within time constraints, maintaining safety and operational integrity.
- Automated Control Systems: In automated systems, precise timing is often required for the operation of actuators, valves, and other devices. The F2103a provides accurate control to keep the automated processes running smoothly.
- Process Control Systems: The timer module plays an important role in controlling time-dependent processes in industries like chemical manufacturing, power generation, and material handling.
- Monitoring and Alarm Systems: The F2103a can be used in systems that require accurate delay times for the activation of alarms, sensor readings, or control actions, such as in monitoring or detection systems.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Model | F2103a |
| Type | Timer Module |
| Time Delay Types | ON-Delay, OFF-Delay, Pulse Timing |
| Relay Output | No relay output (Used for time control) |
| Power Supply | 24 V DC |
| Power Consumption | < 5 W |
| Dimensions (W x H x D) | 255 mm x 114 mm |
| Weight | 2 kg |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (Non-condensing) |
| Mounting | DIN Rail Mountable |
| Protection | Overload, Short Circuit Protection |
| Certifications | CE, UL, RoHS |
| Accuracy | ±1% of set value |
| Input | Digital input for time setting |
Additional Features:
- Highly Accurate and Reliable Timing: The module’s precise time control ensures accurate timing for crucial applications in safety and process control systems, where every millisecond matters.
- Versatility in Time Functions: The module supports a wide variety of time delays, such as ON-delay, OFF-delay, and pulse timing, making it versatile and adaptable for different industrial processes.
- Compact and Robust Design: With a compact size (255 mm x 114 mm x 113 mm) and robust build, the F2103a is capable of performing reliably in environments subject to harsh conditions such as vibration, temperature fluctuations, and humidity.
- Modular Installation: The module can be easily mounted on standard DIN rails, ensuring quick and straightforward installation into existing control systems or panels.
Related or Similar Models:
| Model | Type | Dimensions (W x H x D) | Weight | Relay Outputs | Time Delay Function | Safety Certifications |
|---|---|---|---|---|---|---|
| F2102 | Safety Relay Amplifier | 255 mm x 114 mm x 113 mm | 2 kg | 4 Channels | ON-Delay, OFF-Delay | CE, UL, RoHS |
| F2202 | Dual Relay Timer Module | 207 mm x 114 mm x 66 mm | 1.3 kg | 2 Channels | Pulse Timing | CE, UL, RoHS |
| F2302 | 8-fold Relay Amplifier | 255 mm x 114 mm x 113 mm | 2 kg | 8 Channels | ON-Delay, OFF-Delay | CE, UL, RoHS |
| F2101 | 4-fold Relay Amplifier | 207 mm x 114 mm x 86 mm | 1.3 kg | 4 Channels | ON-Delay, OFF-Delay | CE, UL, RoHS |
| F2104 | Timer Control Module | 255 mm x 114 mm x 113 mm | 2 kg | No relay output | Pulse Timing | CE, UL, RoHS |
| F2200 | Single Relay Timer Module | 207 mm x 114 mm x 66 mm | 1.3 kg | 1 Channel | ON-Delay, OFF-Delay | CE, UL, RoHS |
| F2401 | 16-fold Relay Amplifier | 255 mm x 114 mm x 113 mm | 2 kg | 16 Channels | ON-Delay, OFF-Delay | CE, UL, RoHS |
| F2301 | 8-fold Timer Control Module | 255 mm x 114 mm x 113 mm | 2 kg | 8 Channels | Pulse Timing | CE, UL, RoHS |
| F2601 | 64-fold Relay Timer | 255 mm x 114 mm x 113 mm | 2 kg | 64 Channels | ON-Delay, OFF-Delay | CE, UL, RoHS |
| F2501 | 32-fold Relay Timer | 255 mm x 114 mm x 113 mm | 2 kg | 32 Channels | Pulse Timing | CE, UL, RoHS |
HIMA F2103a is in stock. Contact us for quick quotes and competitive prices.
