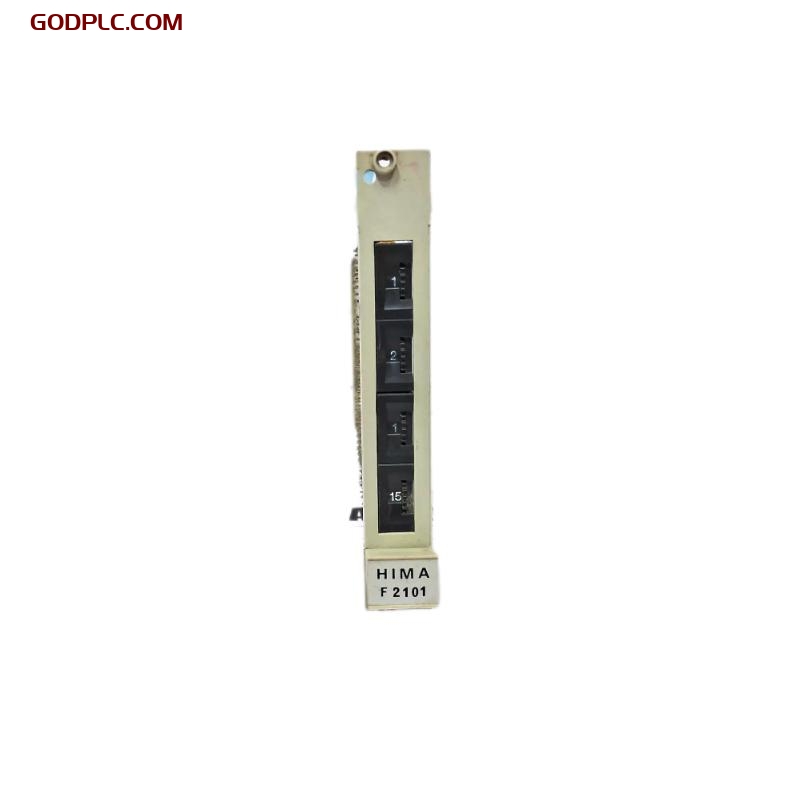

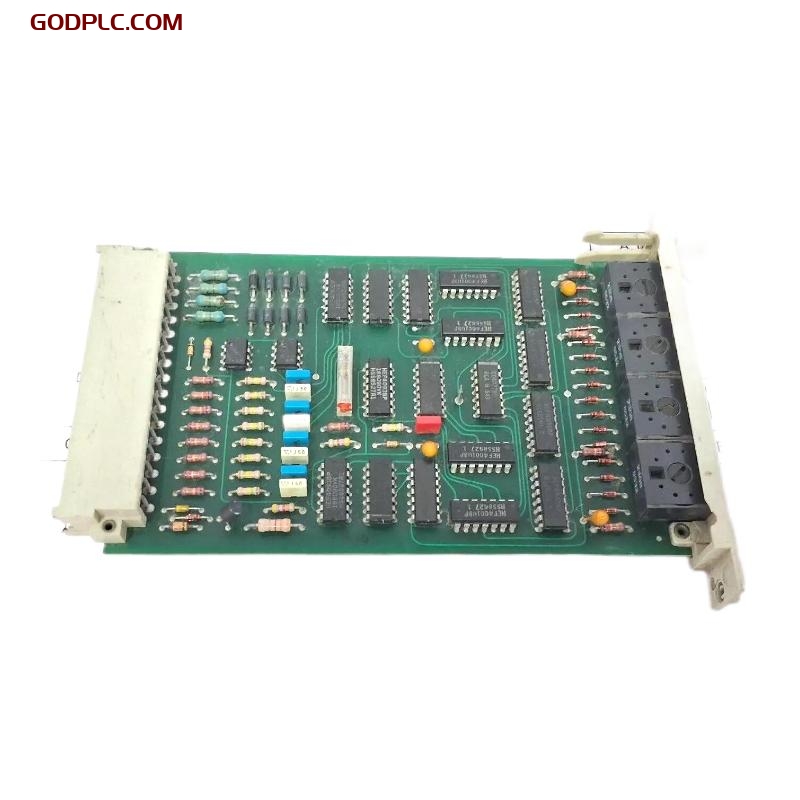

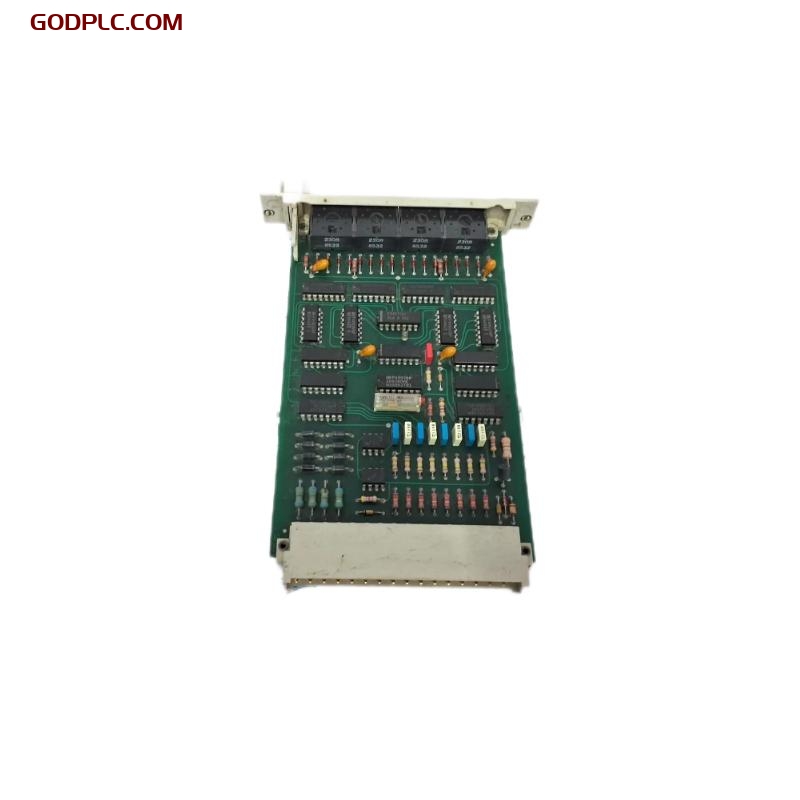

HIMA F2101 4-Relay Amplifier Module: Product Overview and Specifications

The HIMA F2101 is a high-performance, safety-critical 4-fold relay amplifier module designed for industrial automation systems where signal integrity and reliability are essential. The F2101 module is typically used in process control, safety, and emergency shutdown systems that require amplification of control signals to ensure precise and reliable operation.

This module is part of the HIMA F2 series, which is specifically designed for critical safety applications. It offers four independent relay outputs and advanced amplification features to ensure that control signals are transmitted accurately over long distances or in environments with high electrical interference. The F2101 module is particularly suited for use in industries such as oil and gas, chemical processing, power generation, and other sectors where safety and reliability are paramount.

Key Features:

• Four Independent Relay Outputs: The module provides four channels of SPDT (Single Pole Double Throw) relay outputs, which can be independently controlled. These outputs are ideal for controlling actuators, valves, alarms, or other field devices.
• Signal Amplification: The F2101 module amplifies control signals to ensure that they maintain their strength and accuracy, even over long distances or in environments with high levels of electrical noise. This feature is crucial for maintaining system integrity in challenging industrial conditions.
• High Reliability: Designed for use in safety-critical environments, the F2101 module meets stringent safety standards, providing reliable and fail-safe operation. It is built to ensure that control systems continue to operate smoothly in the event of a fault or failure.
• Real-Time Processing: The module offers real-time processing of control signals, ensuring that responses are quick and accurate. This is particularly important in applications where timing is critical, such as emergency shutdown systems.
• Compact Design: The F2101 module has a compact size, making it easy to integrate into control cabinets and other tight spaces. Despite its small footprint, it provides powerful functionality and reliable performance.
• DIN Rail Mountable: The F2101 module is designed to be mounted on standard DIN rails, making installation straightforward and convenient in industrial settings.
• Low Power Consumption: With a low power consumption rate, the module helps reduce the overall energy usage of the system without compromising on performance.
• Flexible Input Voltage: The module operates with a 24 V DC input, making it compatible with a wide range of industrial control systems.

Applications:

• Industrial Automation: The F2101 module is commonly used in industrial automation systems where reliable signal amplification and control are needed, such as in actuator and valve control applications.
• Safety Systems: In safety-critical environments, the module ensures that control signals are amplified and transmitted reliably, ensuring that safety protocols are maintained even in emergency situations.
• Process Control: The F2101 module is well-suited for process control systems, where accurate relay outputs are needed for controlling various field devices, such as pumps, compressors, and conveyors.
• Emergency Shutdown Systems: The module is frequently used in emergency shutdown systems to provide reliable and fast response times in the event of a hazardous situation, helping to prevent accidents and protect equipment.
• Remote I/O Control: The F2101 is ideal for use in remote I/O applications, where signal amplification is required for long-distance transmission to and from control systems.

Technical Specifications:

Additional Features:

• Signal Integrity: The F2101 module ensures that control signals are amplified and transmitted without degradation, even in environments with high electromagnetic interference (EMI) or over long transmission distances.
• Compact and Rugged Design: Despite its small size (207 x 114 x 86 mm), the F2101 is built to withstand harsh industrial conditions, including high vibration, extreme temperatures, and humidity.
• Real-Time Signal Processing: The F2101 ensures that control signals are processed in real-time, offering fast response times for time-sensitive applications like emergency shutdowns.
• DIN Rail Mounting: The module is designed to be easily installed on DIN rails, which are commonly used in industrial control panels, facilitating easy installation and maintenance.
• Energy-Efficient: With low power consumption, the F2101 helps to reduce energy costs while maintaining high performance and reliability.

Why Choose HIMA F2101?

The HIMA F2101 module is an ideal solution for industries requiring high-reliability signal amplification and relay control in safety-critical systems. Its compact size, real-time processing capabilities, and high safety standards make it a great choice for use in emergency shutdown systems, process control, and industrial automation. The module ensures that control signals remain strong and accurate, reducing the risk of failure and ensuring the safe and reliable operation of industrial systems.
