HIMA F1202 Safety relay module Must-Have Fashion！

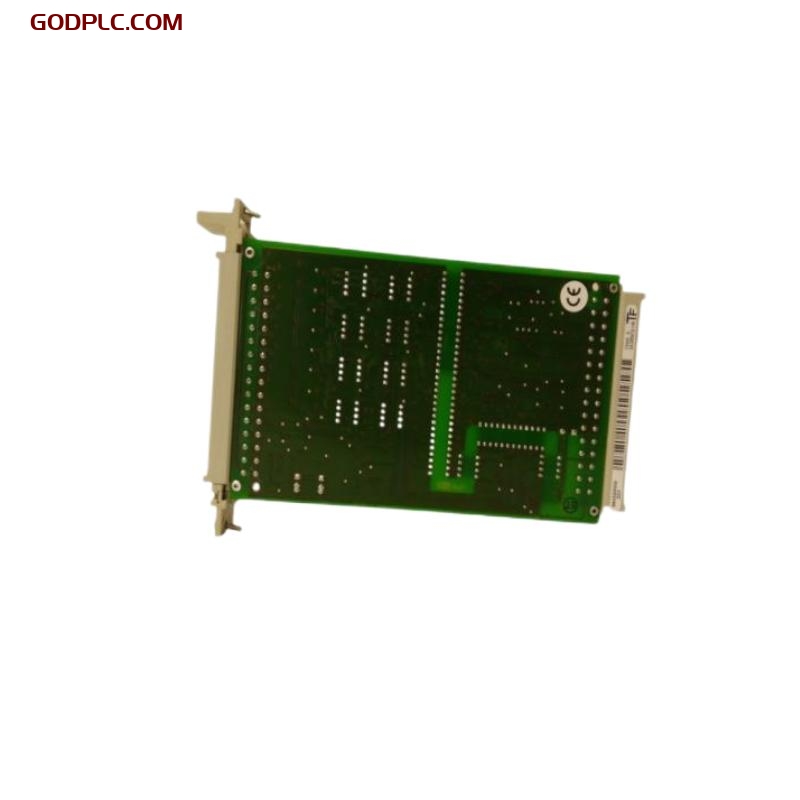

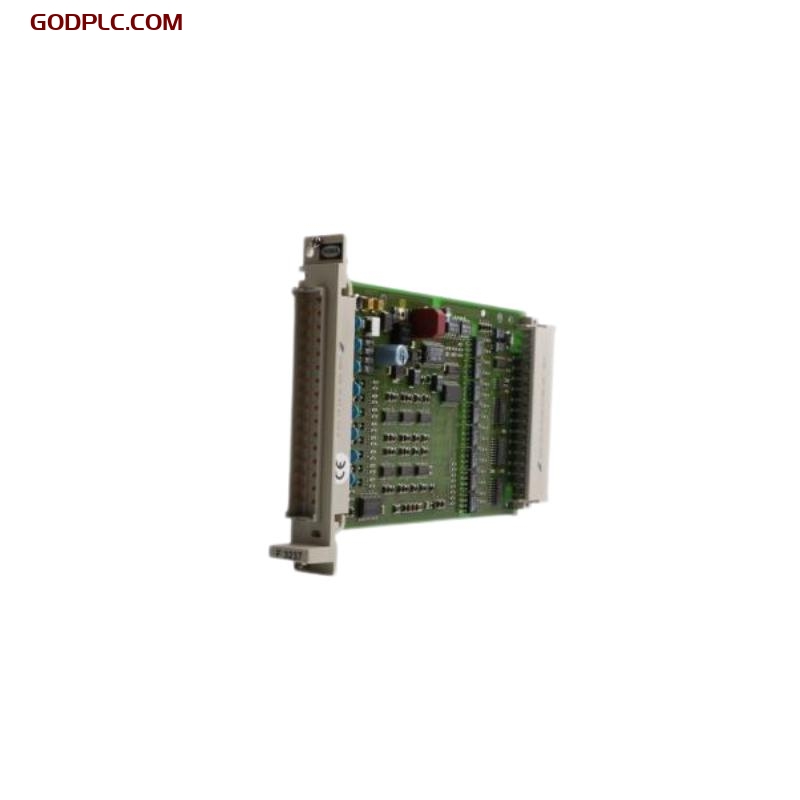

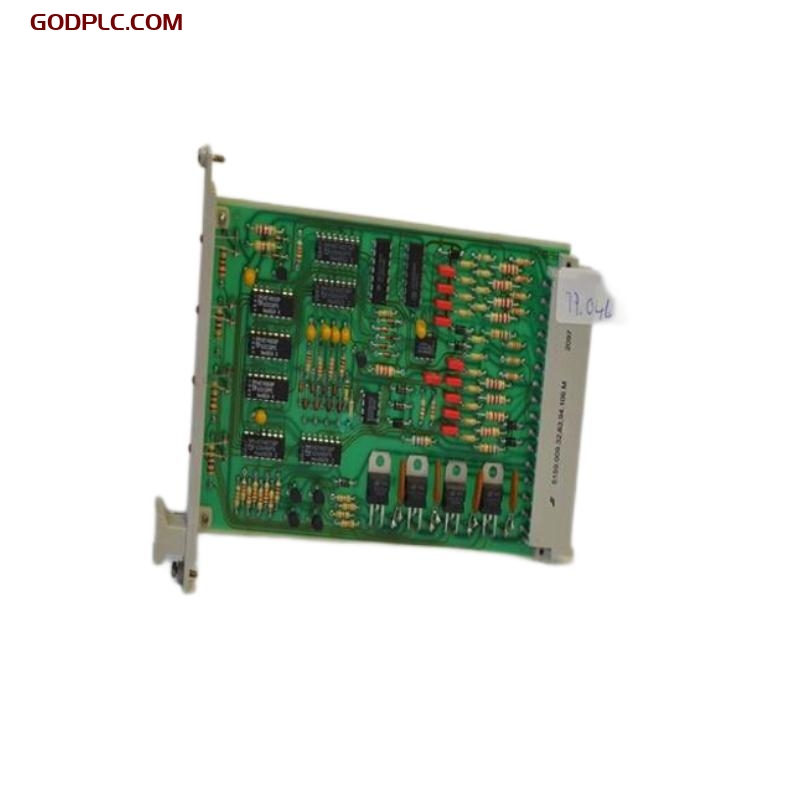

HIMA F1202 Safety Relay Module Product Introduction
The HIMA F1202 is a high-reliability safety relay module designed specifically for industrial automation control systems, providing exceptional safety and stability to ensure the protection of both equipment and personnel in complex industrial environments. The F1202 safety relay module is particularly suitable for applications with stringent safety requirements, and it is widely used in mechanical safety protection, electrical safety control, emergency stop systems, conveyor systems, and many other fields.
The F1202 module offers a variety of safety functions and supports SIL3 (Safety Integrity Level 3) certification, meeting the safety standards of EN 61508 and EN 62061. It can control output signals through relay outputs, ensuring that power is quickly cut off or equipment operation is halted in the event of a fault or danger, thereby preventing accidents. The design of the module takes into account the requirements of various industrial applications, ensuring high adaptability and stable operation in different work environments.
Key Features
- SIL3 Safety Certification: The F1202 module complies with international safety standards, supporting SIL3 safety integrity level, ensuring the system has extremely high safety performance.
- High Reliability: This module is designed and rigorously tested to withstand harsh industrial conditions such as high temperatures, humidity, and electromagnetic interference, ensuring stable operation in complex environments.
- Multiple Safety Functions: The F1202 supports multiple safety features, including fault alarms, emergency stops, equipment fault detection, and emergency shutdown, ensuring safety in the production process.
- Relay Output: Through relay output control signals, it can quickly disconnect power or stop equipment operation, ensuring a fast safety response in emergency situations.
- Fast Response: The F1202 relay module offers a fast response time, allowing the system to start or stop quickly in reaction to control signals.
- Easy Installation and Commissioning: The module uses a standard DIN rail mounting method, making installation, commissioning, and future maintenance easy while being compatible with existing control systems.
- Energy-efficient Design: The module has a low power consumption, contributing to reducing system energy consumption and meeting modern industrial energy-saving demands.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | F1202 |
| Input Voltage | 24V DC ± 20% |
| Output Signal Type | Relay output signal |
| Max Output Current | 2A (per channel) |
| Response Time | ≤ 20 ms |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% Relative Humidity, Non-condensing |
| Power Consumption | Approx. 3W |
| Protection Class | IP20 |
| Dimensions | 152 x 120 x 75mm |
| Weight | 1.3kg |
| Electromagnetic Compatibility | EN 61000-6-2, EN 61000-6-4 |
| Max Relay Load | 250V AC / 30V DC |
| Max Input Current | 20mA |
| Isolation Level | 500V AC |
| Mounting Type | DIN Rail Mounting |
| Max Input Voltage | 10V DC |
| Certification | SIL3 (Safety Integrity Level) |
| Max Relay Contact Capacity | 250V AC / 30V DC |
Application Areas
- Mechanical Safety Protection: Used for the safety protection of mechanical equipment, ensuring timely emergency shutdown in the event of faults or dangers, preventing injuries to personnel or damage to equipment.
- Electrical Safety Control: In electrical systems, the F1202 can be used to control the startup, shutdown, and fault detection of electrical equipment, ensuring the safety of electrical systems.
- Emergency Stop Systems: In production lines or hazardous work environments, the F1202 module can be used as an emergency stop control module to ensure timely shutdown of equipment during emergencies.
- Conveyor Systems: Suitable for automated conveyor systems, the F1202 ensures safety monitoring and control of equipment by providing relay output signals to prevent accidents caused by system failures.
- Industrial Automation: Widely used in automated production lines, robotics control, metallurgy, chemical industries, and more to ensure rapid response and safety measures in the event of faults or danger.
Recommended Related Models
| Model | Description |
|---|---|
| F1203 | Safety relay module, supports multiple relay outputs |
| F1204 | High-reliability safety relay, suitable for harsh environments |
| F1205 | High-speed safety relay module, suitable for fast-response systems |
| F1206 | Dual-channel safety relay module, suitable for dual redundancy systems |
| F1101 | Switch amplifier module, suitable for digital signal control |
| F1301 | High-precision safety relay module, suitable for precision control systems |
| F1102 | High-speed relay amplifier module, suitable for fast-response systems |
| F1207 | Relay control module, suitable for emergency stop control systems |
| F1302 | Safety relay module, suitable for multiple safety functions |
| F1103 | Relay output module, suitable for electrical control systems |
HIMA F1202 is in stock. Contact us for quick quotes and competitive prices.
