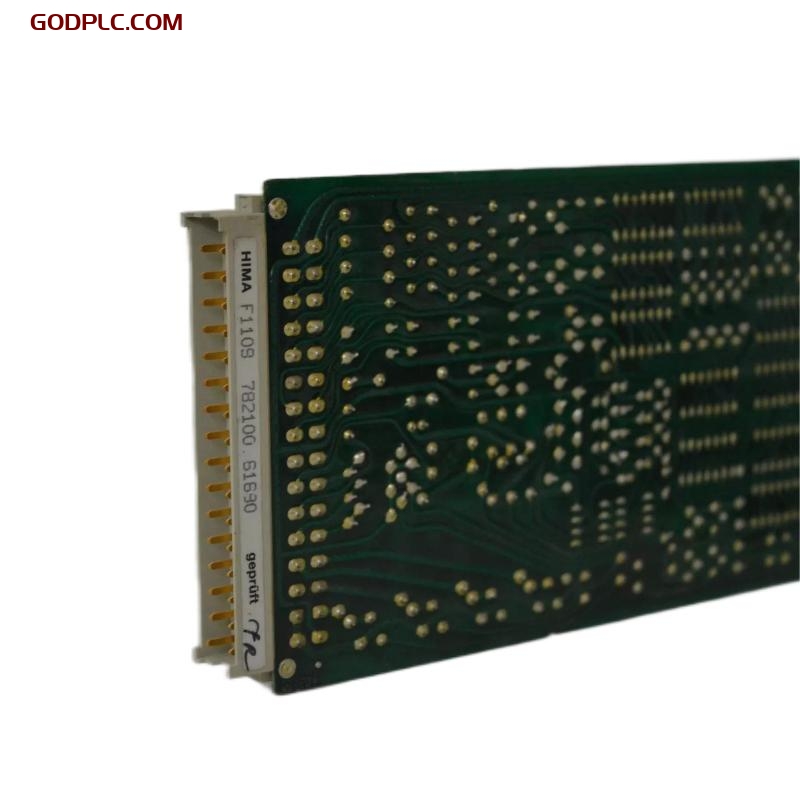

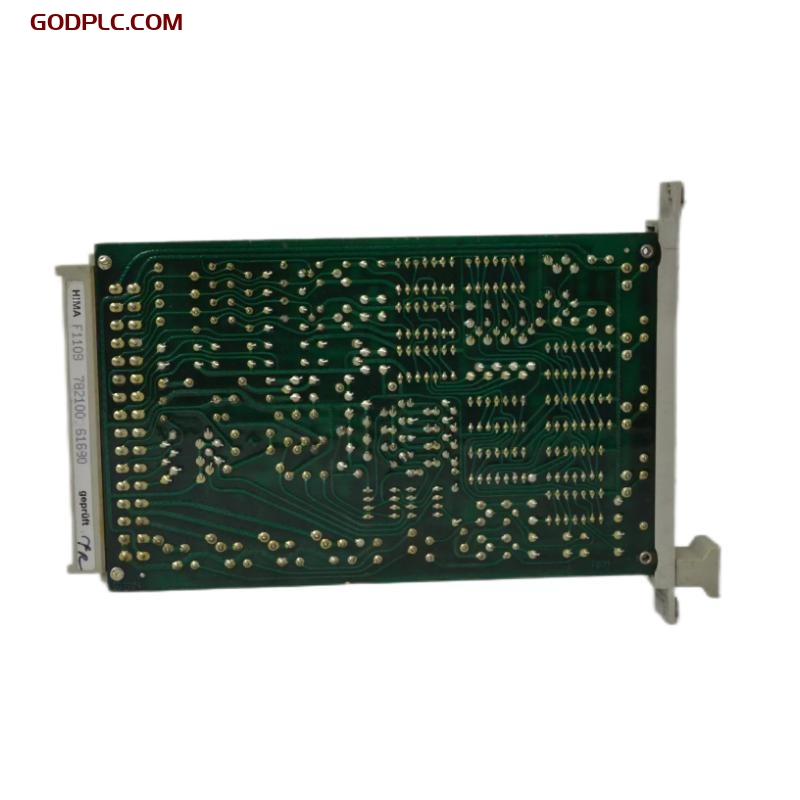

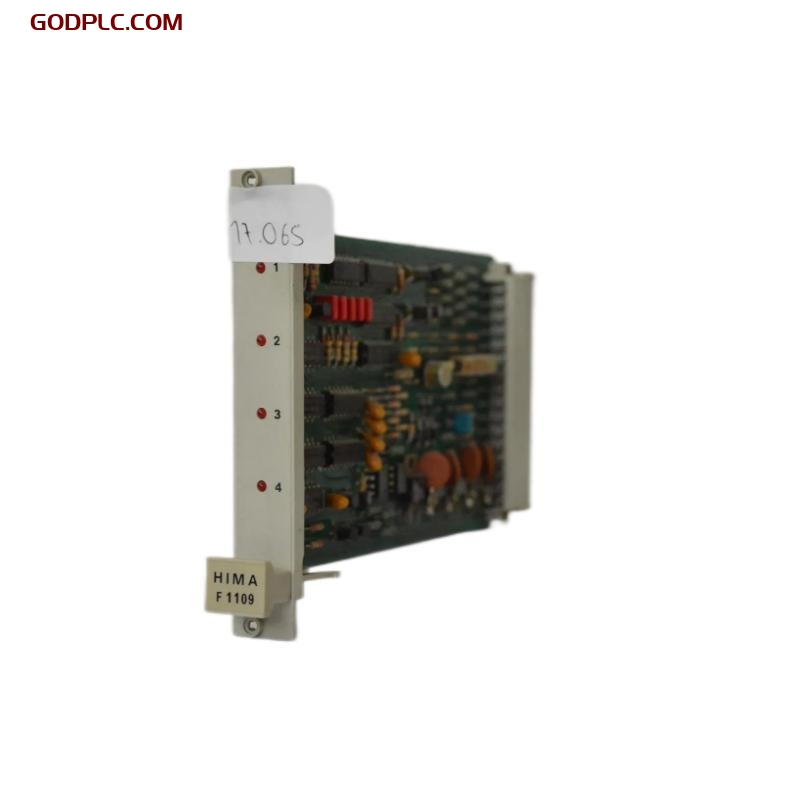

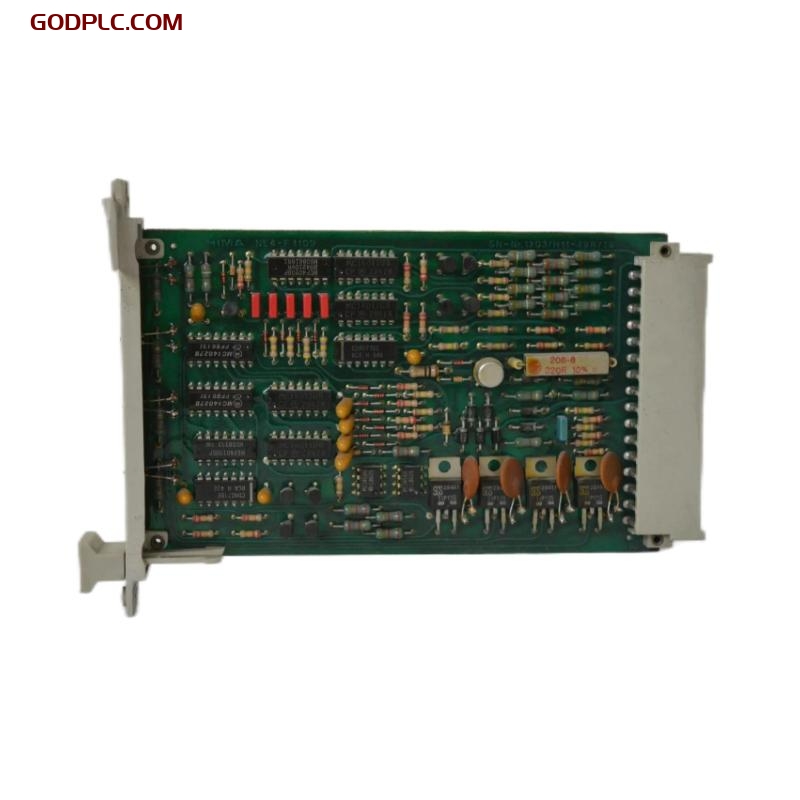

HIMA F1109 Analog Input Module Customer Favorite！
HIMA F1109 Analog Input Module Product Introduction
The HIMA F1109 is a high-precision analog input module, specifically designed for industrial automation control systems, widely used in applications requiring precise data acquisition and high stability. This module supports multiple analog signal inputs, enabling real-time monitoring and accurate measurement of various physical quantities, such as temperature, pressure, and flow. The F1109 module adopts advanced technology with high signal processing and anti-interference capabilities, ensuring stable operation in harsh industrial environments.
The F1109 module provides high accuracy and speed, allowing it to collect analog signals from various sensors in real-time and convert them into digital signals for further processing by control systems. It is a core component of HIMA’s automation control systems, extensively used in industries such as oil & gas, chemicals, power, and transportation, ensuring the accuracy of process data and the reliability of control systems.
Key Features
- High Precision Analog Input: The F1109 provides high-precision analog signal acquisition, suitable for various types of sensor inputs.
- Multi-channel Input: The module supports up to 8 analog input channels, allowing it to process multiple signals simultaneously, improving system efficiency.
- Wide Input Signal Range: It supports a wide range of input signals and is compatible with various types of sensors such as voltage, temperature, and current.
- Strong Anti-interference Performance: The module is designed to ensure stable signal transmission in environments with electromagnetic interference.
- High Reliability and Stability: After rigorous testing, the F1109 module operates reliably in extreme environments such as high temperatures and humidity.
- Easy Installation and Maintenance: With DIN rail mounting, the module is easy to install and maintain, and can be quickly integrated into existing control systems.
Technical Parameters
| Parameter | Specification |
|---|---|
| Model | F1109 |
| Input Channels | 8 Analog Input Channels |
| Input Signal Types | Voltage, Temperature, Current, etc. |
| Input Voltage Range | 0-10V DC / 4-20mA |
| Input Accuracy | ±0.1% F.S. |
| Response Time | ≤ 10 ms |
| Supply Voltage | 24V DC ± 20% |
| Power Consumption | Approx. 3W |
| Dimensions | 152 x 120 x 75mm |
| Weight | 0.95kg |
| Temperature Range | -20°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity Range | 5% to 95% Relative Humidity, Non-condensing |
| Protection Class | IP20 |
| Mounting Type | DIN Rail Mounting |
| Max Input Current | 20mA |
| Max Input Voltage | 10V DC |
| Isolation Level | 500V AC |
| Communication Interface | None (Analog Input Only) |
Application Areas
- Oil & Gas: Used to acquire data such as pressure and temperature in oil fields or natural gas production processes, ensuring safety and stability in production.
- Chemical Industry: Collects key process parameters such as temperature and pressure, helping with real-time monitoring and control of chemical reactions.
- Power Industry: Collects analog signals from power plants, substations, etc., for real-time monitoring of power system conditions.
- Water Treatment: Acquires signals such as flow, pH, and temperature, ensuring safe water quality and stable operation of equipment.
- Transportation Management Systems: Collects data on traffic signals, vehicle speed, and flow, enabling precise control and optimization of traffic systems.
Recommended Related Models
| Model | Description |
|---|---|
| F1108 | 4-channel analog input module, suitable for more compact systems |
| F1107 | 16-channel analog input module, suitable for large-scale systems |
| F1209 | High-precision analog input module, ideal for precision measurement systems |
| F1105 | High-speed analog input module, suitable for real-time control systems |
| F1110 | 8-channel analog input module, supports temperature and pressure inputs |
| F1106 | Explosion-proof analog input module, suitable for hazardous environments |
| F1103 | 4-channel temperature input module with RTD sensor support |
| F1102 | 12-channel analog input module with high isolation capabilities |
| F1203 | Multi-function module supporting analog signal conversion |
| F1301 | High-speed analog input module, ideal for high-speed sampling applications |
