GE IS220PTCCH1A Thermocouple Input Module Hot items discounted, grab them now!

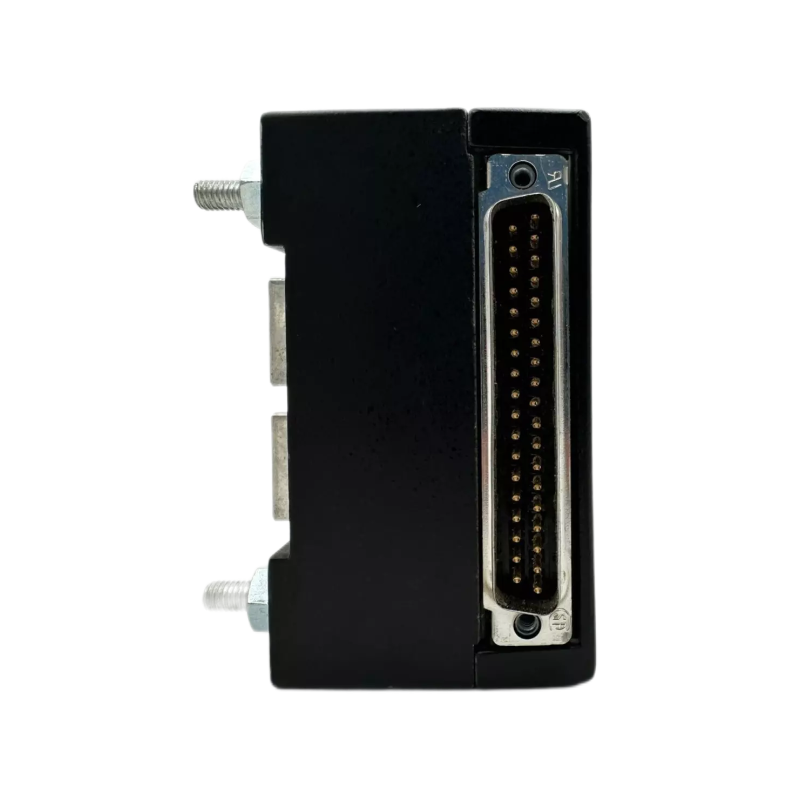

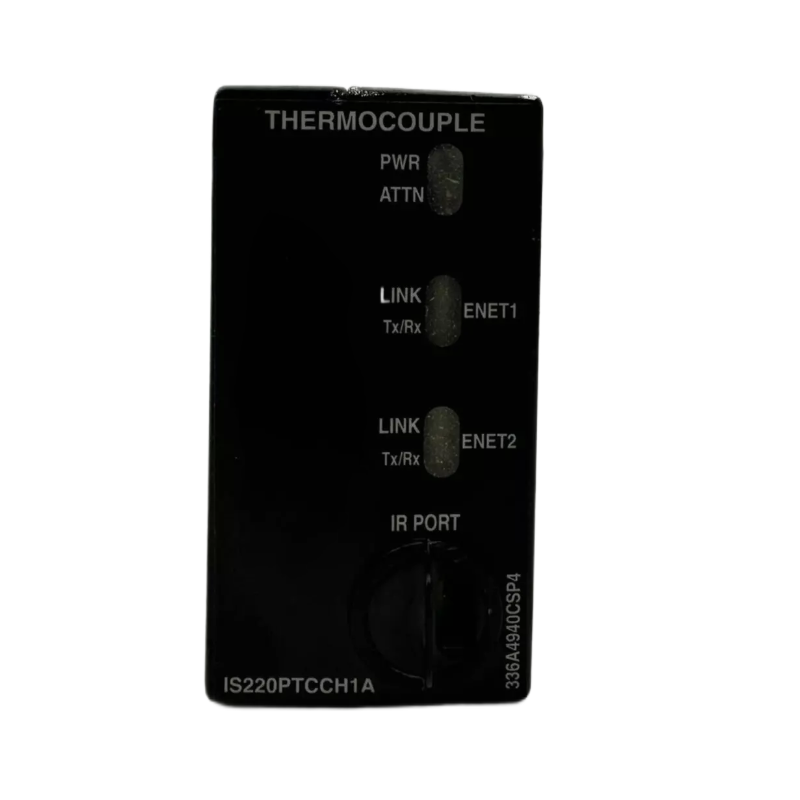

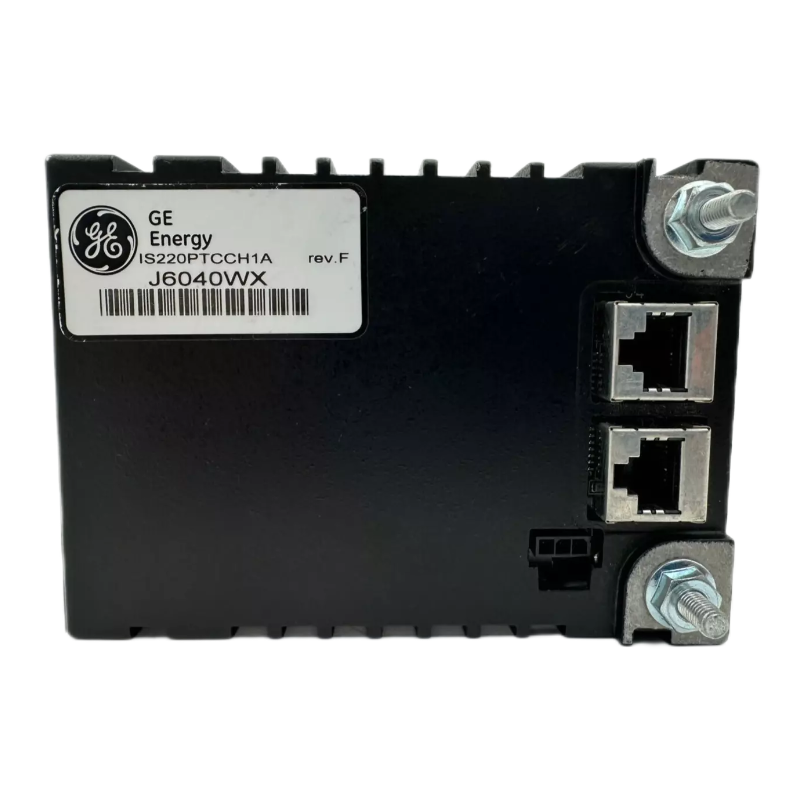

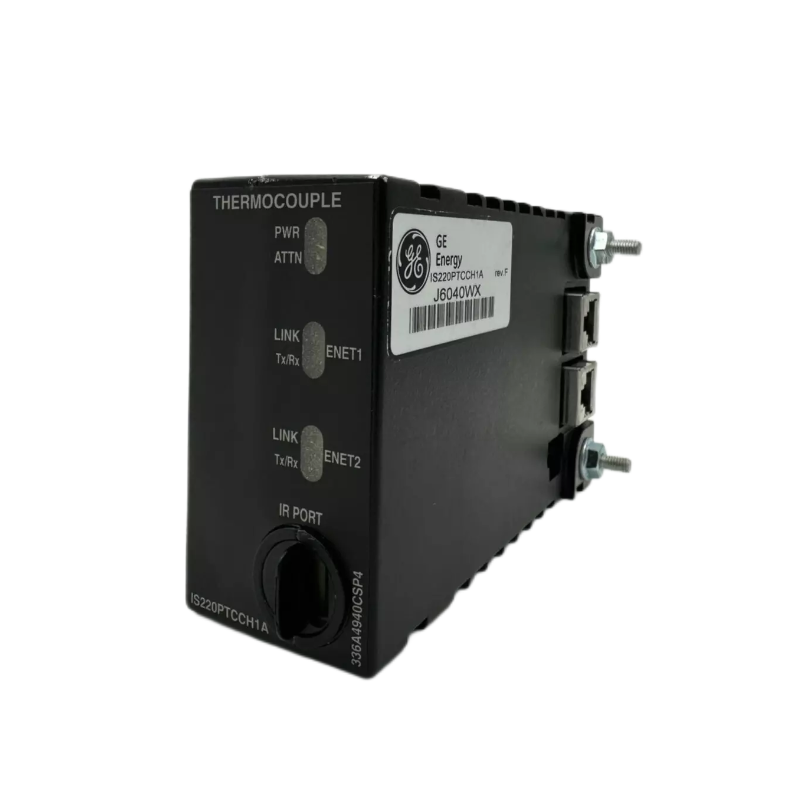

GE IS220PTCCH1A Product Introduction
The GE IS220PTCCH1A is a module from General Electric, part of the Mark VIe control system series. This module is specifically designed for processing thermocouple inputs, commonly used in automation control systems across various industries such as power generation, oil and gas, and manufacturing. The primary function of the IS220PTCCH1A is to convert the signals from thermocouple sensors into digital signals, which are then transmitted to the control system for further processing.
Product Features
- Multi-Channel Thermocouple Input: The IS220PTCCH1A supports multiple thermocouple input channels, enabling the simultaneous processing of signals from multiple temperature measurement points, ideal for complex industrial applications.
- High Measurement Precision: This module offers high-precision signal conversion, ensuring accurate temperature measurements for precise industrial equipment control.
- Wide Compatibility: It supports various types of thermocouples, including J, K, T, E, and N types, making it compatible with a wide range of sensors to meet diverse application needs.
- Digital Signal Output: The module converts thermocouple signals into digital output for communication with the control system, providing faster data processing and higher precision.
- Reliable Industrial-Grade Design: The IS220PTCCH1A is designed for industrial environments, capable of operating reliably under harsh conditions, including high temperature, humidity, and electromagnetic interference.
Technical Specifications
Below are the main technical specifications for the GE IS220PTCCH1A thermocouple input module:
| Parameter | Specification |
|---|---|
| Model | IS220PTCCH1A |
| Input Type | Thermocouple Input |
| Number of Input Channels | 8 Channels |
| Supported Thermocouple Types | J, K, T, E, N, etc. |
| Input Voltage Range | -10V to +10V |
| Input Signal Range | -200°C to 1800°C (depends on thermocouple type) |
| Conversion Accuracy | ±0.1% (varies with thermocouple type) |
| Output Type | Digital Signal Output |
| Module Dimensions | 82.6 mm (L) × 41.9 mm (W) |
| Module Weight | 0.2 kg |
| Operating Temperature Range | -40°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Operating Voltage | 24V DC ± 10% |
| Mounting Type | DIN Rail Mounting |
| Communication Interface | Built-in bus communication with control system |
Installation and Connection
The IS220PTCCH1A module uses standard DIN rail mounting, making it easy to integrate with other modules and control systems. During installation, ensure that the module’s bus connection to the control system is correct to avoid signal interruption or module malfunction.
It is also essential to properly connect the thermocouple sensors as per the technical manual, ensuring compatibility between the thermocouple and module for accurate temperature readings. Furthermore, ensure that the power supply to the module is stable and meets the voltage requirements.
Application Fields
The GE IS220PTCCH1A thermocouple input module is widely used in industrial automation systems that require temperature monitoring and control. Key application areas include:
- Power Industry: Used for monitoring and controlling the temperature of boilers, steam generators, and other critical equipment in power plants.
- Oil and Gas: Applied in refining, natural gas processing, and other process control systems, monitoring temperature in pipelines, reactors, and other equipment.
- Water Treatment: Monitors temperature changes during water treatment processes, ensuring water quality and production efficiency.
- Manufacturing: In high-temperature processing, heat treatment, and other applications where precise control of process temperatures is crucial.
GE IS220PTCCH1A is in stock. Contact us for quick quotes and competitive prices.
