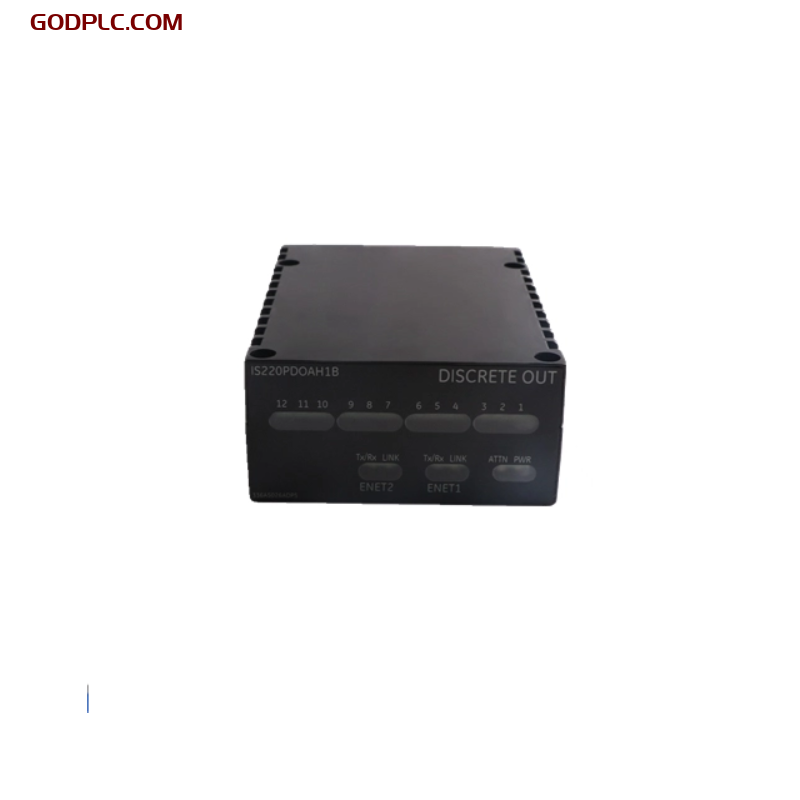

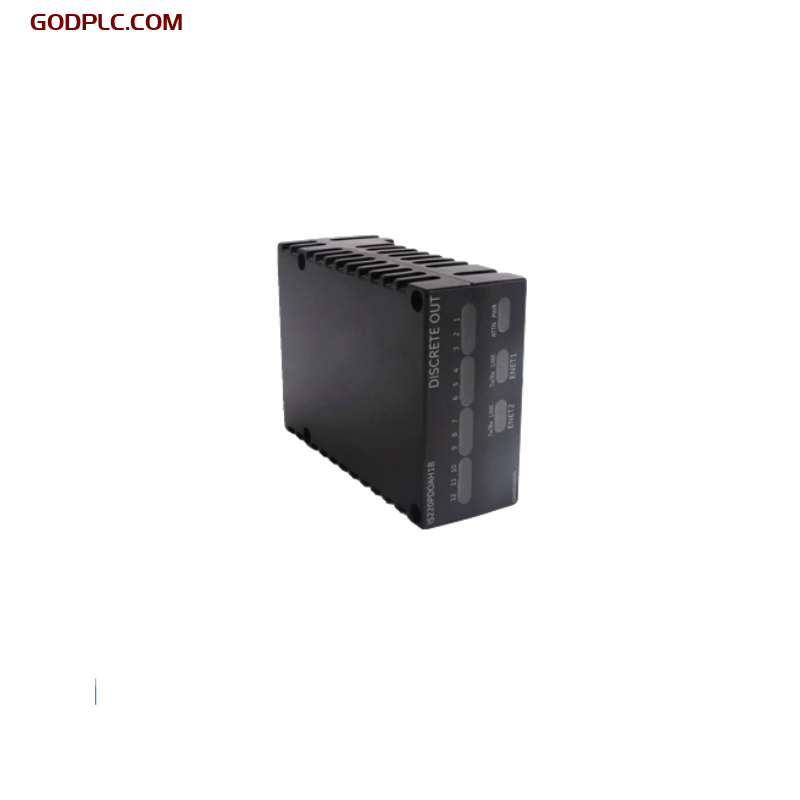

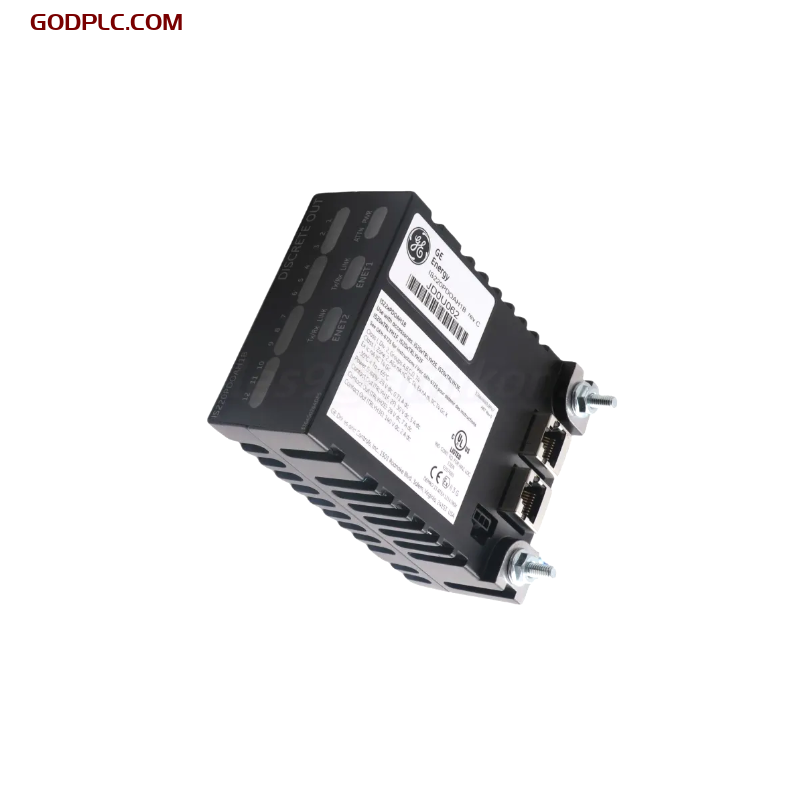

Product Overview:

The GE IS220PDOAH1B is a high-performance industrial control device widely used in automation control systems, particularly in distributed control systems (DCS) and other industrial equipment. As an advanced industrial product from GE, the IS220PDOAH1B is primarily used to handle and distribute field input signals, converting them into formats that can be analyzed and processed by control systems. This product is designed to improve the reliability and stability of systems, while ensuring efficient data transmission and processing capabilities.

Key Features:

High-precision input signal processing
Strong anti-interference capabilities
Highly integrated hardware design for efficient performance
Fully compliant with safety standards for industrial environments
Easy integration with other industrial devices and systems
Durable and capable of operating in complex environments
The IS220PDOAH1B is a highly reliable field I/O module that operates stably in complex industrial environments. It processes various input signals (such as digital and analog signals) to facilitate precise control of equipment. The device features excellent communication capabilities, supporting multiple communication protocols, enabling seamless integration with PLCs, DCS, and other systems to ensure coordinated operation of the entire control system.

Technical Specifications:

Parameter Description
Model IS220PDOAH1B
Input Type Digital Input, Analog Input
Input Voltage Range 10-30 VDC
Input Current 10-20 mA
Output Type Digital Output, Analog Output
Output Voltage Range 5-24 VDC
Output Current 5-30 mA
Communication Protocol Modbus RTU, TCP/IP, Profibus, Ethernet/IP
Processing Speed 8 ms
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Humidity Range 5% – 95% RH (non-condensing)
Dimensions 82.6 x 41.9 x 121 mm
Weight 0.8 kg
Power Supply Voltage 24 VDC ± 20%
Power Consumption Max 10 W
Insulation Rating 1500 VDC
Mounting Type DIN Rail Mount
Protection Rating IP20
Product Applications:

The GE IS220PDOAH1B is primarily used in the field equipment interface part of industrial automation control systems, especially in complex industrial environments. It is commonly used as part of a Distributed Control System (DCS) for data acquisition, signal conversion, and output control commands. Due to its high precision, reliability, and broad compatibility, the IS220PDOAH1B is widely used in industries such as oil, gas, power, chemical, and manufacturing.

Advantages of Use:

Highly Integrated Design: The IS220PDOAH1B features multiple input and output interfaces and supports multiple communication protocols, making it easy to integrate with existing systems.
Excellent Anti-interference: The device offers strong anti-interference capabilities, ensuring stable operation in harsh industrial environments and safeguarding production safety and efficiency.
Flexibility and Scalability: The device supports different types of input and output signals, and software configuration makes it adaptable to various application scenarios.
Easy Maintenance: The device’s simple structural design makes it easy for on-site installation and maintenance, minimizing system downtime.
Operating Environment:

The IS220PDOAH1B is suitable for use in extreme industrial conditions, with high-temperature resistance and corrosion resistance ensuring reliable operation in harsh environments. It is widely used in power plants, metallurgy plants, water treatment plants, and automated production lines.
